No. Part No. Part Name Q'ty Remarks 1 JKHJ-MC101-T1 BOD Y ,FEEDER 1 2 JKHJ-MC1A3-01 CO VER,CABLE 1 3 KHJ-MC10D-00 PLUG,BOD Y 1 4 KHJ-MC10R-00 CO VER,T APE R O AD 1 4 2 1 3 KHJ-0805 1 1 FEED & BOD Y(S/N 5401-7300…
No. Part No. Part Name Q'ty Remarks Change
Compati.
1 KHJ-MC103-02 BLOCK,FRONT 1
2 KHJ-MC104-00 RAIL,UNDER 1
3 KHJ-MC105-00 PIN,TAIL 1
4 KHJ-MC10F-00 SCREW,FLAT HEAD 2
5 KHJ-MC10M-00 BOLT,HEX. S/H 2
6 KHJ-MC139-00 SHAFT,IDLE GEAR 1 1
7 KHJ-MC16J-00 SCREW,FLAT HEAD 6
8 KHJ-MC181-00 HANDLE 1
9 KHJ-MC182-00 TENSION,WIRE 1 1
10 KHJ-MC183-00 SPACER,TENSION 1 1
11 KHJ-MC184-00 SPACER,TENSION 2 3
12 KHJ-MC185-00 PIN,HANDLE 1
13 KHJ-MC186-00 WIRE,UNCLAMP 1
14 KHJ-MC187-00 SPRING,TENSION 1
15 KHJ-MC189-00 PIN,CLAMP 1
15-1 KHJ-MC189-01 PIN,CLAMP 1 (2008/6/25) NG
16 KHJ-MC18A-00 SPRING,CLAMP 1
17 KHJ-MC18B-00 COVER,WIRE 1 1
18 KHJ-MC18C-00 COVER,WIRE 2 1
19 KHJ-MC18F-00 CIRCLIP (E) 1
20 KHJ-MC18H-00 CLAMP LEVER ASSY. 1
21 91312-03008 BOLT HEX.SOCKET HEAD 2
22 92A08-03305 SCREW,SET 2
23 98702-03006 SCREW FLAT HEAD 1
24 99480-03010 PIN,PARALLEL 2
23 98702-03006 SCREW FLAT HEAD 1
24 99480-03010 PIN,PARALLEL 2
25 KHJ-MC10S-00 PIN,LOCATE 1 1
26 KHJ-MC10T-00 PIN,LOCATE 2 1
22
8
12
9
10
11
13
7
14
18
7
17
20
22
19
16
15
6
21
23
3
5
1
24
25
26
2
4
KHJ-0805
1
4

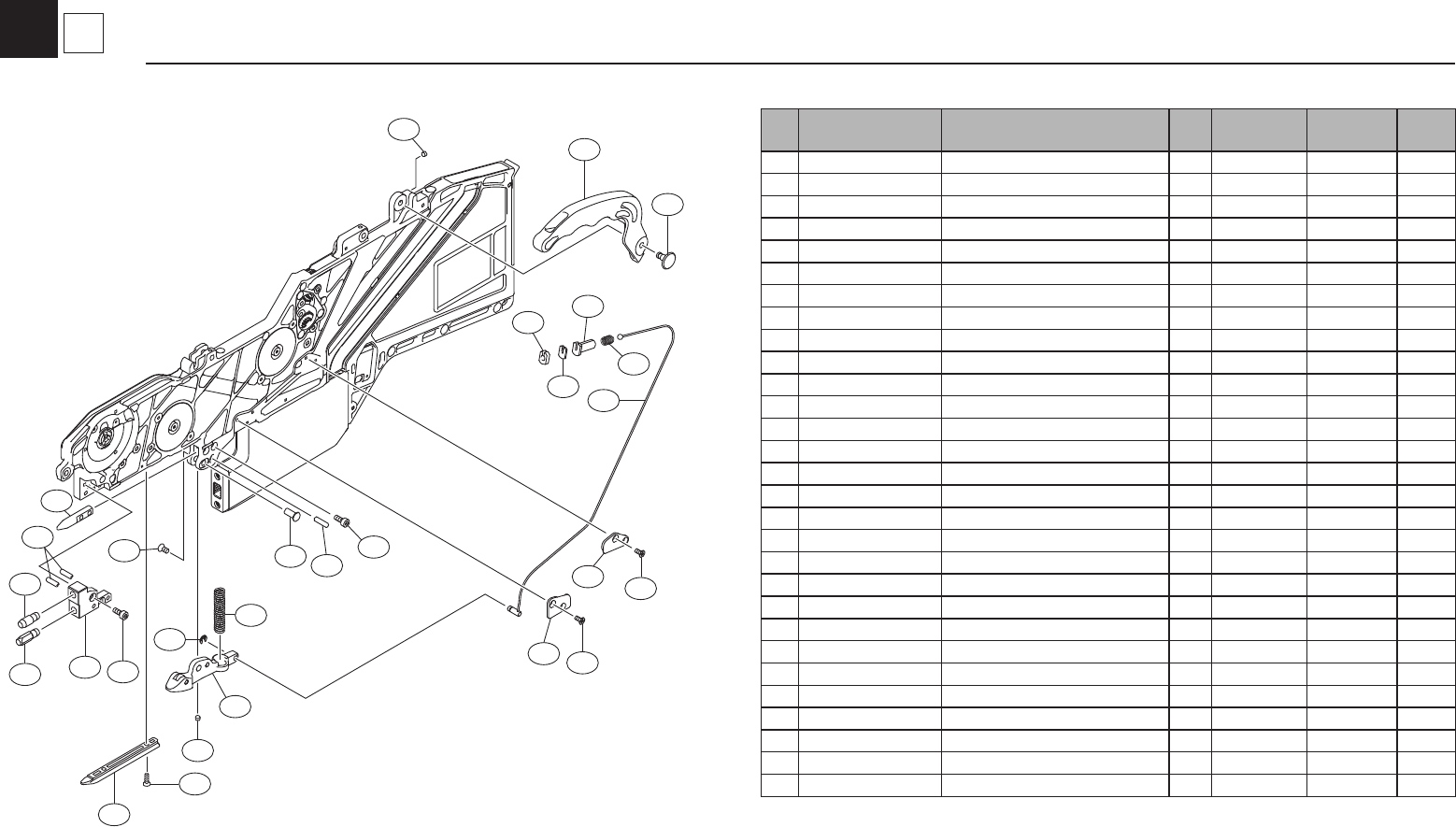

CLAMP LEVER 8mm
No. Part No. Part Name Q'ty Remarks
1
JKHJ-MC101-T1 BODY,FEEDER 1
2
JKHJ-MC1A3-01 COVER,CABLE 1
3
KHJ-MC10D-00 PLUG,BODY 1
4
KHJ-MC10R-00 COVER,TAPE ROAD 1
4
2
1
3
KHJ-0805
1
1

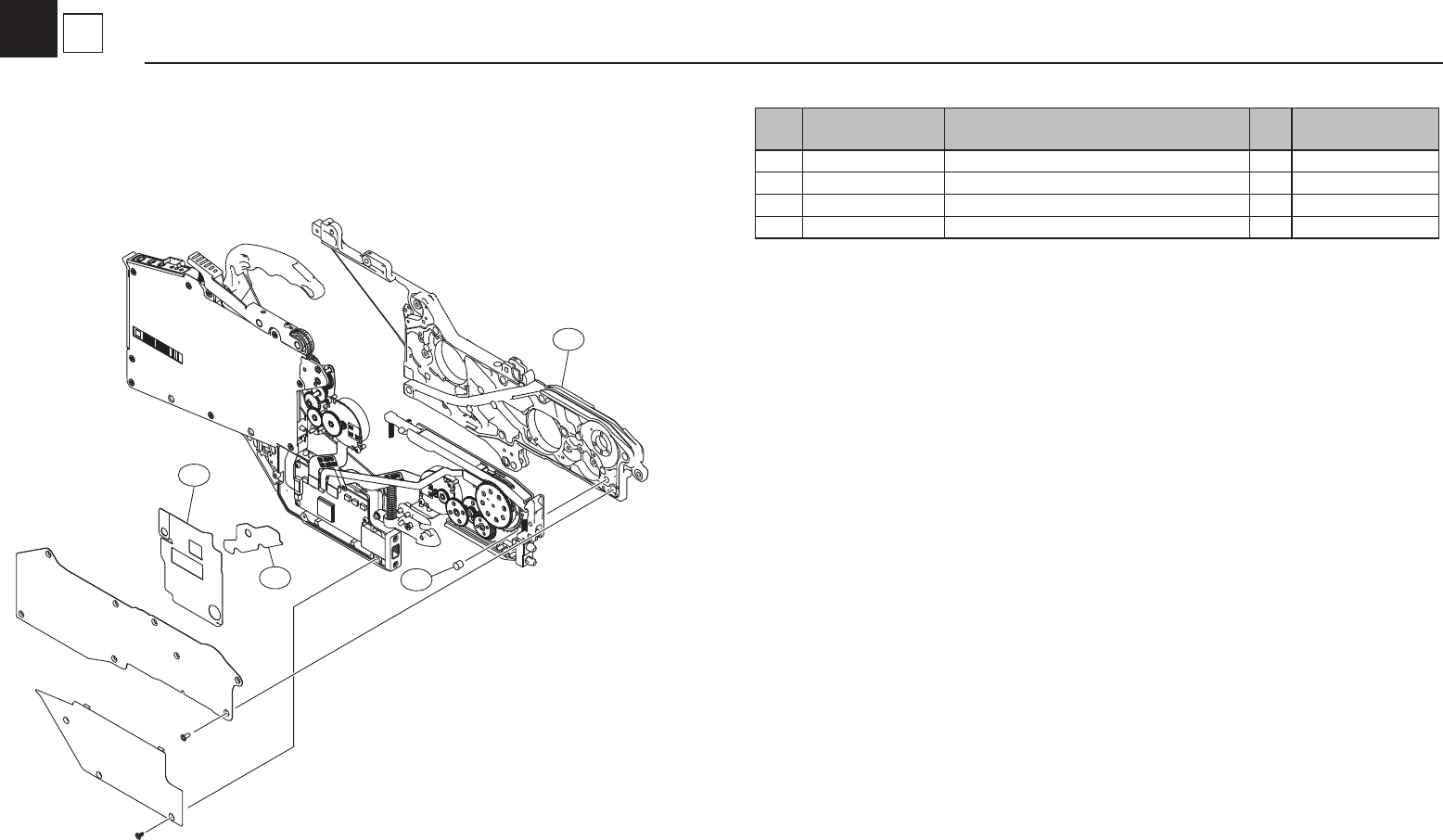

FEED & BODY(S/N 5401-7300 Special Parts) 8mm
No. Part No. Part Name Q'ty Remarks
1 KHJ-MC101-01 BODY,FEEDER
1
2 KHJ-MC110-00 MOTOR,FEED
1
3 KHJ-MC102-00 COVER,FEEDER SIDE 1 1
4 KHJ-MC10C-00 SEAL,MAIN LABEL 1
5 KHJ-MC10E-00 SCREW,FLAT HEXLOBE 8
6 KHJ-MC134-00 GEAR,IDLE F1
1
7 KHJ-MC135-00 GEAR,IDLE F2
1
8 KHJ-MC136-01 GEAR,IDLE F3
1
9 KHJ-MC137-00 GEAR,IDLE F4
1
10 KHJ-MC138-00 GEAR,DRIVEN
1
11 KHJ-MC139-00 SHAFT,IDLE GEAR 1
3
12 KHJ-MC13C-00 PLATE,PUSHER GEAR
1
13 KHJ-MC13D-00 SPRING,PUSHER PLATE
3
14 KHJ-MC13F-00 SCREW,STAD
2
15 KHJ-MC161-01 BOX,TOP TAPE
1
16 KHJ-MC162-01 COVER,TOP TAPE BOX 1
17 KHJ-MC166-00 BLOCK,P/O TOOTH 1
1
18 KHJ-MC16F-00 SCREW,FLAT HEAD TAP. 6
19 KHJ-MC16J-00 SCREW,FLAT HEAD 2
20 KHJ-MC16U-00 TAIL COVER ASSY. 1
21 KHJ-MC106-00 PLATE,UNDER
1
22 90166-02JA03 SCREW,PAN HEAD
2
23 91317-03006 BOLT HEX.SOCKET HEAD
3
24 91317-03008 BOLT HEX.SOCKET HEAD
2
25 98707-03006 SCREW,FLAT HEAD
3
24
17
1
25
15
23
22
2
14
6
7
11
10
12
13
9
11
8
11
21
23
3
5
20
4
16
18
19
4
KHJ-0803
1
1
FEED & BODY 8mm
