COVERS MACHINE COVERS 3.20 Technical Reference Manu al Chapter Issue 2 Sep 09 Met al Cover Machine In order to protect personnel and prevent damage to the machine, eight pan els are fitted to the machine. The upper p art…
COVERS
MACHINE COVERS
Chapter Issue 2 Sep 09 Technical Reference Manual 3.19
7. Remove the earth strap from the bottom of the panel.
8. Remove the panel.
Sliding Glass Cover The sliding glass cover is heavy and requires a minimum of two people to lift it
away from its mountings. If the cover needs to be removed; contact DEK
Customer Support Group for further information and the special tools required.
Rear Printhead
Cover
To remove the rear printhead cover:
1. Lift the rear printhead cover.
2. Locate the cover open mechanism.
3. Remove the bracket securing screws from both sides of the lid.
4. Lift the cover away from the machine.
Refitting the Covers NOTE
Before fastening latches ensure that all panels are located on the pins and the
location tabs are fully engaged.
Bracket Securing Screws
View on Right Hand Side of the Cover Assembly
(Cover in the Open Position)
COVERS
MACHINE COVERS
3.20 Technical Reference Manual Chapter Issue 2 Sep 09
Metal Cover
Machine
In order to protect personnel and prevent damage to the machine, eight panels
are fitted to the machine.
The upper part of the machine is protected by the front printhead cover, the rear
fixed printhead cover, the top panel and two upper side panels.
Figure 3-8 Metal Cover Machine
NOTE
Some of the covers can only be removed in a specific order due to the covers
interlocking with each other.
Item Description Item Description
1 Top Panel 7 Rear Panel (opposite front panel)
2 Front Printhead Cover 8 Rear Corner Panel (in 2 positions)
3 Front Right Hand Corner Panel 9 Safety Cover (in 2 positions)
4 Front Panel 10 Upper Side Panel (in 2 positions)
5 Front Left Hand Corner Panel 11 Rear Fixed Printhead Cover
6 Lower Side Panel (in 2 positions)
1
2
3
4
5
6
7
8
9
10
11
COVERS
MACHINE COVERS
Chapter Issue 2 Sep 09 Technical Reference Manual 3.21

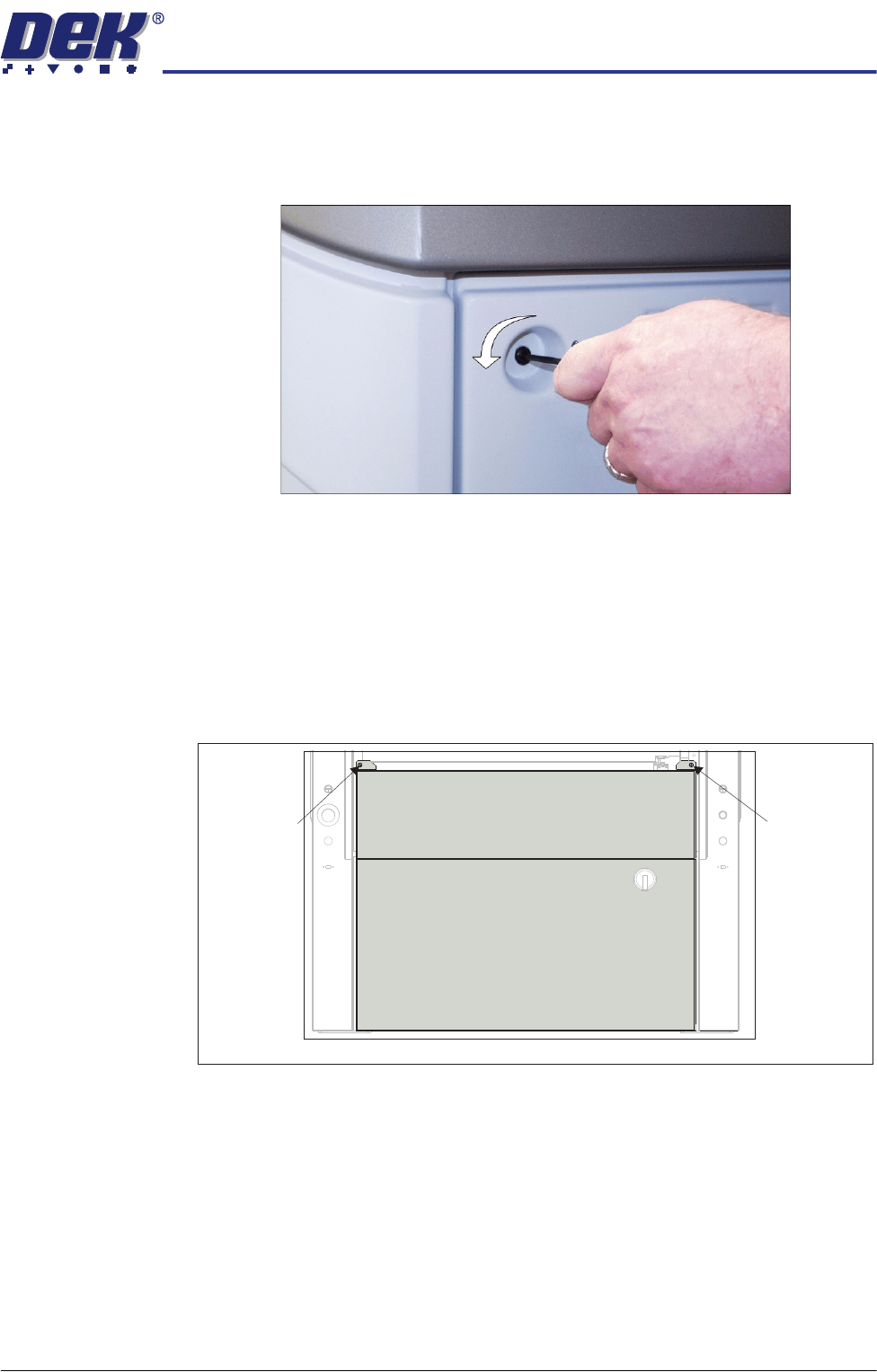

Button Head
Quarter-Turn
Fasteners
To remove a panel secured with button head quarter-turn fasteners, using a
4mm Allen key (maintenance key), turn the fastener anticlockwise by a quarter-
turn and pull out.
Figure 3-9 Button Head Quarter-Turn Fastener
Front Panel To remove the front panel, carry out the following:
1. Open the front printhead cover.
2. Remove the keyboard from its stowage.
3. Disconnect the keyboard from the 4 port USB hub.
4. Using a maintenance key, release the two button head quarter-turn fasten-
ers located at the top corners of the panel.
5. Tilt the top of the panel away from the machine and lift the panel clear.
View on Front of Machine
Button Head
Quarter-Turn
Fastener
Button Head
Quarter-Turn
Fastener
