COVERS MACHINE COVERS 3.6 Technical Reference Manual Chapter Issue 2 Sep 09 7. Remove the switch release tool from the co ntact assembly . NOTE T o refit the contact assembly to the switch body , using the locating keywa…
COVERS
MACHINE COVERS
Chapter Issue 2 Sep 09 Technical Reference Manual 3.5
Upper Side Panels To remove the upper side panels, carry out the following:
1. Remove the rear printhead fixed cover (as detailed previously).
2. Open the front printhead cover.
3. Remove the corresponding safety cover (as detailed previously).
NOTE
Before the upper side panel can be removed, the control switches (system
switch, jog switch etc.) must be disconnected in the following manner.
4. Locate the two release slots in the contact assembly part of the switch.
5. Insert the switch release tool (Part No 188647) into the slots and push until
the release tool clicks into place.
6. Leaving the switch release tool in position, pull the contact assembly from
the switch body.
COVERS
MACHINE COVERS
3.6 Technical Reference Manual Chapter Issue 2 Sep 09
7. Remove the switch release tool from the contact assembly.
NOTE
To refit the contact assembly to the switch body, using the locating keyway,
push the two units together until they click into place.
8. Release the three quarter-turn fasteners that secure the upper side panel
and remove the panel.
9. Repeat Steps 3 to 8 for the other side panel, if required.
Front Corner Panels To remove the front corner panels, carry out the following:
1. Remove the front panel.
2. Remove the corresponding upper side panel (as detailed previously).
3. Release the quarter-turn fastener that secures the corner panel.
4. Lift the corner panel upwards to disconnect the panel from the side panel
and the guide pins that locate the panel to the machine frame.
5. Repeat Steps 2 to 4 for the other corner panel, if required.
Upper Side Panel Quarter-Turn Fasteners
Front Corner
Panel Quarter-
Turn Fastener
Front Corner
Panel Quarter-
Turn Fastener
COVERS
MACHINE COVERS
Chapter Issue 2 Sep 09 Technical Reference Manual 3.7
Rear Corner Panels To remove the rear corner panels, carry out the following:
1. Remove the corresponding upper side panel (as detailed previously).
2. Release the quarter-turn fastener that secures the corner panel.
3. Lift the corner panel upwards to disconnect the panel from the side panel
and the guide pins that locate the panel to the machine frame.
4. Repeat Steps 1 to 3 for the other corner panel, if required.
Side Panels To remove the side panels, carry out the following:
1. Remove both corresponding corner panels (as detailed previously).
2. Using a cross head screwdriver, release the two fasteners that secure the
side panel to the cover frame.
3. Lift the side panel upwards to clear the two guide pins that locate the panel
to the machine frame.

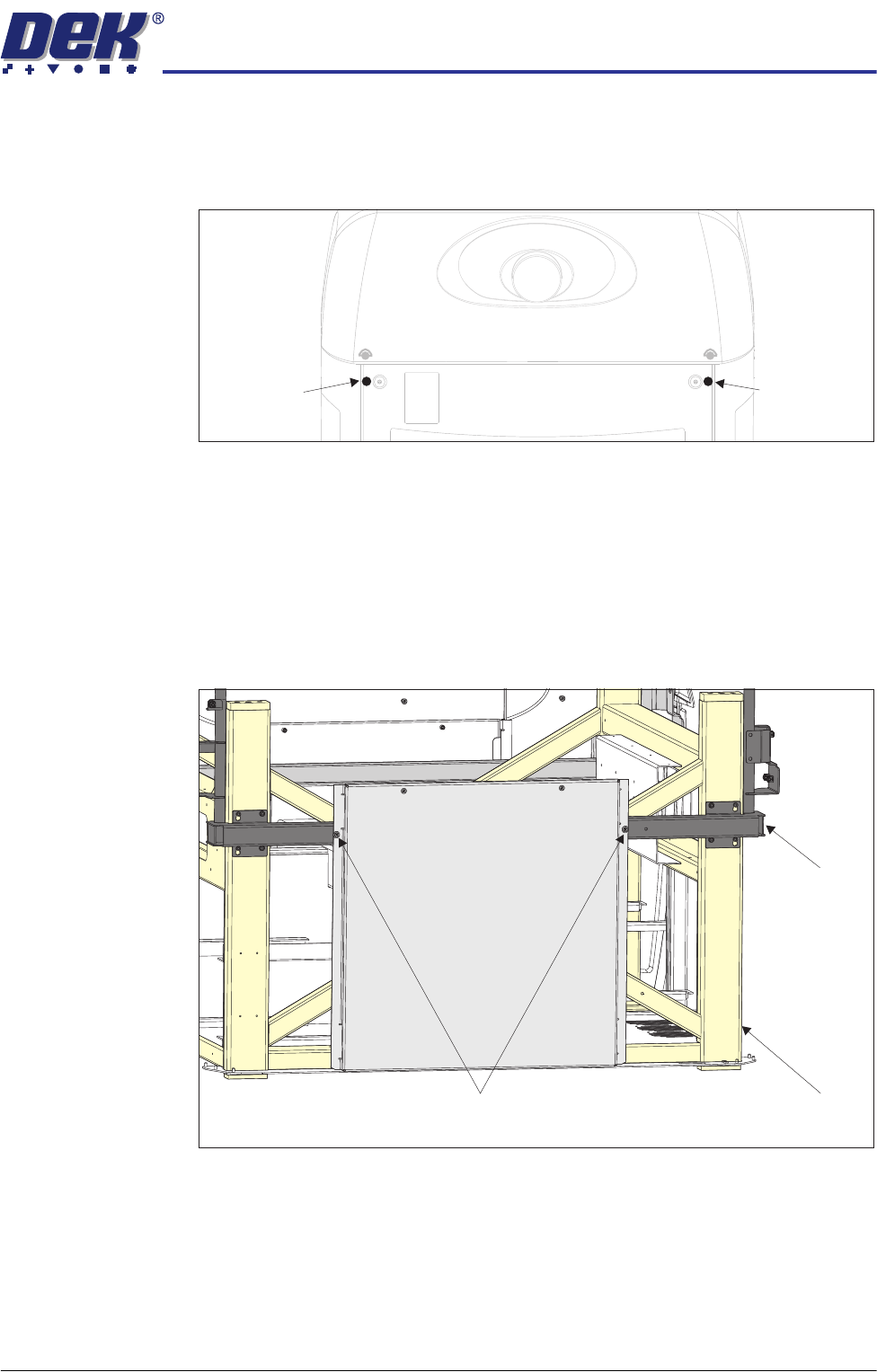

Rear Corner
Panel Quarter-
Turn Fastener
Rear Corner
Panel Quarter-
Turn Fastener
Side Panel Securing Fasteners
View on Right Hand Side of Machine
Cover Frame
Main Frame
