2 Overview of the Modules 2.1 C&P20, C&P20A and C&P20M head 2.1.2 Application 16 Service Manual SIPLACE C&P20, C&P20A, C&P20M 2.1.2 2 . 1 . 2 A p p lic a t io n Application The placement heads can…
2 Overview of the Modules
2.1.1 Differentiation of the C&P20 heads 2.1 C&P20, C&P20A and C&P20M head
Service Manual SIPLACE C&P20, C&P20A, C&P20M 15
2
2 Overview of the Modules
Overview of the Modules
2.1
2.1 C&P20, C&P20A and C&P20M head
C&P20, C&P20A and C&P20M head
2.1.1
2.1.1 Differentiation of the C&P20 heads
Differentiation of the C&P20 heads
Differenc es between CP 20/A/M
The C&P20A differs from the C&P20 in the following issues:
▪ New E/D transformer
▪ Improved linear guide rails at the segments
▪ Driver bearing
▪ Modified Z-axis (also used in C&P20 later on)
▪ Hoses
▪ FHE components
The C&P20M differs from the C&P20A in the following issue:
▪ Incremental encoder of the star motor

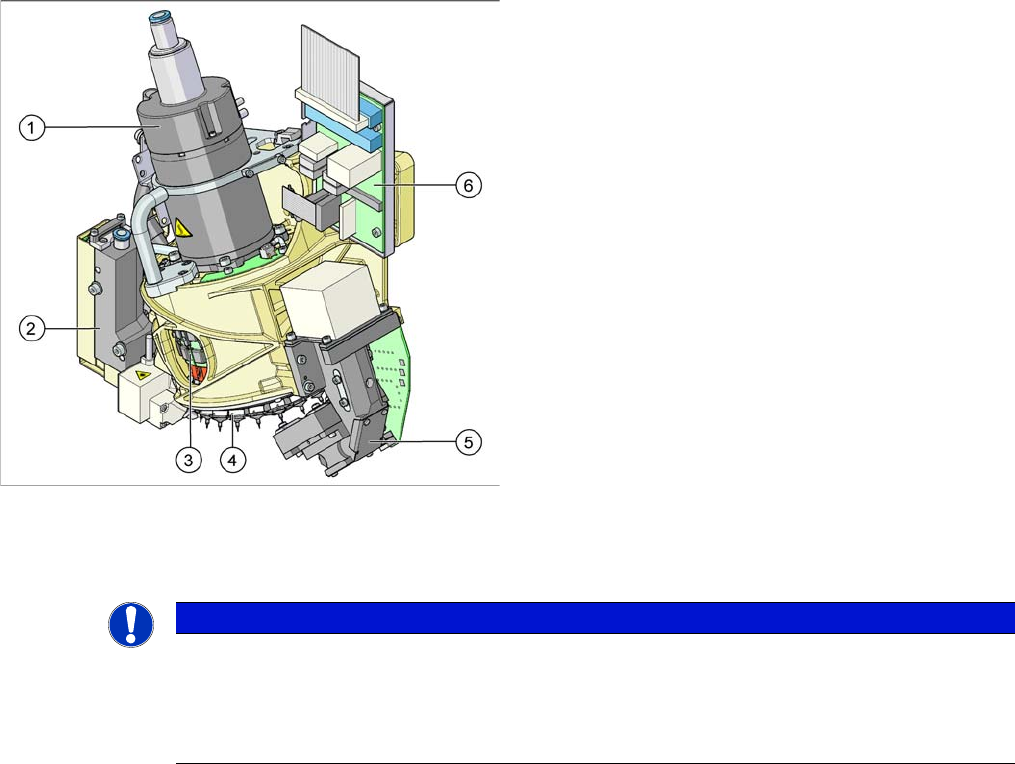

C&P20A
1. Star motor
2. Pressure control valve
3. DP drives (20 x)
4. Star with 20 nozzles
5. Component Camera
6. Intermediate distributor board
NOTICE
C&P20, C&P20A, C&P20M
The instructions apply in principle to all C&P20, C&P20A and C&P20M heads.
Any differences will be explicitly indicated.
► The different heads can be recognized according to the labeled stickers.
2 Overview of the Modules
2.1 C&P20, C&P20A and C&P20M head 2.1.2 Application
16 Service Manual SIPLACE C&P20, C&P20A, C&P20M
2.1.2
2.1.2 Application
Application
The placement heads can be used in the following machines:
X = possible
--- = not possible
* = intended
Machine C&P20 C&P20A C&P20M *
X-Series (SW60x) XX---
X-Series (SW70x) --- X ---
X4i --- X ---
SX1, SX2 --- X ---
DX1, DX2 --- X ---
SX1 V2, SX2 V2 --- X ---
SX4 --- X ---
DX4 --- X ---
X2 S * --- X* ---
X3 S --- X ---
X4 S --- X ---
X4i S --- X ---
X4 S micron * --- --- X*
CA * --- X* X*
CA WLFO * --- --- X*
2 Overview of the Modules
2.1.3 Overview of Parts 2.1 C&P20, C&P20A and C&P20M head
Service Manual SIPLACE C&P20, C&P20A, C&P20M 17
2.1.3
2.1.3 Overview of Parts
Overview of Parts
Parts overview from the front (C&P20 as an example)
1. Pressure control valve [03005070-xx]
2. Return unit [03007696-xx]
3. Z axis [03058631-xx] with snap jaws [03010313-xx]
and Z axis down sensor [03007833-xx]
Parts overview from the bottom (C&P20 as an example)
1. Intermediate distributor
2. Component camera [03003426-xx]
3. Silencer [03005221-xx]
4. Component sensor [03006742-xx]
5. DP drive [03005109-xx]
Parts overview of the star (C&P20 as an example)
1. Silencer [03005221-xx]
2. Holding circuit vacuum unit [03005122-xx]
3. Star carrier [03005117-xx]
4. E/D transformer (collector ring) [03007711-xx]
1
3
2
1
5
4
3
2
1
4
3
2
