2 Overview of the Modules 2.1 C&P20, C&P20A and C&P20M head 2.1.3 Overview of Parts 18 Service Manual SIPLACE C&P20, C&P20A, C&P20M
2 Overview of the Modules
2.1.3 Overview of Parts 2.1 C&P20, C&P20A and C&P20M head
Service Manual SIPLACE C&P20, C&P20A, C&P20M 17
2.1.3
2.1.3 Overview of Parts
Overview of Parts

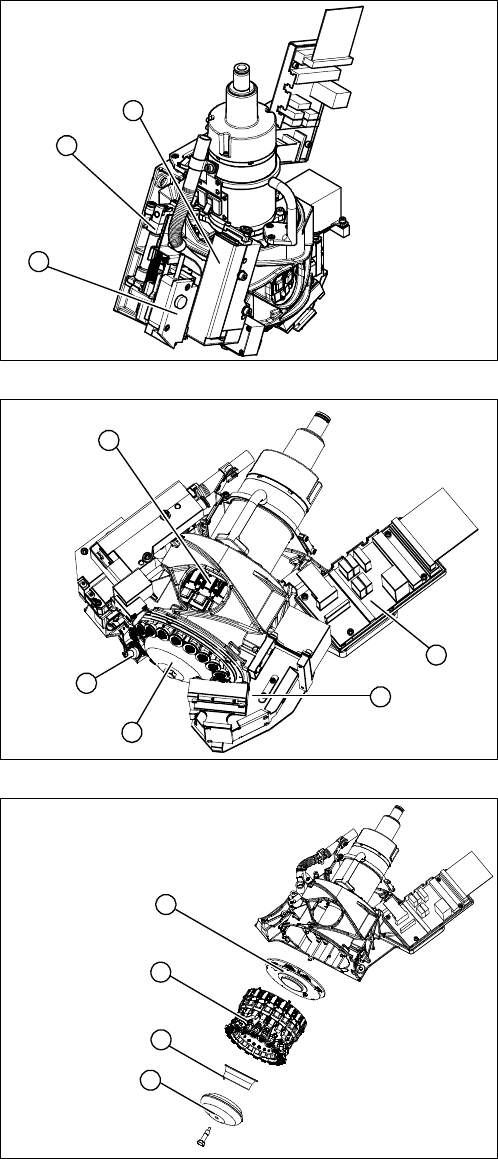

Parts overview from the front (C&P20 as an example)
1. Pressure control valve [03005070-xx]
2. Return unit [03007696-xx]
3. Z axis [03058631-xx] with snap jaws [03010313-xx]
and Z axis down sensor [03007833-xx]
Parts overview from the bottom (C&P20 as an example)
1. Intermediate distributor
2. Component camera [03003426-xx]
3. Silencer [03005221-xx]
4. Component sensor [03006742-xx]
5. DP drive [03005109-xx]
Parts overview of the star (C&P20 as an example)
1. Silencer [03005221-xx]
2. Holding circuit vacuum unit [03005122-xx]
3. Star carrier [03005117-xx]
4. E/D transformer (collector ring) [03007711-xx]
1
3
2
1
5
4
3
2
1
4
3
2
2 Overview of the Modules
2.1 C&P20, C&P20A and C&P20M head 2.1.3 Overview of Parts
18 Service Manual SIPLACE C&P20, C&P20A, C&P20M
3 Service Work Conveyor
3.1 Exchange the Placement head
Service Manual SIPLACE C&P20, C&P20A, C&P20M 19
3
3 Service Work Conveyor
Service Work Conveyor
Differenc es between CP 20/A/M
3.1
3.1 Exchange the Placement head
Exchange the Placement head
► For removal and installation details of the placement head, read the service manual for your ma
-
chine.
3.2
3.2 Replacing the Component Camera
Replacing the Component Camera
Parts, equipment and tools
▪ Component camera
Refer to the parts catalogue for the component camera item number.
▪ Torque screwdriver Torque Vario 10-60 Ncm [00386132-xx]
▪ Tools for removing the head, if needed (see also the service manual for your machine)
Overview
NOTICE
C&P20, C&P20A, C&P20M
The instructions apply in principle to all C&P20, C&P20A and C&P20M heads.
Any differences will be explicitly indicated.
► The different heads can be recognized according to the labeled stickers.
NOTICE
Additional work
► If you need to perform further work on this head (e.g. replacing spare parts), fit the head to
the head mount [03056231-xx].
1. Component Camera
2. 4 x fastening screws on the head housing
3. To the head adapter HCU
4. Cable clamps
2
3
4
1
2
