3 Service Work Conveyor
3.12 Replacing the Z Drive [03058631-xx]
Service Manual SIPLACE C&P20, C&P20A, C&P20M 45
► Reconnect to the electricity system. Fasten the cable with cable ties.
► Fit the Z drive unit. While fastening the screws, push this unit against the stopper. (Torque 130 Ncm).
► Fit the return unit and the pressure control valve.
► Remove the cable ties and unplug the cable from the
intermediate distributor.
⇨ Track signals incremental encoder
⇨ Light barrier down
⇨ Linear motor

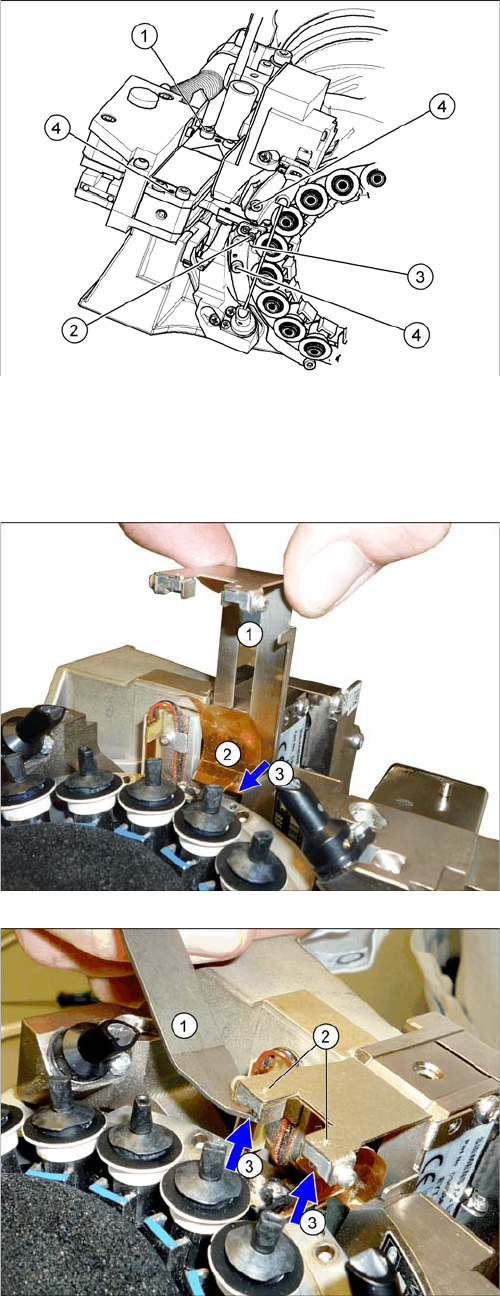

► Thread the jaws (2) of the new Z axis in at the DP
drive ball bearing (3). The snap jaws must engage.
► Fix the foil (2) into place by tightening the screw (3).
► Insert the plate (1).
► Thread the foil into the plate and reinsert the magnets
(3). The magnets hold the foil in place.
3 Service Work Conveyor
3.12 Replacing the Z Drive [03058631-xx]
46 Service Manual SIPLACE C&P20, C&P20A, C&P20M
► Follow the removal instructions in reverse order for further installation.
► Start the station software and perform zero point correction by means of a reference run (SW60x) or
via the manual operations for the head (SW70x).

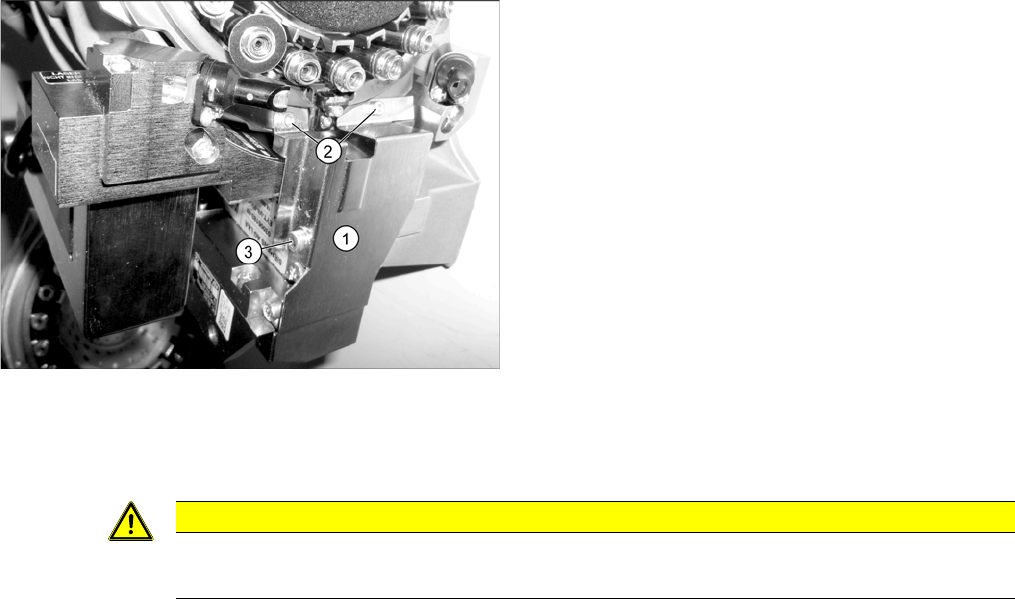

► Fit the cover plate (1). Screw in and tighten the
screws at (2) until hand-tight and then tighten the
screw at (3) with a torque of 130 Ncm.
CAUTION
Reference run reports error
► If the reference run fails, you will need to check the settings for the jaws on the Z drive.
3 Service Work Conveyor
3.13 Replacing the clamping plate at the DPdrive [03005144-xx]
Service Manual SIPLACE C&P20, C&P20A, C&P20M 47
3.13
3.13 Replacing the clamping plate at the DPdrive [03005144-xx]
Replacing the clamping plate at the DPdrive [03005144-xx]
Parts, equipment and tools
▪ Clamping plate [03005144-xx]
▪ Tools for removing the head, if needed (see also the service manual for your machine)
Overview
Preparation
► Remove the head from the machine. For removal and installation details of the placement head, read
the service manual for your machine.
Removal
► Loosen the fastening screw of the clamping plate.
Installation
► Follow the removal instructions in reverse order for installation.
1. Clamping plate
