3 Service Work Conveyor 3.13 Replacing the clamping plate at the DPdrive [03005144-xx] 48 Service Manual SIPLACE C&P20, C&P20A, C&P20M
3 Service Work Conveyor
3.13 Replacing the clamping plate at the DPdrive [03005144-xx]
Service Manual SIPLACE C&P20, C&P20A, C&P20M 47
3.13
3.13 Replacing the clamping plate at the DPdrive [03005144-xx]
Replacing the clamping plate at the DPdrive [03005144-xx]
Parts, equipment and tools
▪ Clamping plate [03005144-xx]
▪ Tools for removing the head, if needed (see also the service manual for your machine)
Overview
Preparation
► Remove the head from the machine. For removal and installation details of the placement head, read
the service manual for your machine.
Removal
► Loosen the fastening screw of the clamping plate.
Installation
► Follow the removal instructions in reverse order for installation.

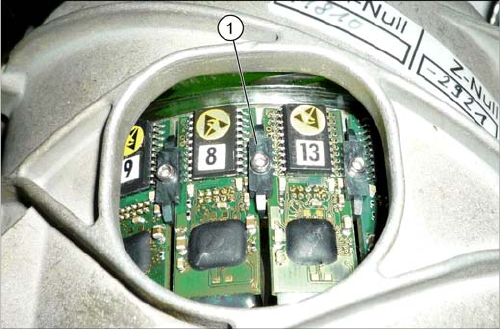

1. Clamping plate
3 Service Work Conveyor
3.13 Replacing the clamping plate at the DPdrive [03005144-xx]
48 Service Manual SIPLACE C&P20, C&P20A, C&P20M
4 Measuring Equipment and Tools
4.1 Universal Placement Head Mounting Rack [03056231-xx]
Service Manual SIPLACE C&P20, C&P20A, C&P20M 49
4
4 Measuring Equipment and Tools
Measuring Equipment and Tools
4.1

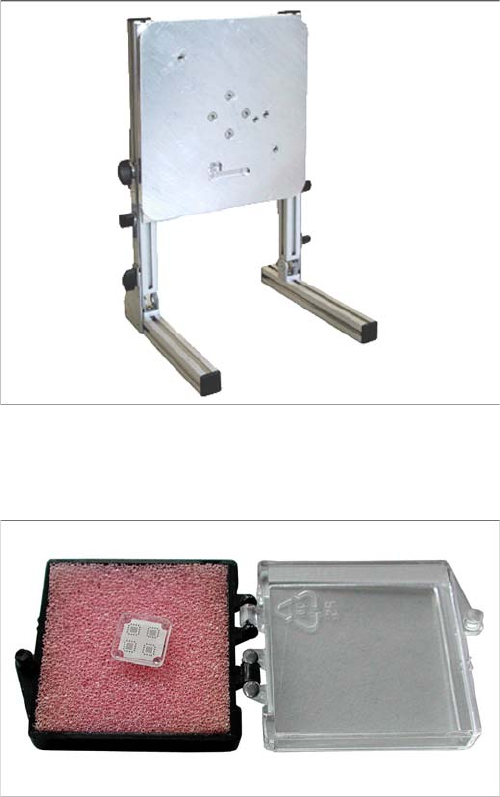

4.1 Universal Placement Head Mounting Rack [03056231-xx]
Universal Placement Head Mounting Rack [03056231-xx]
4.2
4.2 Calibration Tool [03034148-xx]
Calibration Tool [03034148-xx]
The universal placement head mounting rack is suitable
for TwinHead, C&P20, CPP, IC and DLM heads.
Use:
The calibration tool is used for the following placement
heads:
▪ C&P20
▪ C&P20A
▪ C&P20M
▪ CPP (only at X4i S without stationary camera)
