4 Measuring Equipment and Tools
4.1 Universal Placement Head Mounting Rack [03056231-xx]
Service Manual SIPLACE C&P20, C&P20A, C&P20M 49
4
4 Measuring Equipment and Tools
Measuring Equipment and Tools
4.1
4.1 Universal Placement Head Mounting Rack [03056231-xx]
Universal Placement Head Mounting Rack [03056231-xx]
4.2
4.2 Calibration Tool [03034148-xx]
Calibration Tool [03034148-xx]
The universal placement head mounting rack is suitable
for TwinHead, C&P20, CPP, IC and DLM heads.
Use:
The calibration tool is used for the following placement
heads:
▪ C&P20
▪ C&P20A
▪ C&P20M
▪ CPP (only at X4i S without stationary camera)
4 Measuring Equipment and Tools
4.3 Setting gauge for C&P20, C&P20A and C&P20M [03045455-xx]
50 Service Manual SIPLACE C&P20, C&P20A, C&P20M
4.3
4.3 Setting gauge for C&P20, C&P20A and C&P20M [03045455-xx]
Setting gauge for C&P20, C&P20A and C&P20M [03045455-xx]
Contents of "kit for setting C&P20 jaws" [03058847-xx]:
▪ Jaw setting gauge with 2x hexagon socket-head screw M2.5x12 mm [03045455-xx]
▪ 4 x feeler gauge 0.01 mm [03058840-xx]
▪ Feeler gauge 0.04 mm [03058839-xx]
▪ Hose piece D12 length 20 mm [03058392-xx]
▪ Rubber hose to protect the component sensor
▪ 10x dead indexing plate [03013091-xx]
4.4
4.4 Antistatic Tweezers
Antistatic Tweezers

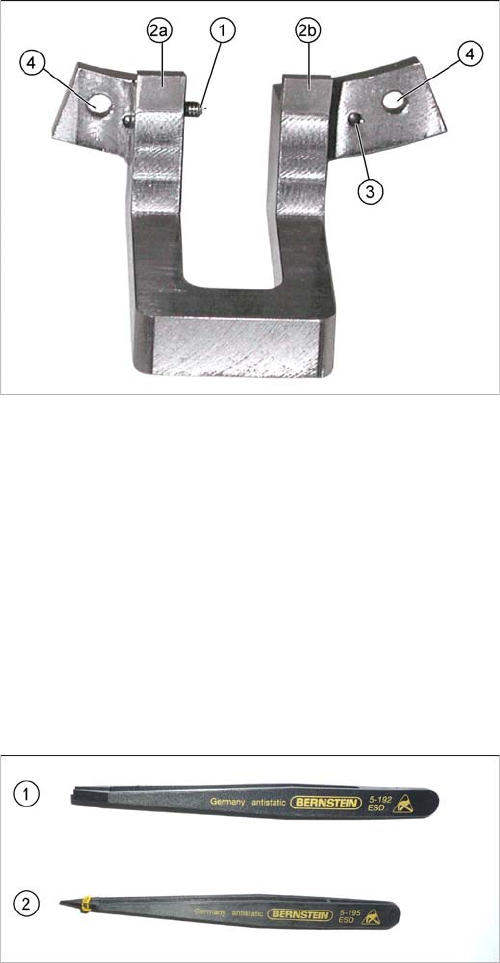

1. Side stop for jaws
2. 2a and 2b: contact surfaces for jaws
3. Centering pins for accurate setting to raceway
4. Gauge fixture on raceway (screws --> M2.5x12 mm)
This setting gauge is used to set the head distance from
the raceway to the jaws on the Z axis.
1. Antistatic tweezers, type Bernstein 5
-
192
[00377393
-
xx]
2. Antistatic tweezers, type Bernstein 5
-
195
[00377394
-
xx]
