1 3 Bank FES46 Rail Guide Feeder Holder KMB-1712 OLD 1 2 4 30 30 31 32 32 32 5 8 7 6 4 9 10 11 22 2 13 20 20 21 21 3 12 23 23 24 25 29 29 24 23 23 26 33 14 3 14 15 15 17 17 19 19 18 16 28 25 26 27 28 29 29 1 25 35 34 36 …
5
2

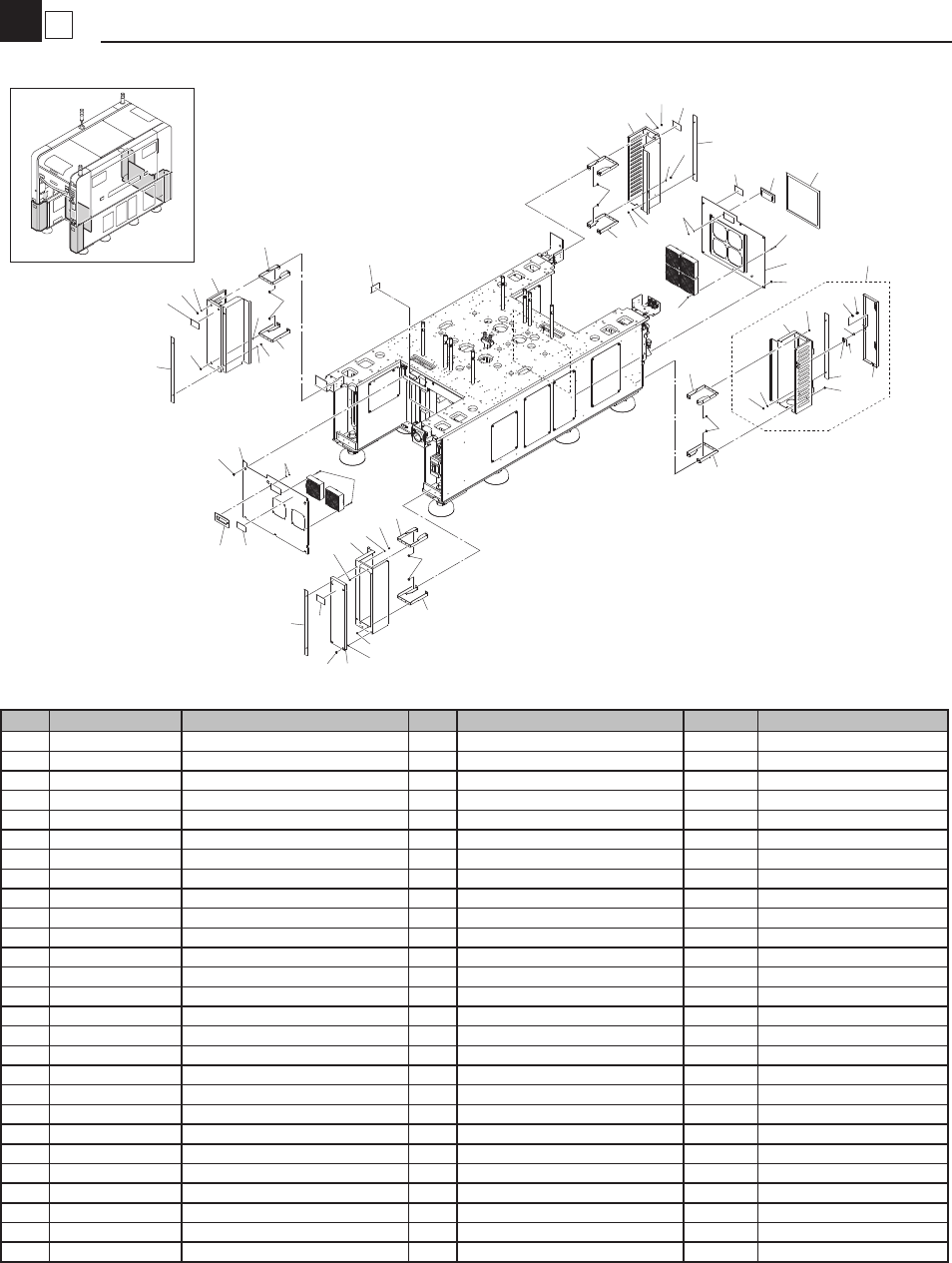

Base
Cover
KMB-1712
22
7
11
10
23
18
21
23
22
23
22
21
23
22
13
24
10
11
19
19
25
18
21
18
16
24
21
16
23
10
1
11
19
19
24
23
21
14
24
19
11
10
19
20
16
24
27
26
8
15
16
21
6
2
23
3
23
24
19
19
9
8
4
5
12
23
22
17
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M1310-02 COVER 10 1
2 KLF-M1311-A1 COVER 11 ASSY. 1
3 KLF-M1311-02 COVER 11 1
4 KLF-M132D-01 COVER 11-1 1
5 KLF-M137A-01 COVER,PANEL A 1
6 KGJ-M1350-00 SPACER,MINI LATCH 1
7 KGJ-M1351-01 PLATE,MINI LATCH 1
8 KW3-M1349-00 MINI LATCH 1
9 90990-12J006 SCREW BIND HEAD W/W 2
10 90172-00J040 WASHER,EXTL.TOOTHED 8
11 95702-04500 NUT FLANGE 14
12 KMB-M1312-00 COVER 12 1
13 KLF-M1313-02 COVER 13 1
14 KLF-M1314-02 COVER 14 1
15 KLF-M1315-04 COVER,15 1
16 KHU-M1117-00 PULL 2
17 KLF-M132A-01 COVER 10-1 1
18 KLF-M137A-01 COVER,PANEL A 3
19 KLF-M13E1-00 BRKT.,COVER 8
20 KLF-M131J-00 FILTER,REAR BASE FAN 1
21 90K41-001270 LABEL,WARNING 6
22 KH1-M1396-00 WASHER 12
23 90990-12J001 SCREW,BIN. HEAD W/W 20
24 90990-12J004 SCREW, BIN. HEAD W/W 16
25 91312-04045 BOLT,HEX.SOCKET HEAD 8
26 95302-04600 NUT,HEXAGON 16
27 98502-04050 SCREW PAN HEAD (+) 16
1
3

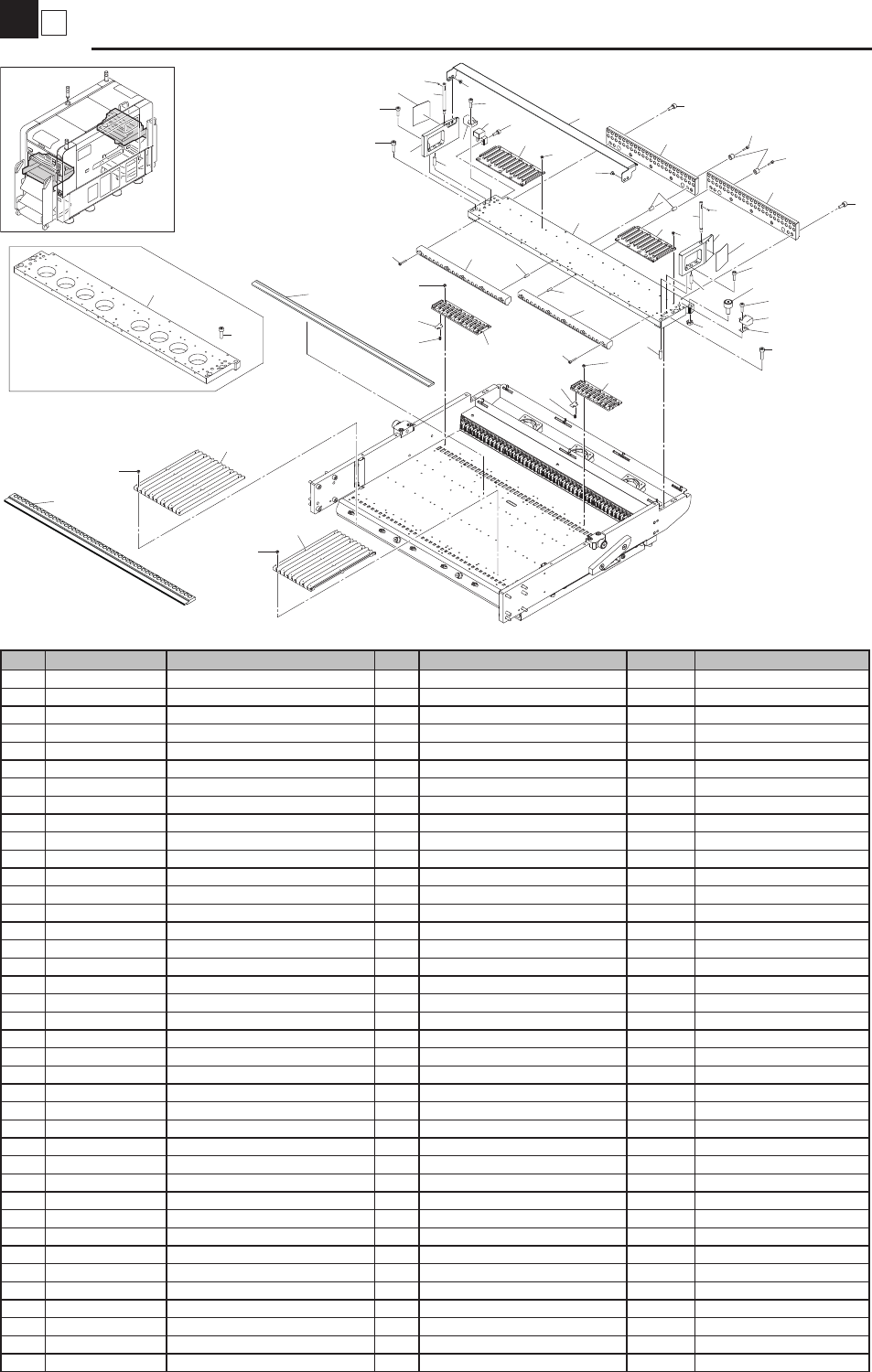

Bank FES46 Rail Guide
Feeder Holder
KMB-1712
OLD
1
2
4
30
30
31
32
32
32
5
8
7
6
4
9
10
11
22
2
13
20
20
21
21
3
12
23
23
24
25
29
29
24
23
23
26
33
14
3
14
15
15
17
17
19
19
18
16
28
25
26
27
28
29
29
1
25
35
34
36
37
37
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M3751-00 PLATE,FEEDER 1 t=16mm
1-1 KMB-M3751-01 PLATE,FEEDER 1 t=20mm NG MP30005-2017/3/3
2 KLF-M3754-01 PLATE,FRONT 2
3 KMB-M3755-00 PLATE,UPPER 2
4 KLF-M3757-00 SHAFT,GUIDE 2
5 KLF-M375H-00 RAIL,GUIDE 12P 1
6 KLF-M375N-00 GUIDE,FEEDER UNDER 1
7 KMB-M375T-01 PLATE,UPPER L 1
8 KMB-M375T-51 PLATE,UPPER R 1
9 KLF-M375X-00 GUIDE,FEEDER UNDER 3
10 KLF-M375X-50 GUIDE,FEEDER UNDER 1
11 KMB-M3761-00 PLATE,MAIN 1
12 KLF-M3763-00 CAM FOLLOWER 1
13 KLF-M3764-00 PIN 2
14 KMB-M3765-00 TAPE 2
15 KMB-M3714-00 PIN,MARK 2
16 KHY-M371R-00 RAIL GUIDE 12P 3
17 KHY-M372P-00 SUPPORT,LEVER 46
18 KHY-M372R-00 GUIDE,FEEDER UNDER 3
19 KHY-M372S-01 SPRING,SUPPORT 46
20 91312-03012 BOLT,HEX.SOCKET HEAD 2
21 91317-03018 BOLT,HEX.SOCKET HEAD 10
22 91312-05014 BOLT,HEX.SOCKET HEAD 2
23 91312-05016 BOLT,HEX.SOCKET HEAD 8
24 91312-06014 BOLT,HEX.SOCKET HEAD 10
25 91312-06020 BOLT,HEX.SOCKET HEAD 4
25-1 91312-06022 BOLT,HEX.SOCKET HEAD 4 NG MP30005-2017/3/3
26 91609-20005 PIN, SPRING 2
27 95302-08700 NUT, HEXAGON 1
28 98702-03006 SCREW, FLAT HEAD 40
29
98902-03004 SCREW, BINDING HEAD 101
30 99480-04012 PIN, PARALLEL 2
31 99480-06012 PIN, PARALLEL 2
32 99480-06020 PIN, PARALLEL 8
33 90990-30J097 SHIMS 1 30J097-30J100 0.01t-0.05t
34 KMB-M3767-00 PLATE,SUPPORT ASSY. 1 MP20082-2017/3/16
35 KMB-M3773-00 PLATE,GUIDE ASSY. 1 MP20082-2017/3/16
36 KMB-M3712-00 COVER,TAPE GUIDE 1
37 98702-04006 SCREW,FLAT HEAD 4
2
3

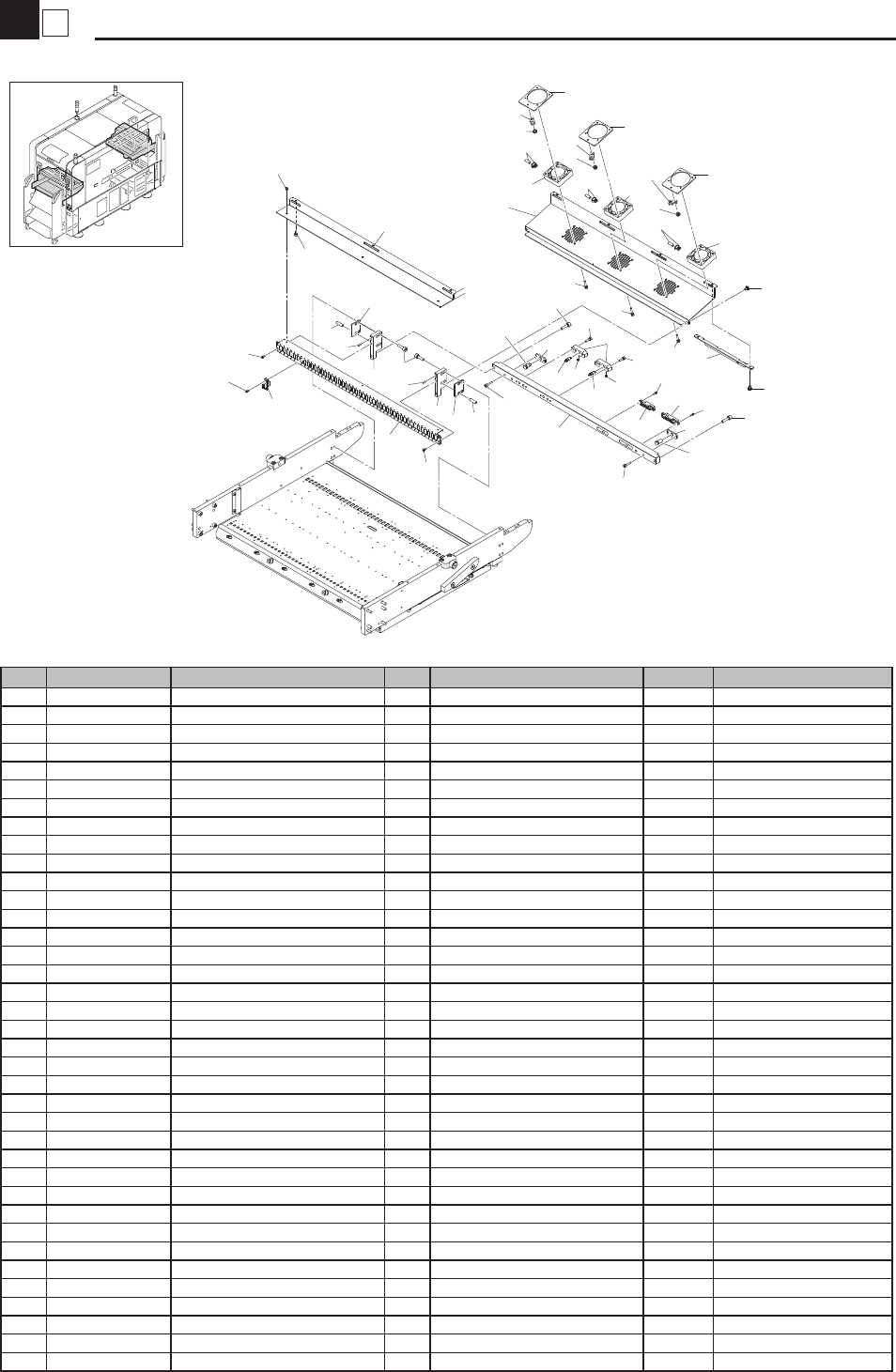

Bank FES46 Locate Pin / Fan
Feeder Holder
KMB-1712
1
1
5
6
8
32
9
4
7
10
30
34
34
35
35
13
21
22
22
31
31
10
11
12
33
33
12
14
15
16
17
18
15
23
27
28
28
27
24
15
2
3
5
5
23
23
36
36
36
29
29
29
26
25
25
11
19
20
24
H
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M3759-00 SPACER 2
2 KLF-M375A-00 LOCATING PIN,A 1
3 KLF-M375B-00 LOCATING PIN,B 1
4 KMB-M375C-00 BAR,CONNECTOR 1
5 KMB-M375D-00 BRACKET,FAN 3
6 KMB-M375E-00 PLATE,CONNECTOR 1
7 KLF-M375G-00 BLOCK,ADJUSTER 2
8 KMB-M375K-00 COVER,FRONT 2 1 H=17.5 ｍｍ
8-1 KMB-M375K-01 COVER,FRONT 2 1 H=13.5 ｍｍ NG MP30005-2017/3/3
9 KMB-M375L-00 COVER,MAIN 1 1
10 KMB-M375M-00 PLATE,SIDE 2
11 KLF-M375R-00 HOLDER,PIN 2
12 KLF-M3719-00 AIR JOINT 4
13 KHY-M372M-00 SCREW,STAD 92
14 KLF-MD775-00 BRKT.,ADAPTER FIX 1
15 KHY-M6187-00 FAN MOTOR ASSY 3
16 KLF-M66R4-00 HNS,FES.CUNET 1
17 KLF-M66R5-00 HNS,FES.PWR 1
18 KLF-M66RP-00 HNS,FDR FAN DI FES 1
19 KLF-M66RP-10 HNS,FDR FAN DI FES 1
20 KLF-M66RP-20 HNS,FDR FAN DI FES 1
21 KLF-M66TE-00 HNS,F.CTRL - FDR 46
22 90112-2AJ008 BOLT,HEX.SOCKET HEAD 4
23 90990-11J001 SCREW,PAN HEAD W/W 3
24 90990-12J001 SCREW, BIN. HEAD W/W 6
25 91312-03006 BOLT,HEX.SOCKET HEAD 4
26 91312-04008 BOLT,HEX.SOCKET HEAD 3
27 91312-04014 BOLT,HEX.SOCKET HEAD 4
28 91312-04018 BOLT,HEX.SOCKET HEAD 4
29 91312-03020 BOLT,HEX.SOCKET HEAD 12
30
91312-06020 BOLT,HEX.SOCKET HEAD 4
31 91312-06022 BOLT,HEX.SOCKET HEAD 2
32 92012-03005 BOLT, BUTTON HEAD 3
33 92A08-04304 SCREW, SET 4
34 99480-03008 PIN, PARALLEL 2
35 99480-06020 PIN, PARALLEL 4
36 $CTAM2 ANCHOR MOUNT 3
