YSM40R_4-Beam_PartList - 第18页
5 3 Cover FES46 Moving Part (NEW) Feeder Holder KMB-1712 28 26 15 25 28 21 24 10 17 20 23 27 19 19 27 27 20 20 7 7 6 5 2 18 22 11 23 3 21 14 18 5 25 8 27 27 13 6 28 7 1 7 4 22 20 27 26 27 19 21 19 23 16 9 24 23 28 21 12 …
4
3

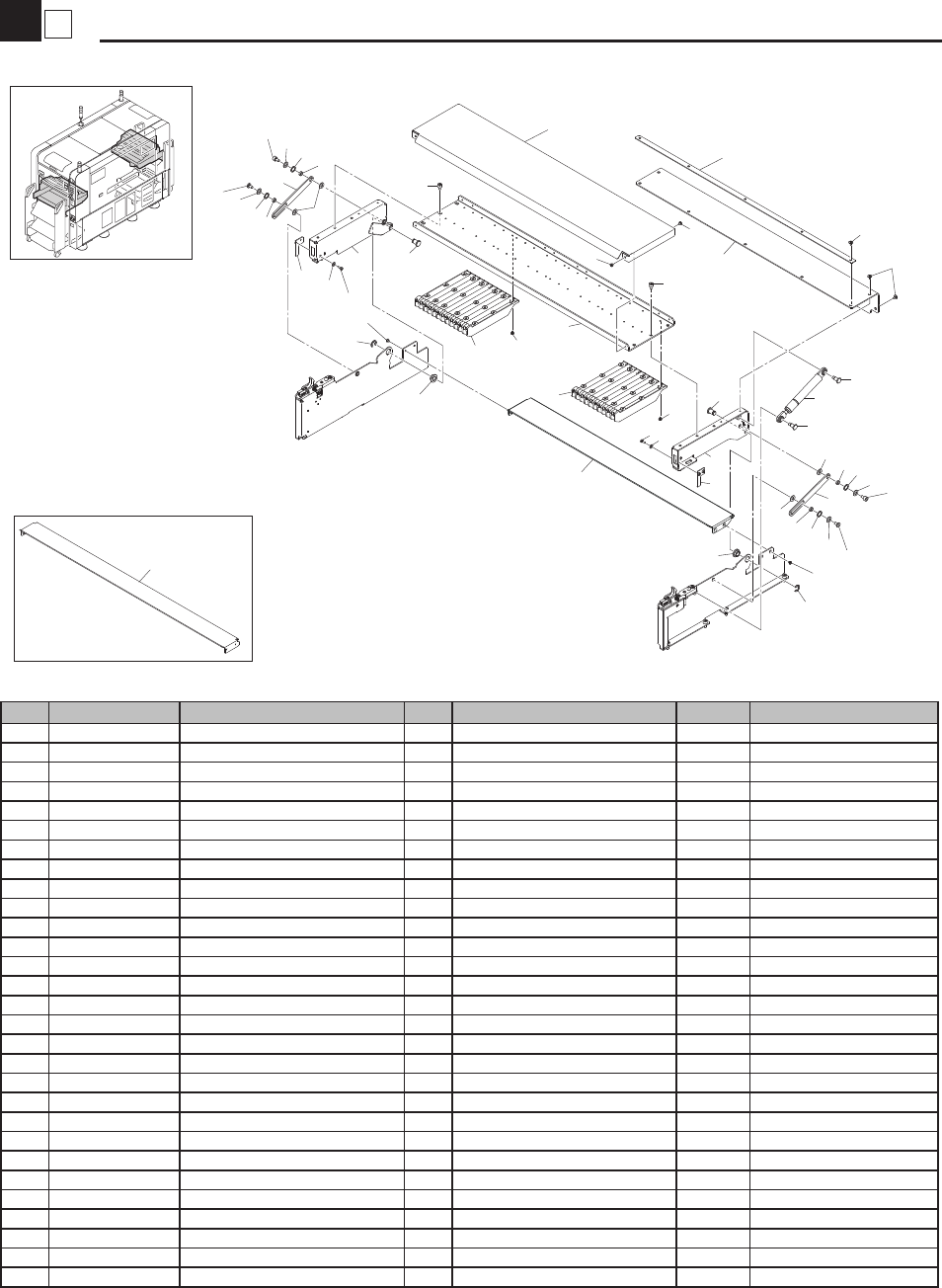

Cover FES46 Moving Part (OLD)
Feeder Holder
KMB-1606
2
1
4
2
5
2
18
18
21
2
9
5
6
10
13
8
6
11
14
17
15
1
3
7
16
17
12
18
19
18
19
20
25
20
21
26
26
26
22
22
23
23
24
26
24
26
26
26
25
27
27
28
28
28
28
3
OLD
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M3741-00 PLATE,STOPPER 2
2 KLF-M3742-00 WASHER 4
3 KMB-M3743-00 STOPPER,TAPE GUIDE 1
3-1 KMB-M3743-01 STOPPER,TAPE GUIDE 1 NG MP20082-2017/3/16
4 KMB-M3744-00 PLATE,HOLD 1
5 KLF-M3745-00 BOLT,DAMPER 2
6 KLF-M374D-00 BUSH,FLANGE 2
7 KMB-M374H-00 PLATE,OBSTRUCTIVE 1
8 KLF-M374J-00 GAS DAMPER 1
9 KMB-M374M-00 COVER,TOP 1
10 KLF-M374N-00 DOG,SENSOR R 1
11 KLF-M374N-50 DOG,SENSOR L 1
12 KLF-M374P-01 PLATE,UPPER 1
13 KMB-M374R-00 ARM,UPPER GUIDE R 1
14 KMB-M374R-50 ARM,UPPER GUIDE L 1
15 KLF-M374S-00 GUIDE,FEEDER UPPER 3
16 KLF-M374T-00 GUIDE,FEEDER UPPER 1
17 KLF-M374X-00 PIN,HINGE 2
18 90990-28J193 WASHER,PLAIN 4
19 99002-07600 CIRCLIP 2
20 90990-01J071 BOLT, HEX. SOCKETHEAD 4
21 90990-01J074 BOLT, HEX. SOCKETHEAD 2
22 90990-46J005 BOLT, THIN HEAD 9
23 91312-05006 BOLT,HEX.SOCKET HEAD 6
24 91312-05008 BOLT,HEX.SOCKET HEAD 2
25 92902-03200 WASHER, PLAIN 4
26 92902-05200 WASHER, PLAIN 8
27 98702-03004 SCREW, FLAT HEAD 4
28 98902-03004 SCREW, BINDING HEAD 73
5
3

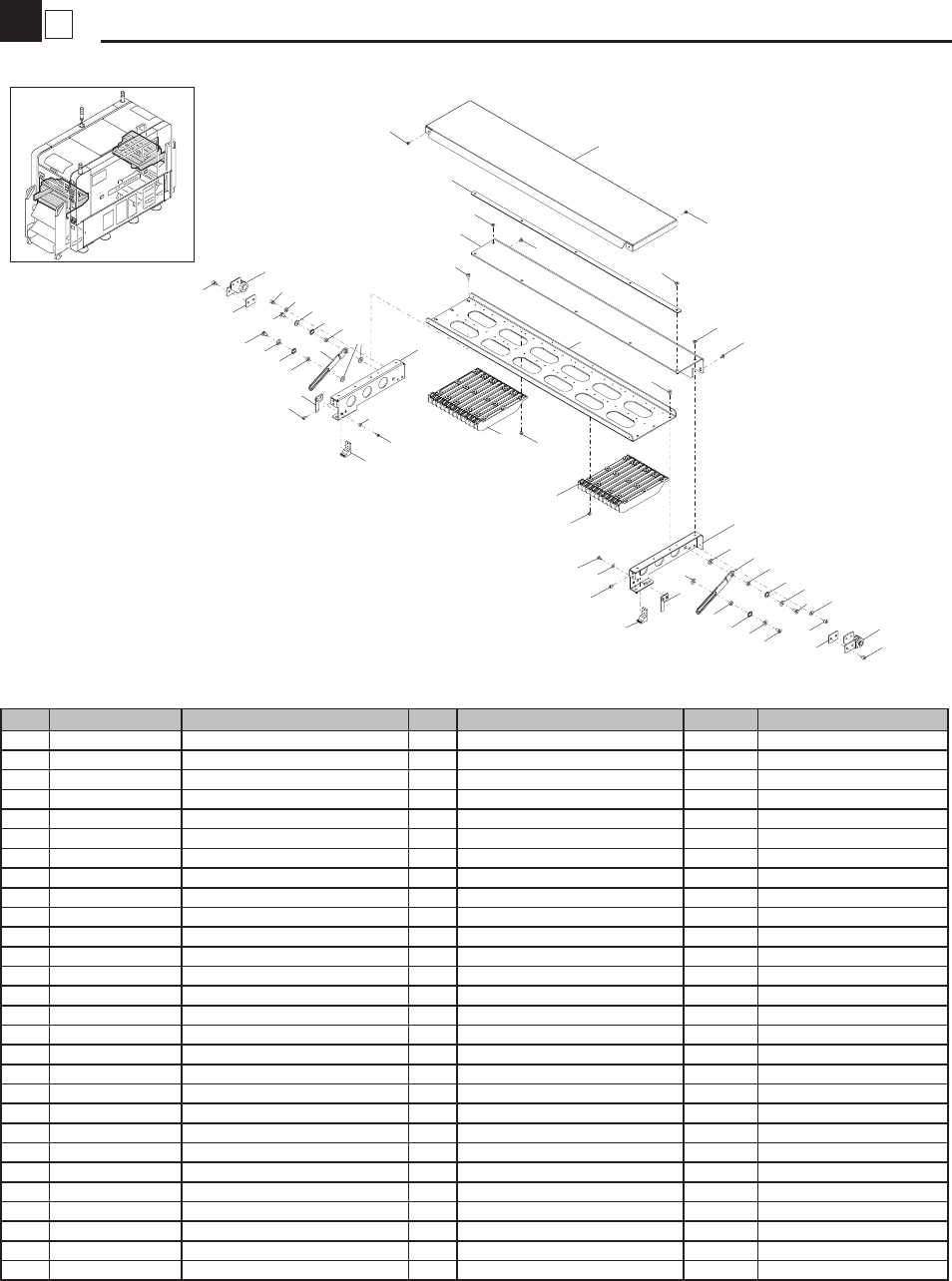

Cover FES46 Moving Part (NEW)
Feeder Holder
KMB-1712
28
26
15
25
28
21
24
10
17
20
23
27
19
19
27
27
20
20
7
7
6
5
2
18
22
11
23
3
21
14
18
5
25
8
27
27
13
6
28
7
1
7
4
22
20
27
26
27
19
21
19
23
16
9
24
23
28
21
12
21
28
26
15
25
28
21
24
10
17
20
23
27
19
19
27
27
20
20
7
7
6
5
2
18
22
11
23
3
21
14
18
5
25
8
27
27
13
6
28
7
1
7
4
22
20
27
26
27
19
21
19
23
16
9
24
23
28
21
12
21
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M374N-00 DOG,SENSOR R 1
2 KLF-M374N-50 DOG,SENSOR L 1
3 KLF-M374S-00 GUIDE,FEEDER UPPER 3
4 KLF-M374T-00 GUIDE,FEEDER UPPER 1
5 KLW-M374B-00 PLATE,CLAMP 2
6 KMB-M3741-00 PLATE,STOPPER 2
7 KMB-M3742-00 SPACER 4
8 KMB-M3744-00 PLATE,HOLD 1
9 KMB-M3746-00 HINGE R 1
10 KMB-M3746-50 HINGE L 1
11 KMB-M374H-01 PLATE,OBSTRUCTIVE 1
12 KMB-M374M-00 COVER,TOP 1
13 KMB-M374P-00 PLATE,UPPER 1
14 KMB-M374R-01 ARM,UPPER GUIDE R 1
15 KMB-M374R-51 ARM,UPPER GUIDE L 1
16 KMB-M374Y-01 BASE,ARM R 1
17 KMB-M374Y-51 BASE,ARM L 1
18 90990-01J039 BOLT HEX,SOCKET HEAD 4
19 90990-01J074 BOLT HEX,SOCKET HEAD 4
20 90990-28J193 WASHER,PLAIN 4
21 90990-46J005 BOLT, THIN HEAD 9
22 91312-03006 BOLT HEX,SOCKET HEAD 4
23 91312-04005 BOLT HEX,SOCKET HEAD 10
24 91312-04006 BOLT HEX,SOCKET HEAD 4
25 92902-03200 WASHER,PLAIN 4
26 92902-04200 WASHER,PLAIN 4
27 92902-05200 WASHER,PLAIN 8
28 98902-03004 SCREW BINDING HEAD 73
6
3

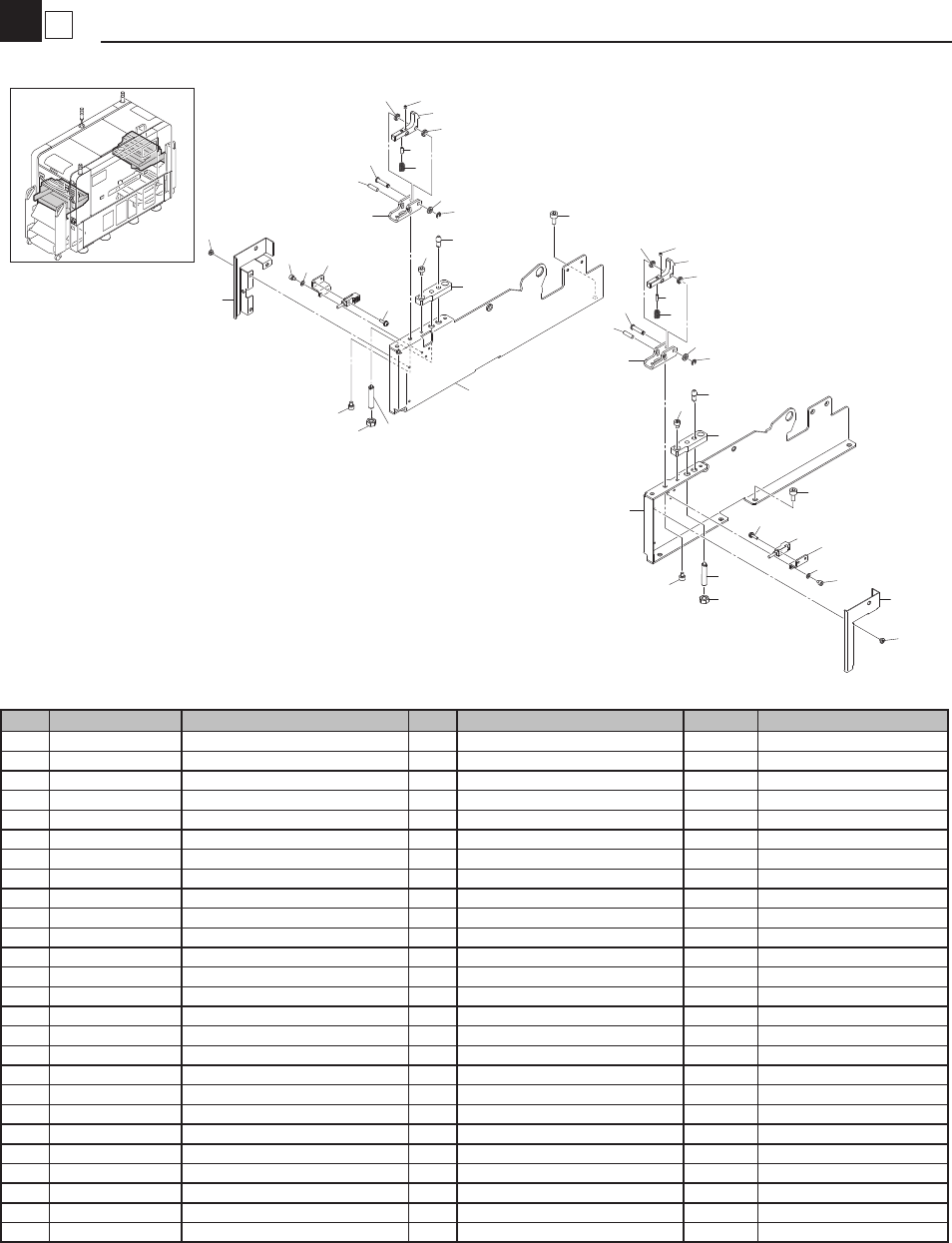

Cover FES46 Base / Sensor (OLD)
Feeder Holder
KMB-1606
1
1
3
23
23
1
1
2
4
21
21
2
3
4
5
5
13
14
14
26
26
15
15
17
17
16
18
22
16
18
22
19
20
20
13
19
19
19
24
6
6
24
10
12
11
8
7
25
25
7
9
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M3748-00 WASHER 4
2 KLF-M374A-00 BASE,CLAMP 2
3 KLF-M374B-00 LEVER,CLAMP 2
4 KLF-M374C-00 SPRING,CLAMP 2
5 KLF-M374F-00 STOPPER,ARM 2
6 KLF-M374K-00 PLUNGER 2
7 KLF-M374L-00 BRKT.,SENSOR 2
8 KMB-M374U-00 COVER,R SENSOR 1
9 KMB-M374V-00 COVER,L SENSOR 1
10 KMB-M374Y-00 BASE,ARM R 1
11 KMB-M374Y-50 BASE,ARM L 1
12 KLF-M652W-00 SENSOR COVER DIASSY 2
13 KHJ-MC10S-01 PIN,LOCATE 1 2
14 KHJ-MC289-00 PIN,CLAMP 2
15 90440-01J030 CIRCLIP 2
16 90990-10J008 SCREW, BINDING HEAD 6
17 90990-28J038 WASHER, PLAIN 2
18 91312-03004 BOLT,HEX.SOCKET HEAD 4
19 91312-04005 BOLT,HEX.SOCKET HEAD 8
20 91312-05010 BOLT,HEX.SOCKET HEAD 8
21 91609-25008 PIN, SPRING 2
22 92902-03600 WASHER, PLAIN 4
23 92A08-03303 SCREW, SET 2
24 95302-06600 NUT, HEXAGON 2
25 97602-03310 SCREW,PAN HEAD W/W 2
26 99480-04014 PIN, PARALLEL 2
