YSM40R_4-Beam_PartList - 第20页
7 3 Cover FES46 Base / Sensor (NEW) Feeder Holder KMB-1712 3 11 17 16 16 25 13 12 17 21 15 10 11 8 5 25 24 19 4 22 23 26 2 1 18 7 6 20 25 25 9 14 22 4 26 1 2 23 19 24 18 3 5 7 6 21 3 11 17 16 16 25 13 12 17 21 15 10 11 8…
6
3

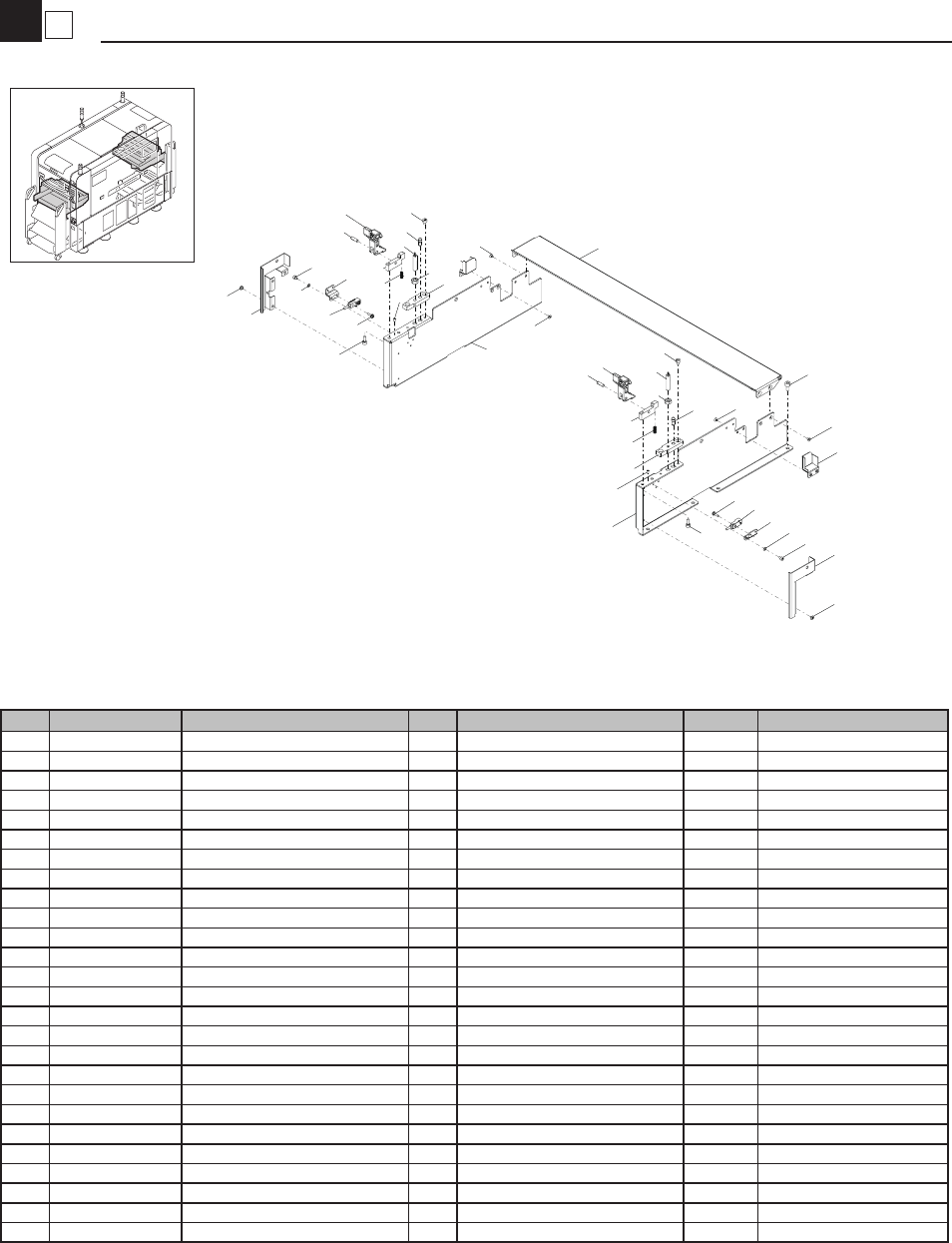

Cover FES46 Base / Sensor (OLD)
Feeder Holder
KMB-1606
1
1
3
23
23
1
1
2
4
21
21
2
3
4
5
5
13
14
14
26
26
15
15
17
17
16
18
22
16
18
22
19
20
20
13
19
19
19
24
6
6
24
10
12
11
8
7
25
25
7
9
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M3748-00 WASHER 4
2 KLF-M374A-00 BASE,CLAMP 2
3 KLF-M374B-00 LEVER,CLAMP 2
4 KLF-M374C-00 SPRING,CLAMP 2
5 KLF-M374F-00 STOPPER,ARM 2
6 KLF-M374K-00 PLUNGER 2
7 KLF-M374L-00 BRKT.,SENSOR 2
8 KMB-M374U-00 COVER,R SENSOR 1
9 KMB-M374V-00 COVER,L SENSOR 1
10 KMB-M374Y-00 BASE,ARM R 1
11 KMB-M374Y-50 BASE,ARM L 1
12 KLF-M652W-00 SENSOR COVER DIASSY 2
13 KHJ-MC10S-01 PIN,LOCATE 1 2
14 KHJ-MC289-00 PIN,CLAMP 2
15 90440-01J030 CIRCLIP 2
16 90990-10J008 SCREW, BINDING HEAD 6
17 90990-28J038 WASHER, PLAIN 2
18 91312-03004 BOLT,HEX.SOCKET HEAD 4
19 91312-04005 BOLT,HEX.SOCKET HEAD 8
20 91312-05010 BOLT,HEX.SOCKET HEAD 8
21 91609-25008 PIN, SPRING 2
22 92902-03600 WASHER, PLAIN 4
23 92A08-03303 SCREW, SET 2
24 95302-06600 NUT, HEXAGON 2
25 97602-03310 SCREW,PAN HEAD W/W 2
26 99480-04014 PIN, PARALLEL 2
7
3
Cover FES46 Base / Sensor (NEW)
Feeder Holder
KMB-1712
3
11
17
16
16
25
13
12
17
21
15
10
11
8
5
25
24
19
4
22
23
26
2
1
18
7
6
20
25
25
9
14
22
4
26
1
2
23
19
24
18
3
5
7
6
21
3
11
17
16
16
25
13
12
17
21
15
10
11
8
5
25
24
19
4
22
23
26
2
1
18
7
6
20
25
25
9
14
22
4
26
1
2
23
19
24
18
3
5
7
6
21
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHJ-MC10S-01 PIN,LOCATE 1 2
2 KHJ-MC147-02 SPRING,TAPE GUIDE F 2
3 KLF-M3747-00 PLUNGER 2
4 KLF-M374F-00 STOPPER,ARM 2
5 KLF-M652W-00 SENSOR COVER DI ASSY 2
6 KLW-M374A-00 BASE,CLAMP 2
7 KLW-M374C-00 LEVER,CLAMP 2
8 KMB-M3743-01 STOPPER,TAPE GUIDE 1
9 KMB-M3749-00 COVER,HINGE R 1
10 KMB-M3749-50 COVER,HINGE L 1
11 KMB-M374L-00 BRKT.,SENSOR 2
12 KMB-M374U-00 COVER,R SENSOR 1
13 KMB-M374V-00 COVER,L SENSOR 1
14 KMB-M374Y-01 BASE,ARM R 1
15 KMB-M374Y-51 BASE,ARM L 1
16 90990-10J008 SCREW, BINDING HEAD 6
17 91312-03004 BOLT HEX,SOCKET HEAD 4
18 91312-04005 BOLT HEX,SOCKET HEAD 4
19 91312-04010 BOLT HEX,SOCKET HEAD 4
20 91312-05010 BOLT HEX,SOCKET HEAD 8
21 92902-03600 WASHER,PLAIN 4
22 92A08-03305 SCREW SET 2
23 95302-06600 NUT HEXAGON 2
24 97602-03310 SCREW PAN HEAD W/WASHER 2
25 98702-03004 SCREW,FLAT HEAD 8
26 99480-04014 PIN,PARALLEL 2
8
3
Reel Holder
Feeder Holder
KMB-1712
21
25
25
21
21
25
21
21
25
25
23
24
7
20
3
3
3
28
26
21
25
1
3
12
5
5
5
26
25
21
4
2
4
10
13
16
16
16
16
14
5
5
11
17
17
22
22
18
18
9
8
15
11
14
14
21
25
11
11
25
21
25
21
21
25
23
19
24
6
20
13
12
5
5
10
10
19
3
27
27
21
25
10
OLD
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M3R03-00 BRKT.,REEL HOLDER R 1
2 KMB-M3R04-00 BRKT.,REEL HOLDER L 1
3 KLF-M3R09-00 SHAFT,ROLLER 6
4 KHY-M3S15-00 ROLLER 2 2
5 KHY-M3R15-00 ROLLER 100
6 KLF-M3R01-02 PLATE,SIDE R 1
7 KLF-M3R02-02 PLATE,SIDE L 1
8 KLF-M3R05-00 GUIDE,PATITION 1
9 KLF-M3R08-00 COVER,UNDER 1
10
KLF-M3R10-02 REEL HOLDER 23 OK H025328-2018/11/5
KLF-M3R10-01 REEL HOLDER 23
11 KLF-M3R13-00 COLLAR 2
12 KLF-M3R14-00 COLLAR 2
13 KHY-M3R14-11 WASHER 22
14 KHY-M3R16-00 PARTITION 11
15 KHY-M3R22-00 GUIDE,PARTITION 5
16 KHY-M3R23-00 COLLAR,PARTITION 23
17 91312-03004 BOLT HEX.SOCKET HEAD 6 M3X4
18 91312-03012 BOLT,HEX.SOCKET HEAD 11 M3X12
19 91312-04010 BOLT HEX.SOCKET HEAD 4 M4X8
20 91312-05008 BOLT HEX.SOCKET HEAD 4 M5X8
21 92012-06010 BOLT,BUTTON HEAD 12
22 92902-03200 WASHER PLAIN 6
23 92902-04200 WASHER PLAIN 4
24 92902-05200 WASHER PLAIN 4
25 92902-06600 WASHER PLAIN 12
26 91312-04008 BOLT,HEX.SOCKET HEAD 4
27
KHY-M3R14-11 WASHER 1 t=1.1mm
KHW-M1385-00 SPACER 1 t=0.5mm
28 KMB-M3R09-00 SHAFT,ROLLER 1
