2 4 X-axis Duct / I/O-BOX Moving-axis KMB-1712 T ype B, C 28 43 43 22 35 23 27 42 41 24 21 35 35 42 25 26 38 33 10 33 3 37 37 38 38 8 38 16 12 14 9 7 4 38 37 39 35 35 33 33 32 39 40 36 13 18 19 19 15 35 35 11 17 44 37 6 …
1
4
X-axis Motor / Sensor / Cover
Moving-axis
KMB-1712
53
11
12
36
22
47
23
38
64
64
30
64
7
47
17
13
8
39
39
37
49
44
9
4
46
46
54
43
47
27
63
14
24
48
42
28
50
41
48
41
35
20
19
58
2
47
66
57
49
31
60
60
29
15
64
25
1
59
56
59
51
67
62
62
40
34
26
65
65
3
52
47
33
6
32
46
10
61
16
45
44
18
55
5
5
Type B, C
Type B, C
Type B, C
21
47
52
64
63
21
D
A
B
C
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M0201-A0 X AXIS A,D SUB ASSY. 1
2 KMB-M2227-00 BRKT.,STOPPER 1
3 KMB-M2228-00 BRKT.,A FAN Y-M 1
4 KMB-M2229-00 BRKT.,B FAN Y-M 1 Type B, C
5 KMB-M222D-00 PLATE,NUT X MOTOR 2
6 KMB-M2233-00 BRKT.,A SENSOR 1
7 KMB-M2234-00 BRKT.,B SENSOR 1 Type B, C
8 KMB-M223D-00 STAY,R HEAD 1
9 KMB-M223E-00 STAY,L HEAD 1 Type B, C
10 KLF-M224L-00 BRKT.,CONN. 1
11 KMB-M224V-00 BRKT.,A FAN XM 1
12 KMB-M224W-00 BRKT.,B FAN XM 1 Type B, C
13 KMB-M2258-00 BRKT.,FIX XS AXIS 1
14 KMB-M227A-00 COVER,BS.A-1 1
15 KMB-M227D-00 COVER,BS.B-1 1 Type B, C
16 KMB-M227B-00 COVER,BS.A-2 1
17 KMB-M227E-00 COVER,BS.B-2 1 Type B, C
18 KMB-M22M0-00 AC SERVO MOTOR 1
19 KV7-M2651-00 DAMPER, STOPPER 1
20 KHW-M2654-00 PLATE,DAMPER 1
21 KMB-M266A-00 PLATE,PIPE 1
22 KHY-M266C-00 BLOCK,JOINT 1
23 KMB-M266S-XX SHIM,SEL 1
0.1t 90990-29J092 0.2t 90990-29J093
24 KLF-M2671-00 HOLDER,1 Y-RH 1
25 KLF-M2672-00 DOG,YR 2ND-LIMIT 1
26 KMB-M2673-00 DOG,Y ORG 1
27 KMB-M2674-00 BRKT.,Y DOG 1
28 KLF-M2675-01 HOLDER,2 Y-RH 1
29 KMB-M2696-00 DOG,COL. 1
30 KGT-M71ST-00 STICKER,HEAD 1
31 KLV-M750A-00 COUPLING 10X14 1
32 KMB-M653A-00 SENSOR,X ORG ASSY 1
33 KMB-M653B-00 SENSOR,X OT-1 ASSY 1
34 KMB-M653B-10 SENSOR,X OT-2 ASSY 1
35 KMB-M653C-00 SENSOR,Y SAFE ASSY 1 Type B, C
36 $BF4U JOINT 1
37 90K41-001730 LABEL,CAUTION 1
38 90K81-000001 GREASE NIPPLE 1
39 90990-01J156 BOLT HEX,SOCKET HEAD 4
40 90990-01J157 BOLT HEX,SOCKET HEAD 6
41 90990-41J180 COLLAR 2
42 90112-2AJ020 BOLT, HEX.SOCKET HEAD 2
43 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
44 91312-03008 BOLT HEX.SOCKET HEAD 4 M3X8
45 91312-04006 BOLT,HEX.SOCKET HEAD 4 M4X6
46 91312-04008 BOLT,HEX.SOCKET HEAD 7 M4X8
47 91312-04010 BOLT HEX.SOCKET HEAD 14 M4X10
48 91312-04012 BOLT HEX.SOCKET HEAD 2 M4X12
49 91312-04014 BOLT HEX.SOCKET HEAD 5 M4X14
50 91312-04016 BOLT,HEX.SOCKET HEAD 3 M4X16
51 91312-04018 BOLT,HEX.SOCKET HEAD 4 M4X18 Y-MOTOR
52 91312-04020 BOLT HEX.SOCKET HEAD 4 M4X20
53 91312-04030 BOLT HEX.SOCKET HEAD 4 M4X30
54 91312-04045 BOLT HEX.SOCKET HEAD 4 M4X45
55 91312-05018 BOLT HEX.SOCKET HEAD 2 M5X18
56 91312-05020 BOLT HEX.SOCKET HEAD 9 M5X20 Y-MOTOR
57 91312-05025 BOLT HEX.SOCKET HEAD 2 M5X25
58 91312-05035 BOLT HEX.SOCKET HEAD 2 M5X35
59 91312-06012 BOLT HEX.SOCKET HEAD 8 M6X12
60 91312-08012 BOLT HEX.SOCKET HEAD 8 M8X12
61 97602-03308 SCREW,PAN HEAD W/W 4
62 97602-03310 SCREW,PAN HEAD W/W 4
63 98902-04006 SCREW, BINDING HEAD 8
64 98902-04008 SCREW, BINDING HEAD 7
65 92902-03200 WASHER, PLAIN 4
66 92902-04200 WASHER, PLAIN 2
67 95302-03600 NUT, HEXAGON 2
2
4

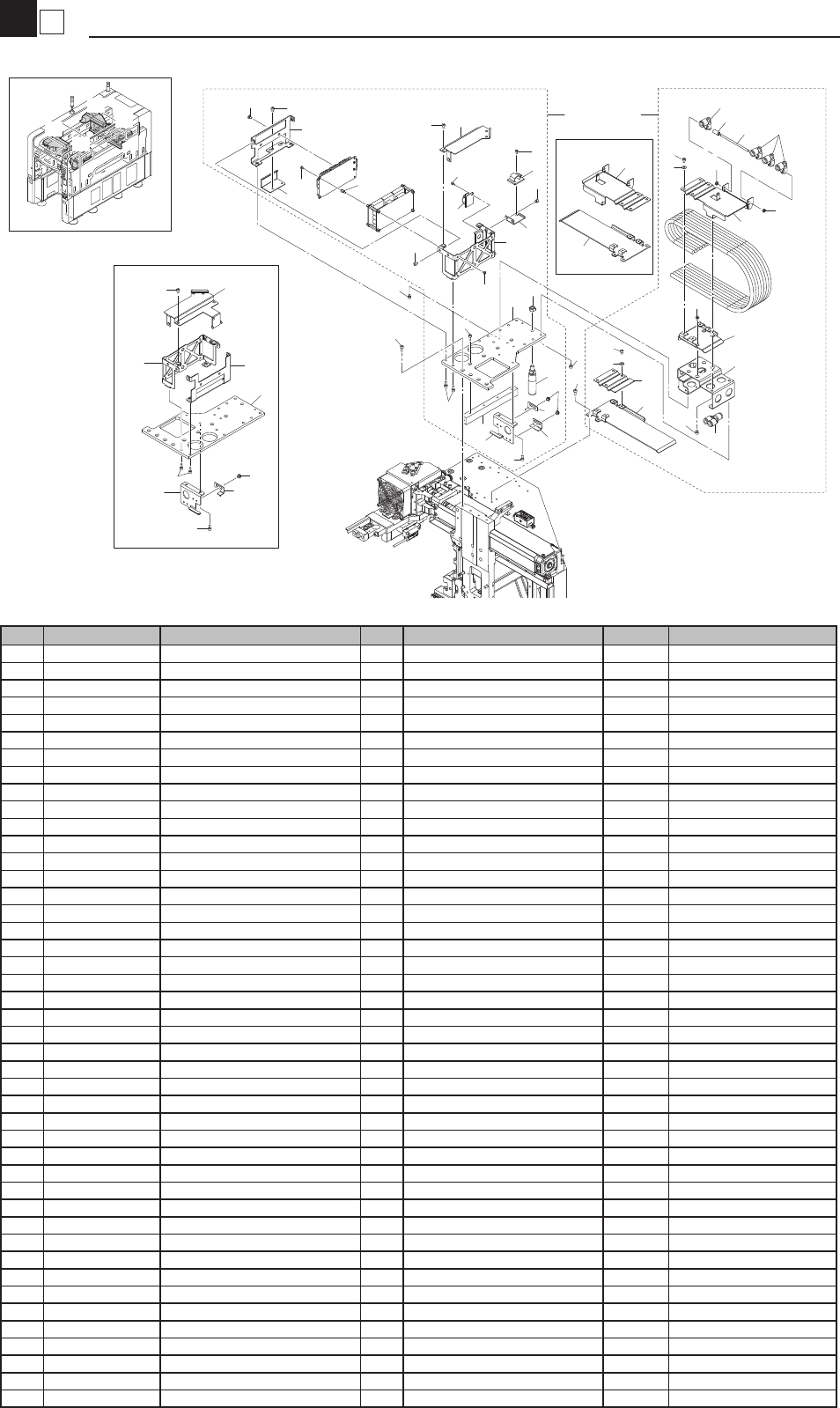

X-axis Duct / I/O-BOX
Moving-axis
KMB-1712
Type B, C
28
43
43
22
35
23
27
42
41
24
21
35
35
42
25
26
38
33
10
33
3
37
37
38
38
8
38
16
12
14
9
7
4
38
37
39
35
35
33
33
32
39
40
36
13
18
19
19
15
35
35
11
17
44
37
6
5
2
31
30
201
30
29
Type B, C
D
A
B
C
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M0202-A0 I/O BOX AD ASSY. 1
2 KMB-M2235-00 DOG,XA 2ND-LM. 1
3 KMB-M2236-00 DOG,XA 2ND-LM. 1 Type B, C
4 KLF-M2236-00 DOG,X O/S 1
5 KLF-M223F-00 LIB,S 1
6 KMB-M223G-00 BRKT.,DOG XAD 1
7 KMB-M223H-00 BRKT.,DOG XBC 1 Type B, C
8 KMB-M2243-00 STAY,DUCT XAD 1
9 KMB-M2244-00 STAY,DUCT XBC 1 Type B, C
10 KLF-M2256-00 GRIP 1
11 KMB-M2282-00 BRKT.,BOARD A-1 1
12 KMB-M2283-00 BRKT.,BOARD B-1 1 Type B, C
13 KMB-M2284-00 BRKT.,BOARD A-2 1
14 KMB-M2285-00 BRKT.,BOARD B-2 1 Type B, C
15 KMB-M2286-00 COVER,H-1 1
16 KMB-M2287-00 COVER,H-2 1 Type B, C
17 KLF-M228A-00 BRKT.,1 CLAMP 1
18 KLF-M228C-00 COVER,2 HNS 1
19 KLF-M657H-00 ADJUSTABLE CLAMP 2
20 KMB-M2240-A0 DUCT,X_AD AXIS ASSY. 1
21 KMB-M2242-00 BRKT.,DUCT X 3 1
22 KMB-M2245-00 BRKT.,DUCT XAD 5-1 1
23 KMB-M2246-00 BRKT.,DUCT XBC 5-1 1 Type B, C
24 KMB-M224C-00 BRKT.,DUCT X 2 1
25 KMB-M224D-00 BRKT.,DUCT X 5-2 1
26 KMB-M224E-00 BRKT.,DUCT XAD 1 1
27 KMB-M224F-00 BRKT.,DUCT XBC 1 1 Type B, C
28 KLF-M224G-00 SHAFT,JOINT 1
29 90990-41J197 COLLAR 1
30 $UL8 JOINT
4
31 $UY8 JOINT 1
32 90563-03J070 SPACER BOLT 4
33 90990-11J001 SCREW,PAN HEAD W/W 6
34 91312-03006 BOLT,HEX.SOCKET HEAD 2 M3X6
35 91312-04005 BOLT,HEX.SOCKET HEAD 20 M4X5
36 91312-04006 BOLT,HEX.SOCKET HEAD 2 M4X6
37 91312-04008 BOLT,HEX.SOCKET HEAD 14 M4X8
38 91312-04010 BOLT,HEX.SOCKET HEAD 21 M4X10
39 98902-03006 SCREW BINDING HEAD 8
40 98902-04006 SCREW BINDING HEAD 2
41 98702-04008 SCREW, FLAT HEAD 4
42 92902-04200 WASHER, PLAIN 8
43 95302-04600 NUT, HEXAGON 2
44 95302-08600 NUT, HEXAGON 1
3
4

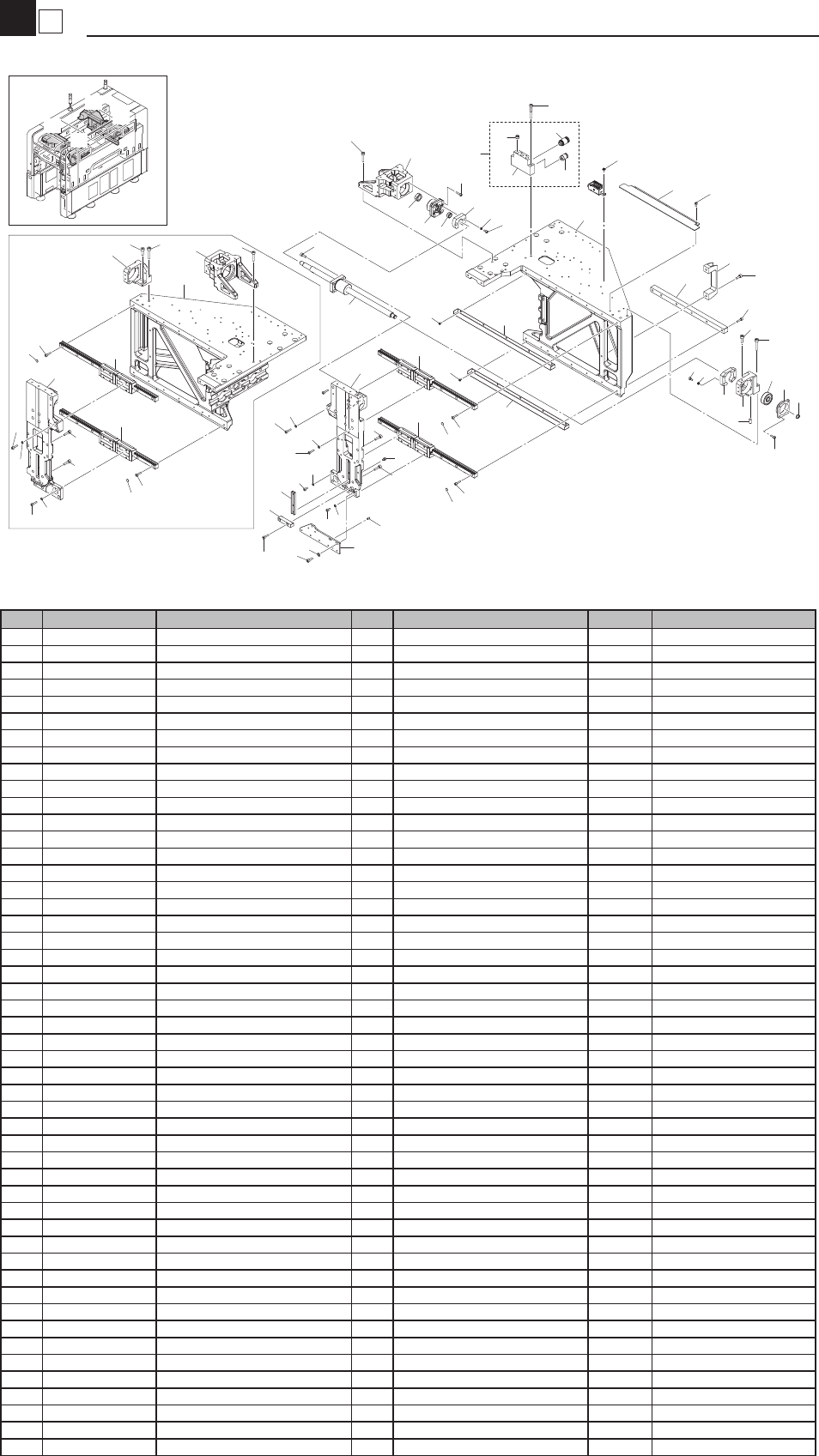

X-axis Guide / BS / X Stopper / Manufold
Moving-axis
KMB-1712
Type B, C
26
37
30
40
8
39
43
44
35
38
7
31
13
9
32
37
15
45
45
39
34
39
34
36
3
3
16
39
39
28
28
28
37
20
34
39
34
39
17
39
28
37
28
4
4
2
12
14
43 44
41
41
40
11
29
6
27
10
32
37
38
25
22
24
23
42
21
37
47
40
46
19
39
28
15
48
33
1
49
49
18
5
D
A
B
C
49
49
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M2201-00 FRAME, XA AXIS 1
2 KMB-M2202-00 FRAME, XB AXIS 1 Type B, C
3 KMB-M2211-00 GUIDE, X-AD AXIS 1
4 KMB-M2211-50 GUIDE, X-BC AXIS 1 Type B, C
5 KMB-M2212-00 BALL SCREW 1
6 KMB-M2213-00 SUPPORT UNIT 1
7 KMB-M2215-00 HOLDER, BRG. 1 1
8 KMB-M2218-00 PLATE, 1 1
9 KMB-M221S-00 DAMPER, 1 1
10 KMB-M221U-00 DAMPER, 2 1
11 KMB-M2220-00 HOLDER, MOTOR XAD 1
12 KMB-M2221-00 HOLDER, MOTOR XBC 1 Type B, C
13 KMB-M2222-00 HOLDER, BRG, AD-2 1
14 KMB-M2223-00 HOLDER, BRG, BC-2 1 Type B, C
15 KMB-M2225-00 COVER, 2 GUIDE X 2
16 KMB-M2231-00 HOLDER, HEAD A 1
17 KMB-M2232-00 HOLDER, HEAD B 1 Type B, C
18 KLF-M223D-00 PLATE, KEYWAY 1
19 KMB-M223M-00 PLATE, CAMER 1
20 KMB-M223P-00 PLATE, HEAD 1
21 KMB-M224A-A1 MANUFOLD, XY ASSY. 1
22 KMB-M224A-01 MANUFOLD, XY 1
23 KLF-223J-00 JOINT 3
24 $TSH8-02 JOINT 3
25 K40-M8598-10 PLUG 1 3
26 KMB-M227C-00 COVER, BS. 3 1
27 KMN-M224D-00 SPACER 1
28 KMN-M22F4-00 WASHER, SWRO4 32
29 KGS-M2628-00 LOCK NUT 1
30 KJX-M715A-00 PULL 1
31 90933-01J300 BEARING 1
32 90990-41J181 COLLAR 6
33 90990-11J007 SCREW PAN HEAD W/W 2
34 90K81-200004 CAP C4 28
35 99009-10400 CIRCLIP 1
36 91312-04006 BOLT HEX.SOCKET HEAD 3 M4X3
37 91312-04008 BOLT HEX.SOCKET HEAD 25 M4X8
38 91312-04012 BOLT,HEX.SOCKET HEAD 4 M4X12
39 91312-04016 BOLT,HEX.SOCKET HEAD 52 M4X16
40 91312-05014 BOLT HEX.SOCKET HEAD 8 M4X18
41 91312-05025 BOLT HEX.SOCKET HEAD 8 M4X22
42 91312-05040 BOLT HEX.SOCKET HEAD 2 M5X20
43 91312-06016 BOLT HEX.SOCKET HEAD 2 M5X25
44 91312-06030 BOLT HEX.SOCKET HEAD 4 M5X25
45 98902-03006 SCREW BINDING HEAD 10
46 92902-05600 WASHER, PLAIN 2
47 99480-04008 PIN,PARALLEL 2
48 99480-06014 PIN,PARALLEL 1
49 90990-01J165 BOLT HEX.SOCKET HEAD 6
