YSM40R_4-Beam_PartList - 第30页
1 5 Head (MU) Head KMB-1712 17 25 7 20 20 12 4 29 30 15 15 9 19 28 24 24 21 23 23 18 10 2 1 26 19 19 19 22 6 8 11 27 16 5 20 3 28 13 14 31 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KLF-M71K0-0…
5
4
Y-axis Frame / Cable / Scale
Moving-axis
KMB-1712
18
36
22
22
22
22
49
49
36
21
21
21
21
45
45
45
45
3
1
2
25
25
25
40
40
26
26
25
23
23
3
3
7
43
5
5
4
4
12
34
50
13
51
10
11
14
9
50
50
51
13
10
35
38
38
50
14
8
6
6
43
3
47
47
44
49
47
44
44
49
47
44
32
31
39
39
36
39
36
36
39
36
27
27
27
27
28
28
28
28
33
33
37
37
37
33
33
37
24
26
26
17
16
16
15
17
17
15
17
24
19
19
19
19
30
30
29
29
36
36
41
41
41
18
36
41
42
48
48
46
46
42
48
48
46
20
46
36
36
36
20
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M2605-A0 STAY,SCALE L ASSY. 1
2 KLF-M2605-B0 STAY,SCALE R ASSY. 1
3 KMB-M2617-A1 CABLE,Y AXIS ASSY 4
4 KMB-M260B-01 TAPE,1 DUCT Y 1
5 KMB-M260C-01 TAPE,2 DUCT Y 1
6 KMB-M260D-01 TAPE,3 DUCT Y 1
7 KMB-M2617-01 CABLE DUCT,Y 1
8 KMB-M2618-01 BRKT.,DUCT Y 1
9 KMB-M2620-01 PLATE,DUCT Y 1
10 KMB-M2666-01 PLATE,NUT 2
11 KMB-M2668-01 BRACKET,1 HARNESS 1
12 KMB-M2669-01 BRACKET,2 HARNESS 1
13 $CTAM1 ANCHOR MOUNT 10
14 $NK-2N NYLON CLIP 10
15 KLF-M261B-00 BRKT.,1 FIXED MARK 2
16 KLF-M261C-00 BRKT.,2 FIXED MARK 2
17 KLF-M261D-00 SUPER L/H SCREW 8
18 KMB-M26F1-01 FRAME,1 2
19 KMB-M26F2-01 COVER,FRAME 1 4
20 KMB-M26F3-00 FRAME,3 2
21 KLF-M26F8-00 PLATE,DUCT SHEET 4
22 KLF-M26FD-00 BRACKET,DUCT Y 4
23 KLF-M26T1-00 TAPE,Y LINEAR SCALE 2
24 KLF-M26T2-00 CLAMP,SCALE 2
25 KLF-M26T4-02 HEAD,LINEAR SCALE Y 4
26 KLF-M26T6-00 REF.MARK 4
27 KV7-M2651-00 DAMPER, STOPPER 4
28 KHW-M2654-00 PLATE,DAMPER 4
29 $AUS10 JOINT 12
30 $UY8 JOINT 3
31 $AUY10 JOINT 1
32 $UYD10-8 JOINT
2
33 90990-41J180 COLLAR 8
34 90990-01J011 BOLT, HEX. SOCKET HEAD 2
35 90990-01J032 BOLT, HEX. SOCKET HEAD 2
36 91312-04006 BOLT HEX.SOCKET HEAD 36 M4X6
37 91312-04008 BOLT HEX.SOCKET HEAD 8 M4X8
38 91312-04010 BOLT HEX.SOCKET HEAD 4 M4X10
39 91312-04012 BOLT HEX.SOCKET HEAD 12 M4X12
40 91312-04016 BOLT HEX.SOCKET HEAD 36 M4X16
41 91312-05006 BOLT HEX.SOCKET HEAD 16 M5X6
42 91312-05010 BOLT HEX.SOCKET HEAD 16 M5X10
43 91312-05014 BOLT HEX.SOCKET HEAD 8 M5X14
44 91312-06014 BOLT HEX.SOCKET HEAD 16 M6X14
45 98902-04005 SCREW, BINDING HEAD 23
46 92902-05600 WASHER, PLAIN 8
47 92902-06600 WASHER, PLAIN 16
48 90172-00J050 WASHER, EXTL. TOOTHED 8
49 90172-00J060 WASHER, EXTL. TOOTHED 16
50 97602-04308 SCREW,PAN HEAD W/W 20
51 98902-03006 SCREW, BINDING HEAD 4
1
5
Head (MU)
Head
KMB-1712
17
25
7
20
20
12
4
29
30
15
15
9
19
28
24
24
21
23
23
18
10
2
1
26
19
19
19
22
6
8
11
27
16
5
20
3
28
13
14
31
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M71K0-00 Z AXIS ASSY.1 2
2 KLF-M71L0-00 Z AXIS ASSY.2 2
3 KLF-M715A-A2 VALVE,ASSY. 1
4 KLF-M7150-B0 VALVE,PRESS. 1
5 KLF-M7109-00 BASE,VALVE 1
6 KLF-M71C1-00 COVER,CABLE 1
7 KLF-M71C4-00 BRACKET,CONNECTOR 1
8 KLF-M71C8-00 BRACKET,COVER 1
9 KLF-M71C9-01 COVER,HEAD 1
10 KLF-M71CD-00 CLAMP,HARNESS 2
11 KLF-M71Y0-00 LABEL,HEAD SERIAL 2
12 KLF-M7152-00 VALVE, SPARE 1 Spare
13 KLF-M7153-00 VALVE 1 Spare
14 KLF-M7154-00 JOINT 1 Spare
15 90990-01J058 BOLT,HEX.SOCKET HEAD 6
16 90990-46J007 BOLT,THIN HEAD 4
17 97602-04306 SCREW,BIN.HEAD W/W. 4
18 98902-03004 SCREW BINDING HEAD 6
19 91312-04005 BOLT HEX.SOCKET HEAD 8 M4X5
20 91312-04012 BOLT,HEX.SOCKET HEAD 8 M4X12
21 91312-04016 BOLT,HEX.SOCKET HEAD 4 M4X16
22 91312-04025 BOLT HEX.SOCKET HEAD 4 M4X25
23 91312-04045 BOLT HEX.SOCKET HEAD 16 M4X45
24 91312-05012 BOLT HEX.SOCKET HEAD 8 M5X12
25 $NK-4N NYLON CLIP 4
26 KLF-M712A-00 TUBE(TUS0425N) 6
27 KLF-M712B-00 TUBE(TUS0425N) 4
28 KLF-M712C-00 TUBE(TUS0425N) 10
29 KLF-M712D-00 TUBE(TUS0425N) 4
30 $UB0850-R
URETHANE TUBE 2 (200mm)
31 KLF-M7153-10 VALVE 1 Spare MK10136-2013/2/1
2
5

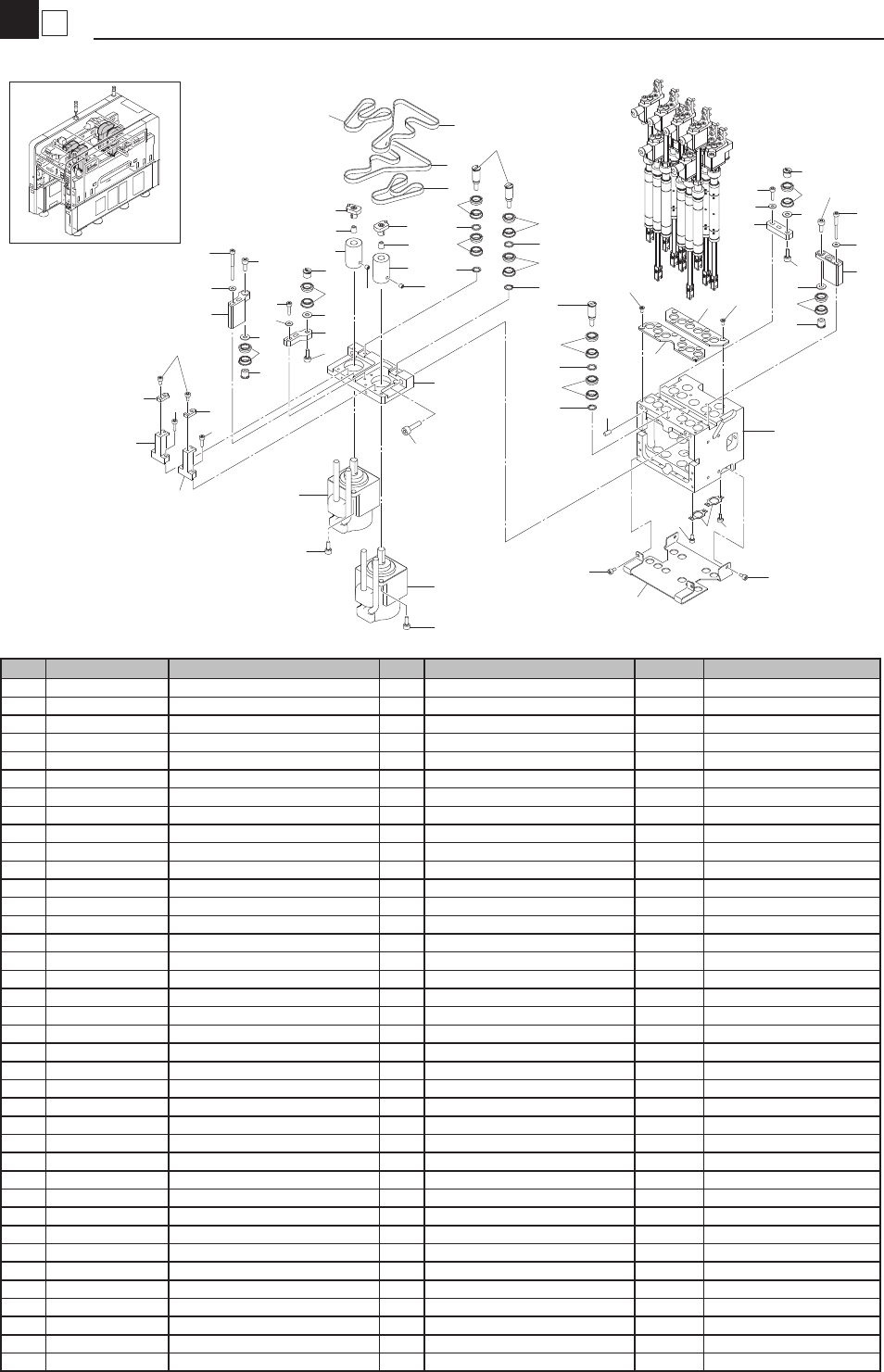

R-axis Assy (MU)
Head
KMB-1712
12
13
21
33
24
25
34
35
38
37
29
29
3
1
22
22
22
14
22
4
5
33
21
9
34
11
35
20
19
15
20
19
15
21
33
24
27
34
35
35
10
22
23
23
6
6
16
16
18
28
17
27
27
26
33
21
8
27
35
30
30
7
33
33
31
32
36
33
33
31
36
7
33
33
31
36
13
12
2
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M7101-00 HOUSING,HEAD 1
2 KLF-M7102-00 PLATE,R MOTOR 1
3 KLF-M7113-00 PLATE 2,BRG. 1
4 KLF-M7114-00 PLATE 3,BRG. 10
5 KLF-M7118-00 PLATE 4,BRG. 1
6 KLF-M7125-00 BRACKET,STOPPER 2
7 KLF-M7126-00 SHAFT,TENSION 3
8 KLF-M7127-00 BLOCK 1,ADJUST 1
9 KLF-M7128-00 BLOCK 2,ADJUST 1
10 KLF-M7129-00 BLOCK 3,ADJUST 1
11 KLF-M7130-00 BLOCK 4,ADJUST 1
12 KLF-M7131-00 BELT 1 2
13 KLF-M7132-00 BELT 2 2
14 KLF-M7133-00 SHEET,SCREEN 1
15 KLF-M7134-00 PULLEY,R MOTOR 2
16 KLF-M7139-00 STOPPER R 2
17 90KB0-113503 AC SERVO MOTOR R1 1
18 90KB0-113504 AC SERVO MOTOR R2 1
19 KGV-M7157-00 BLOCK2,STOPPER R 2
20 KHN-M7132-A0 BLOCK STOPPER ASSY 2
21 KV8-M7115-00 SHAFT 1,TENSION 4
22 91312-03006 BOLT HEX.SOCKET HEAD 28 M3X6
23 91312-03010 BOLT HEX.SOCKET HEAD 6 M3X10
24 91312-03012 BOLT,HEX.SOCKET HEAD 4 M3X12
25 91312-03030 BOLT,HEX.SOCKET HEAD 2 M3X30
26 91312-03035 BOLT,HEX.SOCKET HEAD 2 M3X35
27 91312-04010 BOLT HEX.SOCKET HEAD 4 M4X10
28 91312-05018 BOLT HEX.SOCKET HEAD 2 M5X18
29 98702-03006 SCREW FLAT HEAD 14
30 92A08-04304 SET SCREW M4X4 4
31 99009-07800 CIRCLIP : 3
32 99480-04008 PIN,PARALLEL:4X8 2
33 90990-25J016 BEARING 20
34 92902-03200 WASHER PLAIN 8
35 92902-04200 WASHER PLAIN 4
36 90990-28J157 WASHER,PLAIN 3
37 91312-04006 BOLT HEX.SOCKET HEAD 2
38 91312-04008 BOLT HEX.SOCKET HEAD 2
