YSM40R_4-Beam_PartList - 第34页
5 5 Head (RS) T op Head KMB-1712 2 3 17 8 19 8 11 22 9 15 15 9 12 18 11 1 22 18 6 14 14 14 5 17 13 20 21 14 10 16 4 7 14 OLD 10 23 25 24 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KMB-M7036-00 …
4
5

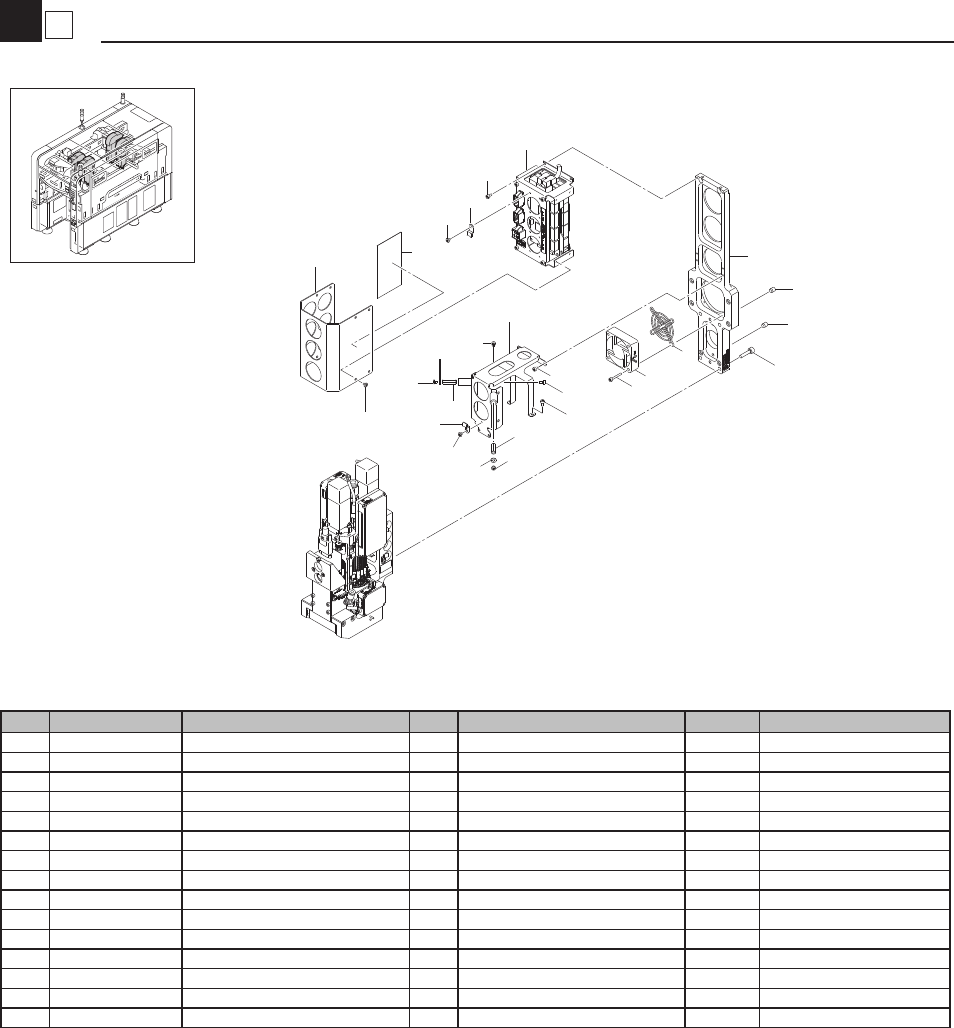

Body Head Sub Assy (MU)
Head
KMB-1712
26
20
26
3
5
4
33
33
36
31
30
31
35
35
1
34
34
28
8
8
30
30
24
7
6
20
19
41
12
23
21
15
25
11
22
17
15
21
9
18
10
21
21
21
23
37
39
38
29
14
40
23
13
23
16
27
32
2
18
46
45
16
42 44
43
OLD
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M7103-01 PLATE A 1
2 KLF-M7104-00 PLATE,MANIFOLD 1
3 KLF-M7108-00 BASE,MOTOR 1
4 KLF-M7122-01 CAP 1 2
5 KLF-M7123-01 CAP 2 2
6 KLF-M7143-01 KEY,PARALLEL 1
7 KLF-M711R-00 BLOCK,HEAD 1
8 KLF-M71CF-00 CLAMP,CABLE 2
9 KLF-M7117-00 BASE,VALVE 1
10 KLF-M7191-01 BOX,SERVO BRD. 1
11 KLF-M7196-00 BASE,FAN MOTOR 1
12 KLF-M71C5-00 BRACKET,VALVE 1
13 KLF-M71C6-00 BRACKET,SERVO BOX 1
14 KLF-M71C7-00 BRACKET,JOINT 1
15 KLF-M71CB-00 PLATE,NUT 2
16 KLF-M71CE-00 CLAMP,CONNECTOR 1
16-1 KLF-M71CE-01 CLAMP,CONNECTOR 1 NG MP20076-2017/2/22
17 KLF-M6185-00 FAN MOTOR ASSY. 1
18 KLA-M5802-37 HEAD SERVO UNIT ASSY 2
19 97602-04306 SCREW,BIN.HEAD W/W. 4
20 90112-02J010 BOLT HEX.SOCKET HEAD 6
21 91312-03006 BOLT HEX.SOCKET HEAD 12 M3X3
22 91312-03018 BOLT HEX.SOCKET HEAD 4 M3X18
23 91312-04006 BOLT HEX.SOCKET HEAD 14 M4X6
24 91312-04008 BOLT HEX.SOCKET HEAD 2 M4X8
25 91312-05012 BOLT HEX.SOCKET HEAD 3 M5X12
26 91312-05016 BOLT HEX.SOCKET HEAD 3 M5X16
27 91312-05020 BOLT HEX.SOCKET HEAD 4 M6X20
28 91312-05035 BOLT HEX.SOCKET HEAD 2 M6X35
29
90990-23J030 GROMMET 5
30 99480-05010 PIN,PARALLEL 5
31 90990-18J005 PIN PARALLEL 4
32 90990-17J066 O RING 4
33 90947-30JA00 BALL STEEL 8
34 $TL4-M5M JOINT 2
35 $TLL4-M5M JOINT 2
36 $TSH4-M5M JOINT 4
37 $TL6-01 JOINT 2
38 $TS8-01 JOINT 3
39 $UP8 PLUG 1
40 $TSM8-01 JOINT 5
41 $NK-4N NYLON CLIP 4
42 KLF-M71CG-00 CLAMP,2 CONNECTOR 1 MP20076-2017/2/22
43 KLF-M71CH-00 CLAMP,3 CONNECTOR 1 MP20076-2017/2/22
44 98502-03004 SCREW, PAN HEAD 2 MP20076-2017/2/22
45 $PL6-01 JOINT 1 MP80007-2017/9/4
46 $ATS8-01 JOINT 1 MMY0180-2015/12/22
5
5
Head (RS) Top
Head
KMB-1712
2
3
17
8
19
8
11
22
9
15
15
9
12
18
11
1
22
18
6
14
14
14
5
17
13
20
21
14
10
16
4
7
14
OLD
10
23 25
24
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M7036-00 STAY,REGULATOR 1
2 KMB-M7051-00 PLATE,TOP 1
3 KMB-M7060-00 VALVE,ASSY. 1
3-1 KMB-M7060-01 VALVE,ASSY. 1 OK MN30075-2016/3/14
4 KMB-M70C2-00 COVER,HEAD1 1
5 KMB-M70C6-00 COVER,HEAD2 1
6 KMB-M70CF-00 COVER,HEAD3 1
7 KMB-M70CH-00 STAY,HARNESS 1
8 KLF-M7075-00 REGULATOR 1
9 KLF-M71CB-00 PLATE,NUT 2
10 KLF-M71CE-00 CLAMP,CONNECTOR 1
10-1 KLF-M71CE-01 CLAMP,CONNECTOR 1 NG MP20076-2017/2/22
11 K40-M8598-10 PLUG 1 2
12 90990-41J183 COLLAR 2
13 97602-03106 SCREW,PAN HEAD W/W 1
13-1 98902-03006 SCREW,BINDING HEAD 1 OK MN30131-2016/3/22
14 98902-03004 SCREW, BINDING HEAD 35
15 91312-03005 BOLT,HEX.SOCKET HEAD 4
16 91312-03006 BOLT,HEX.SOCKET HEAD 16
17 91312-04006 BOLT,HEX.SOCKET HEAD 6
18 91312-04014 BOLT,HEX.SOCKET HEAD 4
19 91312-04025 BOLT,HEX.SOCKET HEAD 2
20 92902-03200 WASHER,PLAIN 3
21 $NK-3N NYLON CLIP 1
22 $SL4-01 JOINT 2
23 KLF-M71CG-00 CLAMP,2 CONNECTOR 1 MP20076-2017/2/22
24 KLF-M71CH-00 CLAMP,3 CONNECTOR 1 MP20076-2017/2/22
25 98502-03004 SCREW, PAN HEAD 2 MP20076-2017/2/22
6
5
Head (RS) Servo Unit
Head
KMB-1712
1
4
8
8
14
5
7
6
12
11
9
2
12
12
12
12
9
11
11
10
15
11
3
10
15
11
13
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M7002-00 PLATE,HEAD 1
2 KMB-M70C1-00 STAY,HARNESS 1
3 KMB-M70CG-00 COVER,HARNESS 1
4 KMB-M70CJ-00 TAPE,COVER 1
5 KMB-M4187-00 FAN GUARD 52MM 1
6 KMB-M5802-47 HEAD SERVO UNIT ASSY 1
7 KMB-M6185-F0 FAN MOTOR ASSY 1
8 90990-18J034 PIN,PARALLEL 2
9 90990-55J001 CLAMP, CABLE 15
10 90562-23J200 SPACER 2
11 98902-03004 SCREW, BINDING HEAD 35
12 91312-03006 BOLT,HEX.SOCKET HEAD 16
13 91312-03020 BOLT,HEX.SOCKET HEAD 6
14 91312-05020 BOLT,HEX.SOCKET HEAD 4
15 92902-03200 WASHER,PLAIN 3
