6 5 Head (RS) Servo Unit Head KMB-1712 1 4 8 8 14 5 7 6 12 11 9 2 12 12 12 12 9 11 11 10 15 11 3 10 15 11 13 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KMB-M7002-00 PLA TE,HEAD 1 2 KMB-M70C1-00…
5
5
Head (RS) Top
Head
KMB-1712
2
3
17
8
19
8
11
22
9
15
15
9
12
18
11
1
22
18
6
14
14
14
5
17
13
20
21
14
10
16
4
7
14
OLD
10
23 25
24
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M7036-00 STAY,REGULATOR 1
2 KMB-M7051-00 PLATE,TOP 1
3 KMB-M7060-00 VALVE,ASSY. 1
3-1 KMB-M7060-01 VALVE,ASSY. 1 OK MN30075-2016/3/14
4 KMB-M70C2-00 COVER,HEAD1 1
5 KMB-M70C6-00 COVER,HEAD2 1
6 KMB-M70CF-00 COVER,HEAD3 1
7 KMB-M70CH-00 STAY,HARNESS 1
8 KLF-M7075-00 REGULATOR 1
9 KLF-M71CB-00 PLATE,NUT 2
10 KLF-M71CE-00 CLAMP,CONNECTOR 1
10-1 KLF-M71CE-01 CLAMP,CONNECTOR 1 NG MP20076-2017/2/22
11 K40-M8598-10 PLUG 1 2
12 90990-41J183 COLLAR 2
13 97602-03106 SCREW,PAN HEAD W/W 1
13-1 98902-03006 SCREW,BINDING HEAD 1 OK MN30131-2016/3/22
14 98902-03004 SCREW, BINDING HEAD 35
15 91312-03005 BOLT,HEX.SOCKET HEAD 4
16 91312-03006 BOLT,HEX.SOCKET HEAD 16
17 91312-04006 BOLT,HEX.SOCKET HEAD 6
18 91312-04014 BOLT,HEX.SOCKET HEAD 4
19 91312-04025 BOLT,HEX.SOCKET HEAD 2
20 92902-03200 WASHER,PLAIN 3
21 $NK-3N NYLON CLIP 1
22 $SL4-01 JOINT 2
23 KLF-M71CG-00 CLAMP,2 CONNECTOR 1 MP20076-2017/2/22
24 KLF-M71CH-00 CLAMP,3 CONNECTOR 1 MP20076-2017/2/22
25 98502-03004 SCREW, PAN HEAD 2 MP20076-2017/2/22
6
5
Head (RS) Servo Unit
Head
KMB-1712
1
4
8
8
14
5
7
6
12
11
9
2
12
12
12
12
9
11
11
10
15
11
3
10
15
11
13
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M7002-00 PLATE,HEAD 1
2 KMB-M70C1-00 STAY,HARNESS 1
3 KMB-M70CG-00 COVER,HARNESS 1
4 KMB-M70CJ-00 TAPE,COVER 1
5 KMB-M4187-00 FAN GUARD 52MM 1
6 KMB-M5802-47 HEAD SERVO UNIT ASSY 1
7 KMB-M6185-F0 FAN MOTOR ASSY 1
8 90990-18J034 PIN,PARALLEL 2
9 90990-55J001 CLAMP, CABLE 15
10 90562-23J200 SPACER 2
11 98902-03004 SCREW, BINDING HEAD 35
12 91312-03006 BOLT,HEX.SOCKET HEAD 16
13 91312-03020 BOLT,HEX.SOCKET HEAD 6
14 91312-05020 BOLT,HEX.SOCKET HEAD 4
15 92902-03200 WASHER,PLAIN 3
7
5

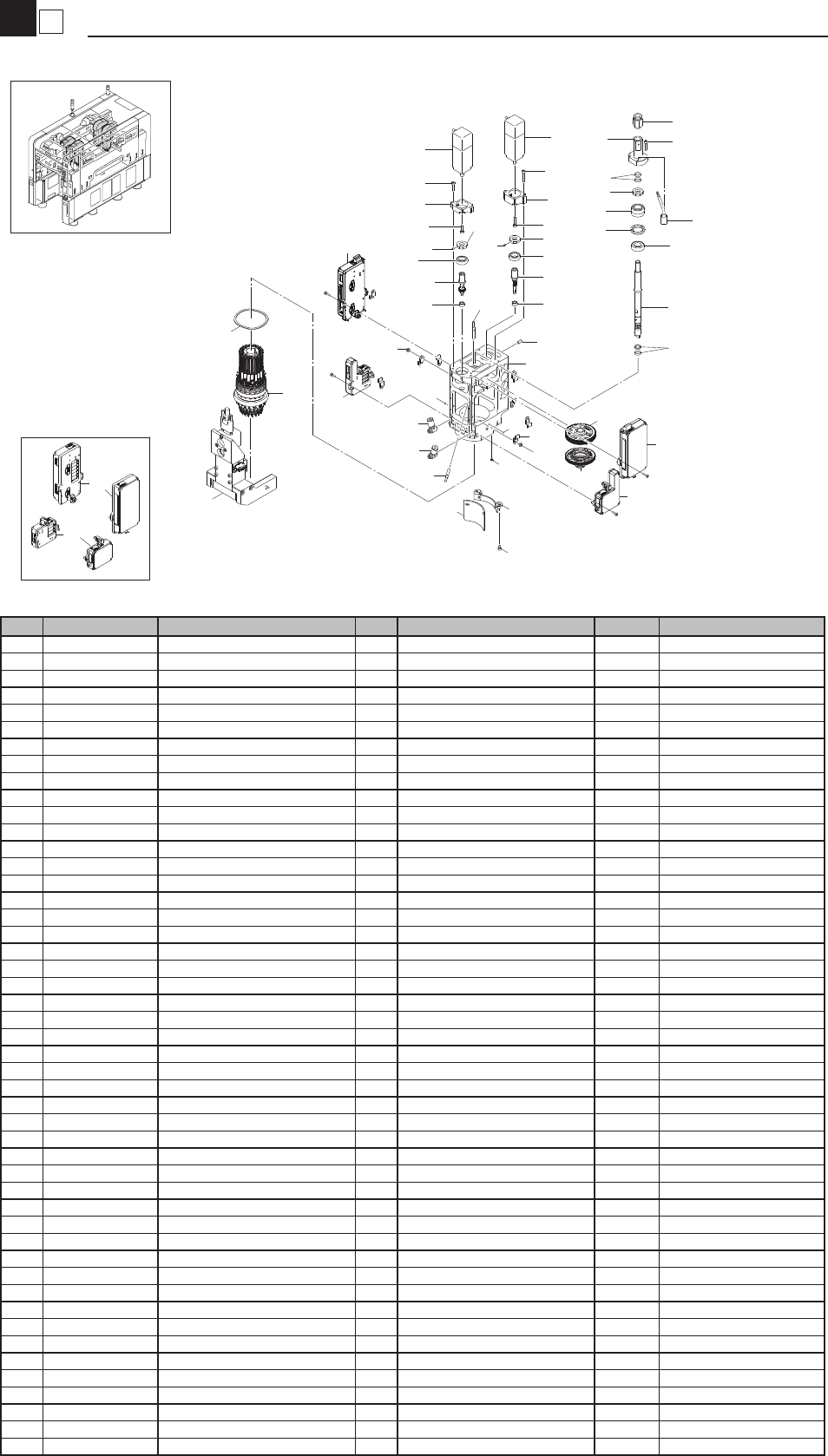

Head (RS) Z, V Axis
Head
KMB-1712
OLD
17
18
19
20
21
22
23
24
25
26
27
38
28
30
33
34
32
35
36
37
22
33
31
30
23
25
1
2
3
4
6
7
8
16
5
9
10
11
12
13
14
15
13
13
14
15
36
29
38
28
29
39
38
40
15
14
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M7001-00 HOUSING,HEAD 1
1-1 KMB-M7001-01 HOUSING,HEAD 1 OK MNX0053-2016/12/9
2 KMB-M7004-00 BASE,MOTOR 1
3 KMB-M7005-00 BASE,MOTOR 1
4 KMB-M7009-00 HOLDER,PACKING 1
5 KMB-M7010-00 ROTARY ASSY. 1
6 KMB-M7020-00 GEAR,N ASSY. 1 The origin is a hole type
6-1 KMB-M7020-01 GEAR,N ASSY. 1 The origin is a bolt type NG MN90031-2016/9/15
7 KMB-M7021-00 GEAR,N MOTOR 1
8 KMB-M7025-00 NUT,GEAR 1 1
9 KMB-M7028-00 WASHER,WAVE 1
10 KMB-M7030-00 GEAR,R ASSY. 1 The origin is a hole type
10-1 KMB-M7030-01 GEAR,R ASSY. 1 The origin is a bolt type NG MN90031-2016/9/15
11 KMB-M7031-00 GEAR,R MOTOR 1
12 KMB-M7041-00 SHAFT,MAIN 1
13 KMB-M7062-00 NUT,BEARING 3
14 KMB-M70K0-00 Z AXIS ASSY. 2
14-1 KMB-M70K0-10 Z AXIS ASSY. 2 Super high speed head B setting NG MP60082-2017/7/6
15 KMB-M70R0-00 V AXIS ASSY. 2
15-1 KMB-M70R0-10 V AXIS ASSY. 2 Super high speed head B setting NG MP60082-2017/7/6
16 KMB-M79C0-H2 S.V.CAM.ASSY. 1 -H0,-H1 Compatible
16-1 KMB-M79C0-H3 S.V.CAM.ASSY. 1 OK MR90052-2019/2/28
17 KMB-M653M-00 SENSOR,N ORG ASSY 1 The origin is a hole type
17-1 KMB-M653M-10 SENSOR,N ORG ASSY 1 The origin is a bolt type NG MN90031-2016/9/15
18 KMB-M653N-00 SENSOR,R ORG ASSY 1 The origin is a hole type
18-1 KMB-M653N-10 SENSOR,R ORG ASSY 1 The origin is a bolt type NG MN90031-2016/9/15
19 KMB-M653P-00 SEN.VAC.PRESS ASSY 1
20 90KD0-011504 AC SERVO MOTOR 1
21 90KD0-012003 AC SERVO MOTOR 1
22 90990-22J026 PACKING 4
23 90933-01J800 BEARING 2
24 90933-01J900 BEARING 1
25 90933-02J684 BEARING 2
26 90990-08J016 SCREW, PAN HEAD 3
27 90990-26J007 BEARING 1
28 90990-55J001 CLAMP, CABLE 15
29 90944-20J000 BALL,STEEL 2
30 90152-03J03 SCREW, SET 8
31 91312-03012 BOLT,HEX.SOCKET HEAD 2
32 91312-03014 BOLT,HEX.SOCKET HEAD 2
33 91312-03016 BOLT,HEX.SOCET HEAD 6
34 91312-03020 BOLT,HEX.SOCKET HEAD 6
35 99480-04008 PIN, PARALLEL 2
36 $SLH4-M5 JOINT 2
37 $ATS8-01 JOINT 1
38 KMB-M7071-00 PLATE,PROTECT 1 MNX0053-2016/12/9
39 KMB-M7072-00 PLATE,HOLD 1 MNX0053-2016/12/9
40 91312-03008 BOLT HEX,SOCKET HEAD 2 MNX0053-2016/12/9
