YSM40R_4-Beam_PartList - 第39页
1 6 Nozzle Nozzle KMB-1712 1 NOZZLE 501A ASSY . 2 3 10 NOZZLE 512A ASSY . 11 3 12 NOZZLE 513A ASSY . 13 3 17 18 14 NOZZLE 503A/514A ASSY . 15 16 4 NOZZLE 502A ASSY . 5 3 6 NOZZLE 510A ASSY . 7 3 8 NOZZLE 51 1A ASSY . 9 3…
9
5

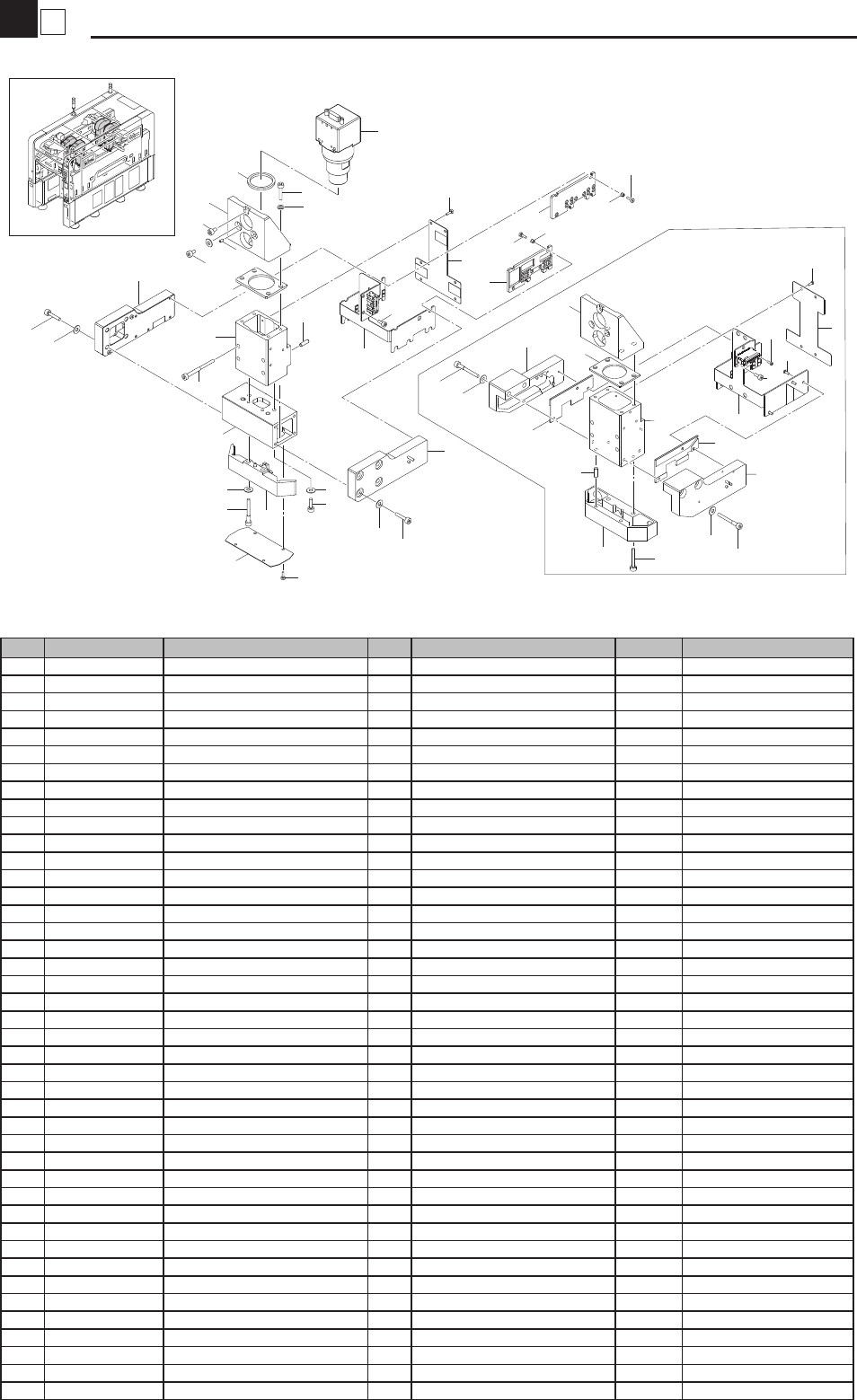

S. V. CAM. Assy
Head
KMB-1905
3
8
7
9
10
11
11
11
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
26
18
18
25
11
16
17
18
19
23
24
18
11
11
27
20
16
21
28
28
22
5
OLD
21
22
2
4
6
15
18
20
18
16
16
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M79D0-00 CAMERA ASSY. 1
2 KMB-M7901-01 BASE,CAMERA 1
2-1 KMB-M7901-02 BASE,CAMERA 1 NG H025944-2019/1/22
3 KMB-M7902-00 HOLDER,CAMERA 1
3-1 KMB-M7902-01 HOLDER,CAMERA 1 NG H025944-2019/1/22
4 KMB-M7941-00 BASE,MIRROR ASSY. 1 With mirror
4-1 KMB-M7941-01 BASE,MIRROR ASSY. 1 NG H025944-2019/1/22
5 KMB-M7942-00 HOLDER,PRISM 1 ASSY. 1 With prism
5-1 KMB-M7942-01 HOLDER PRISM 1 ASSY. 1 NG H025944-2019/1/22
6 KMB-M7943-00 HOLDER,PRISM 2 ASSY. 1 With prism
6-1 KMB-M7943-01 HOLDER PRISM 2 ASSY. 1 NG H025944-2019/1/22
7 KMB-M7925-00 COVER,HNS. 1
7-1 KMB-M7925-A0 HNS.COVER ASSY. 1 NG H025944-2019/1/22
8 KMB-M792S-XX SHIM SEL. 1
8-1 KMB-M794S-XX SHIM SELECTION 1 NG H025944-2019/1/22
9 KMB-M7931-05 S.V.LIGHT BRD ASSY 1
9-1 KMB-M7931-10 S.V.LIGHT BRD ASSY 1 NG H025944-2019/1/22
10 90112-2AJ006 BOLT,HEX.SOCKET HEAD 3
11 90990-08J029 SCREW, PAN HEAD 10
11-1 90990-01J170 SCREW, PAN HEAD 20 NG H025944-2019/1/22
12 90990-18J033 PIN,PARALLEL 2
13 91312-03005 BOLT,HEX.SOCKET HEAD 3
14 91312-03012 BOLT,HEX.SOCKET HEAD 4
14-1 91312-03014 BOLT,HEX.SOCKET HEAD 4 NG H025944-2019/1/22
15 91312-03020 BOLT,HEX.SOCKET HEAD 2
16 91312-03025 BOLT,HEX.SOCKET HEAD 4
16-1 91312-03014 BOLT,HEX.SOCKET HEAD 8 NG H025944-2019/1/22
17 91312-03035 BOLT,HEX.SOCKET HEAD 4
18 92902-03200 WASHER,PLAIN 8
19 92902-03600 WASHER,PLAIN 4
20 90990-18J041 PIN, PARALLEL 4
21 KMB-M7927-00 SHEET LIGHT 1 1
21-1 KMB-M7948-10 PLATE,LED GUARD 1 1 NG H025944-2019/1/22
21-2 KMB-M7948-30 PLATE,LED GUARD 1 1 OK MS50106-2019/6/7
22 KMB-M7928-00 SHEET LIGHT 2 1
22-1 KMB-M7948-20 PLATE,LED GUARD 2 1 NG H025944-2019/1/22
23 KMB-M7961-00 HOUSING,MIRROR 1 H025944-2019/1/22
24 KMB-M7962-00 PLATE,BOTTOM COVER 1 H025944-2019/1/22
25 91312-03010 BOLT,HEX.SOCKET HEAD 2 H025944-2019/1/22
26 91312-03025 BOLT,HEX.SOCKET HEAD 2 H025944-2019/1/22
27 KMB-M7953-00 SPONGE,SEAL 1 H025944-2019/1/22
28 90990-41J209 COLLAR 10 H025944-2019/1/22
1
6

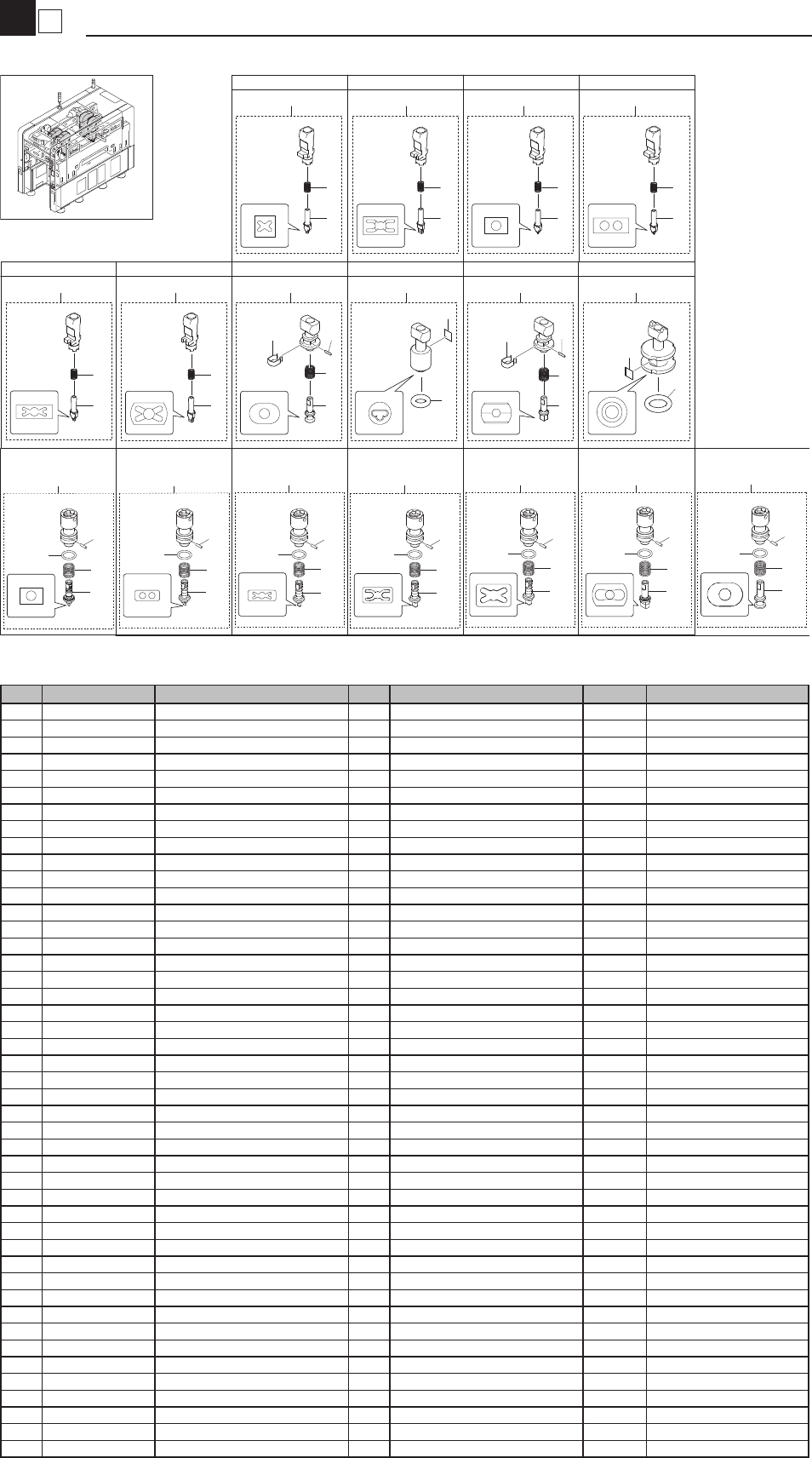

Nozzle
Nozzle
KMB-1712
1
NOZZLE 501A ASSY.
2
3
10
NOZZLE 512A ASSY.
11
3
12
NOZZLE 513A ASSY.
13
3
17
18
14
NOZZLE 503A/514A ASSY.
15
16
4
NOZZLE 502A ASSY.
5
3
6
NOZZLE 510A ASSY.
7
3
8
NOZZLE 511A ASSY.
9
3
20
19
NOZZLE 504A/515A ASSY.
21
17
18
22
NOZZLE 506A/515A ASSY. NOZZLE 507A/518A ASSY.
23
16
24
20
25
30
31
33
35
41
27
42
29
28
28
27
36
29
28
27
34
29
28
27
32
29
28
27
26
29
NOZZLE 7203A ASSY. NOZZLE 7204A ASSY. NOZZLE 7205A ASSY. NOZZLE 7206A ASSY. NOZZLE 7207A ASSY.
39
28
27
40
29
NOZZLE 7202A ASSY.
37
27
38
29
28
NOZZLE 7208A ASSY.
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M7710-A0 NOZZLE,501A ASSY. 1 (MU)
2 KLF-M7711-00 BODY,NOZZLE 501 1
3 KLF-M7713-00 SPRING,NOZZLE 6
4 KLF-M7720-A1 NOZZLE,502A ASSY. 1 (MU)
5 KLF-M7721-01 BODY,NOZZLE 502 1
6 KLF-M87A0-A0 NOZZLE,510A ASSY. 1 (MU)
7 KLF-M87A1-00 BODY,NOZZLE 510 1
8 KLF-M8710-A1 NOZZLE,511A ASSY. 1 (MU)
9 KLF-M8711-01 BODY,NOZZLE 511 1
10 KLF-M8720-A1 NOZZLE,512A ASSY. 1 (MU)
11 KLF-M8721-01 BODY,NOZZLE 512 1
12 KLF-M8730-A2 NOZZLE,513A ASSY. 1 (MU)
13 KLF-M8731-02 BODY,NOZZLE 513 1
14 KLF-M8740-A0 NOZZLE,503A/514A AS. 1 (MU)
15 KHY-M7741-00 BODY,NOZZLE 303/314 1
16 KHN-M7713-00 SPRING 2
17 KHN-M7714-00 PIN 2
18 KHN-M7715-00 CLIP 2
19 KLF-M8750-A0 NOZZLE,504A/515A AS. 1 (MU)
20 KGS-M7742-00 LABEL,NOZZLE 2
21 90990-17J081 O-RING 1
22 KLF-M8770-A0 NOZZLE,506A/517A AS. 1 (MU)
23 KHY-M7771-00 BODY,NOZZLE 306/317 1
24 KLF-M8780-A0 NOZZLE,507A/518A AS. 1 (MU)
25 90990-17J082 O-RING 1
26 KHY-M7711-04 NZL.311/7203 1
27 KHN-M7713-10 SPRING 1
27-1 KMB-M7714-00 SPRING 1 OK MP70059-2017/8/02
28 KMB-M7716-00 O-RING 1
29 90990-19J019 NEEDLE PIN 1
30 KMB-M7730-A0 NOZZLE 7203A ASSY. 1 (RS)
31 KMB-M7740-A0 NOZZLE 7204A ASSY. 1 (RS)
32 KHY-M7721-03 NZL.312/7204 1
33 KMB-M7750-A0 NOZZLE 7205A ASSY. 1 (RS)
34 KHN-M7721-05 NZL.302/7205 1
35 KMB-M7760-A0 NOZZLE 7206A ASSY. 1 (RS)
36 KHY-M7731-03 NZL.313/7206 1
37 KMB-M7780-A0 NOZZLE 7208A ASSY. 1 (RS)
37-1 KMB-M7780-A1 NOZZLE 7208A ASSY. 1 OK MP30008-2017/3/8
38 KHY-M7741-00 BODY,NOZZLE 303/314 1 (RS)
38-1 KMB-M7741-00 BODY,NOZZLE 7208 1 OK MN40111-2016/4/20
39 KMB-M7720-A0 NOZZLE 7202A ASSY. 1 (RS) MN50011-2016/5/12
40 KMB-M77A1-00 BODY,NOZZLE 7202 1 MN50011-2016/5/12
41 KMB-M7770-A0 NOZZLE 7207A ASSY. 1 (RS) MN50011-2016/5/12
42 KMB-M7771-00 BODY,NOZZLE 7207 1 MN50011-2016/5/12
2
6

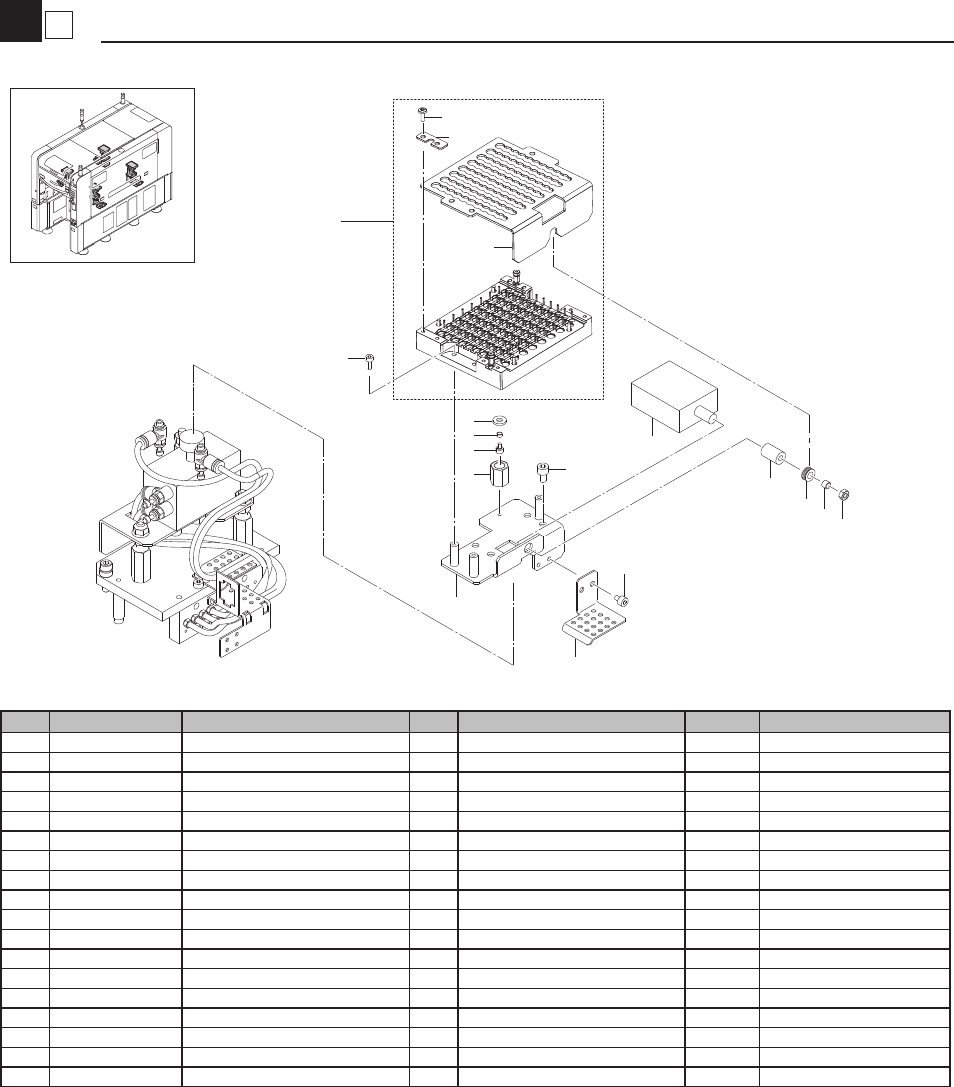

Nozzle Changer (Holder) RS
Nozzle
KMB-1712
12
7
1
8
2
10
15
14
18
17
16
6
9
11
5
3
4
13
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M653G-00 CYL.ANC OP/CL ASSY 1
2 KMB-M9614-00 JOINT,CYL. 1
3 KMB-M9615-00 PLATE 1 1
4 KMB-M9619-00 BRACKET 1 1
5 KMB-M9625-00 STOPPER 1
6 KMB-M9626-00 STOPPER 1
7 KMB-M9660-A0 CLAMP HOLDER ASSY. 1
8 KHY-M9614-00 STOPPER,CYLINDER 1
9 90990-41J042 COLLAR 1
10 90990-41J134 COLLAR 1
11 91312-03004 BOLT,HEX.SOCKET HEAD 1
12 91312-03008 BOLT,HEX.SOCKET HEAD 3
13 91312-04005 BOLT,HEX.SOCKET HEAD 2
14 91312-05008 BOLT,HEX.SOCKET HEAD 4
15 95302-04600 NUT,HEXAGON 1
16 KMB-M9611-00 PLATE, CLAMP 1
17 KMB-M9612-00 SHEET, CLAMP GUIDE 4
18 98902-03008 SCREW, BINDING HEAD 12
