2 6 Nozzle Changer (Holder) RS Nozzle KMB-1712 12 7 1 8 2 10 15 14 18 17 16 6 9 11 5 3 4 13 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KMB-M653G-00 CYL.ANC OP/CL ASSY 1 2 KMB-M9614-00 JOINT ,CY…
1
6
Nozzle
Nozzle
KMB-1712
1
NOZZLE 501A ASSY.
2
3
10
NOZZLE 512A ASSY.
11
3
12
NOZZLE 513A ASSY.
13
3
17
18
14
NOZZLE 503A/514A ASSY.
15
16
4
NOZZLE 502A ASSY.
5
3
6
NOZZLE 510A ASSY.
7
3
8
NOZZLE 511A ASSY.
9
3
20
19
NOZZLE 504A/515A ASSY.
21
17
18
22
NOZZLE 506A/515A ASSY. NOZZLE 507A/518A ASSY.
23
16
24
20
25
30
31
33
35
41
27
42
29
28
28
27
36
29
28
27
34
29
28
27
32
29
28
27
26
29
NOZZLE 7203A ASSY. NOZZLE 7204A ASSY. NOZZLE 7205A ASSY. NOZZLE 7206A ASSY. NOZZLE 7207A ASSY.
39
28
27
40
29
NOZZLE 7202A ASSY.
37
27
38
29
28
NOZZLE 7208A ASSY.
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M7710-A0 NOZZLE,501A ASSY. 1 (MU)
2 KLF-M7711-00 BODY,NOZZLE 501 1
3 KLF-M7713-00 SPRING,NOZZLE 6
4 KLF-M7720-A1 NOZZLE,502A ASSY. 1 (MU)
5 KLF-M7721-01 BODY,NOZZLE 502 1
6 KLF-M87A0-A0 NOZZLE,510A ASSY. 1 (MU)
7 KLF-M87A1-00 BODY,NOZZLE 510 1
8 KLF-M8710-A1 NOZZLE,511A ASSY. 1 (MU)
9 KLF-M8711-01 BODY,NOZZLE 511 1
10 KLF-M8720-A1 NOZZLE,512A ASSY. 1 (MU)
11 KLF-M8721-01 BODY,NOZZLE 512 1
12 KLF-M8730-A2 NOZZLE,513A ASSY. 1 (MU)
13 KLF-M8731-02 BODY,NOZZLE 513 1
14 KLF-M8740-A0 NOZZLE,503A/514A AS. 1 (MU)
15 KHY-M7741-00 BODY,NOZZLE 303/314 1
16 KHN-M7713-00 SPRING 2
17 KHN-M7714-00 PIN 2
18 KHN-M7715-00 CLIP 2
19 KLF-M8750-A0 NOZZLE,504A/515A AS. 1 (MU)
20 KGS-M7742-00 LABEL,NOZZLE 2
21 90990-17J081 O-RING 1
22 KLF-M8770-A0 NOZZLE,506A/517A AS. 1 (MU)
23 KHY-M7771-00 BODY,NOZZLE 306/317 1
24 KLF-M8780-A0 NOZZLE,507A/518A AS. 1 (MU)
25 90990-17J082 O-RING 1
26 KHY-M7711-04 NZL.311/7203 1
27 KHN-M7713-10 SPRING 1
27-1 KMB-M7714-00 SPRING 1 OK MP70059-2017/8/02
28 KMB-M7716-00 O-RING 1
29 90990-19J019 NEEDLE PIN 1
30 KMB-M7730-A0 NOZZLE 7203A ASSY. 1 (RS)
31 KMB-M7740-A0 NOZZLE 7204A ASSY. 1 (RS)
32 KHY-M7721-03 NZL.312/7204 1
33 KMB-M7750-A0 NOZZLE 7205A ASSY. 1 (RS)
34 KHN-M7721-05 NZL.302/7205 1
35 KMB-M7760-A0 NOZZLE 7206A ASSY. 1 (RS)
36 KHY-M7731-03 NZL.313/7206 1
37 KMB-M7780-A0 NOZZLE 7208A ASSY. 1 (RS)
37-1 KMB-M7780-A1 NOZZLE 7208A ASSY. 1 OK MP30008-2017/3/8
38 KHY-M7741-00 BODY,NOZZLE 303/314 1 (RS)
38-1 KMB-M7741-00 BODY,NOZZLE 7208 1 OK MN40111-2016/4/20
39 KMB-M7720-A0 NOZZLE 7202A ASSY. 1 (RS) MN50011-2016/5/12
40 KMB-M77A1-00 BODY,NOZZLE 7202 1 MN50011-2016/5/12
41 KMB-M7770-A0 NOZZLE 7207A ASSY. 1 (RS) MN50011-2016/5/12
42 KMB-M7771-00 BODY,NOZZLE 7207 1 MN50011-2016/5/12
2
6
Nozzle Changer (Holder) RS
Nozzle
KMB-1712
12
7
1
8
2
10
15
14
18
17
16
6
9
11
5
3
4
13
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M653G-00 CYL.ANC OP/CL ASSY 1
2 KMB-M9614-00 JOINT,CYL. 1
3 KMB-M9615-00 PLATE 1 1
4 KMB-M9619-00 BRACKET 1 1
5 KMB-M9625-00 STOPPER 1
6 KMB-M9626-00 STOPPER 1
7 KMB-M9660-A0 CLAMP HOLDER ASSY. 1
8 KHY-M9614-00 STOPPER,CYLINDER 1
9 90990-41J042 COLLAR 1
10 90990-41J134 COLLAR 1
11 91312-03004 BOLT,HEX.SOCKET HEAD 1
12 91312-03008 BOLT,HEX.SOCKET HEAD 3
13 91312-04005 BOLT,HEX.SOCKET HEAD 2
14 91312-05008 BOLT,HEX.SOCKET HEAD 4
15 95302-04600 NUT,HEXAGON 1
16 KMB-M9611-00 PLATE, CLAMP 1
17 KMB-M9612-00 SHEET, CLAMP GUIDE 4
18 98902-03008 SCREW, BINDING HEAD 12
3
6

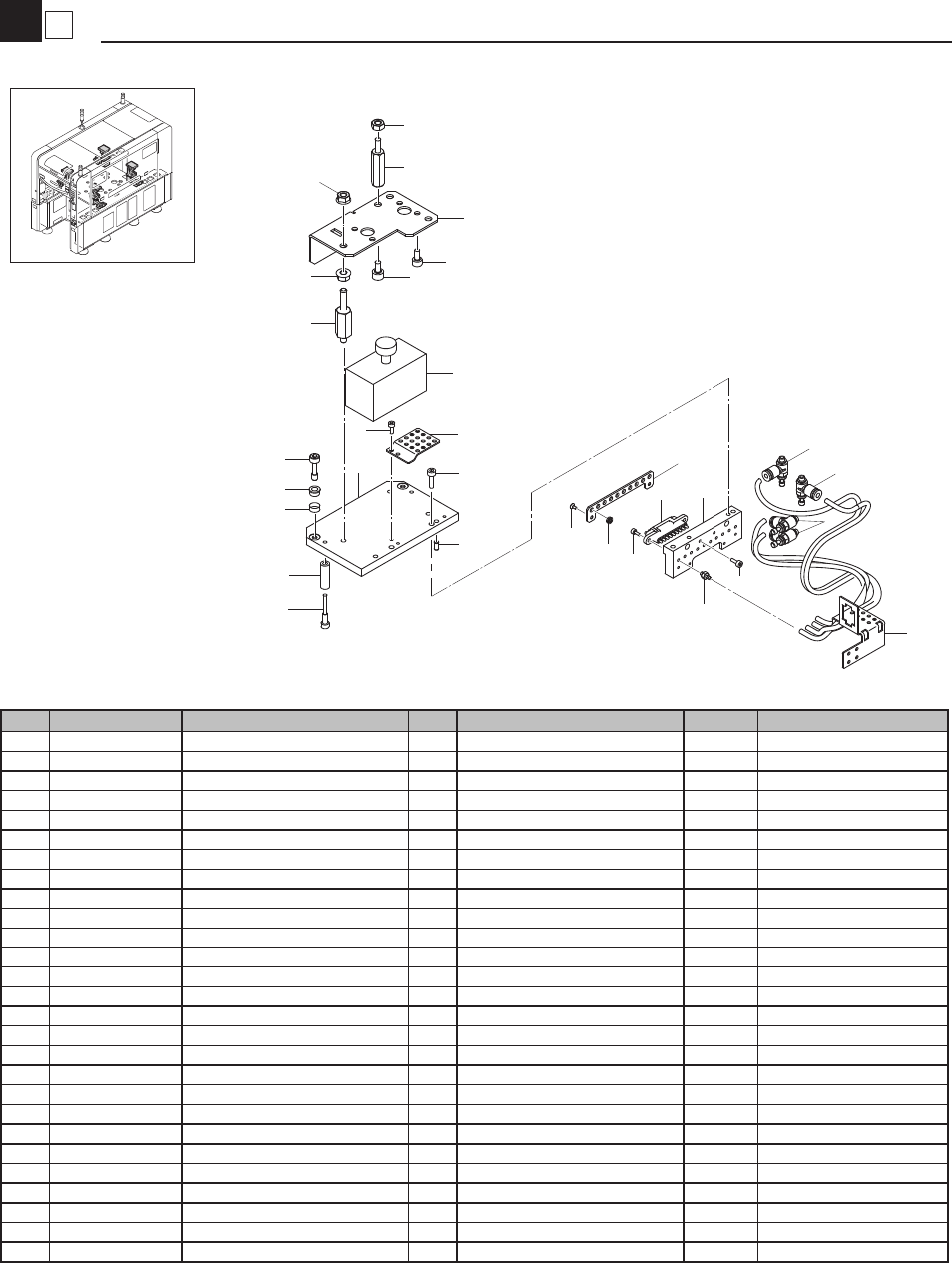

Nozzle Changer (Stand) RS
Nozzle
KMB-1712
25
18
3
26
26
4
24
23
1
20
7
21
5
13
11
12
8
22
17
9
2
16
27
14
20
6
15
15
15
19
10
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M653F-00 CYL,ANC UP/DOWN ASSY 1
2 KMB-M66M0-00 HNS,ANC RS 1
3 KMB-M9617-00 PLATE 2 1
4 KMB-M9618-00 SHAFT 3
5 KMB-M961A-00 PLATE 1
6 KMB-M961B-00 BRACKET 1
7 KMB-M961C-00 BRACKET 2 1
8 KMB-M9622-00 COLLAR 2
9 KLF-M9622-00 PLATE,PACKING 1
10 KLF-M9623-00 BLOCK,JOINT 1
11 KLF-M9658-00 BUSH 2
12 KLF-M9659-00 SPRING 2
13 LC4-M12A2-00 SCREW,M5X20-6 2
14 $BF4-M3 JOINT 4
15 $SC4-M5A SPEED CONTROLLER 4
16 90112-2AJ006 BOLT,HEX.SOCKET HEAD 2
17 90167-02JA05 SCREW, FLAT HEAD 2
18 90563-06J350 SPACER BOLT 1
19 90990-22J009 PACKING 4
20 91312-03008 BOLT,HEX.SOCKET HEAD 4
21 91312-04014 BOLT,HEX.SOCKET HEAD 2
22 91312-04030 BOLT HEX,SOCKET HEAD 2
23 91312-05010 BOLT,HEX.SOCKET HEAD 4
24 91312-06010 BOLT,HEX.SOCKET HEAD 1
25 95302-06600 NUT, HEXAGON 1
26 95702-06500 NUT,FLANGE 6
27 99480-04008 PIN, PARALLEL 2
