YSM40R_4-Beam_PartList - 第43页
5 6 Nozzle Changer (Stand) MU Nozzle KMB-1712 23 23 17 7 8 25 14 26 21 22 27 13 12 1 10 9 20 19 25 23 31 25 4 5 5 6 2 3 23 23 29 28 23 11 16 16 31 24 27 15 23 18 33 32 30 30 No. Part No. Part Name Q'ty Remarks Compa…
4
6

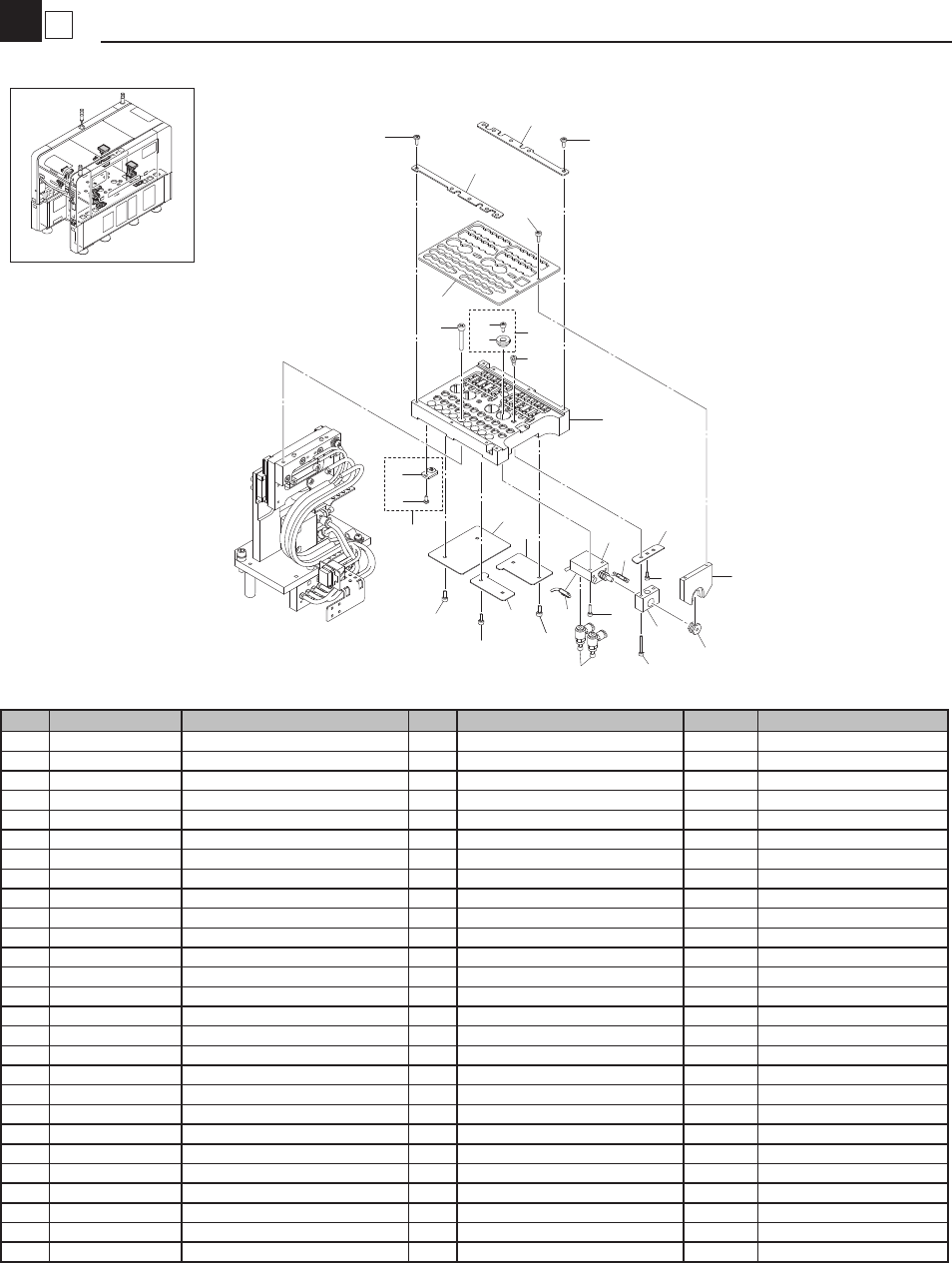

Nozzle Changer (Holder) MU
Nozzle
KMB-1712
24
24
22
2
23
25
13
12
17
1
11
21
10
7
6
5
22
22
22
22
20
15
4
8
18
19
9
14
16
3
3
26
27
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M9661-A0 NOZZLE HOLDER ASSY. 1
2 KLF-M9662-00 PLATE,CLAMP 1
3 KLF-M9663-01 SHEET,CLAMP GUIDE 2
4 KLF-M9664-00 PLATE,JOINT,CYL. 1
5 KLF-M9665-00 PLATE 1 1
6 KLF-M9666-00 PLATE 2 1
7 KLF-M9667-00 PLATE 3 1
8 KLF-M9668-00 PLATE 4 1
9 KLF-M9655-00 BLOCK,STOPPER 1
10 KHY-M9621-A0 BASE,NOZZLE D ASSY. 8
11 KHY-M9621-B0 BASE,NOZZLE D 1
12 KLW-M96HD-A0 SPACER ASSY. 4
13 KLW-M96HD-00 SPACER HOLDER 3 1
14 KKU-M184K-00 CYLINDER (MBDAS) 1
15 KGS-M9604-00 JOINT CYL. 1
16 KJD-M1740-00 SPEED CONTROLLER 2
17 KKE-M9608-00 PIN,SLIDE 2
18 90112-2AJ006 BOLT,HEX.SOCKET HEAD 1
19 90112-2AJ010 BOLT,HEX.S.H:M2.5X10 2
20 90112-2AJ020 BOLT HEX.SOCKET HEAD 2
21 92012-03006 BOLT,BUTTON HEAD 2
22 91312-03008 BOLT HEX.SOCKET HEAD 8 M3X8
23 91312-04025 BOLT HEX.SOCKET HEAD 2 M4X25
24 98902-03008 SCREW BINDING HEAD 8
25 91312-03006 BOLT HEX.SOCKET HEAD 2
26 KLF-M653S-00 SENSOR ANC OPEN ASSY 1
27 KLF-M653S-10 SENSOR ANC CL. ASSY 1
5
6
Nozzle Changer (Stand) MU
Nozzle
KMB-1712
23
23
17
7
8
25
14
26
21
22
27
13
12
1
10
9
20
19
25
23
31
25
4
5
5
6
2
3
23
23
29
28
23
11
16
16
31
24
27
15
23
18
33
32
30
30
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M9651-00 BASE,A.N.C. 1
2 KLF-M9652-00 PLATE,BRACKET 1
3 KLF-M9653-00 PLATE 1
4 KLF-M9654-00 BRACKET,STOPPER 1
5 KLF-M9656-01 PLATE,STOPPER 2
6 KLF-M9657-00 BRACKET 1 1
7 KLF-M9658-00 BUSH 2
8 KLF-M9659-00 SPRING 2
9 KLF-M965B-00 CYLINDER 1
10 KLF-M965C-00 JOINT 1
11 KLF-M965D-00 BRACKET 2 1
12 KLF-M9622-00 PLATE,PACKING 1
13 KLF-M9623-00 BLOCK,JOINT 1
14 KLF-M9624-00 SHAFT,GUIDE 2
15 KLF-M962B-00 BRACKET 1
16 KLF-M965A-00 GUIDE 2
17 LC4-M12A2-00 SCREW,M5X20-6 2
18 $BF4-M3 JOINT 4
19 $PF-M3 PLUG 6
20 $SC4-M3MA SPEED CONTROLLER 2
20-1 KJD-M1740-00 SPEED CONTROLLER 2 OK MK30085-2013/3/26
21 90167-02JA05 SCREW,FLAT HEAD 2
22 90990-22J009 PACKING 10
23 91312-03008 BOLT HEX.SOCKET HEAD 12 M3X8
24 91312-04014 BOLT HEX.SOCKET HEAD 6 M4X14
25 91312-04025 BOLT HEX.SOCKET HEAD 4 M4X25
26 91312-04030 BOLT HEX.SOCKET HEAD 2 M4X30
27 99480-04008 PIN,PARALLEL:4X8 4
28 $NK-3N NYLON CLIP 2
29 97602-04308 SCREW,PAN HEAD W/W 2
30
90990-01J044 BOLT,HEX.SOCKET HEAD 4
31 90990-41J163 COLLAR 4
32 KLF-M653T-00 SENSOR ANC UP ASSY 1
33 KLF-M653T-10 SENSOR ANC DOWN ASSY 1
6
6

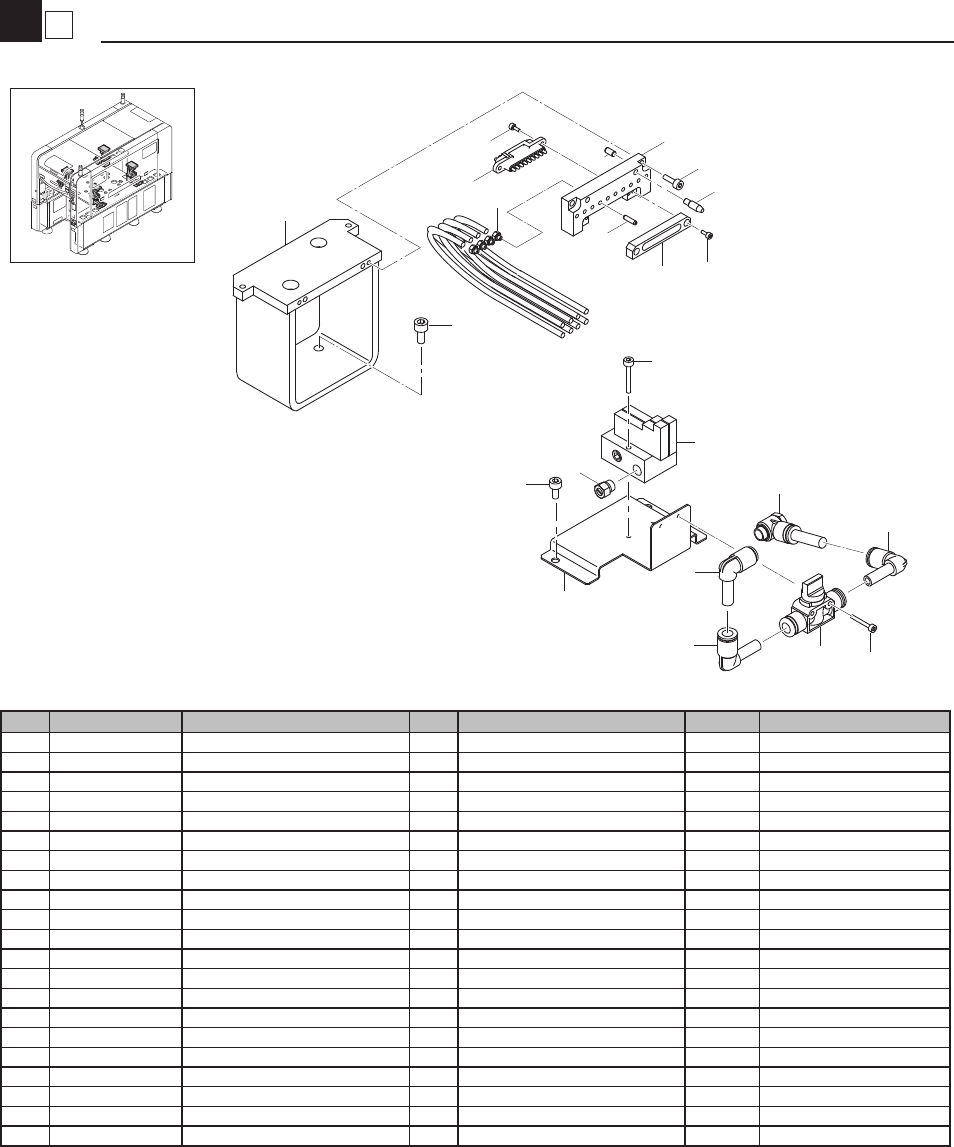

Nozzle Changer (Base)
Nozzle
KMB-1712
4
20
9
15
3
21
7
17
6
15
8
5
18
1
19
11
12
13
16
10
13
14
2
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M653E-00 VALVE ASSY 1
2 KMB-M9632-00 PLATE 1
3 KLF-M66M0-00 HNS,ANC DI 1
4 KLF-M9611-00 STAND 1
5 KLF-M9614-00 PIN,JOINT 4
6 KLF-M9615-00 PIN,GUIDE 2
7 KLF-M9617-00 BLOCK,JOINT 1
8 KLF-M961D-00 BLOCK 1
9 $BF4-M3 JOINT 4
10 $FVU8-8 JOINT 1
11 $KM-10 MUFFLER 1
12 $SL8-01 JOINT 1
13 $ULA8 JOINT 2
14 $ULAD8-6 JOINT 1
15 90112-2AJ006 BOLT,HEX.SOCKET HEAD 4
16 91312-03020 BOLT,HEX.SOCKET HEAD 2
17 91312-04012 BOLT,HEX.SOCKET HEAD 2
18 91312-04025 BOLT,HEX.SOCKET HEAD 2
19 91312-05010 BOLT,HEX.SOCKET HEAD 2
20 91312-06012 BOLT,HEX.SOCKET HEAD 2
21 99480-04008 PIN, PARALLEL 2
