YSM40R_4-Beam_PartList - 第58页
2 8 Fiducial Camera Camera KMB-1712 8 9 6 1 3 6 3 5 4 7 1 10 10 2 2 7 1 8 9 8 9 6 1 3 6 3 5 4 7 1 10 10 2 2 7 1 8 9 12 11 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KLF-M6460-00 FID.LIGHT BOARD…
1
8

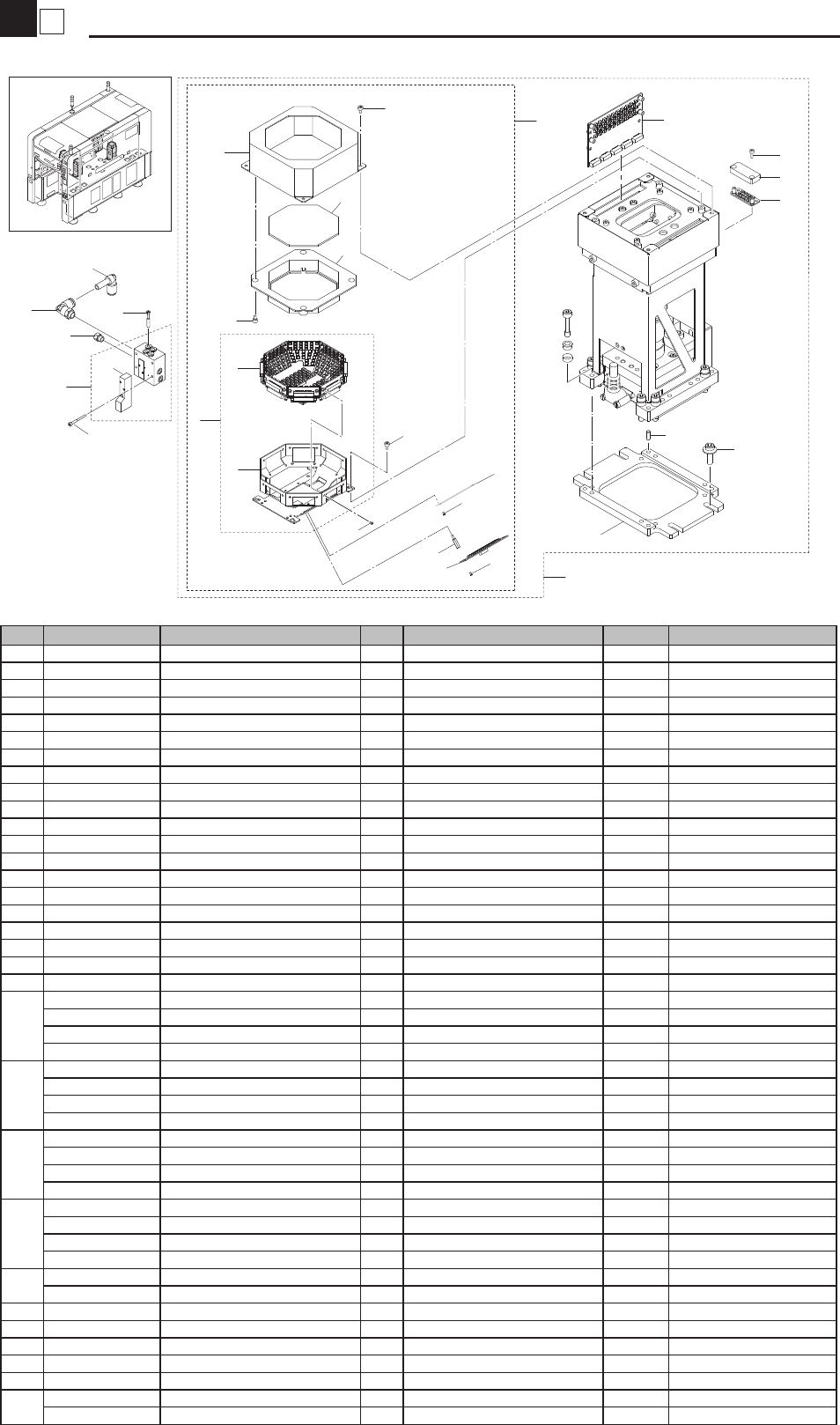

Multi Camera & Light Assy
Camera
KMB-1712
1
9
5
6
7
9
9
4
3
8
17
16
15
11
12
13
14
12
2
3
20, 21, 22, 23
19
10
18
30
27
26
25
28
24
29
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M73L1-00 M.LIGHT SUB ASSY. 1
2 KLF-M73L0-50 MULTI LIGHT ASSY. 1 Co-planarity
3 KLF-M735S-03 M.LIGHT BOARD SET 1
4 KMB-M7321-00 CASE,LIGHT 1
5 KLF-M7362-00 COVER,LIGHT 1
6 KLF-M7363-00 COVER,GLASS 1
7 KLF-M7368-00 COVER,LIGHT 2 1
8 90990-08J019 SCREW,M2X3 36
9 91312-03005 BOLT,HEX.SOCKET HEAD 12 M3X5
10 90990-32J008 BOLT,FLANGE 2
10-1 90990-32J008 BOLT,FLANGE 4 Change Q'ty OK H025538-2018/7/30
11 KLF-M7366-00 LSD 1
12 90990-08J019 SCREW,M2X3 4
13 90563-02J120 SPACER BOLT 2
14 KLF-M735A-00 M.LIGHT CPLA CX ASSY 1
15 90112-02J005 BOLT,HEX.SOCKET HEAD 2
16 KLF-M795E-00 DIFFUSER 1
17 KLF-M7981-00 S.V.LIGHT BRD.ASSY. 1
18 KMB-M7301-00 STAND,CAMERA 1 1
19 99480-04010 PIN, PARALLEL 4 4xL10 YGK-1-125
20
KMB-M73C0-00 MULTI CAM.ASSY. 1 A TABLE
KMB-M73CS-A0 MULTI+SV CAM.ASSY. 1
KLF-M73C0-B0 MULTI+CO CAM.ASSY. 1
KLF-M73CW-A0 MULTI+SV+CO CAM.ASSY 1
21
KMB-M73C0-00 MULTI CAM.ASSY. 1 B TABLE
KMB-M73CS-B0 MULTI+SV CAM.ASSY. 1
KLF-M73C0-B0 MULTI+CO CAM.ASSY. 1
KLF-M73CW-B0 MULTI+SV+CO CAM.ASSY 1
22
KMB-M73C0-00 MULTI CAM.ASSY. 1 C TABLE
KMB-M73CS-B0 MULTI+SV CAM.ASSY. 1
KLF-M73C0-B0 MULTI+CO CAM.ASSY. 1
KLF-M73CW-B0 MULTI+SV+CO CAM.ASSY 1
23
KMB-M73C0-00 MULTI CAM.ASSY. 1 D TABLE
KMB-M73CS-A0 MULTI+SV CAM.ASSY. 1
KLF-M73C0-B0 MULTI+CO CAM.ASSY. 1
KLF-M73CW-A0 MULTI+SV+CO CAM.ASSY 1
24
KLF-M73V1-00 VALVE ASSY. 1 One valve
KJY-M9791-00 VALVE ASSY 1 Two valve
25 $KM-10 MUFFLER 1
26 $TL8-01 JOINT 1
27 $ULAD8-6 JOINT 1
28 $UP4 JOINT 1
29 91312-03030 BOLT,HEX.SOCKET HEAD 1
30
One valve (Pending registration)
KJY-M8601-00 VALVE (SPARE PARTS) 1 Two valve
2
8

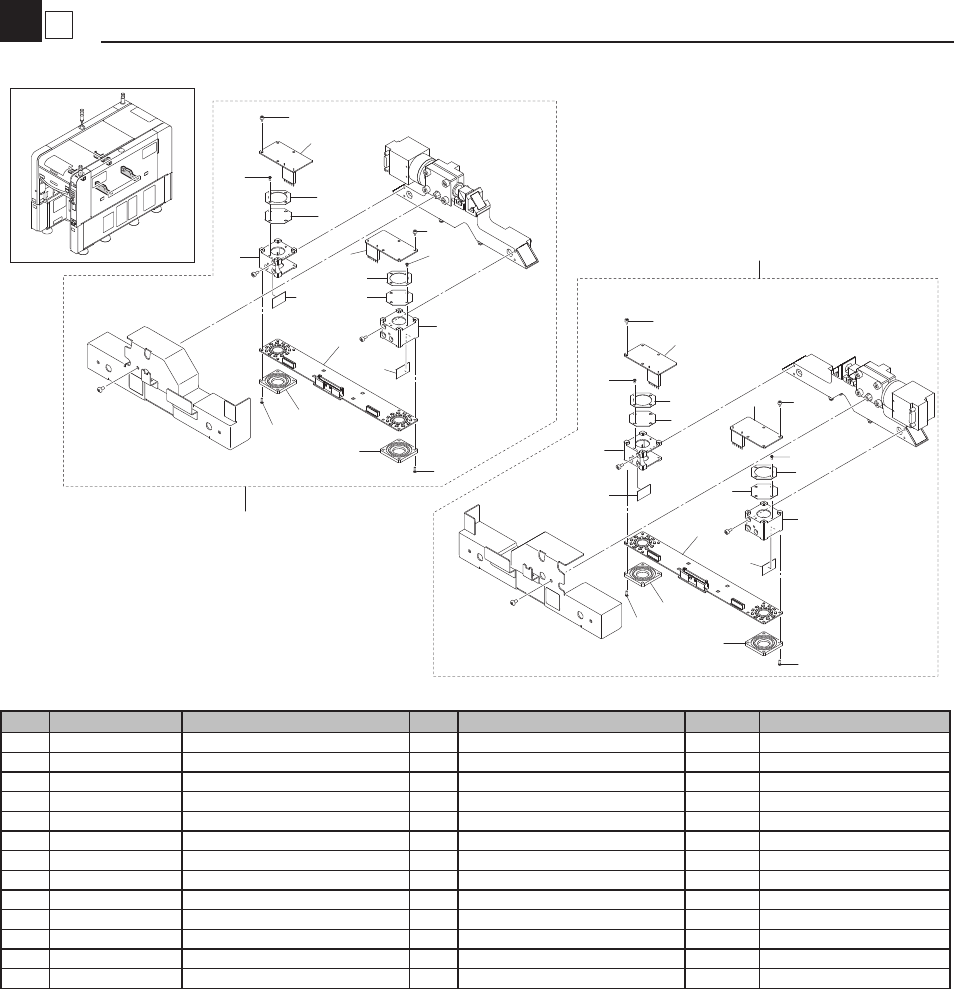

Fiducial Camera
Camera
KMB-1712
8
9
6
1
3
6
3
5
4
7
1
10
10
2
2
7
1
8
9
8
9
6
1
3
6
3
5
4
7
1
10
10
2
2
7
1
8
9
12
11
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M6460-00 FID.LIGHT BOARD SET 1
1-1 KLF-M6460-01 FID.LIGHT BOARD SET 1 OK MP30045-2017/3/21
2 KLF-M7603-00 DIFFUSER,MAIN 2
3 KLF-M7613-00 DIFFUSER,COAX. 2
4 KLF-M7618-00 BLOCK,LIGHT R 1
5 KLF-M7619-00 BLOCK,LIGHT L 1
6 KLF-M7623-00 PLATE,DIFFUSER 2
7 KLF-M7624-00 AR SHEET 2
8 90112-02J003 BOLT HEX.SOCKET HEAD 8
9 90990-08J019 SCREW,M2X3 6
10 90990-08J020 SCREW,M2X5 8
11 KLF-M7600-10 T-FID.CAM.ASSY.A,D 2
12 KLF-M7600-20 T-FID.CAM.ASSY.B,C 2
1
9
Blow Station (Fix)
Blow Station
KMB-1712
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
12
11
14
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M9901-00 BOX,BLOW ST. 1 3D
2 KMB-M9902-00 BLOCK,BLOW ST. 1
3 KMB-M9903-00 COVER,BOX 1
4 KMB-M9904-00 TUBE 4
5 KMC-M99B8-00 PLATE,BOX 1
6 KMC-M99B9-00 COLLAR 4
7 KLW-M99B5-00 INLINE FILTER 1
8 KLW-M99B6-00 PLUG 1
9 KLW-M99V1-A0 BLOW VALVE ASSY. 1
10 90990-23J030 GROMMET 4
11 91312-03020 BOLT,HEX.SOCKET HEAD 2
12 91312-04025 BOLT,HEX.SOCKET HEAD 2
13 91312-06010 BOLT,HEX.SOCKET HEAD 2
14 98902-03004 SCREW, BINDING HEAD 8
15 $TL6-01 JOINT 1
15-1 $PL6-01 JOINT 1 OK MP80007-2017/9/4
16 $TS6-01 JOINT 1
16-1 $ATS6-01 JOINT 1 OK MMY0180-2015/12/22
17 $PF PLUG 1
