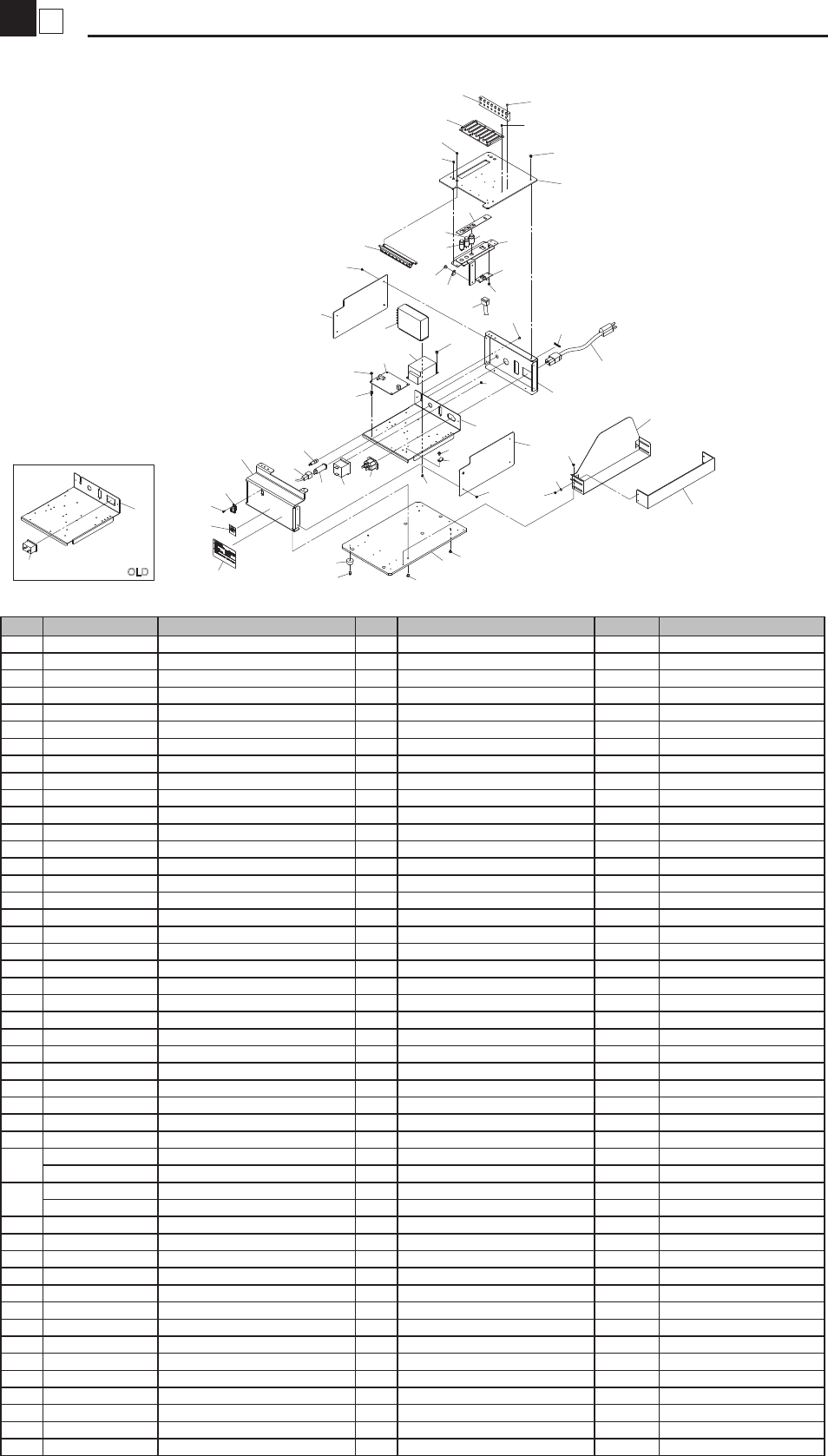

YSM40R_4-Beam_PartList - 第64页
1 11 Set Up ST on MC FDR KMB-1712 28 30 31 10 29 29 16 23 3 22 11 8 12 29 24 24 26 26 19 19 43 43 40 40 41 21 21 21 15 15 29 32 14 17 6 21 41 2 18 25 29 18 25 29 9 21 27 20 27 32 27 32 20 20 4 7 1 5 35 38 39 37 41 41 33 …
4
10
Base / Side Block
Tape Cutter
KMB-1712
9
1
15
15
15
2
8
8
6
23
19
18
21
12
14
19
18
17
10
22
20
21
13
4
5
3
16
17
13
11
24
7
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M3T70-01 COVER,FR UPPER 1
2 KLF-M3T76-02 COVER,FRONT 1
3 KLF-M3TC1-02 DUCT 1
4 KJJ-M5127-00 SAFETY SWITCH KEY 1
5 KJJ-M11C9-00 PLATE,NUT 1
6 KGS-M1360-00 BOLT 2
7 KLF-M13GG-01 COVER,HD 1
8 90K41-001410 LABEL,CAUTION 2
9 90K41-001250 LABEL,WARNING 1
10 KLF-M3TR1-00 LABEL,TC.SERIAL 1
10-1 KMB-M3TR1-00 LABEL,TC.SERIAL 1 NG MNY0025-2016/12/16
11 KLF-M3T53-00 BLOCK,BASE R 1
12 KLF-M3T53-10 BLOCK,BASE L 1
13 KLF-M3T58-00 BLOCK,STOPPER 2
14 KLF-M3TG4-00 COVER,BASE HOLE 1
15 98902-04006 SCREW BINDING HEAD 19
16 97602-05310 SCREW,PAN HEAD W/W 4
17 91312-06030 BOLT HEX.SOCKET HEAD 6 M6X30
18 91312-08030 BOLT HEX.SOCKET HEAD 4 M8X30
19 91312-08035 BOLT HEX.SOCKET HEAD 4 M8X35
20 99480-06020 PIN PARALLEL 1
21 99480-08020 PIN PARALLEL: 8X20 2
22 92A08-04006 SET SCREW M4X6 1
23 92902-04200 WASHER PLAIN 2
24 90990-12J001 SCREW, BIN. HEAD W/W 2
1
11
Set Up ST on MC
FDR
KMB-1712
28
30
31
10
29
29
16
23
3
22
11
8
12
29
24
24
26
26
19
19
43
43
40
40
41
21
21
21
15
15
29
32
14
17
6
21
41
2
18
25
29
18
25
29
9
21
27
20
27
32
27
32
20
20
4
7
1
5
35
38
39
37
41
41
33
13
34
46
42
36
41
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-MD101-00 FEEDER PLATE 1
2 KLF-MD102-00 COVER,HNS 1
3 KLF-MD103-00 COVER,SIDE 1
4 KLF-MD104-00 CLAMP PLATE 1
5 KLF-MD105-00 FEEDER STOPPER 1
6 KLF-MD106-00 CONNECTOR PLATE 1
7 KLF-MD107-00 COVER,BACK 1
8 KLF-MD108-00 COVER 1
9 KLF-MD1B0-00 SWITCH ASSY 1
10 KLF-MD111-00 RAIL GUIDE 16P 1
11 KLF-MD112-00 PLATE, UNDER COVER 1
12 KLF-MD113-00 HUNGER 1
13 KLW-MD1C0-00 REELHOLDER EQUIP. 1
14 KHY-M372M-00 SCREW,STAD 2
15 KHJ-MD115-00 PIN,HUNG R 2
16 KHJ-M4484-02 FDR.ST.BOARD ASSY 1
17 KLF-M66TE-10 HNS,F.CTRL - FDR. 1
18 90172-00J030 WASHER, EXTL.TOOTHED 4
19 90172-00J040 WASHER, EXTL.TOOTHED 4
20 90172-00J060 WASHER, EXTL.TOOTHED 6
21 90990-12J001 SCREW BIN.HEAD W/W 12
22 90990-23J029 GROMMET 1
23 91312-03006 BOLT HEX. SOCKET HEAD 2 M3X6
24 91312-04008 BOLT HEX. SOCKET HEAD 4 M4X8
25 92902-03200 WASHER PLAIN 4
26 92902-04200 WASHER PLAIN 4
27 92902-06200 WASHER PLAIN 6
28 98702-03008 SCREW FLAT HEAD 7
29 98902-03004 SCREW BINDING HEAD 14
30 98902-03008 SCREW BINDING HEAD 2
31 98902-04006 SCREW BINDING HEAD 2
32
98902-06010 SCREW BINDING HEAD 4
33 KLW-MD121-00 SIDE PLATE,L 1
34 KLW-MD122-00 SIDE PLATE,R 1
35 KLW-MD123-00 PLATE,REELHOLDER 1
36 KLW-MD124-00 PLATE,REEL SET LOWER 1
37 KLW-MD125-00 PLATE,REEL SET UPPER 1
38 KLW-MD126-00 SHAFT 1
39 KLW-MD127-00 TUBE 1
40 KHJ-MD210-00 FOOT 2
41 90990-12J001 SCREW,BIN. HEAD W/W 14
42 98780-03006 SCREW FLAT HEAD 2
43 98902-03008 SCREW, BINDING HEAD 2
2
11
FDR Power ST
FDR
KMB-1712
12
20
38
19
16
38
28
43
42
37
43
42
37
37
34
23
6
33
32
30
28
41
38
2
10
9
35
3
8
13
29
31
14
7
37
36
21
37
36
18
22
24
5
1
11
37
38
15
25
17
37
26
27
4
38
40
39
38
7
21
OLD
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHJ-MD201-00 FEEDER PLATE 1
2 KHJ-MD202-00 SIDE PLATE, L 1
3 KHJ-MD203-00 SIDE PLATE, R 1
4 KHJ-MD204-00 CLAMP PLATE 1
5 KHJ-MD205-00 FEEDER STOPPER 1
6 KHJ-MD206-00 CONNECTOR PLATE 1
7 KHJ-MD207-00 UNDER COVER 1
7-1 KHJ-MD207-01 UNDER COVER 1 NG MP60113-2017/7/11
8 KHJ-MD208-00 BACK COVER 1
9 KHJ-MD209-00 BASE PLATE 1
10 KHJ-MD210-00 FOOT 4
11 KJJ-M371R-000 RAIL GUIDE 16P 1
12 KHJ-MD212-00 BKT. SWITCH 1
13 KHJ-MD213-00 REEL HOLDER, FIX. 1
14 KHJ-MD214-00 REEL HOLDER, MOVE 1
15 KHJ-MD110-00 LABEL, PITCH 1
16 KHJ-M4484-02 FDR. ST. BOARD ASSY 1
17 KHJ-M4486-00 PITCH LED BOARD ASSY 1
18 KJ3-M6511-00 CIRCUIT PROTECTOR, 1 1
19 KHJ-M537A-00 NOISE FILTER 1
20 KHJ-M6561-10 POWER SUPPLY 1 1
21 KHJ-M661B-01 HNS, AC IN 2 1
21-1 KHJ-M661B-02 HNS, AC IN 2 1 NG MP60113-2017/7/11
22 KHJ-M662A-00 HNS, CP DC24V 1
23 KHJ-M662B-00 HNS, LAMP 1
24 KHJ-M662C-000 HNS, BRD.PWR 1
25 KHJ-M663C-00 HNS, PITCH UP 1
26 KHJ-M663D-00 HNS, PITCH DOWN 1
27 KHJ-M663E-00 HNS, PITCH SET 1
28 KHY-M66TE-00 HNS, F. CTRL-FDR. 1
29
KJ3-M661A-00 HNS, AC IN 1
1 Domestis parts
KJ3-M662A-00 HNS, AC IN 1 1 Abroad parts
30
KHJ-MD215-00 LABEL, SERIAL 1 Abroad parts
KHJ-MD215-11 LABEL,SERIAL 1 Domestis parts
31 KHA-M5184-11 SEAL, LABEL 1
32 KHY-M6417-00 SEAL, CE 1
32-1 KHY-M6417-01 SEAL,CE 1 Abroad parts OK MNY0140-2017/2/9
33 KHY-M372M-00 SCREW, STAD 2
34 90563-03J100 SPACER BOLT 4
35 92902-03200 WASHER PLAIN 4
36 98902-03004 SCREW BINDING HEAD 4
37 98902-03005 SCREW BINDING HEAD 28
38 98902-04006 SCREW BINDING HEAD 10
39 98702-03006 SCREW FLAT HEAD 8
40 91312-03006 BOLT HEX. SOCKET HEAD 3 M3X8
41 91312-03008 BOLT HEX. SOCKET HEAD 4 M3X7
42 90990-11J003 SCREW, PAN HEAD W/W 16
43 $NK-3N NYLON CLIP 12
