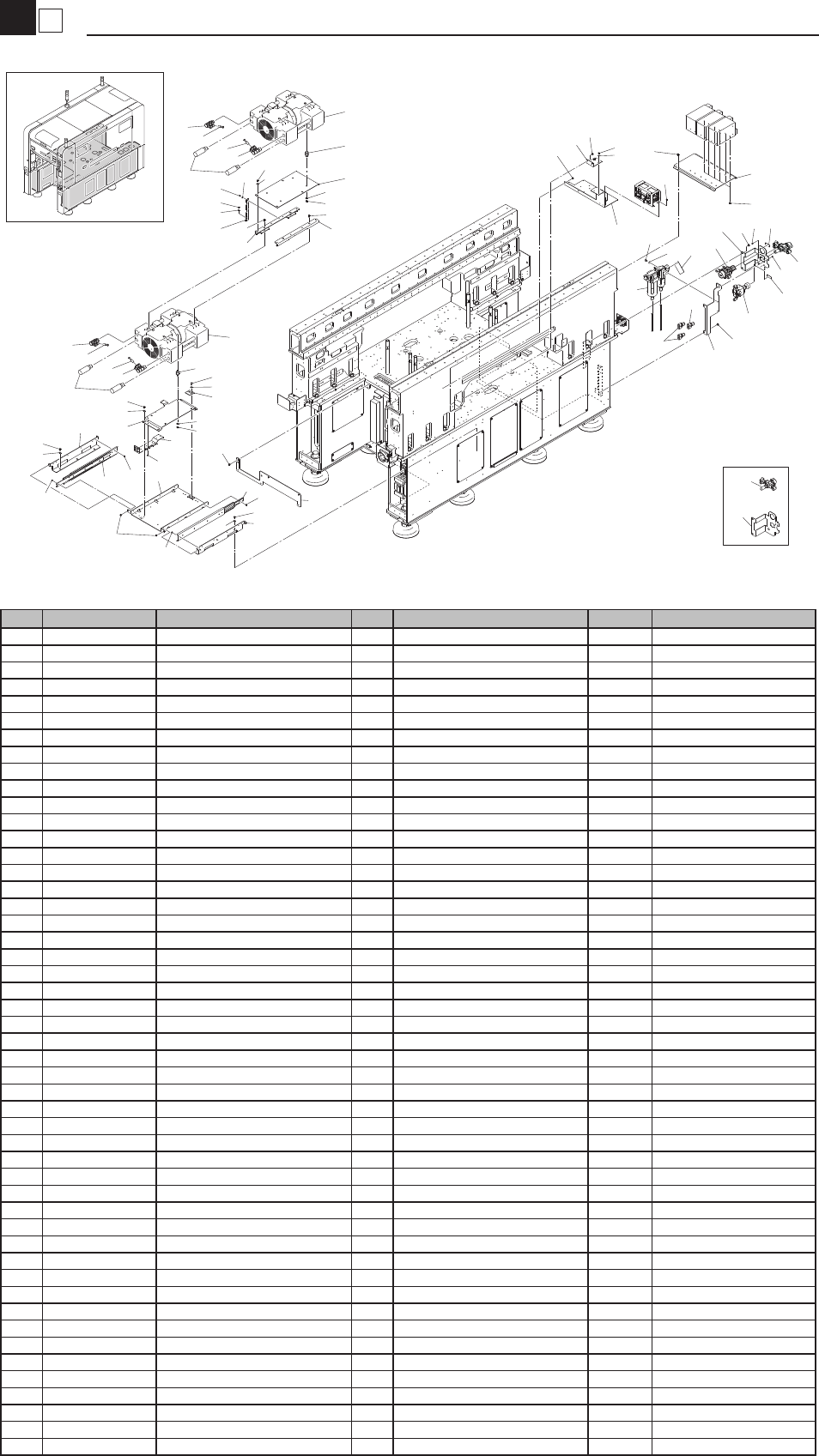

YSM40R_4-Beam_PartList - 第7页
1 1 Base Base KMB-1712 31 30 31 28 29 27 33 32 28 42 43 5 1 4 3 24 2 3 34 45 44 35 26 39 36 38 41 37 40 41 26 21 13 21 6 23 16 26 1 4 15 21 14 20 20 14 12 2 24 3 24 18 15 3 28 46 40 22 17 24 17 5 16 21 23 22 11 14 16 21 …
1
1
Base
Base
KMB-1712
31
30
31
28
29
27
33
32
28
42
43
5
1
4
3
24
2
3
34
45
44
35
26
39
36
38
41
37
40
41
26
21
13
21
6
23
16
26
1
4
15
21
14
20
20
14
12
2
24
3
24
18
15
3
28
46
40
22
17
24
17
5
16
21
23
22
11
14
16
21
7
8
19
18
10
18
18
10
9
7
25
34
OLD
37
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M8501-00 PUMP,VACUUM 2
2 KLF-M8536-01 MUFFLER 4
3 KLF-M8537-00 JOINT 4
4 KLF-M11K3-00 ANTIVIB.RUBBER 8
5 KLF-M11K5-00 PLATE,PUMP 1 2
6 KLF-M11K6-00 PLATE,PUMP 2 1
7 KLF-M11N1-00 BRKT.,PUMP 1 2
8 KLF-M11N2-00 PLATE,PUMP 1
9 KLF-M11N3-01 PLATE,PUMP 1
10 KLF-M11N4-00 SLIDE RAIL 2
11 KLF-M11N7-01 PLATE,CONNECTOR 1
12 KLF-M11N9-00 STAY,HNS. 1
13 KJX-M1105-00 PLATE,HOLD 1
14 91312-04005 BOLT,HEX.SOCKET HEAD 4
15 91312-05006 BOLT,HEX.SOCKET HEAD 6
16 91312-05010 BOLT,HEX.SOCKET HEAD 8
17 91312-06010 BOLT,HEX.SOCKET HEAD 4
18 92012-04006 BOLT, BUTTON HEAD 16
19 97602-04308 SCREW,PAN HEAD W/W 2
20 92902-04200 WASHER,PLAIN 2
21 92902-05200 WASHER, PLAIN 14
22 95302-06600 NUT, HEXAGON 8
23 92902-06100 WASHER,SPRING 8
24 $UP10 JOINT 4
25 KLF-M11P4-00 BRKT.,COVER12 1
26 90990-12J004 SCREW, BIN. HEAD W/W 7
27 KMB-M91E1-00 PLATE,BASE 1
28 97602-05310 SCREW, PAN HEAD W/W 8
29 KLF-M91E5-00 STAY 1
30 92902-04200 WASHER,PLAIN 2
31 91312-04005 BOLT,HEX.SOCKET HEAD 6
32 KLF-M1128-00 PLATE 28
1
33 90990-11J003 SCREW,PAN HEAD W/W 12
34 KLF-M1111-02 PLATE 11 1
34-1 KMB-M1111-00 PLATE 11 1 NG MP30060-2017/4/6
35 KLF-M1125-01 PLATE 25 1
36 KLF-M8502-00 FILTER SET 1
36-1 KLW-M8502-01 FILTER ASSY 1 OK MN20144-2016/3/3
37 KLF-M8511-00 EXT.VALVE 1
37-1 KLF-M8511-01 EXT.VALVE 1 NG MP30060-2017/4/6
38 KLF-M8512-00 REGULATOR 1
39 KLF-M8513-01 PRECISION REGULATOR 1
40 KLF-M13D1-00 SEAL,PRESSURE GAUGE 2
41 91312-04006 BOLT,HEX.SOCKET HEAD 8
42 91312-06010 BOLT,HEX.SOCKET HEAD 2
43 92902-06200 WASHER,PLAIN 2
44 $UYD10-8 JOINT 2
45 $AUY10 JOINT 1
46 KHY-M11B0-00 AIR TAG 1
2
1
Sub Assy
Base
KMB-1712
11
8
33
21
16
17
18
23
30
11
11
4
13
30
20
15
19
22
14
30
25
31
3
5
11
11
1
12
11
11
11
26
31
24
30
7
8
11
11
9
2
10
29
28
27
6
32
11
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M1151-00 PLATE,SIDE 1 1
2 KLF-M1152-00 PLATE,SIDE 2 1
3 KLF-M1153-00 PLATE,SIDE 3 1
4 KLF-M1154-00 PLATE,SIDE 4 1
5 KMB-M1155-00 PLATE,SIDE 5 1
6 KMB-M1156-00 PLATE,SIDE 6 1
7 KMB-M1157-00 PLATE,SIDE 7 1
8 KLF-M1159-00 PLATE,SIDE 9 2
9 KMB-M1164-00 COVER,FAN 1 1
10 KMB-M1165-00 COVER,FAN 2 1
11 90990-12J004 SCREW, BIN. HEAD W/W 46
12 KLW-M1180-00 LEVELING BOLT ASSY. 8
13 KLF-M1339-00 BRKT.,FL 1
14 KLF-M1338-00 BRKT.MAIN SWITCH 1
15 KMB-M1113-00 PLATE 13 1
16 KMB-M653Y-00 VALVE ASSY 1
16-1 KMB-M653Y-01 VALVE ASSY 1 OK MN10075-2016/1/14
17 $SL8-01 JOINT 1
18 $KM-10 MUFFLER 1
19 $FVU8-8 JOINT 1
20 91312-05010 BOLT,HEX.SOCKET HEAD 4
21 91312-04025 BOLT,HEX.SOCKET HEAD 2
22 91312-03020 BOLT,HEX.SOCKET HEAD 2
23 KLF-M1337-00 BRACKET 1
24 KLF-M1337-51 BRACKET 1
25 KMB-M11P7-00 PLATE,FAN R 1
26 KMB-M11P8-00 PLATE,FAN L 1
27 KLF-M115J-00 FILTER,CP FAN 1
28 91312-04030 BOLT HEX,SOCKET HEAD 4
29 91312-04045 BOLT,HEX.SOCKET HEAD 16
30 91312-05010 BOLT,HEX.SOCKET HEAD 28
31
97602-05310 SCREW, PAN HEAD W/W 57
32 95302-04600 NUT,HEXAGON 4
33 98502-04050 SCREW PAN HEAD (+) 4
