YSM40R_4-Beam_PartList - 第9页
1 2 T op Cover (Right side) Cover KMB-1712 40 10 18 45 37 54 16 17 32 49 15 3 51 35 29 8 18 52 40 4 40 39 21 42 31 25 40 5 20 44 14 40 40 6 51 42 11 30 49 15 40 12 49 40 13 40 51 42 14 39 51 45 38 33 9 9 36 40 30 41 6 40…
2
1

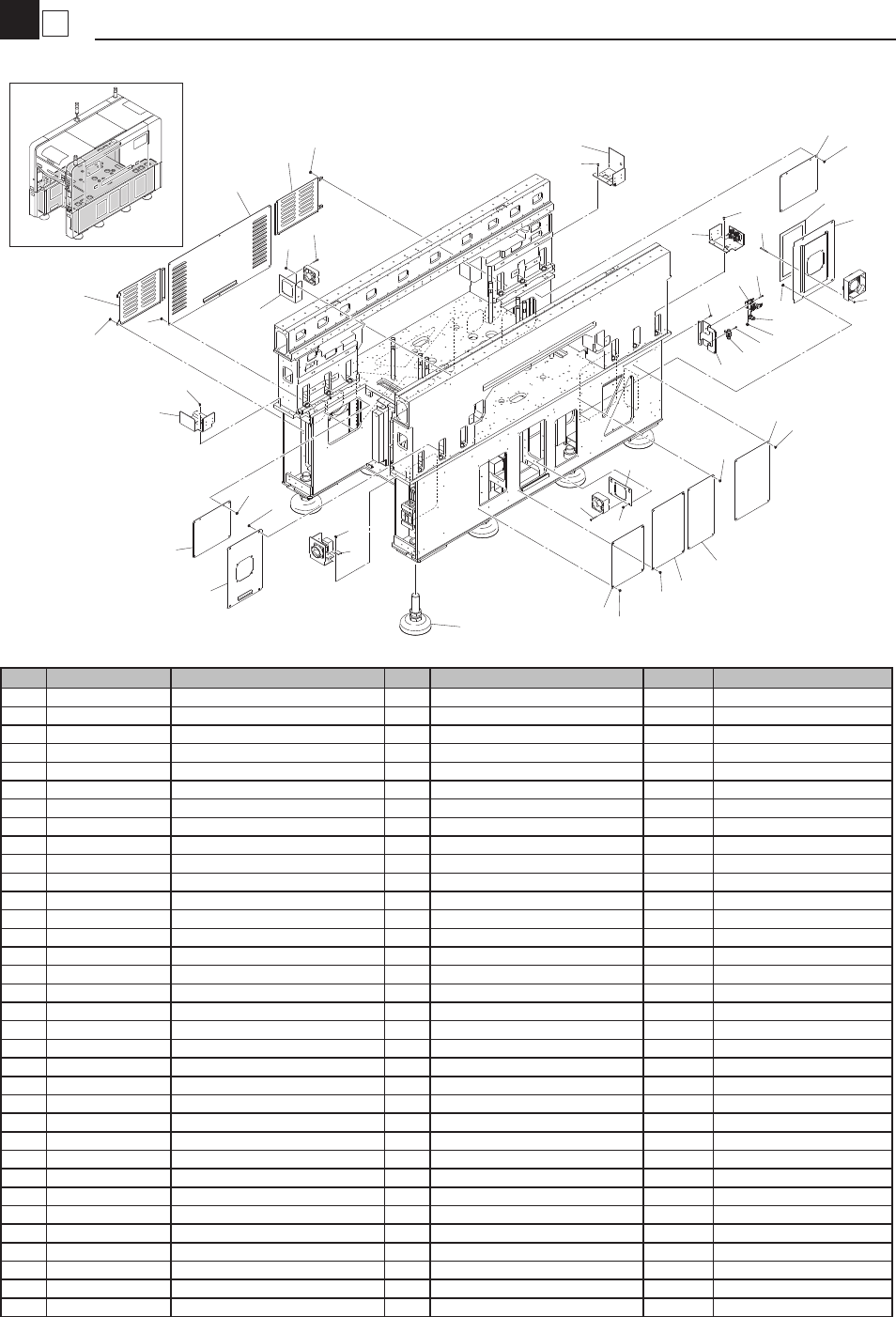

Sub Assy
Base
KMB-1712
11
8
33
21
16
17
18
23
30
11
11
4
13
30
20
15
19
22
14
30
25
31
3
5
11
11
1
12
11
11
11
26
31
24
30
7
8
11
11
9
2
10
29
28
27
6
32
11
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M1151-00 PLATE,SIDE 1 1
2 KLF-M1152-00 PLATE,SIDE 2 1
3 KLF-M1153-00 PLATE,SIDE 3 1
4 KLF-M1154-00 PLATE,SIDE 4 1
5 KMB-M1155-00 PLATE,SIDE 5 1
6 KMB-M1156-00 PLATE,SIDE 6 1
7 KMB-M1157-00 PLATE,SIDE 7 1
8 KLF-M1159-00 PLATE,SIDE 9 2
9 KMB-M1164-00 COVER,FAN 1 1
10 KMB-M1165-00 COVER,FAN 2 1
11 90990-12J004 SCREW, BIN. HEAD W/W 46
12 KLW-M1180-00 LEVELING BOLT ASSY. 8
13 KLF-M1339-00 BRKT.,FL 1
14 KLF-M1338-00 BRKT.MAIN SWITCH 1
15 KMB-M1113-00 PLATE 13 1
16 KMB-M653Y-00 VALVE ASSY 1
16-1 KMB-M653Y-01 VALVE ASSY 1 OK MN10075-2016/1/14
17 $SL8-01 JOINT 1
18 $KM-10 MUFFLER 1
19 $FVU8-8 JOINT 1
20 91312-05010 BOLT,HEX.SOCKET HEAD 4
21 91312-04025 BOLT,HEX.SOCKET HEAD 2
22 91312-03020 BOLT,HEX.SOCKET HEAD 2
23 KLF-M1337-00 BRACKET 1
24 KLF-M1337-51 BRACKET 1
25 KMB-M11P7-00 PLATE,FAN R 1
26 KMB-M11P8-00 PLATE,FAN L 1
27 KLF-M115J-00 FILTER,CP FAN 1
28 91312-04030 BOLT HEX,SOCKET HEAD 4
29 91312-04045 BOLT,HEX.SOCKET HEAD 16
30 91312-05010 BOLT,HEX.SOCKET HEAD 28
31
97602-05310 SCREW, PAN HEAD W/W 57
32 95302-04600 NUT,HEXAGON 4
33 98502-04050 SCREW PAN HEAD (+) 4
1
2

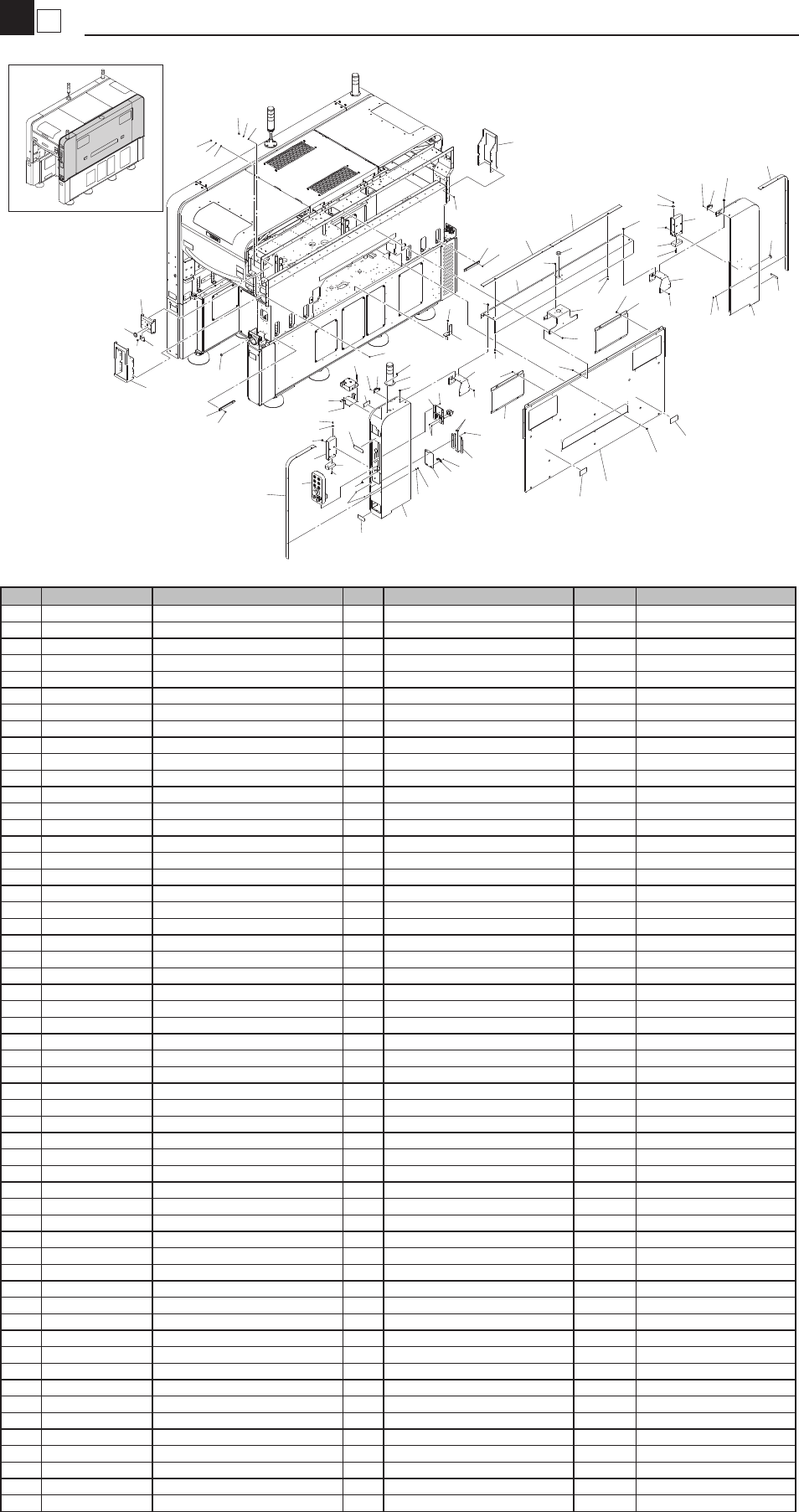

Top Cover (Right side)
Cover
KMB-1712
40
10
18
45
37
54
16
17
32
49
15
3
51
35
29
8
18
52
40
4
40
39
21
42
31
25
40
5
20
44
14
40
40
6
51
42
11
30
49
15
40
12
49
40
13
40
51
42
14
39
51
45
38
33
9
9
36
40
30
41
6
40
52
54
27
40
26
2
40
8
46
40
24
39
17
43
45
19
22
45
34
47
27
23
46
40
28
1
50
49
43
50
48
7
53
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M1301-00 COVER 1 1
2 KMB-M1302-00 COVER 2 1
3 KLF-M1321-00 BRKT,21 1
4 KLF-M1387-01 BRKT.,PAT LIGHT 1
5 KMB-M130B-00 COVER,SW 1
5-1 KMB-M130B-01 COVER,SW 1 OK MNX0064-2016/12/7
6 KMB-M13A4-00 COVER A4 2
7 KMB-M13A5-00 COVER A5 1
8 KMB-M131A-00 COVER A LR 2
9 KMB-M131B-00 COVER B LR 2
10 KLF-M1318-00 COVER 18 1
11 KMB-M1372-00 COVER 72 1
12 KLF-M9133-01 PLATE,DUCT 1
13 KLF-M1332-01 BRACKET 2 1
14 KLF-M1333-02 BRKT. 1 2
15 KMB-M1336-00 RAIL,COVER 2
16 KLF-M133A-01 BRKT,LCD UNIT 1
17 KMB-M26FM-01 FLAME,1-1 2
18 KV5-M1130-00 CATCH MG. 2
19 KMB-M130C-00 BRKT,KB C 1
20 KLF-M13B4-00 CATCH MG. 1
21 KLF-M1344-00 PLATE 1
22 KLF-M1349-00 COVER 49 1
23 KLF-M13F1-01 COVER,CE R 1
24 KLF-M13F2-01 COVER,CE L 1
25 KLF-M13F3-00 GUIDE,FES. R 1
26 KLF-M13F4-00 GUIDE,FES. L 1
27 KLF-M13F6-00 BAMPER 2
28 KLF-M133D-00 SEAL,BLIND 2
29 KMB-M13D6-00 SEAL 1(YSM40R) 1
30 90K41-001250 LABEL,WARNING 2
31
90K41-001260 LABEL,WARNING 1
32 90K41-001290 LABEL,WARNING 1
33 KLF-M13D1-00 SEAL,PRESSURE GAUGE 1
34 K93-M1392-00 SPACER (TM-180-303) 2
35 KH1-M13A9-00 BUSH 1
36 90990-23J002 GROMMET 1
37 90990-23J008 GROMMET 1
38 90990-23J006 GROMMET 1
39 90990-01J074 BOLT HEX,SOCKET HEAD 22
40 90990-12J001 SCREW,BIN. HEAD W/W 67
41 90990-12J004 SCREW, BIN. HEAD W/W 22
42 90172-00J040 WASHER,EXTL.TOOTHED 16
43 90172-00J050 WASHER,EXTL.TOOTHED 2
44 91312-03004 BOLT,HEX.SOCKET HEAD 2
45 91312-04005 BOLT,HEX.SOCKET HEAD 8
46 91312-04020 BOLT,HEX.SOCKET HEAD 4
47 91312-04035 BOLT,HEX.SOCKET HEAD 3
48 91312-05006 BOLT,HEX.SOCKET HEAD 1
49 91312-05008 BOLT,HEX.SOCKET HEAD 6
50 92902-05200 WASHER, PLAIN 2
51 95702-04500 NUT FLANGE 14
52 98902-03005 SCREW_BINDING HEAD 4
53 98902-03008 SCREW, BINDING HEAD 4
54 98902-03010 SCREW, BINDING HEAD 2
2
2

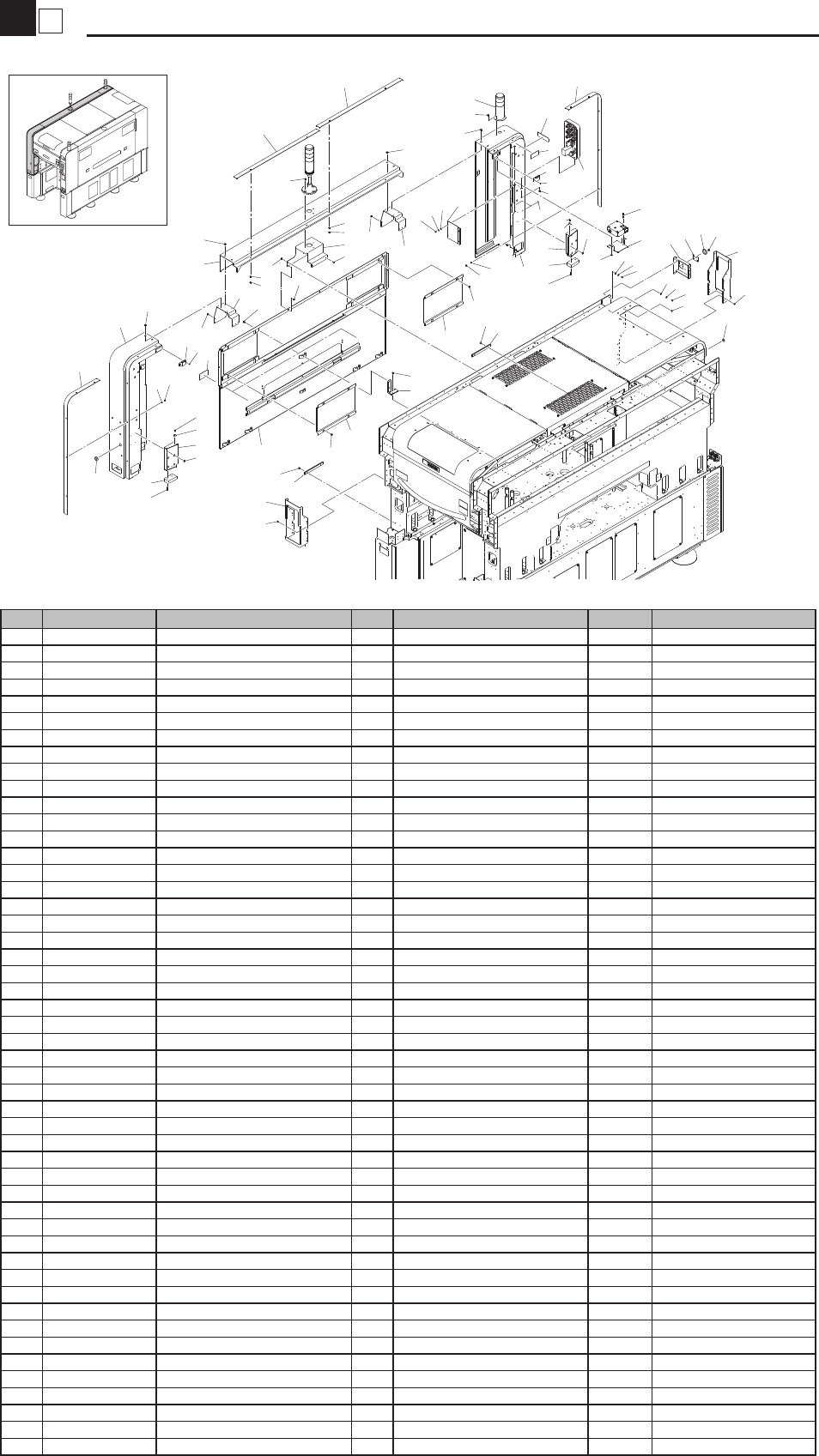

Top Cover (Left side)
Cover
KMB-1712
46
26
32
43
35
15
41
16
10
32
17
31
39
27
32
45
18
5
25
28
8
23
19
21
41
3
38
32
44
34
47
34
42
36
14
32
32
34
44
37
6
44
13
41
34
32
32
12
41
14
33
7
32
9
9
45
18
44
34
23
46
32
2
32
32
20
22
38
8
30
17
31
15
41
6
32
1
32
4
32
36
11
24
29
31
40
43
35
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M1301-00 COVER 1 1
2 KMB-M1302-00 COVER 2 1
3 KLF-M1321-00 BRKT,21 1
4 KLF-M1387-01 BRKT.,PAT LIGHT 1
5 KMB-M130B-00 COVER,SW 1
6 KMB-M13A4-00 COVER A4 2
7 KMB-M13A5-00 COVER A5 1
8 KMB-M131A-00 COVER A LR 2
9 KMB-M131B-00 COVER B LR 2
10 KLF-M1318-00 COVER 18 1
11 KMB-M1372-00 COVER 72 1
12 KLF-M9133-01 PLATE,DUCT 1
13 KLF-M1332-01 BRACKET 2 1
14 KLF-M1333-02 BRKT. 1 2
15 KMB-M1336-00 RAIL,COVER 2
16 KLF-M133A-01 BRKT,LCD UNIT 1
17 KMB-M26FM-00 FLAME,1-1 2
18 KV5-M1130-00 CATCH MG. 2
19 KLF-M13F1-01 COVER,CE R 1
19-1 KMB-M13F1-A0 COVER,CE R SUB ASSY. 1 OK MP60118-2017/7/11
20 KLF-M13F2-01 COVER,CE L 1
20-1 KMB-M13F2-A0 COVER,CE L SUB ASSY. 1 OK MP60118-2017/7/11
21 KLF-M13F3-00 GUIDE,FES. R 1
22 KLF-M13F4-00 GUIDE,FES. L 1
23 KLF-M13F6-00 BAMPER 2
24 KLF-M133D-00 SEAL,BLIND 2
25 KMB-M13D6-00 SEAL 1(YSM40R) 1
26 90K41-001250 LABEL,WARNING 2
27 90K41-001260 LABEL,WARNING 1
28 KH1-M13A9-00 BUSH 1
29 90990-23J008 GROMMET
1
30 90990-23J006 GROMMET 1
31 90990-01J074 BOLT HEX,SOCKET HEAD 22
32 90990-12J001 SCREW,BIN. HEAD W/W 67
33 90990-12J004 SCREW, BIN. HEAD W/W 22
34 90172-00J040 WASHER,EXTL.TOOTHED 16
35 90172-00J050 WASHER,EXTL.TOOTHED 2
36 91312-04005 BOLT,HEX.SOCKET HEAD 8
37 91312-04010 BOLT,HEX.SOCKET HEAD 4
38 91312-04020 BOLT,HEX.SOCKET HEAD 4
39 91312-04035 BOLT,HEX.SOCKET HEAD 3
40 91312-05006 BOLT,HEX.SOCKET HEAD 1
41 91312-05008 BOLT,HEX.SOCKET HEAD 6
42 92902-04200 WASHER,PLAIN 4
43 92902-05200 WASHER, PLAIN 2
44 95702-04500 NUT FLANGE 14
45 98902-03005 SCREW_BINDING HEAD 4
46 98902-03010 SCREW, BINDING HEAD 2
47 KMB-M1307-00 COVER 1-2 1 No DIP-ST
