(25) Control Box Section
1.3 Maintenance Spots
0305-001 1-45 AIL01ETRP
Front Cover B
Setscrews
Front View of Machine
Front Cover A
Filter 1M40
Every Month Cleaning
Clean the filter of the control box with a vacuum cleaner.
Fig. 4A50

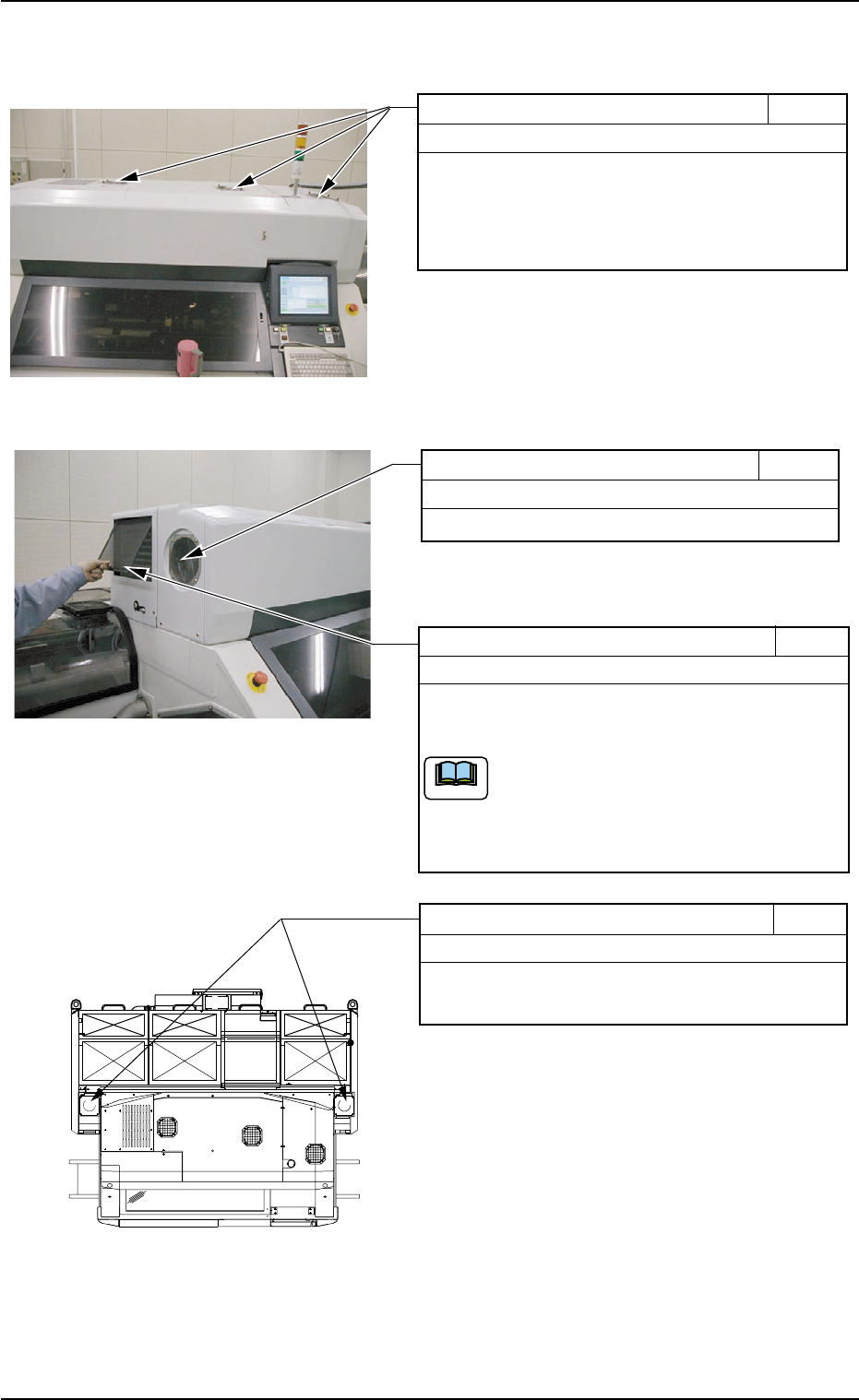

(26) Filters and Cooling Fans in Each Section
1.3 Maintenance Spots
0407-002 1-46 AIL01ETRP
Fans on Top of Machine 3M30
Every 3 Months Cleaning
Remove the filters from the cooling fans on the top
of the main body and clean them with a vacuum
cleaner.
After cleaning, put the filters back in place.
Filter of Main Machine Driving Section 3M31
Every 3 Months Cleaning
Clean the filter with a vacuum cleaner.
555
5
5
Air Filter of Oil Cooler 1W11
Weekly Cleaning
Detach the filter and clean it with an air gun or
wash with water.
After cleaning, put the filter back in place.
(a) After the filter is detached, blow off dirt
and dust on the fin surfaces with an
air gun.
(b) If the filter is kept dirty, the machine
will break down.
Note
Cooling Fans of Feeder Carriage Sections 3M33
Every 3 Months Cleaning
Clean the finger guards located above and under
the cooling fan filters with a vacuum cleaner.
Fig. 4A55
Fig. 4A56
Fig. 4A57 Top View of Machine
0511-003 1-47 AIL01ETRP
1.3 Maintenance Spots

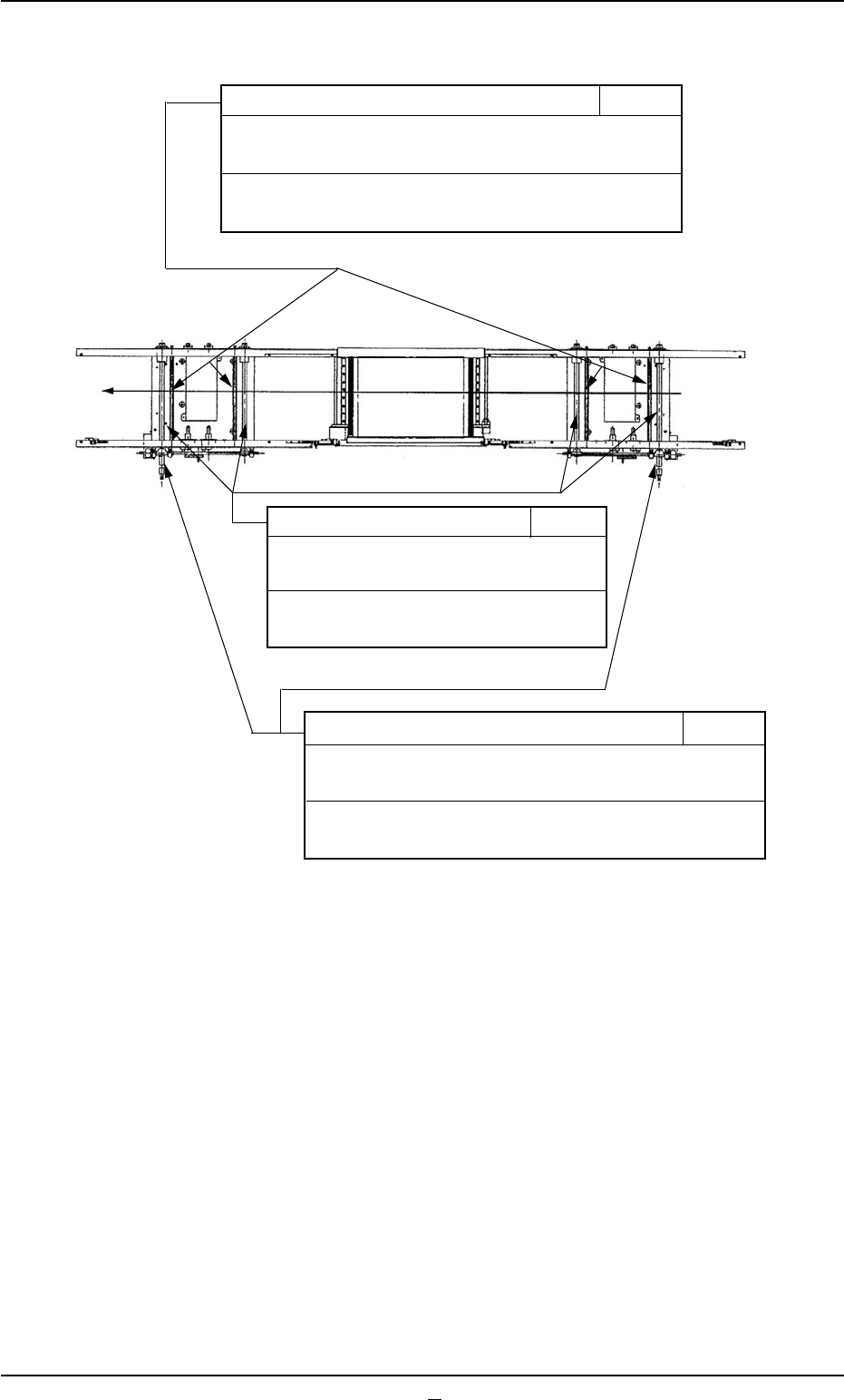

(27) L/R Conveyor Sections
Gear Sections 6M10
Every 6 Months Lubrication
(MOLYNOC GREASE AP1)
Wipe off the old grease and apply new one by hand or
using a brush.
L Conveyor Section X/Y Table Section R Conveyor Section
Screw Sections 6M9
Every 6 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Wipe off the old grease and apply new
one by hand or using a brush.
Ball Splines 6M8
Every 6 Months Lubrication
(MOLYNOC GREASE AP1)
Wipe off the old grease and apply new one by hand or
using a brush.
Fig. 4A58
