Fig. 4A84-1 (5) Detach the lower blade by removing Bolts C (M5 × 12). When the lower blade cannot be detached easily , try to pull it right and left alternately . (6) Attach a new lower blade and secure it with Bolts C (…

0511-004 1-68 AIL01ETRP

1.4 Maintenance Method

1.4.8 Replacement of Cutter Blade

Time of Replacement

Replace a cutter blade with a new one when the cutting quality has

deteriorated due to wear, cracks, etc.

Replacement Procedure

(1) Zero the feeder carriage and turn off the power supply.

Set the angle of the rotary turret to 108° (origin) to prevent

interference between the lower and upper blades.

(2) Open the central safety guard of the feeder unit.

(3) Detach the upper blade by removing Bolts A (M5 × 16).

Fig. 4A84

(4) Remove Bolts B (M5 × 12) fastening the lower blade holding plate

with the torque L-type wrench (Standard Accessory Part: 630 063

9759) and detach the plate.

While detaching the lower blade holding plate, be careful not

to touch the nozzles and diffusion plates. Also, avoid hitting

them with a tool.

Upper Blade

Lower Blade Holding Plate

Bolts A

Bolts B

Note

Fig. 4A84-1

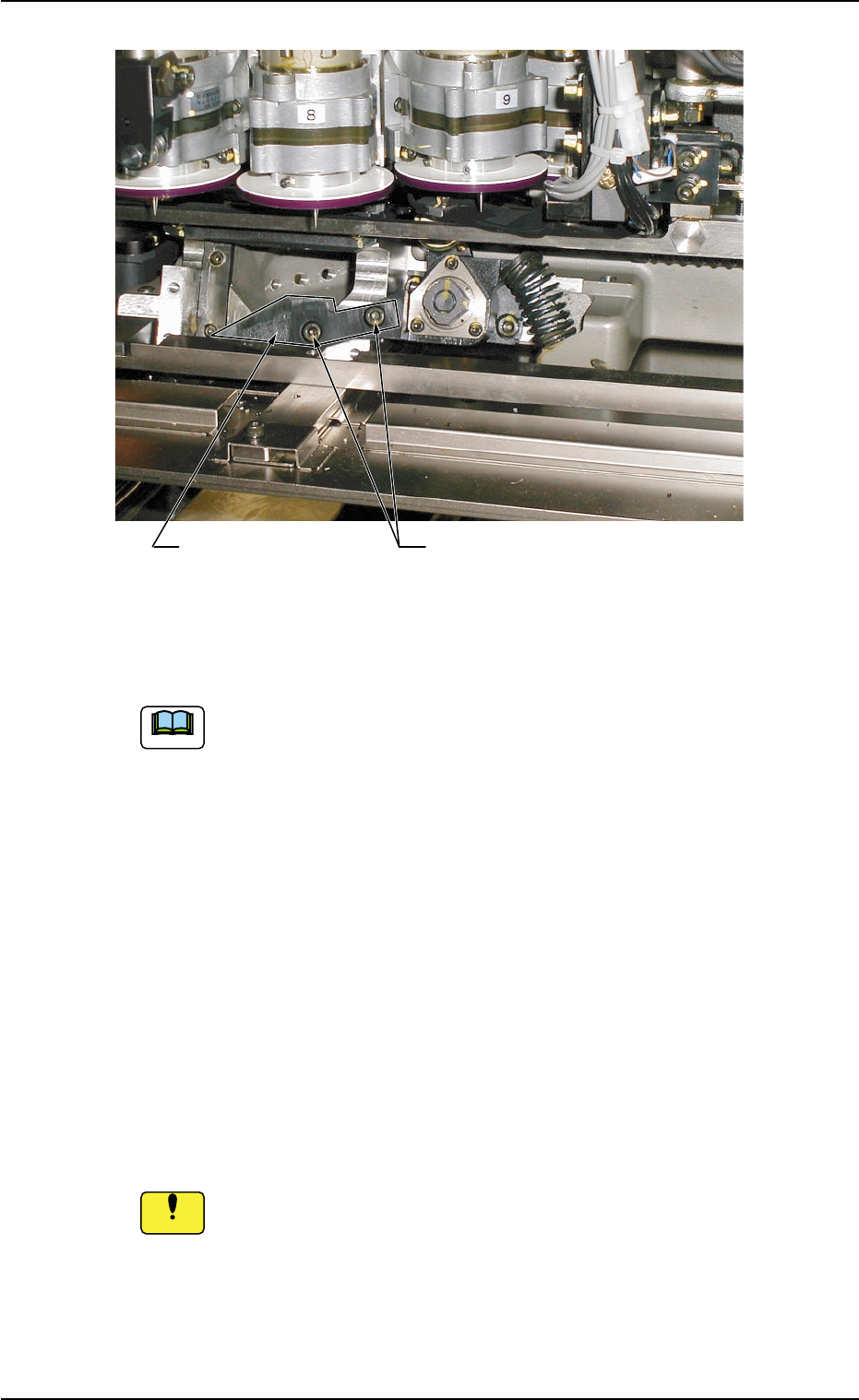

(5) Detach the lower blade by removing Bolts C (M5 × 12).

When the lower blade cannot be detached easily, try to pull it

right and left alternately.

(6) Attach a new lower blade and secure it with Bolts C (M5 × 12).

(7) Attach the new lower blade holding plate and secure it with Bolts B

(M5 × 12).

(8) Attach a new upper blade and secure it with Bolts A (M5 × 16).

(9) Close the central safety guard of the feeder unit.

(10) Turn on the power supply of machine and confirm that the rotary

turret works normally, using "Smooth Manual Axis Operation (Low

Speed)" for the rotary turret.

Before operation, be sure to confirm that the lower blade holding

plate is securely attached.

Refer to "2.2.1 "Rotary Turret” Tab" in "Section 6 (Vol. 2)" for de-

tails.

1.4 Maintenance Method

0511-005 1-69 AIL01ETRP

Lower Blade Bolts C

Note

Notice

1.4.9 Lubrication of Linear Guide in Feeder Carriage Section

Grease should be applied every 6 months after the initial month.

••

• Preparation for Lubrication

(1) Turn off the power supply to the machine and wipe off old grease

on the rail of the linear guide with a rag.

(2) Prepare the FL- and P-type or the U- and P-Type attachments.

Fig. 4A85

••

• Lubrication Procedure

The linear guide in the feeder carriage section must

be lubricated with the [POWER ON] button on the

operation panel being pressed ("ON" condition).

It is dangerous. Be sure to lubricate alone (without

any other attended personnel).

(1) Press the [UNIT ADJ.] button on the submenu bar of the "MAINT."

window. After that, press the "Oil Supply" tab in the "Fdr Crg" tab

sheet. The following tab sheet appears.

Fig. 4A85-1

0511-003 1-70 AIL01ETRP

1.4 Maintenance Method

FL Type

P Type

U Type

CAUTION
