0305-001 1-72 AIL01ETRP
1.4 Maintenance Method
(5) Press the [ON] button (entitled "MOVE"). In two seconds, press the
[ENABLE] button on the operation panel.
Auto tuning of all axis takes place.
(The feeder carriage moves slightly.)
(6) Press the [ON] button (entitled "MOVE"). In two seconds, press the
[ENABLE] button on the operation panel.
F1 moves to the grease supply position and the following sheet
appears.
Fig. 4A85-3
(7) Press the [EMERGENCY STOP] switch and open the F1 and cen-
tral doors.
Apply grease to the nipple on the slide block of a linear guide.
After that, close the F1 and central doors.
Grease Supply Hole Position
0305-001 1-73 AIL01ETRP
1.4 Maintenance Method
(8) Unlock the [EMERGENCY STOP] switch and press the [RESET]
button.
Press the [POWER ON] button to power the machine.
Press the [ALL] button (entitled "ZERO"). In two seconds, press the
[ENABLE] button on the operation panel.
(9) Press the [Next] button.
(10) Press the [F1] and [F2] buttons (entitled "FEEDER READY").
When the [ENABLE] button on the operation panel is pressed in
two seconds after the [ON] button (entitled "MOVE"), the following
sheet appears.
Press the [EMERGENCY STOP] switch and open the F2 and cen-
tral doors.
Apply grease to the nipple on the slide block of a linear guide.
After that, close the F2 and central doors.
Fig. 4A85-4
0305-001 1-74 AIL01ETRP
1.4 Maintenance Method
(11) Unlock the [EMERGENCY STOP] switch and press the [RESET]
button.
Press the [POWER ON] button to power the machine.
Press the [ALL] button (entitled "ZERO"). In two seconds, press
the [ENABLE] button on the operation panel.

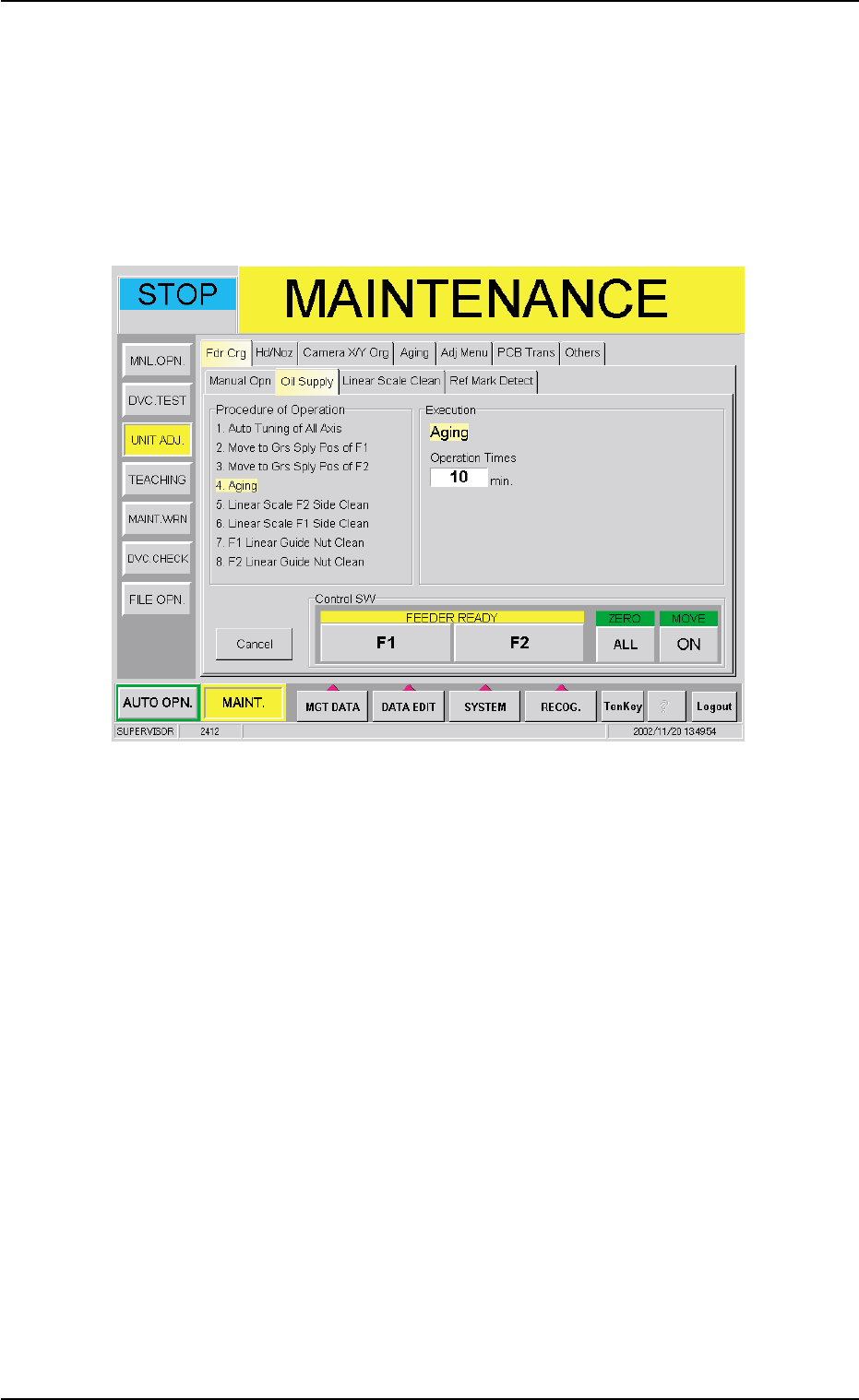

(12) Press the [Next] button. The following sheet appears.
Fig. 4A85-5
Press the [F1] and [F2] buttons (entitled "FEEDER READY").
When the [ENABLE] button on the operation panel is pressed in
two seconds after the [ON] button (entitled "MOVE"), the aging
operation of the feeder carriage section starts.
