1.4 Maintenance Method

1.4.10 Cleaning of Linear Scale Section

To avoid any malfunction of the feeder carriages, the linear scales

and the linear scale encoder heads must be cleaned every three

months or whenever the linear guides are lubricated.

Also, make the reference mark detection and confirm the perfor-

mance of the machine.

• Cleaning of Linear Scales

(1) When the "Linear Scale Clean" tab is pressed in the "Fdr Crg" tab

sheet, the following tab sheet appears.

Fig. 4A86-1 "Linear Scale Clean" Tab Sheet

0305-001 1-82 AIL01ETRP

1.4 Maintenance Method

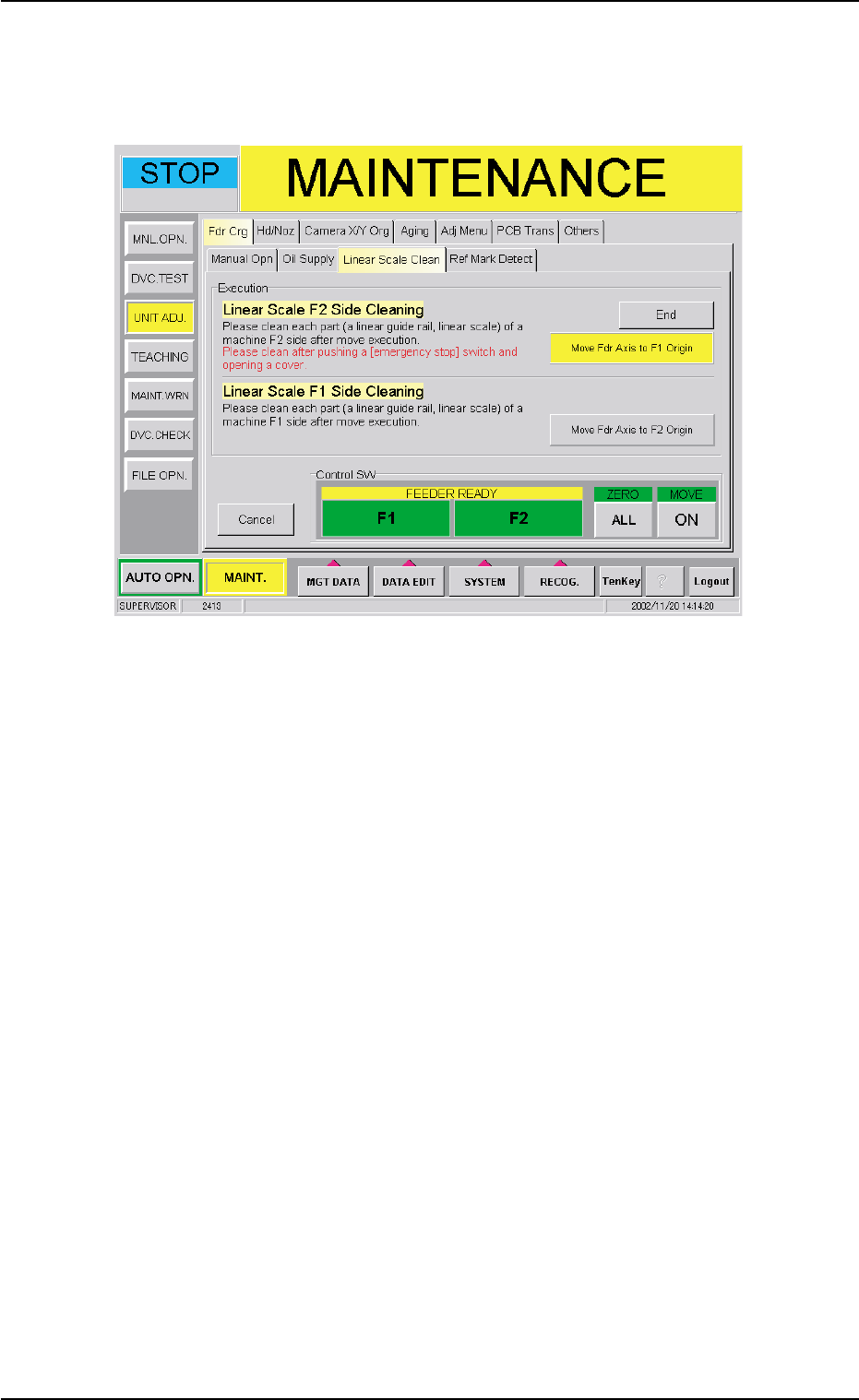

(2) When the [Start Linear Scale Cleaning] button is pressed in the

"Linear Scale Clean" tab sheet, the following sheet appears.

Fig. 4A86-2

(3) Press the [Move Fdr Axis to F1 Origin] button or the [Move Fdr Axis

to F2 Origin] button. Press the [ON] button (entitled "MOVE"). In

two seconds, press the [ENABLE] button on the operation panel.

The feeder carriage moves toward the specified origin.

(4) Press the [EMERGENCY STOP] switch and open the feeder car-

riage cover.

(5) Clean the linear scale with a cotton swab soaked in alcohol (abso-

lute ethanol).

Never use any organic compounds other than alcohol.

(6) Close all feeder carriage covers.

(7) Turn the [EMERGENCY STOP] switch clockwise to cancel the emer-

gency stop condition.

(8) Press the [RETURN] button in the "EMERGENCY STOP" window.

Note

0305-001 1-83 AIL01ETRP

1.4 Maintenance Method

(9) Hold down the [POWER ON] button on the operation panel for more

than 1 second to reset the machine to its normal condition. The

following window appears.

Fig. 4A86-3

(10) Press the [ALL] button entitled "ZERO". In two seconds, press the

[ENABLE] button on the operation panel. All devices are zeroed.

(11) Press the [F1] and [F2] buttons (entitled "FEEDER READY").

(12) Clean the linear scales on the opposite side in the same way.
