051 1-001 2-94-1 AIL01ETRP Error ID Item Description 400305 Load Power Circuit The fdr .crg. axis safety guard (a) is open. 400306 Load Power Circuit The fdr .crg. axis safety guard (b) is open. (Cause 1) The feeder work…
Error ID Item Description
400302 Load Power Circuit The air pressure is too low.
(Cause 1) The main air pressure has dropped below the specified one.

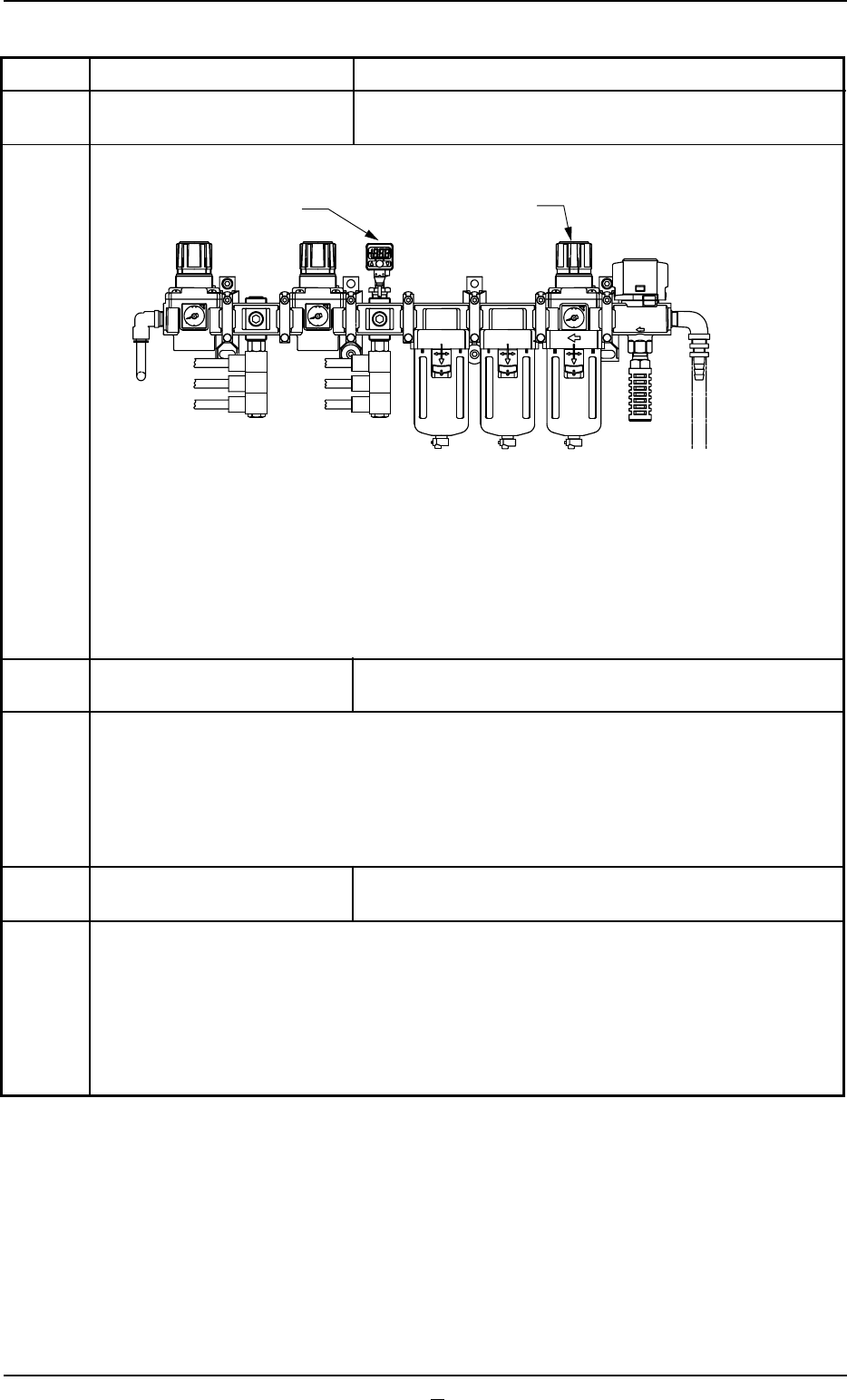

Fig. 4B18
(Remedy 1) Adjust the pressure to the correct one.
Turn Knob (1) to adjust the main air pressure to the specified one (0.5 MPa
(5.1kgf/cm
2
)).
400303 Load Power Circuit Circuit porotector is active.
(Cause 1) The circuit breaker in the machine was activated.
(Remedy 1) Consult our service personnel for details.
400304 Load Power Circuit The machine’s front safety door is open.
(Cause 1) The front safety door was opened.
(Remedy 1) Close the front safety door after pressing the [RETURN] button and zero all
axes. Then, re-start the operation.
0511-003 2-94 AIL01ETRP
Knob(1)
Main Air Pressure
3.3 Error IDs and Remedial Procedures
0511-001 2-94-1 AIL01ETRP
Error ID Item Description
400305 Load Power Circuit The fdr.crg. axis safety guard (a) is open.
400306 Load Power Circuit The fdr.crg. axis safety guard (b) is open.
(Cause 1) The feeder work area safety door was opened.
(Remedy 1) Close the feeder work area safety door after pressing the [RETURN] button and
zero all axes. Then, re-start the operation.
400307 Load Power Circuit Load power-on timeout.
Press [emergency stop] switch.
(Cause 1) Self-Diagnostics Error Message
(Remedy 1) Zero all axes and re-start the operation.
When the machine cannot be set to its normal condition, consult our service
personnel for the remedy.
400401 Load Control Power Circuit Load power-on timeout.
(Cause 1) Self-Diagnostics Error Message
(Remedy 1) Zero all axes and re-start the operation.
When the machine cannot be set to its normal condition, consult our service
personnel for the remedy.
400501 Lightning Surge Warning Lightning Surge Protector works; Q204. Load power on with
reset operation.
(Cause 1) Self-Diagnostics Error Message
(Remedy 1) Zero all axes and re-start the operation.
When the machine cannot be set to its normal condition, consult our service
personnel for the remedy.
3.3 Error IDs and Remedial Procedures
(41 Data)
Error ID Item Description
410101 PLACEMENT NOZZLE APPROPRIATE NOZZLE MISSING.
"Check the Nozzle layout data or Nozzle skip conditon."
(Cause 1) A nozzle different from the nozzle-related data is attached.
(Remedy 1) Check the attached nozzle and the "Nozzle Data" window (described in "4. Nozzle
Data" in "Section 5 (Vol. 3: Programming and Machine Data)" and reset the ma-
chine to its normal condition.
410201 Alternate Mode Available fdr.carriage is not found.
(Cause 1) A wrong parameter is set in the "Alternate" tab sheet.
(Remedy 1) Check the carriage to be used and correct the wrong parameter if any.
410301 Current Pattern Program
No Exist
(Cause 1) Self-Diagnostics Error Message
(Remedy 1) Perform a program change operation.
When the program change operation cannot be performed, contact our service
personnel.
410401 Component Cannot refer to component data.
(Cause 1) A mistake is found in the placement feeder location data of the pattern program
data.
(Remedy 1) Check the placement feeder location data. If necessary, correct the mistake.
410501 Placement Data Already placed
410502 Placement Data Placement step missing. Start and recovery with WARM
START.
410503 Placement Data Placement Complete step missing. Start and recovery with
Manual or Warm START.(Cycle stop mode)
410504 Placement Data Placement complete step missing. Check the P.C.B.
now.(Running cancel mode.)
410505 Placement Data Placement complete step missing. Check the P.C.B. (Run
ning countinue mode.)
(Cause 1) Self-Diagnostics Error Message
(Remedy 1) Follow the described instructions and reset the machine to its normal condition.
0511-002 2-95 AIL01ETRP
