Error ID Item Description (a) When the power is re-supplied without following the correct proce- dure to cancel the error , the feeder installation error will be detected again and the message will be issued because the …
Error ID Item Description
430603 Feeder Set The fdr. mis-set holder (+) has been detected.
430604 Feeder Set The fdr. mis-set holder (−) has been detected.
430605 Feeder Set The fdr. mis-set bar (+) has been detected.
430606 Feeder Set The fdr. mis-set bar (−) has been detected.
430607 Feeder Set The fdr. ldx. Lever (+) has been detected.
430608 Feeder Set The fdr. ldx. Lever (−) has been detected.
(Cause 1) The tape feeder is not correctly installed on the feeder carriage.
• The tape feeder was lifted afloat and touches the detection photosensor.
• The tape feeder touched the detection photosensor because it was deformed.
• The tape feeder touched the detection photosensor because it is not for the
TCM-X series.
• The hook of the tape feeder was not locked and the hook or the suppressor
touches the detection photosensor.
• The tape end touched the detection photosensor because it was long.

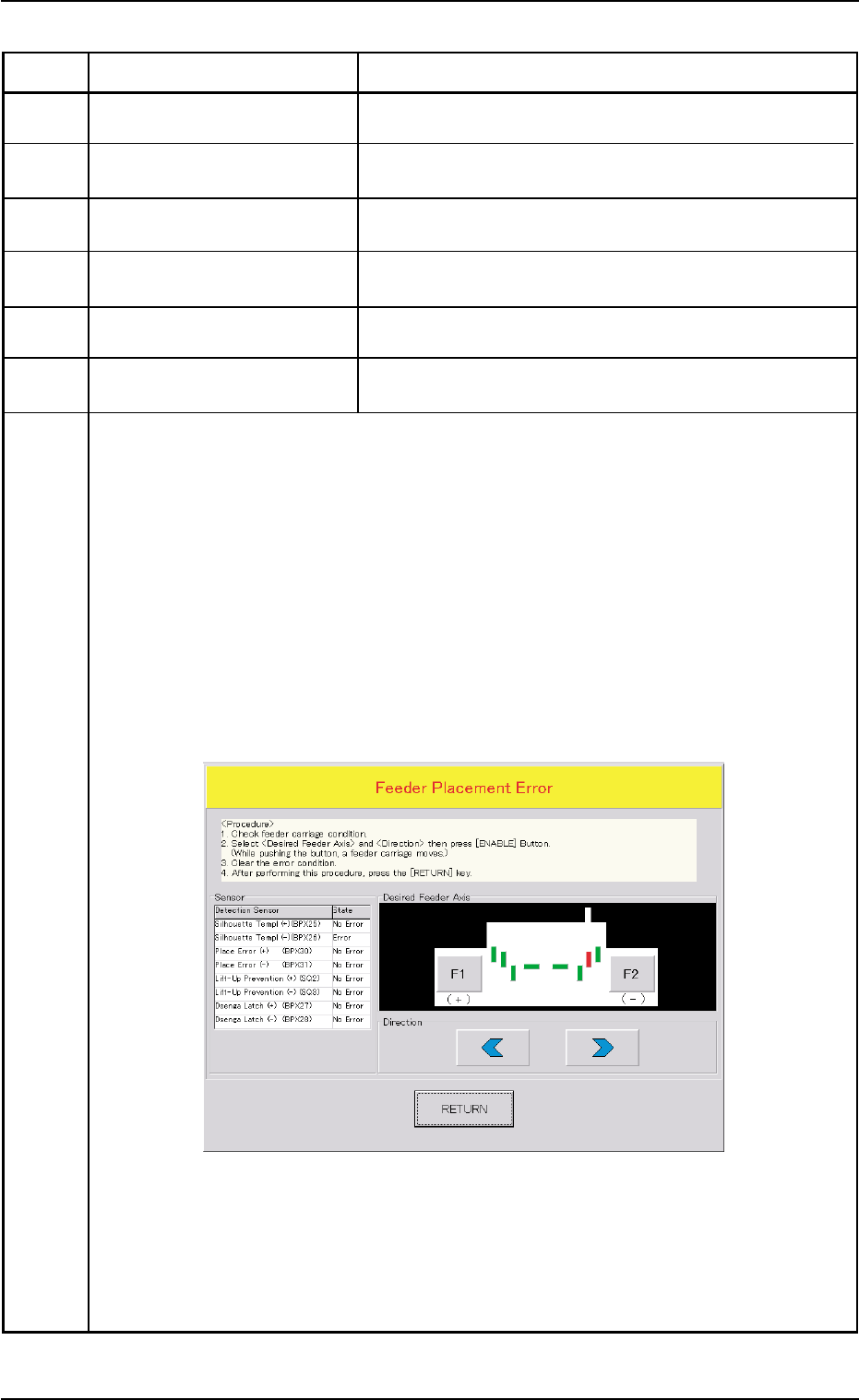

(Remedy 1) When the [RETURN] button is pressed, the "Feeder Placement Error" window
opens.
Follow the instructions described in this window and the procedure below for the
reset operation.
(Continued to the next page)
0305-001 2-103 AIL01ETRP
3.3 Error IDs and Remedial Procedures
Fig. 4B20
Error ID Item Description
(a) When the power is re-supplied without following the correct proce-
dure to cancel the error, the feeder installation error will be detected
again and the message will be issued because the contents of the
feeder installation error are backed up.
(b) No zeroing operation can be performed when a feeder installation
error is not canceled completely.
(1) Confirm that there is no error in the feeder installation sections.
(2) Select the object feeder and the direction of the movement. After that, press
the [ENABLE] button to move the feeder carriage to the position where the
error-caused feeder can be re-installed correctly.
Note: While the [ENABLE] button is held down, the feeder carriages keep
on moving.
(3) Check the cause of the error and re-install the feeder correctly.
(4) Press the [RETURN] button.
Ref.: The original window resumes.
(5) Zero all axes and re-start the operation.
0511-003 2-104 AIL01ETRP
3.3 Error IDs and Remedial Procedures
Rear View (Upper Section)

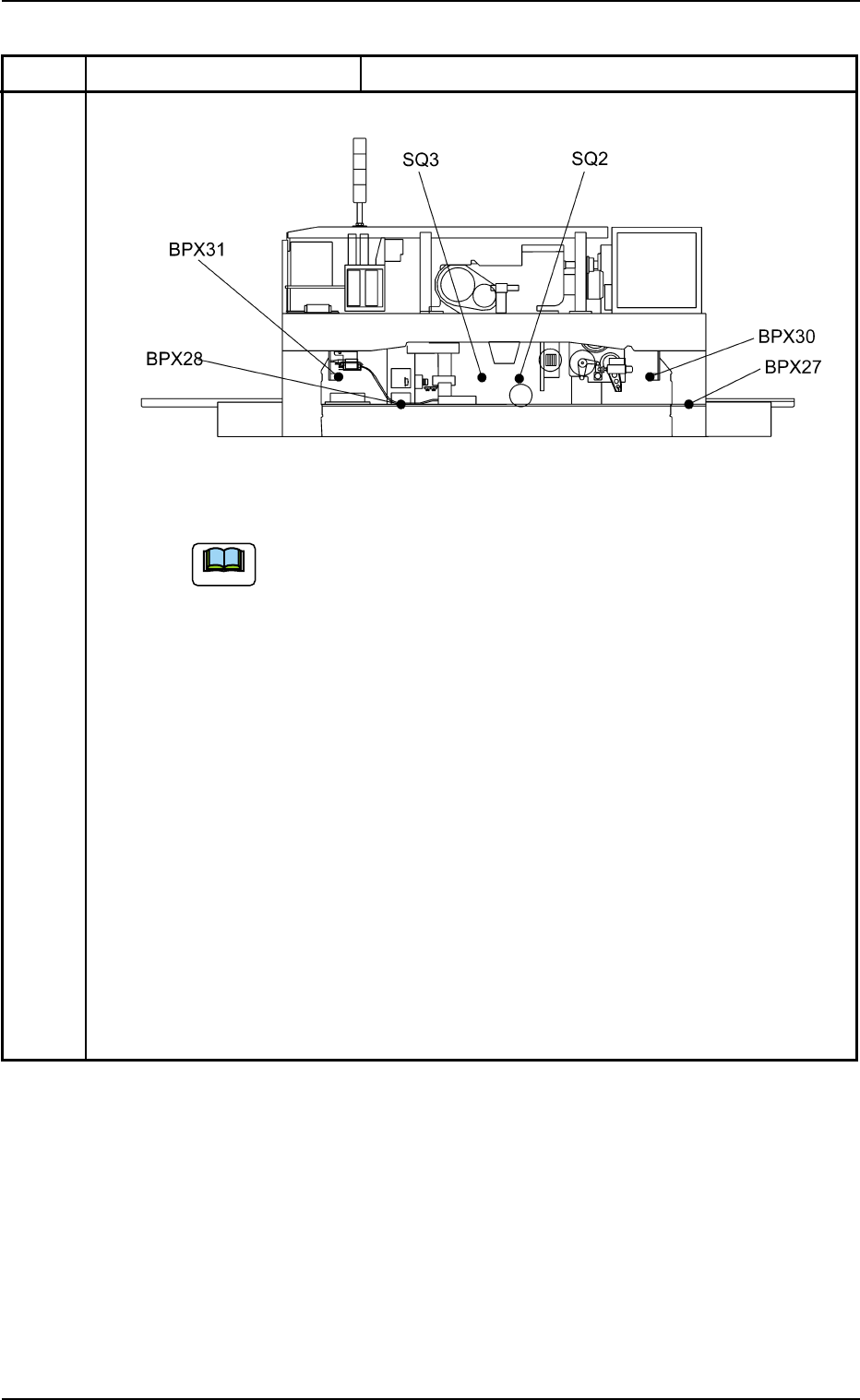

Fig. 4B21 Location of Feeder Installation Error Sensors
Note
Error ID Item Description
430701 Linear Measure Linear measure alarm signal was detected.
430702 Linear Measure Communication error in linear measure system.
430703 Linear Measure Upper limit of linear measure data was out of range.
430704 Linear Measure Lower limit of linear measure data was out of range.
430705 Linear Measure Linear measure dirty signal was detected.
430706 Linear Measure Linear measure SYNC signal has been lost.
(Cause 1) Self-Diagnostics Error Message
(Remedy 1) Zero all axes and re-start the operation.
When the machine cannot be set to its normal condition, consult our service
personnel for the remedy.
430707 Linear Measure The Linear Measure sensor has been detected Component
output error.Please check nozzle of error head.
(Cause 1) Self-Diagnostics Error Message
(Remedy 1) Refer to "2.7 Component Backtrack Detection Function" in "Section 2" (Vol. 2)
for the remedial procedures.
430801 Cam-Positioner Cam-positioner alarm signal was detected.
(Cause 1) The cam positioner is abnormal.
(Remedy 1) Press the [RETURN] button to cancel the error display and contact our service
personnel for the remedy.
430901 Auto Recovery Cannot recover sequence.
(Cause 1) Self-Diagnostics Error Message
(Remedy 1) Zero all axes and re-start the operation.
When the machine cannot be set to its normal condition, consult our service
personnel for the remedy.
430a01 Oil Cooler Oil cooler alarm signal was detected.
(Cause 1) Self-Diagnostics Error Message
(Remedy 1) Zero all axes and re-start the operation.
When the machine cannot be set to its normal condition, consult our service
personnel for the remedy.
0511-003 2-105 AIL01ETRP
