Safe-19 AIL01E-P Safety Precautions T able 1X3 Switch Name Countermeasures (a) When the lamp of the [READY] button is "OFF", the [W ork Area Safety Door] switch is released, making it possible to supply compone…
Safe-18 AIL01E-P
Safety Precautions
[Feeder Work Area Safety Door] Switches
Fig. 1X17 Rear View
Each feeder work area safety door is provided with a [Feeder Work Area Safety Door]
switch inside as shown below.
Fig. 1X18 [Feeder Work Area Safety Door] Switches
Fig. 1X19
F2 Work Area Safety Door
[F2 Work Area Safety Door]
Switch
F1 Work Area Safety Door
[F1 Work Area Safety Door]
Switch
[FEEDER READY] Buttons
0412-001
Safe-19 AIL01E-P
Safety Precautions
Table 1X3
Switch Name Countermeasures
(a) When the lamp of the [READY] button is "OFF", the [Work Area
Safety Door] switch is released, making it possible to supply
components.
Confirm that the lamp of the [FEEDER READY] button is "OFF"
and then open the safety door.
(b) When the machine is in the emergency stop mode (load power shut
off), the lamp of the [READY] button extinguishes and the electro-
magnetic lock of the work area safety door is released exception-
ally although the feeder carriage is not located in the work area.
[F1 Work Area Safety Door] Switch
[F2 Work Area Safety Door] Switch
• When the feeder carriage is located in the work
area and the work area safety door in the work
area is opened, the power to drive the feeder
carriage is shut off.
Ref.: The lamp of the [READY] button extin-
guishes.
• When the feeder carriage is not located in the
work area, the [Work Area Safety Door] switch
in the work area is activated, preventing the
safety door from being opened.
Ref.: The lamp of the [READY] button
illuminates.
Should the safety door opens at this time,
the power to drive the feeder carriages (F1
and F2) is shut off.
• While the work area safety door is kept open,
the feeder carriage is prohibited from any move-
ment such as zeroing and manual alignment op-
erations, etc.
Note
0412-001
Safe-20 AIL01E-P
Safety Precautions
[FEEDER CARRIAGE COVER] Safety Switch
Fig. 1X20 Rear View

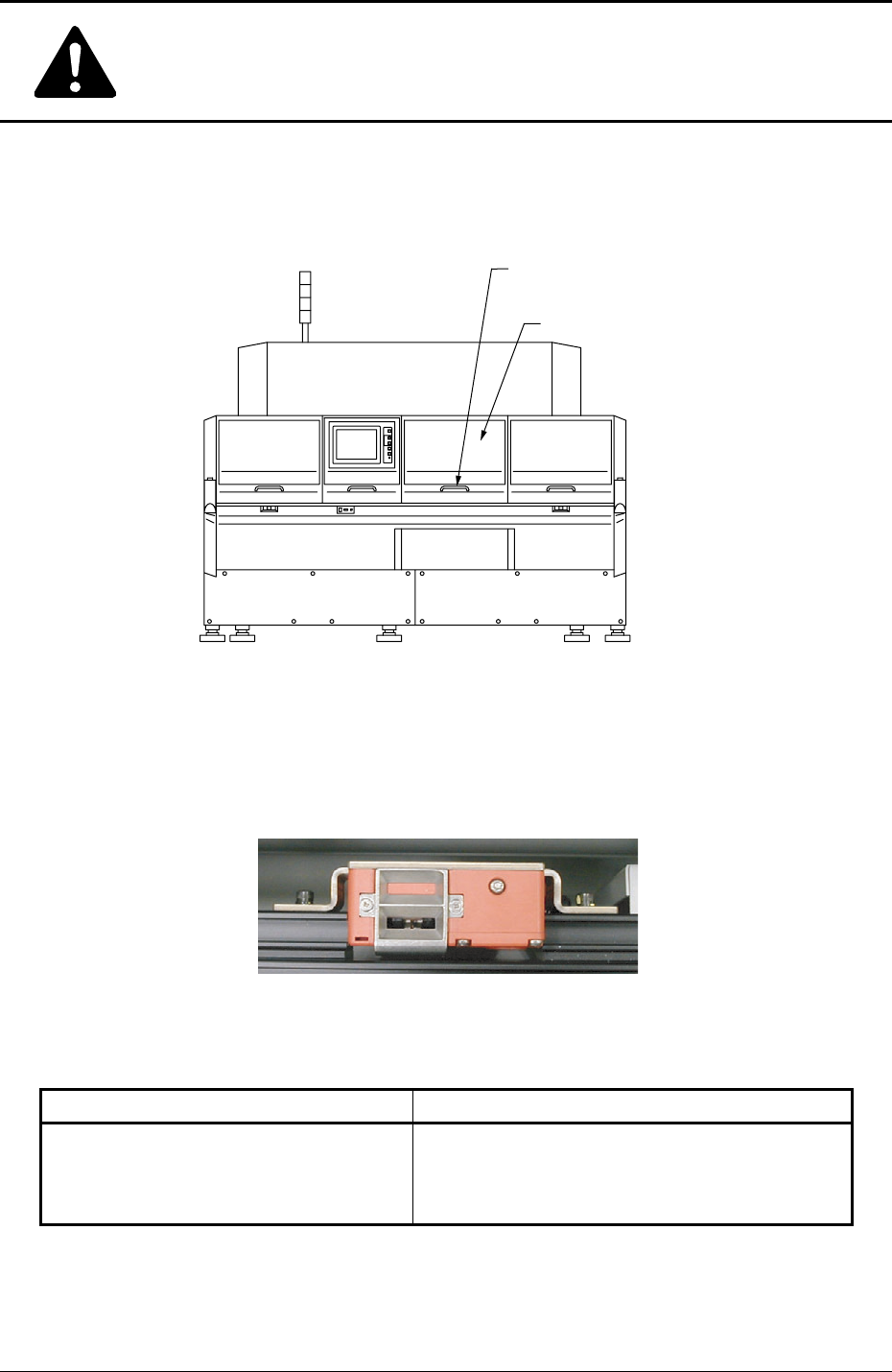

The [FEEDER CARRIAGE COVER] safety switch is mounted inside the cover as
shown below.
Fig. 1X21
Switch Name Countermeasures
Table 1X4
[FEEDER CARRIAGE COVER] Safety
Switch
• The power for operations cannot be supplied
with the feeder carriage cover being open.
[FEEDER CARRIAGE COVER]
Safety Switch
Feeder Carriage Cover
0412-001
