Safe-20 AIL01E-P
Safety Precautions
[FEEDER CARRIAGE COVER] Safety Switch
Fig. 1X20 Rear View
The [FEEDER CARRIAGE COVER] safety switch is mounted inside the cover as
shown below.
Fig. 1X21
Switch Name Countermeasures
Table 1X4
[FEEDER CARRIAGE COVER] Safety
Switch
• The power for operations cannot be supplied
with the feeder carriage cover being open.
[FEEDER CARRIAGE COVER]
Safety Switch
Feeder Carriage Cover
0412-001
Safe-21 AIL01E-P
Safety Precautions
Module Protection Sensors
Feeder Installation Error Detection Sensors
When a tape feeder is not installed correctly, these sensors are used to prevent the
machine from being operated.
Table 1X5
Sensor Name Symbol Countermeasures
Installation Error (+) BPX30
Installation Error (-) BPX31
Lifting Prevention (+) SQ2
Lifting Prevention (-) SQ3
Disengaged Latch (+) BPX27
Disengaged Latch (-) BPX28

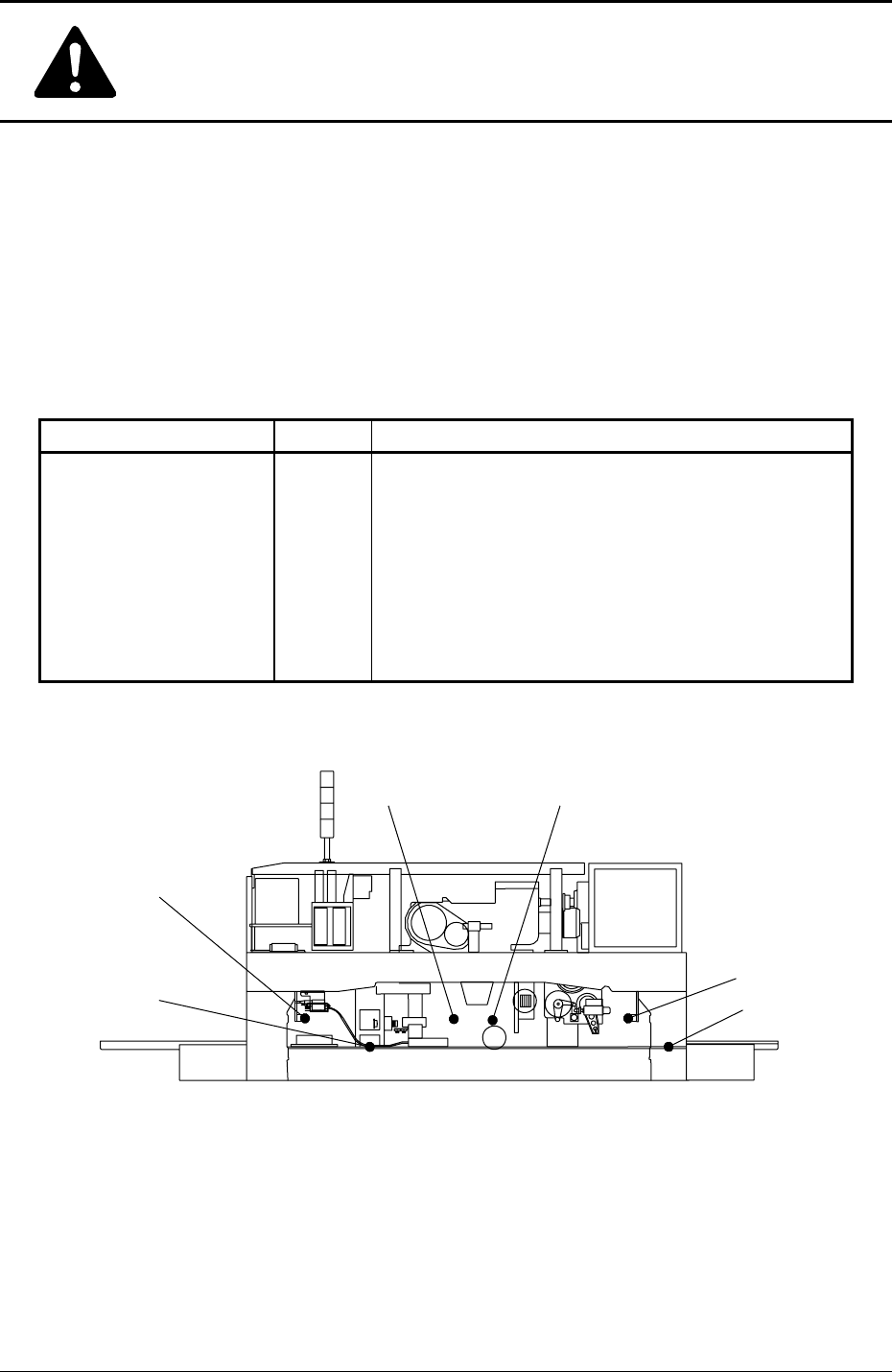

Fig. 1X22 Feeder Installation Error Detection Sensors
When one of the left sensors has detected an error,
the following measures are taken.
• The power to drive Feeder Carriages #1 and #2 is
shut off.
• The rotary turret stops after a cycle of operation.
Ref.: The rotary turret stops with its angle at 0° or
360°.
BPX28
BPX31
SQ3
SQ2
BPX30
BPX27
Rear View (Upper Section)
0412-001
Safe-22 AIL01E-P
Safety Precautions
Feeder Carriage Collision Error Detection Sensors
When some feeder carriage collide with each other, these sensors are used to stop the
machine.
Table 1X6
Sensor Name Symbol Countermeasures
Carriage Collision 12 BPH57

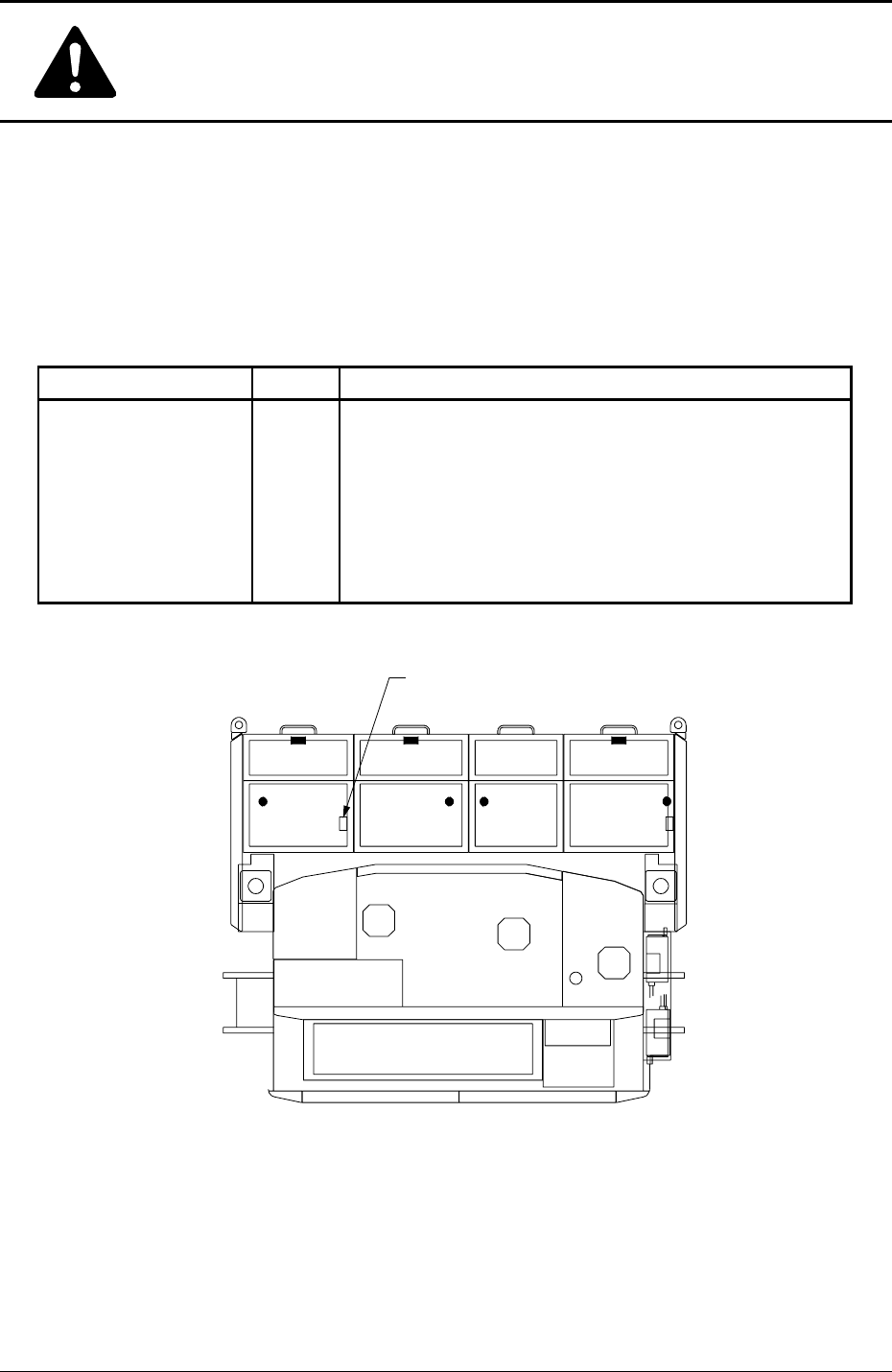

Fig. 1X23 Feeder Carriage Collision Error Detection Sensors
When one of the left sensors has detected an error, the fol-
lowing measures are taken.
• The power to drive Feeder Carriages #1 and #2 is shut
off.
• The rotary turret stops after a cycle of operation.
Ref.: The rotary turret stops with its angle at 0° or 360°.
BPH57
Top View
