Recognition Error ID Recognition Error Contents, Cause, and Remedy 02**3300** Error in Edge Detection 02**3301** Some edges cannot be detected because they are hidden by the nozzle. 02**3302** No Edge Detected. 02**3303*…
Recognition Error ID Recognition Error Contents, Cause, and Remedy

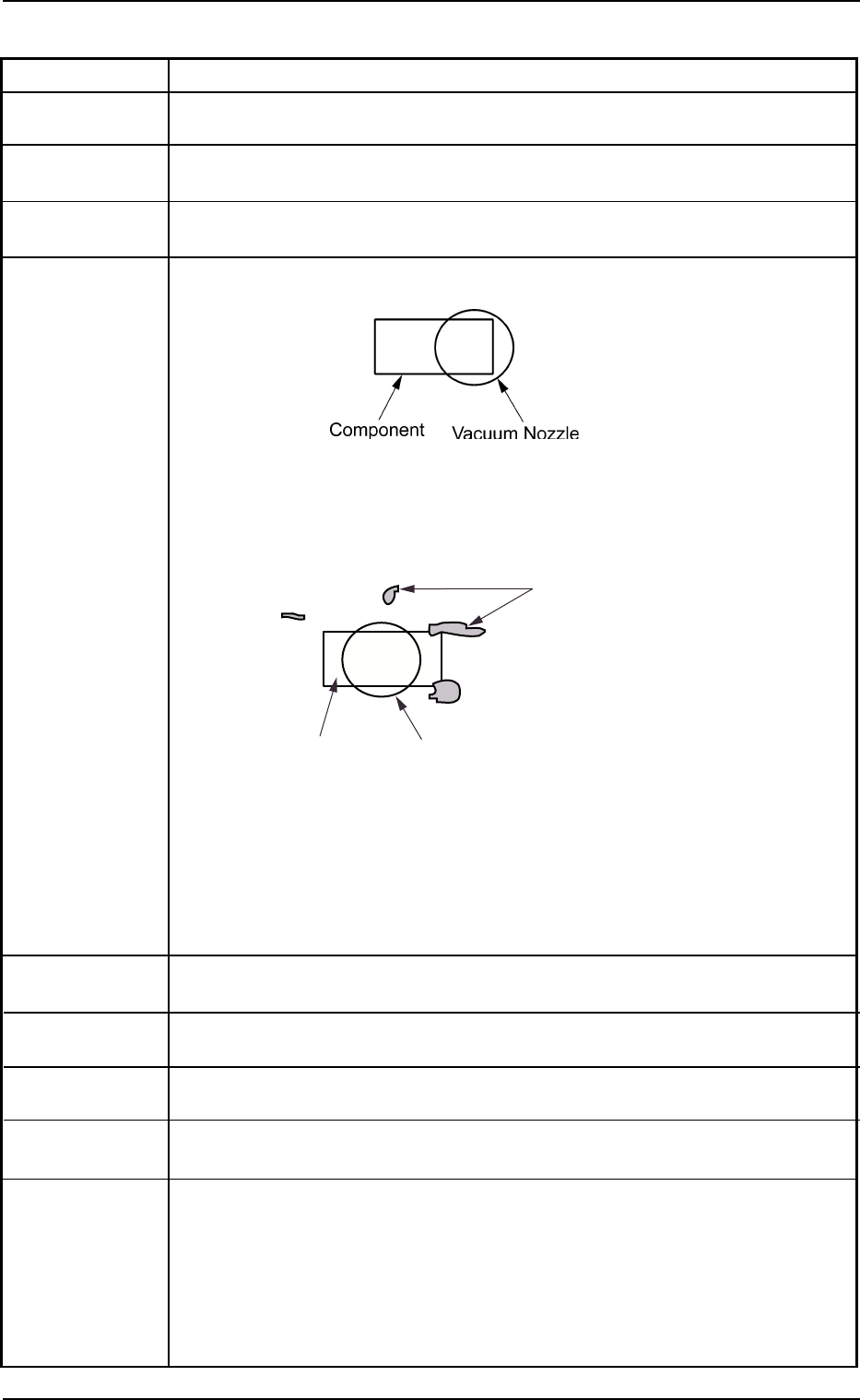

02**3100** Error in Corner Detection
02**3101** More than two corners of a component are hidden by the protruded nozzle.
02**3102** Corner Not Detected.
(Cause 1) The pick-up position has shifted from the specified one in the X direction.
Fig. 4B23
(Cause 2) The tapered part of the vacuum nozzle end or the diffusion plate is stained.
Fig. 4B24
(Remedy 1) Check the component and the tape feeder.
(Remedy 2) Clean the vacuum nozzle end or the diffusion plate.
02**3200** Error in Center of Gravity Detection
02**3201** The component shape (size) is not applicable.
02**3202** Failed in Corner Detection.
02**3203** Failed in Center of Gravity Detection.
(Cause 1)The selected component does not match the nozzle.
(Cause 2)The component is bent due to weak vacuum suction forc
(Remedy 1) Check the selected component and the vacuum nozzle.
(Remedy 2) Check the vacuum pressure.
0511-002 2-191 AIL01ETRP
Component
Vacuum Nozzle
Dirty Spots
4.3 Recognition Error IDs and Remedial Procedures
Recognition Error ID Recognition Error Contents, Cause, and Remedy

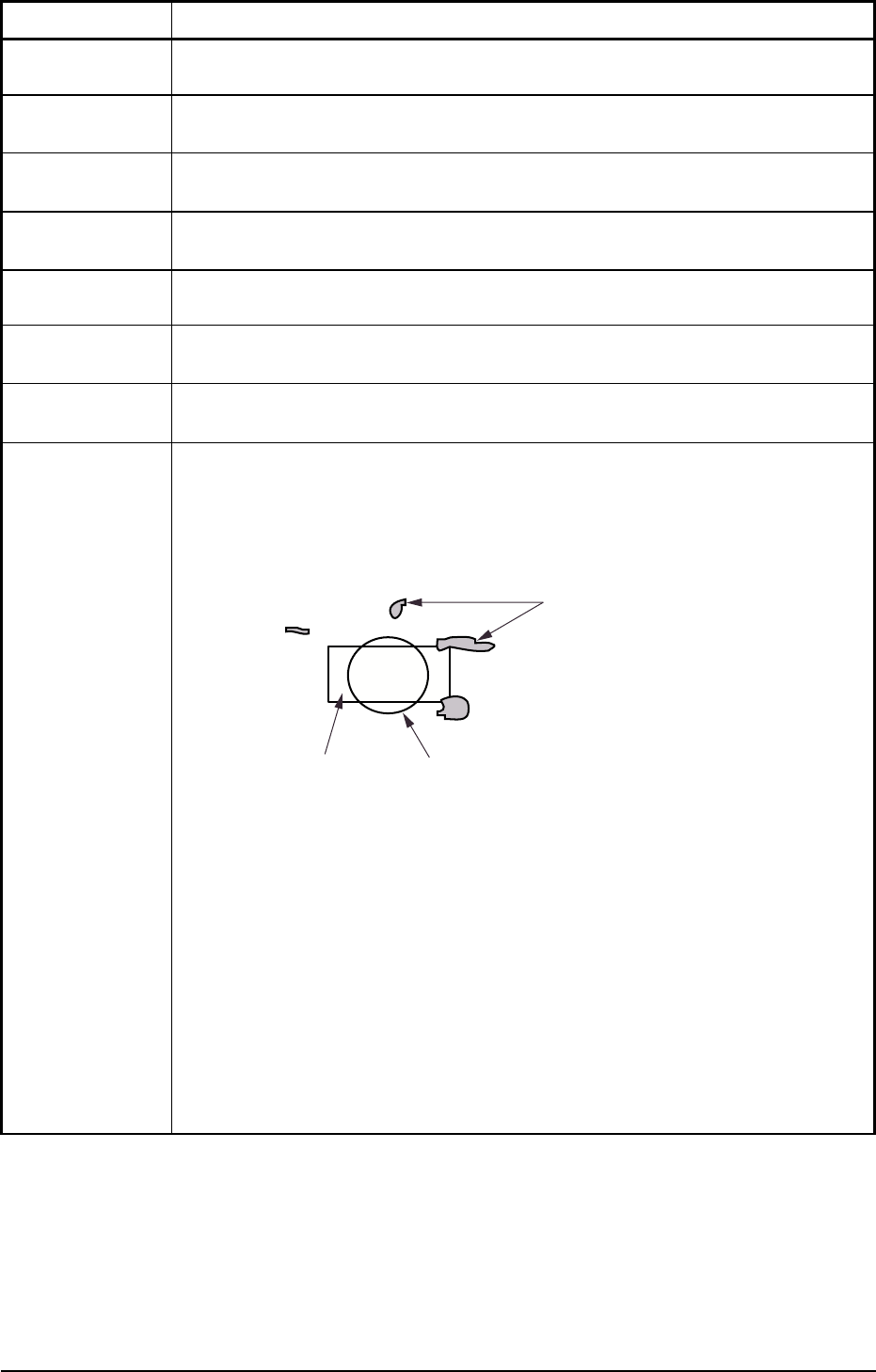

02**3300** Error in Edge Detection
02**3301** Some edges cannot be detected because
they are hidden by the nozzle.
02**3302** No Edge Detected.
02**3303** Upper Edge Not Detected.
02**3304** Left Edge Not Detected.
02**3305** Lower Edge Not Detected.
02**3306** Right Edge Not Detected.
(Cause 1)The selected component does not match the nozzle.
(Cause 2) Wrong parameters (edge data) are set for the selected component in the
component library data.
(Cause 3) The tapered part of the vacuum nozzle end or the diffusion plate is stained.
Fig. 4B25
(Remedy 1) Check the selected component and the vacuum nozzle.
Check if the feeder (B) offset data is correct.
(Remedy 2) Check the edge condition of the selected component and the compo-
nent library data.
If wrong parameters are set in the component library data, correct them.
(Remedy 3) Clean the vacuum nozzle end or the diffusion plate.
Component
Vacuum Nozzle
Dirty Spots
4.3 Recognition Error IDs and Remedial Procedures
0511-002 2-192 AIL01ETRP
Recognition Error ID Recognition Error Contents, Cause, and Remedy
02**3400** Error in Line Detection
02**3401** Some linear edges cannot be detected because they are hidden by the nozzle.
02**3402** No linear edge detected.
02**3403** The detected linear edge position does not match the position data.
(Cause 1) There is a difference between the results of the line inspection of the
selected component and the component library data.
(Remedy 1) Check the line of the selected component and the component library
da
ta. If wrong parameters are set in the component library data, cor-
rect them.
02**3500** Error in Lead Detection
02**3501** Some leads cannot be detected because they are hidden by the nozzle.
02**3502** No Lead Detected.
02**3503** Corner of Leads Not Detected.
02**3504** Ends of Leads Not Detected.
02**3505** Ends of Arrayed Leads Not Detected.
02**3506** Lead Edges of Corner Not Detected.
02**3507** Leads of Corner Not Detected.
02**3508** The number of leads at the detected corner is smaller than the set value.
02**3509** Incorrect Lead-to-Lead Distance at Detected Corner.
02**3510** Incorrect Lead-to-Lead Angle at Detected Corner.
02**3512** The detected number of leads is smaller than the set value.
02**3513** The detected number of leads is larger than the set value.
02**3515** The detected lead position does not match the position data.
(Cause 1) The results of the lead detection differ from the parameters specified in
the component library data for the selected components.
(Remedy 1) Check the leads of the selected component and the component library
data.
If wrong parameters are set in the component library data, correct them.
0511-002 2-193 AIL01ETRP
4.3 Recognition Error IDs and Remedial Procedures
