<Contents of Kit> T able 4A6 Part Name Q’ty Dispense Gun (Main Body) for 10 cc 1 Syringe 20 Piston 2 0 End Cap 20 Syringe Cap 20 Usage (6-1) Set the selector switch to "1" in normal cases. Note: When the …

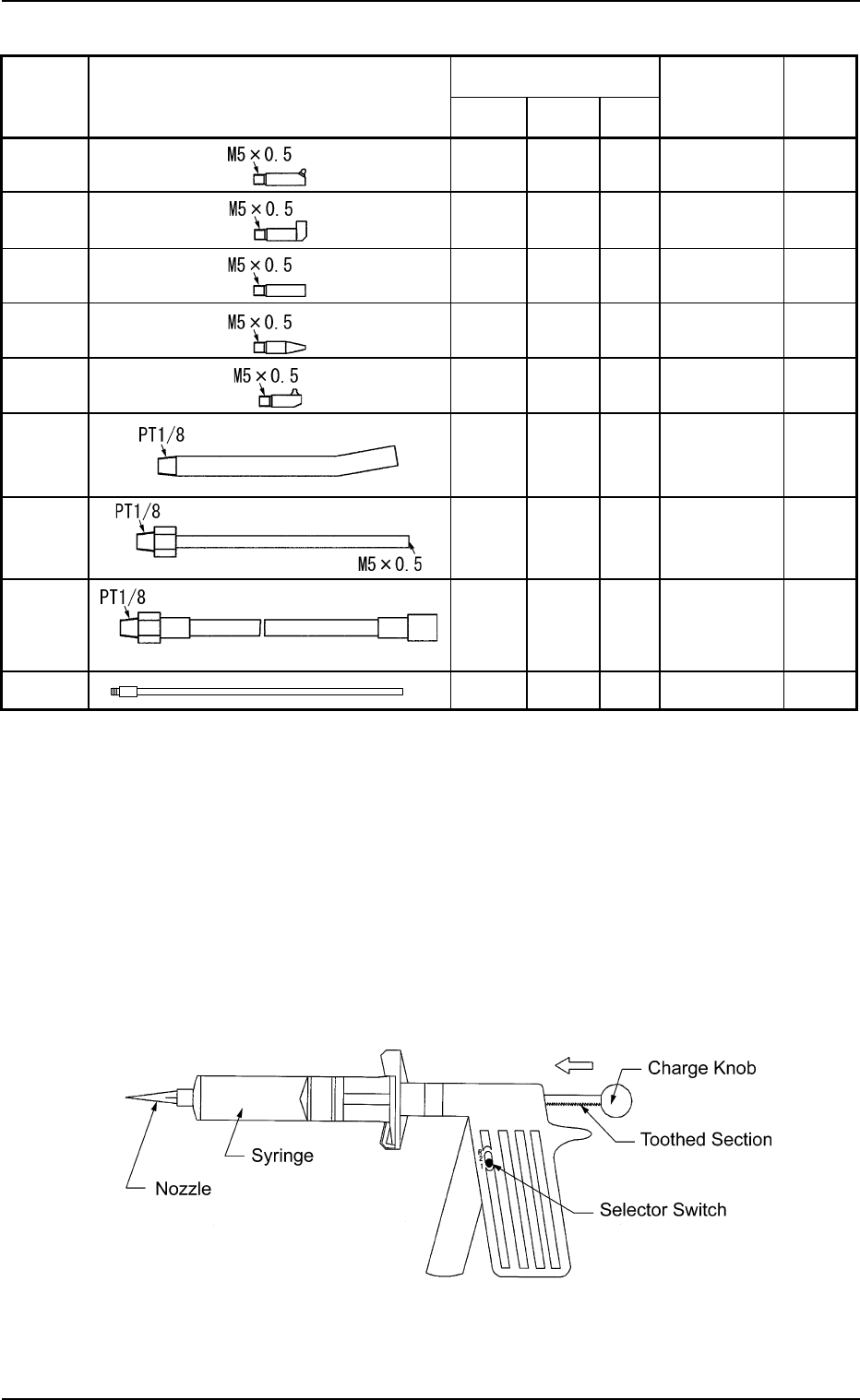

Attachment for Hand Grease Gun KH-120 Table 4A5
Standard Shape Part No. Remarks
V Type 1 0 1 630 061 2028 HTI
S Type 1 1 2 630 061 1977 HTI
N Type 1 1 2 630 061 7467 THK
P Type 1 1 2 630 061 7474 THK
L Type 1 0 1 630 061 7481 THK
H Type 1 0 1 630 061 7450 THK
U Type 1 1 2 630 061 7443 THK
SPK-3C 1 0 1 630 061 7504
Yamada
Yuki
FL Type 1 0 1 630 104 9823
HTI
(6) Dispense Gun "DG10KIT"
Maker: Sanei Tech
This gun can be used for three types of greases.
Use the syringes and the nozzles properly.
Three Types of Greases: DAPHNE EPONEX GREASE No. 1
DAPHNE EPONEX GREASE No. 3
NEW MOLYNOC GREASE No. 1
Appearance
Fig. 4A4
1.2 Preparation for Maintenance
Grease and Required Number
of Attachments
For DAPHNE
EPONEX
GREASE No. 1
For NEW
MOLYNOC
GREASE No. 1
Total
Frequency
in Use
0305-001 1-5 AIL01ETRP
<Contents of Kit>
Table 4A6
Part Name Q’ty
Dispense Gun (Main Body) for 10 cc 1
Syringe 20
Piston 20
End Cap 20
Syringe Cap 20
Usage
(6-1) Set the selector switch to "1" in normal cases.
Note: When the switch is set to "2", grease will be pushed out
excessively.
Be sure to set the switch to "R" before storing the gun (keeping it
unused).
(6-2) Before the charge knob is pushed to dispense the grease, con-
firm that the charge rod is inserted with its toothed section facing
downward.
(6-3) Check the amount of grease before it is supplied
(6-4) Push the charge knob slightly forward before the grease is sup-
plied.
Refer to the attached instruction manual for the detailed infor-
mation on how to use the dispense gun.
1.2 Preparation for Maintenance
0305-001 1-6 AIL01ETRP
Note
Nozzle for Dispense Gun DG10KIT
Table 4A7
Standard Shape Part No. Remarks
No.14 1 0 1 2 630 062 2591
(Color:
Olive)
No.18 1 0 0 1 630 062 2607
(Color:
Green)
No.19 0 1 1 2 630 062 2621
(Color:
Brown)
No.20 1 0 1 2 630 062 2614
(Color:
Pink)
HL2 Type 0 1 0 1 630 105 4445
RR Type 0 1 0 1 630 110 5307
Grease and Number of Required Nozzles
For DAPHNE
EPONEX
GREASE No. 1
For NEW
MOLYNOC
GREASE No. 1
Total
Frequency
in Use
For DAPHNE
EPONEX
GREASE No. 3
1.2 Preparation for Maintenance
0305-001 1-7 AIL01ETRP
Maker: Sanei Tech
Inside Diameter: φ1.6
Tapered Nozzle
#5114TT-B
Maker: Sanei Tech
Inside Diameter: φ0.84
Tapered Nozzle
#5118TT-B
Maker: Nipro
Inside Diameter: φ0.79
Length: 65 mm
Flattened End
Maker: Sanei Tech
Inside Diameter: φ0.58
Tapered Nozzle
#5120TT-B
Maker: HTI
Maker: HTI
