(2) V acuum System 0305-001 1-12 AIL01ETRP 1.3 Maintenance Spots Fig. 4A1 1

1.3.3 Inspection, Cleaning, and Lubrication Spots

(1) Air Source

1.3 Maintenance Spots

0407-003 1-11 AIL01ETRP

Air Blowing Pressure 1D2

Daily Inspection

Confirm that the pressure gauge reads the initial

setting (0.05 to 0.08 MPa (0.5 to 0.8 kgf/cm ))

while the machine is running.

* Do not change the pressure unless necessary.

The pressure is factory-adjusted upon shipment

of the machine.

Drains 1W1

Weekly Cleaning

Drain the wastewater.

Note: Refer to "1.4 Maintenance Method"

for how to purge the drain.

Filters 3M1

Every 3 Months Cleaning

Detach the filters and clean them with an

air gun.

If a filter becomes defective, replace it with

a new one.

Note: Refer to "1.4 Maintenance Method"

Note: for how to detach the filter.

Main Air Pressure 1D1

Daily Inspection

Set Air Pressure 0.5 MPa (5.1 Kgf/cm )

Confirm that the air pressure is "Min. 0.4 MPa

(4.1 Kgf/cm )" while the machine is running.

If not, adjust the air pressure.

2

2

2

Subsidiary Air Pressure 1D3

Daily Inspection

Confirm that the subsidiary air pressure

is "0.29 MPa (3 kgf/cm

2

)" while the

machine is running.

If not, adjust the air pressure.

Fig. 4A10

(2) Vacuum System

0305-001 1-12 AIL01ETRP

1.3 Maintenance Spots

Fig. 4A11

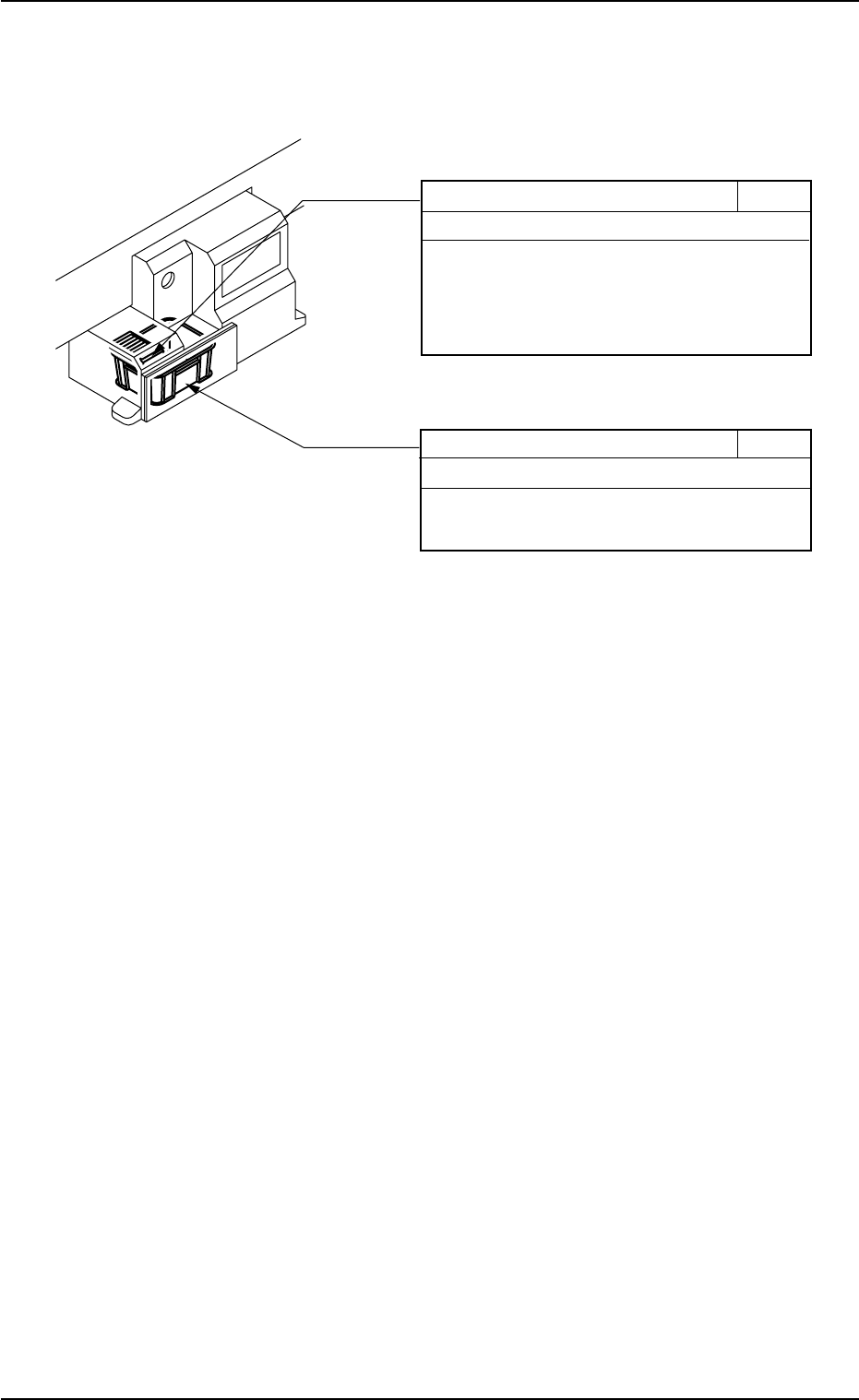

(3) Dust Collector and Waste Tape Box

0305-001 1-13

AIL01ETRP

1.3 Maintenance Spots

Waste Tape Box 1D5

Daily Cleaning

Remove the tape chips.

* Tape chips must be removed every 8 hours.

Filter of Dust Collector 1W2

Weekly Cleaning

Detach the air filter and clean it with a vacuum

cleaner or an air gun.

If the filter becomes defective, replace it with a

new one.

Fig. 4A12
