5OM-1348-002_w - 第157页

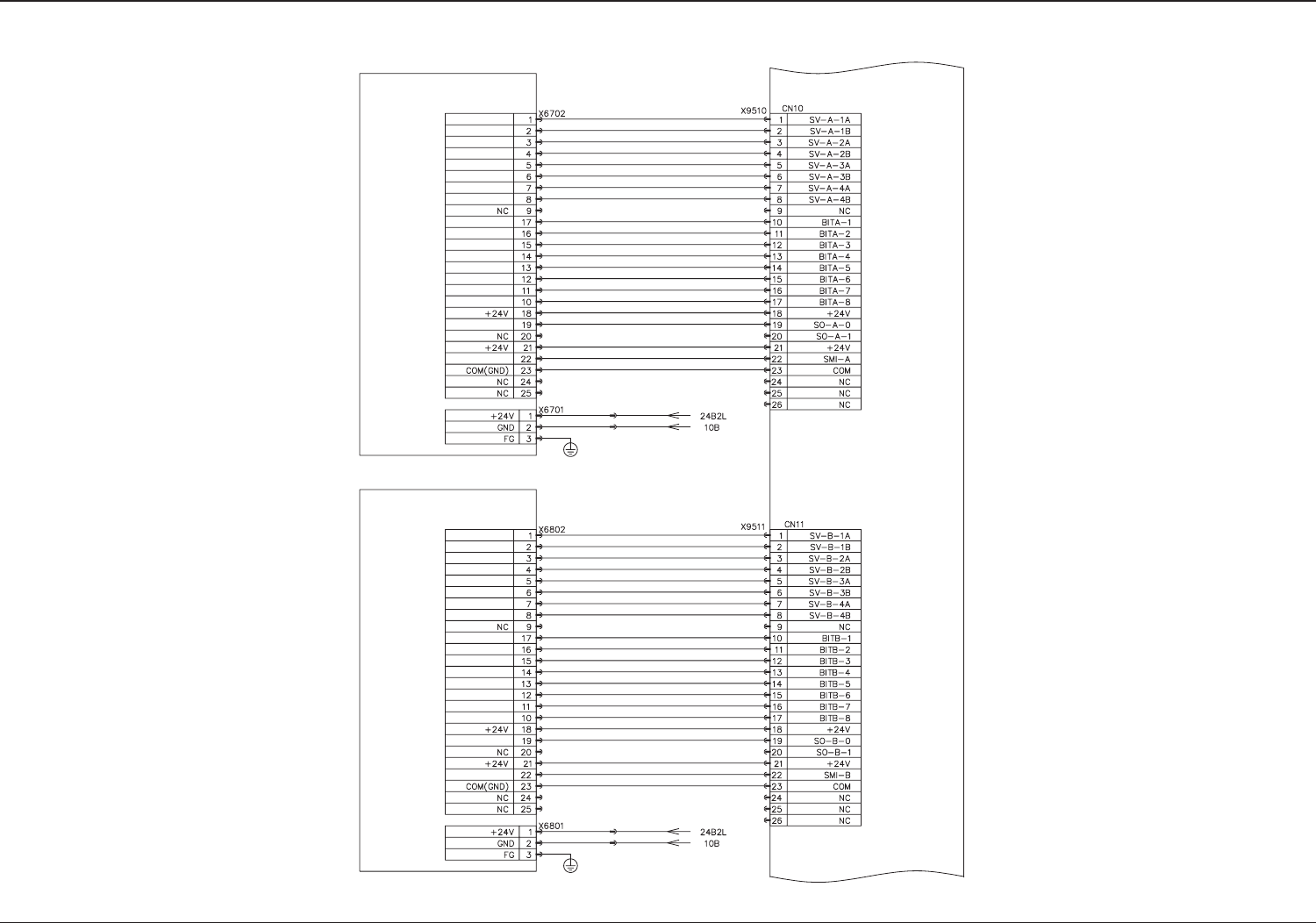

4-68 0606-001 -(M829WR---0006) 䆛ࠀ䖳 䆛ࠀ䖳 Lighting Control Board (UB08) -U95
4-670606-001 -(M829WR---0005)
䆛ࠀ䖳
䆛ࠀ䖳
Component Recognition
Lighting Light Source (A)
BA Block -A67
Back Lighting Closed
Back Lighting Open
Front Lighting 1 Closed
Front Lighting 1 Open
Front Lighting 2 Closed
Front Lighting 2 Open
Front Lighting 3 Closed
Front Lighting 3 Open
Light Control Output BIT1
Light Control Output BIT2
Light Control Output BIT3
Light Control Output BIT4
Light Control Output BIT5
Light Control Output BIT6
Light Control Output BIT7
Light Control Output BIT8
Flashing
Trigger Signal 1
Flashing NG Signal Output
Component Recognition
Lighting Light Source (B)
BA Block -A68
Back Lighting Closed
Back Lighting Open
Front Lighting 1 Closed
Front Lighting 1 Open
Front Lighting 2 Closed
Front Lighting 2 Open
Front Lighting 3 Closed
Front Lighting 3 Open
Light Control Output BIT1
Light Control Output BIT2
Light Control Output BIT3
Light Control Output BIT4
Light Control Output BIT5
Light Control Output BIT6
Light Control Output BIT7
Light Control Output BIT8
Flashing
Trigger Signal 1
Flashing NG Signal Output
Lighting Control Board (UB08)
-U95

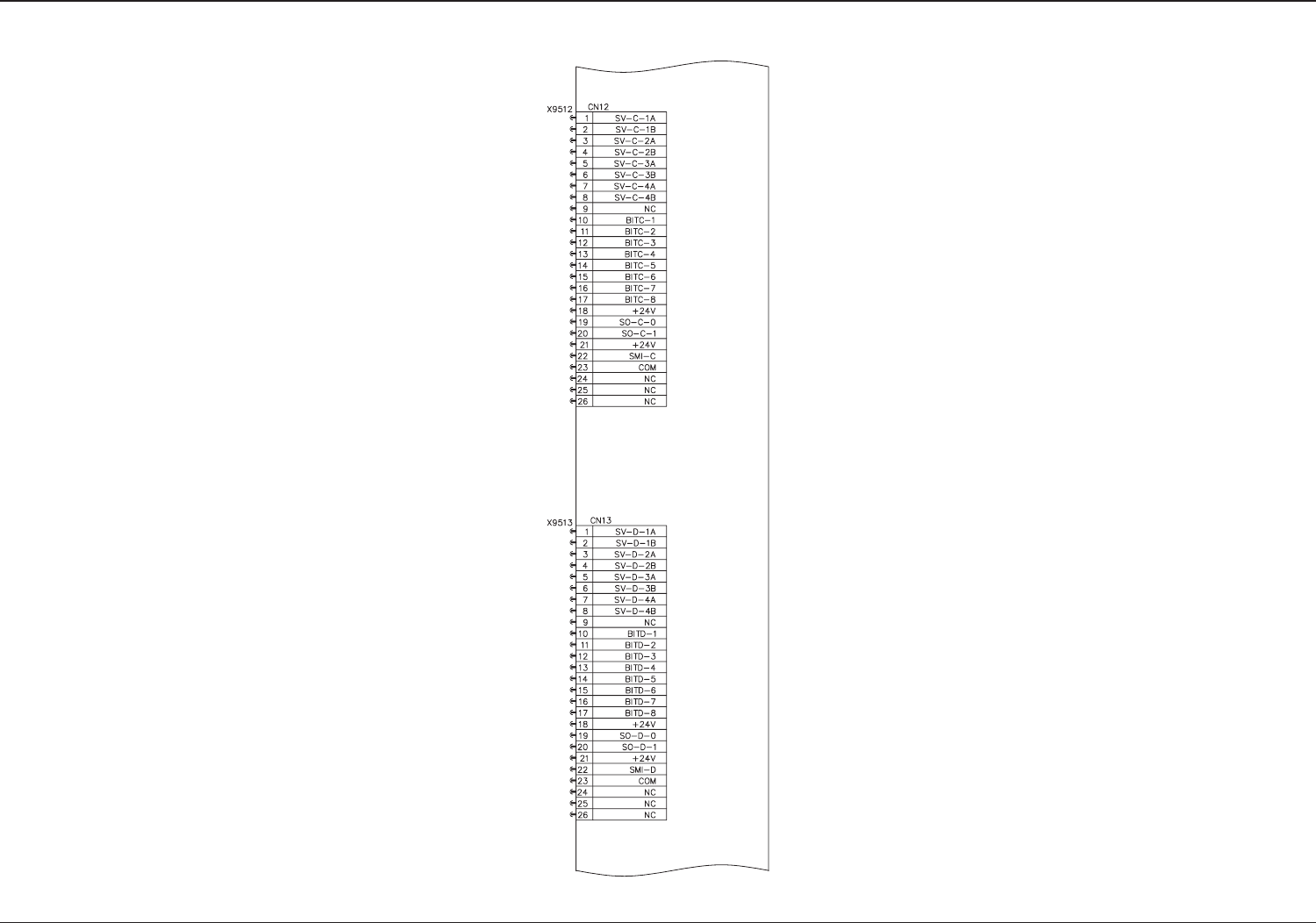

4-680606-001 -(M829WR---0006)
䆛ࠀ䖳
䆛ࠀ䖳
Lighting Control Board (UB08)
-U95
5-A
0606-001
第五章
电线连接图
本章节就各部的电线连接图进行说明。
因含有一定的难度，参考时请充分注意。
