2-9 传感器 / 负载配置图 传送带 (NA) 0606-001 传感器 / 负载配置图 传送带 (NA) -B4201 Amp, -B4202 Amp -B4201 -M55 -B5301 -B4201 -B5601 -M56 -M53 -B4202 -Y0836 -B5501 -Y0834 -Y0835 -B4202 -M42 -Y0842 -B0812 -B0813 Symbol Name Symbol Name -B4201 …
2-8

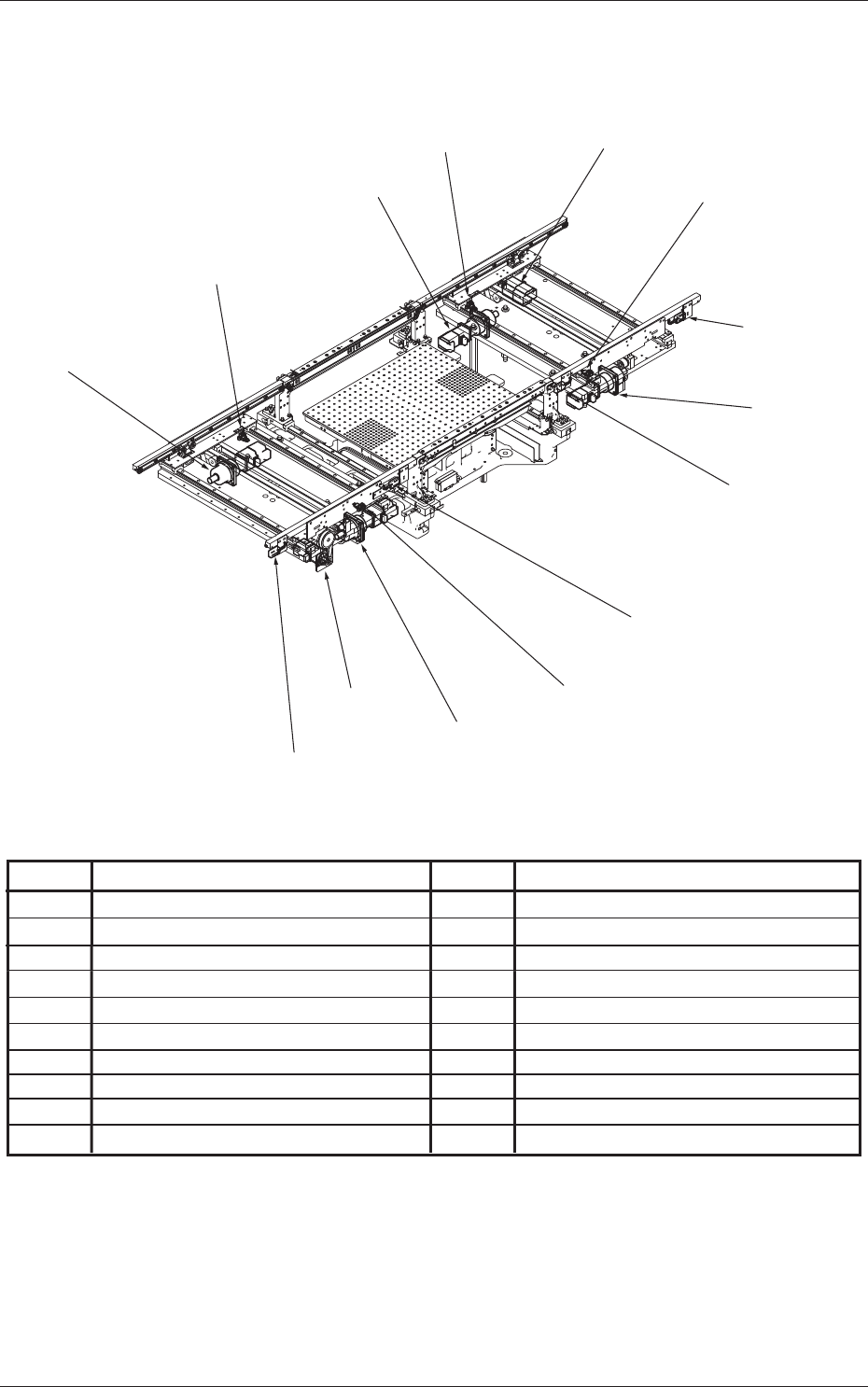

传感器 / 负载配置图 传送带 (NL、NR)
0606-001
传感器 / 负载配置图 传送带 (NL、NR)
Symbol Name
-M51 NL-W1 Chute Width Changeable Servomotor
-M52 NL-W2 Chute Width Changeable Servomotor
-M51 NR-W1 Chute Width Changeable Servomotor
-M52 NR-W2 Chute Width Changeable Servomotor
-B4101 NL Transferred PCB Detection Sensor (Deceleration)
-B4102 NL Transferred PCB Detection Sensor (Stop)
-B4401 NR Transferred PCB Detection Sensor (Deceleration)
-B4402 NR Transferred PCB Detection Sensor (Stop)
-B5101 NL Chute Width Changeable 1 Limit (+)
-B5201 NL Chute Width Changeable 2 Limit (-)
-B5101 NR Chute Width Changeable 1 Limit (+)
-B5201 NR Chute Width Changeable 2 Limit (-)
-M41 Transfer Servomotor (NL)
-M44 Transfer Servomotor (NR)
Symbol Name
-M41
-B4102
-B4101
-B4402
-B4401
-B5201
-M51
-B5201
-M44
-B5101
-M52
-M52
-B5101
-M51
2-9

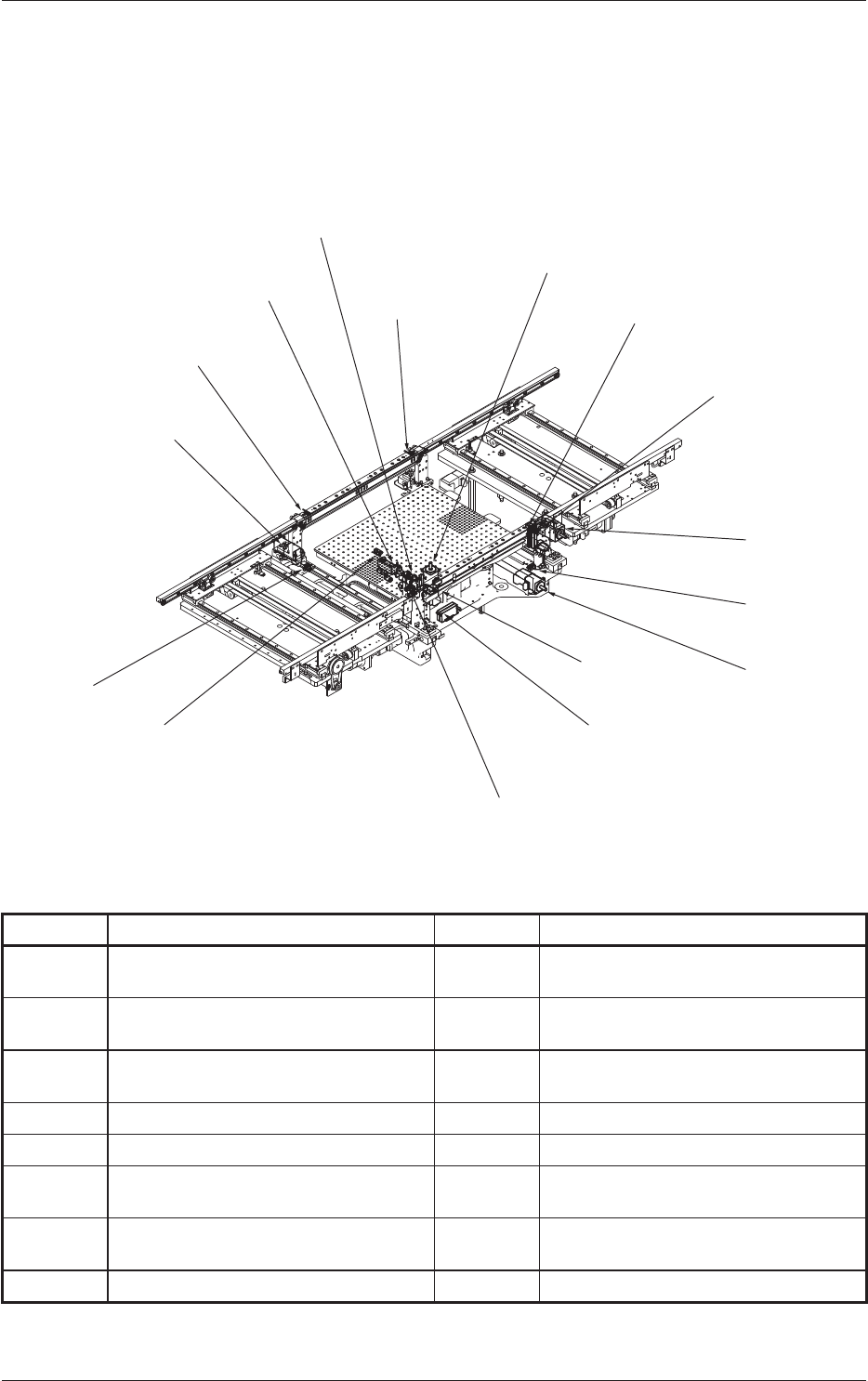

传感器 / 负载配置图 传送带 (NA)
0606-001
传感器 / 负载配置图 传送带 (NA)
-B4201 Amp, -B4202 Amp
-B4201
-M55
-B5301
-B4201
-B5601
-M56
-M53
-B4202
-Y0836
-B5501
-Y0834
-Y0835
-B4202
-M42
-Y0842
-B0812
-B0813
Symbol Name Symbol Name
-B4201 NA Transferred PCB Detection Sensor
(Deceleration)
-M42 Transfer Servomotor (NA)
-B4202 NA Transferred PCB Detection Sensor
(Stop)
-M55 NA-W1 Chute Width Changeable
Servomotor
-B5501 NA Chute Width Changeable 1 Limit (+) -M56 NA-W2 Chute Width Changeable
Servomotor
-B5601 NA Chute Width Changeable 2 Limit (-) -M53 NA Backup Servomotor
-B5301 NA Backup 1 Limit (+) -Y0834 Z Clamp Cylinder Valve 1 DN [NA]
-B0812 NA PCB Positioning Stopper 1 Upper
Limit Detection
-Y0835 Z Clamp Cylinder Valve 1 UP [NA]
-B0813 NA PCB Positioning Stopper 1 Lower
Limit Detection
-Y0836 Z Clamp Pressure Change 1 (NA)
-Y0842 NA PCB Positioning Stopper 1 U/D Valve
2-10

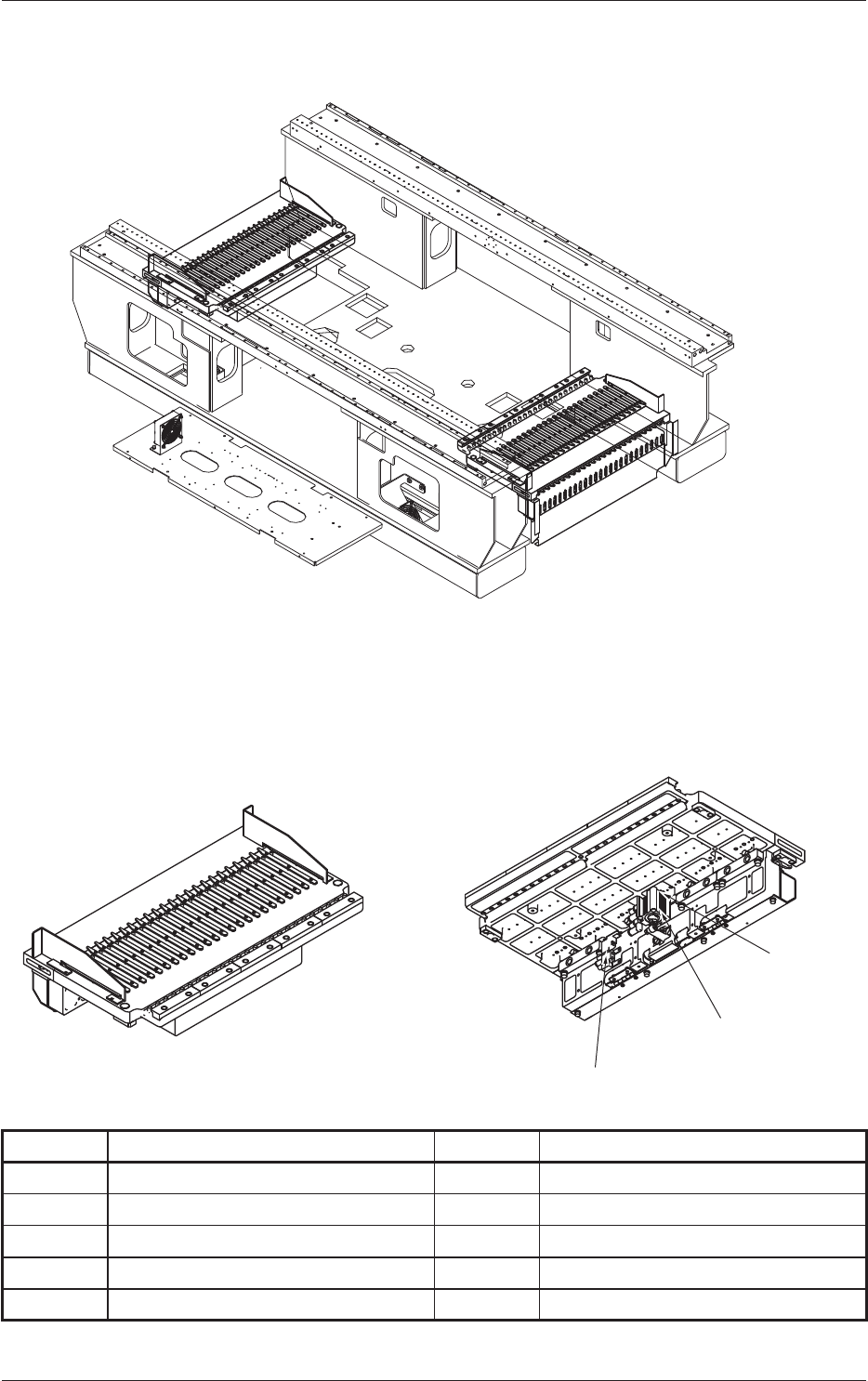

传感器 / 负载配置图 送料器安装台
0606-001
传感器 / 负载配置图 送料器安装台
-Y6930
-B6950
-B6951
Symbol Name Symbol Name
-B6950 Feeder Clamp Lower Limit
-B6951 Feeder Clamp Upper Limit
-Y6930 Feeder Clamp
