2-12 传感器 / 负载配置图 吸嘴储料器 0606-001 传感器 / 负载配置图 吸嘴储料器 -B0920 -B0918 -B0922 -Y0935 -Y0936 Symbol Name Symbol Name -B0918 Nozzle Stocker Lower Limit Detection 1 -B0920 Nozzle Stocker Shutter Open Check 1 -B0922 Nozzle Stocker …
2-110606-001

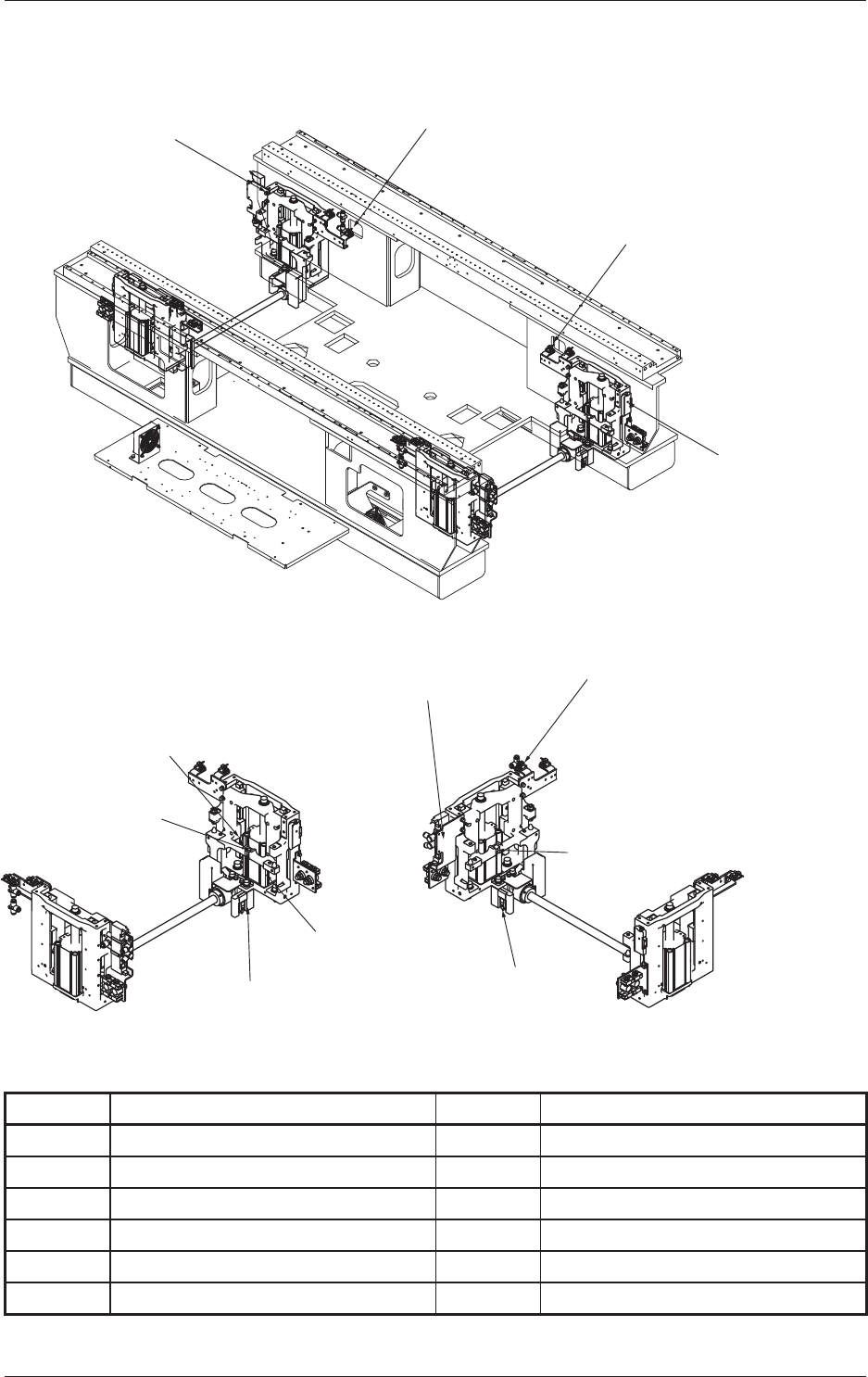

传感器 / 负载配置图 定位
传感器 / 负载配置图 定位
-B0913
-B0911
-B0915
-B0509, -B510 Amp
-Y0932, -Y0933
-B0510
-B0910
-B0914
-B0912
(Double Valve)
-B0508
-B0509
-B0508, -B510 Amp
Symbol Name Symbol Name
-B0508 Lifted Feeder Detection (A) -B0913 Lifting Section Feeder Base Detection 2
-B0509 Lifted Feeder Detection (B) -B0914 Cylinder Upper Limit Detection
-B0510 Lifted Suppressor Detection -B0915 Cylinder Lower Limit Detection
-B0910
Feeder Base Y Direction Positioning Check 1
-B0932 Feeder Base Ascending
-B0911
Feeder Base Y Direction Positioning Check 2
-B0933 Feeder Base Descending
-B0912 Lifting Section Feeder Base Detection 1
2-12
传感器 / 负载配置图 吸嘴储料器
0606-001
传感器 / 负载配置图 吸嘴储料器
-B0920
-B0918
-B0922
-Y0935
-Y0936
Symbol Name Symbol Name
-B0918 Nozzle Stocker Lower Limit Detection 1
-B0920 Nozzle Stocker Shutter Open Check 1
-B0922 Nozzle Stocker Clamp Check 1
-Y0935 Nozzle Stocker Shutter Open
-Y0936 Nozzle Stocker Ascending 1
3-A
0606-001
第三章
元件配置图
本章节就各部的配置等进行说明。
因含有一定的难度，参考时请充分注意。
