Iso Thermal™ Chamber T echnology The OmniES and OmniMax reflow systems series are designed to deliver maximum thermal performance combined with process capability and control. The heartbeat of the OmniES/Max series — Ele…
IsoThermal™ Chamber Technology
The OmniES and OmniMax reflow systems series are designed to deliver maximum thermal performance combined with
process capability and control. The heartbeat of the OmniES/Max series — Electrovert’s patented IsoThermal Chamber
Technology (ICT). IsoThermal Chamber Technology innovative design consists of dual compression boxes, independent
blower speed control, super efficient heating elements, and utilizes a low-turbulent convection delivery type diffusers.
The result: super-efficient thermal performance throughout the entire process.
OmniES 5, 7, 10, and 13 Zone Reflow Soldering and Curing
The OmniES offers a combination of innovation and industry-proven technologies in an easy-to-use, reliable oven for
reflow soldering and curing applications. The OmniES includes independent blower control as standard. The OmniES
series are available in hybrid or full convection models (full convection is field upgradeable). Through energy saving
designs, the OmniES models are ideal for the majority of reflow applications. The OmniES delivers excellent thermal
performance at the lowest cost of ownership.
OmniMax 7, 10, and 13 Zone Reflow Soldering
The OmniMax offers precision IsoThermal convection for demanding thermal profile requirements and is ideal for
applications that require precise control of convection dynamics within each zone. The OmniMax has independent speed
and temperature control between top and bottom within each individual zone as standard.
Innovative Cooling Technology
• Air flow dynamics within cooling zones are efficiently controlled for a balanced
environment and reduced exhaust temperatures
• An industry first with dripless cooling significantly reduces the potential for flux
dripping in the cooling area
• Excellent separation between the heating and cooling areas produces tight
control of TAL
• Enhanced nitrogen cooling design achieves maximum airflow balance and
reduces nitrogen consumption by 20 to 25%
The OmniES/Max series
ovens are designed
to deliver maximum
thermal performance
combined with process
capability and control.
The OmniES/Max product
portfolio offers the most
advanced technology in
the industry.
OmniMax & OmniES
™
Reflow Soldering and Curing Systems
Electronic Assembly Equipment
Maintenance Reduction Technologies
• Patented dripless cooling design extends maintenance in the cooling section and easy
to clean
• Intelligent Flux Control (IFC) advanced flux management system that incorporates self-
clean features and allows for full maintenance during production
• Full accesibiity to all major addemblies is accomplished through removable panels (front
and back)

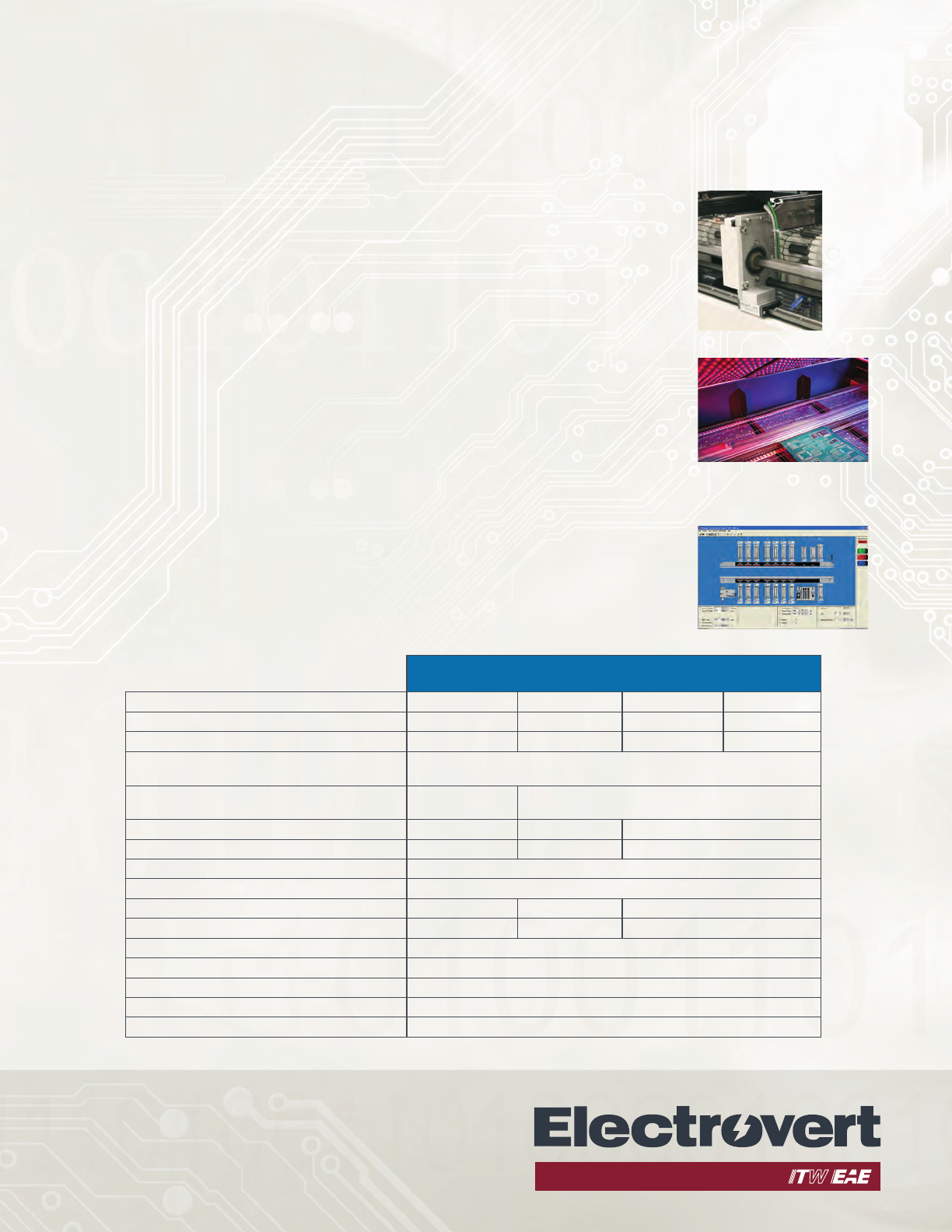

Versatile Conveyor System
• The versatile conveyor system is capable of process widths up to 36” (914 mm)
• Linear guides and precision screw shafts ensure a smooth motion and highly repeatable
conveyor width
• Robust conveyor design that is focused on minimizing vibration
• Center Board Support (CBS) option
• Dual Lane solutions are compatible with all major pick-and-place suppliers
High-End Features
• User-friendly Windows®-based user interface with expanded data logging capabilities
• Common PC and I/O system with wave and cleaner products
• Independent closed-loop blower control (heating and cooling)
• OmniCheck
™
continuous monitoring and verification feature
• Comprehensive list of features that support demanding production requirements.
OmniES/Max Series
Reow and Curing
Specications 5 Zone 7 Zone 10 Zone 13 Zone
OmniES
P P P P
OmniMax —
P P P
OmniES
Convection Type
Hybrid and Full
OmniMax
Convection Type
— Precision
Standard Process Width 508 mm (20”) 457 mm (18”) 508 mm (20”)
Machine Length 3421 mm (134.7”) 4863 mm (191.5”) 6439 mm (253.5”)
Machine Width 1367 mm (53.8”)
Machine Height 1241 mm (48.9”)
Heated Length 1921 mm (75.6”) 2685 mm (105.7”) 3855 mm (151.8”)
Cooling Length 481 mm (18.9”) 887 mm (34.9”) 1293 mm (50.9”)
Reow Operating Temperature 350°C (662°F)
Curing Operating Temperature As low as 60°C (140°F)
UL Certied and Listed for Factory Automation Standard
CE Listed Optional
Country of Origin Made in USA
www.itweae.com
© 2016 ITW all rights reserved. OmniMax/ES 10-16
