3 Application program interface (API) description SIPLACE
Ausgabe 05/2007
32
3.1.9.2 Protected Instance Methods
3
3
3.1.9.3 Instance Methods in detail
The public instance methods are not described at this position, as they internally call the protected
instance methods. This design is required to realize events via the .net remoting interface. There-
fore a client, which wants to receive events via the SCI interface, has to implement the protected
methods within its application. 3
_OnFeederPlaced 3
Callback for the FeederPlaced event, which has to be implemented by the client. 3
3
3
Parameters 3
sender 3
Object, which released this event. 3
feederLocations 3
Locations of the feeders, which have been placed. 3
3
3
Member name Description
_OnFeederPlaced
Callback for the FeederPlaced event, which has to be implemented
by the client
_OnFeederRemoved
Callback for the FeederRemoved event, which has to be imple-
mented by the client
_OnMessagesReceived
Callback for the MessagesReceived event, which has to be imple-
mented by the client
_OnNewSetupActive
Callback for the NewSetupActive event, which has to be imple-
mented by the client
_OnPackagingQuantityChan
ged
Callback for the PackagingQuantityChanged event, which has to
be implemented by the client
_OnSetupChanged
Callback for the SetupChanged event, which has to be implemen-
ted by the client
SIPLACE 3 Application program interface (API) description
Ausgabe 05/2007
33

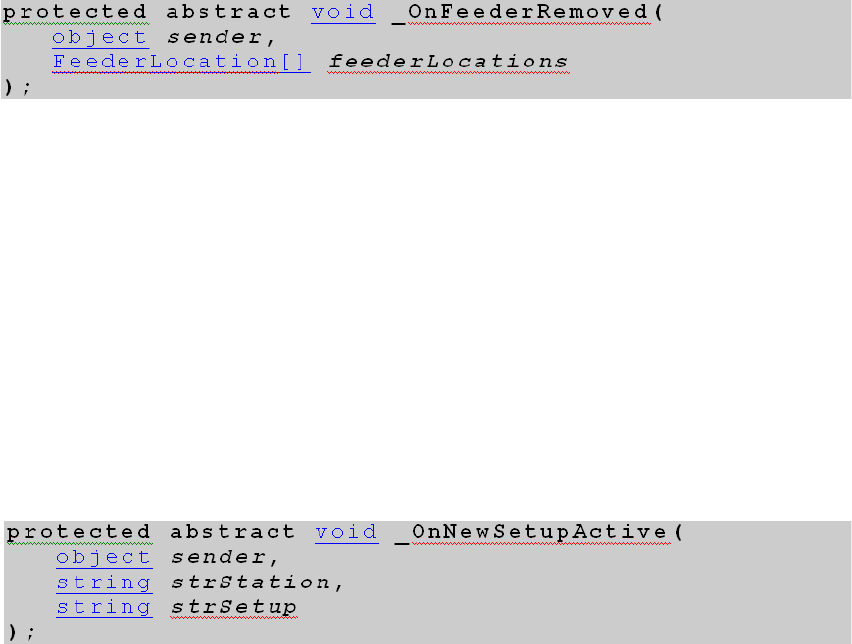

_OnFeederRemoved 3
Callback for the FeederRemoved event, which has to be implemented by the client. 3
3
3
Parameters 3
sender 3
Object, which released this event. 3
feederLocations 3
Locations of the feeders, which have been removed. 3
3
_OnNewSetupActive 3
Callback for the NewSetupActive event, which has to be implemented by the client. 3
3
3
Parameters 3
sender 3
Object, which has released this event. 3
strStation 3
The station, on which a new setup is active. 3
strSetup 3
The new setup. 3
3
3
3
3
3 Application program interface (API) description SIPLACE
Ausgabe 05/2007
34

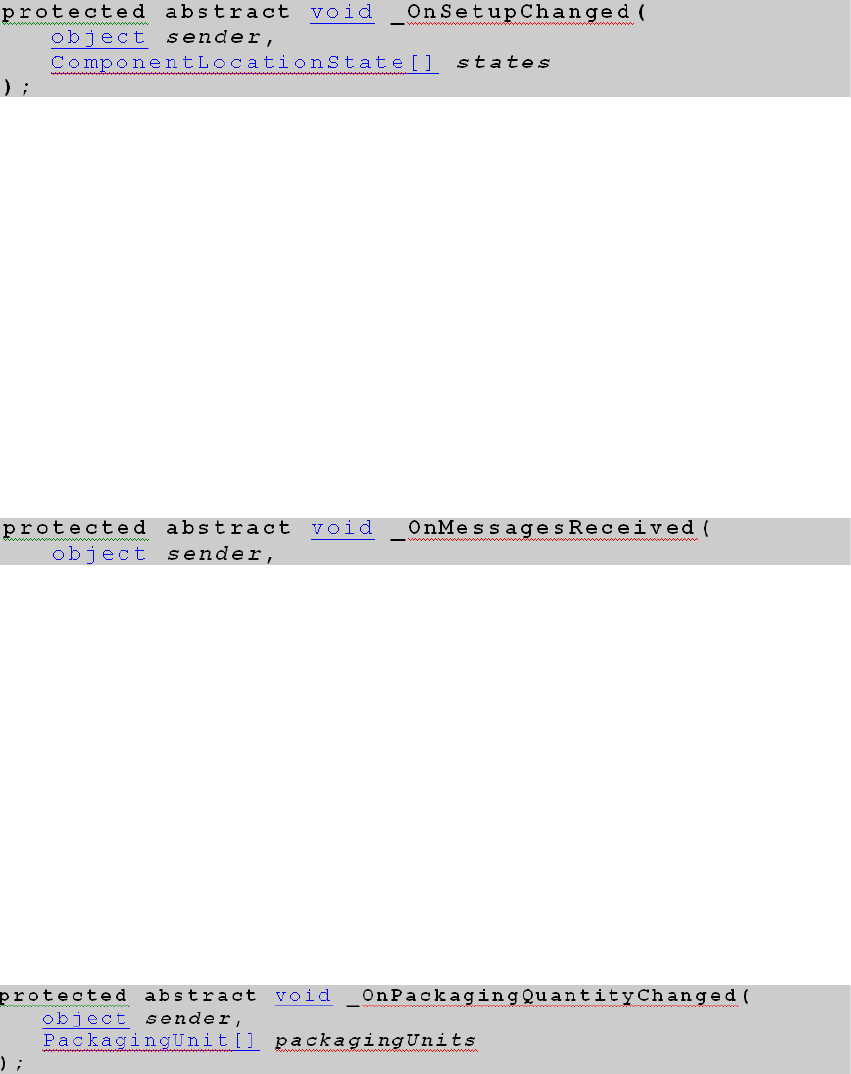

_OnSetupChanged 3
Callback for the SetupChanged event, which has to be implemented by the client. 3
3
3
Parameters 3
sender 3
Object, which has released this event. 3
states 3
The locations with the associated states. 3
3
_OnMessagesReceived 3
Callback for the MessagesReceived event, which has to be implemented by the client. 3
3
3
Parameters 3
sender 3
Object, which has released this event. 3
strMessages 3
Errors, warnings etc. sent to the client. 3
3
_OnPackagingQuantityChanged 3
Callback for the PackagingQuantityChanged event, which has to be implemented by the client. 3
3
3
3
