3.2 Definitions
3.2.1 Machine location definition

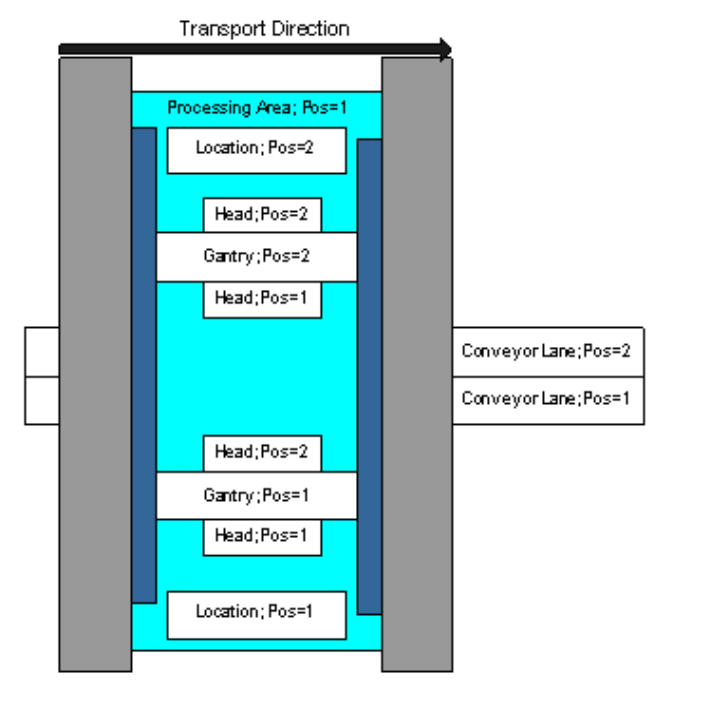

SCI uses the definition of the SIPLACE station interface to determine the locations of placement
machines. The definition is shown in Figure 5 - placement machine with 1 processing area and
Figure 6 - placement machine with 2 processing areas: 3
3
Fig. 3.11 - 1 Placement machine with 1 processing area
3
3
3
3
3
3 Application program interface (API) description SIPLACE
Ausgabe 05/2007
38
3
Fig. 3.11 - 2 Placement machine with 2 processing areas
3
3
3
3
3
3
3
3
3
3
3
3
SIPLACE 3 Application program interface (API) description
Ausgabe 05/2007
39
3.1.2 Feeder location definition
3
Fig. 3.12 - 3 Tape feeder location definition
The feeder location always starts with the first, used track. Each division on the feeder is ascen-
ding numbered, starting with 1. 3
3
Fig. 3.12 - 4 Matrix Tray Changer location definition
