3 Application progra m interface (API) description SIPLACE Ausgabe 05/2007 40 T ray changers may have towers (see Figure ab ove - Matrix tray changer location de finition), which are numbered from le ft to right a scendi…
SIPLACE 3 Application program interface (API) description
Ausgabe 05/2007
39
3.1.2 Feeder location definition
3
Fig. 3.12 - 3 Tape feeder location definition
The feeder location always starts with the first, used track. Each division on the feeder is ascen-
ding numbered, starting with 1. 3
3
Fig. 3.12 - 4 Matrix Tray Changer location definition
3 Application program interface (API) description SIPLACE
Ausgabe 05/2007
40
Tray changers may have towers (see Figure above - Matrix tray changer location definition), which
are numbered from left to right ascending beginning with 1, if looking from the side where the car-
rier is filled up. The levels of a carrier are numbered ascending, whereas the first level at the bot-
tom of the tower has level=1. The magazines (trays) on the carrier are numbered all the way
through, starting with the magazine which is closed to the zero point of the carrier. 3
3
Fig. 3.12 - 5 Tray feeder location definition
3
Tray feeders without a tower (see Figure above Tray feeder location definition) are numbered like
these with a tower. The only difference is that the first carrier is identified by the corresponding
track and the magazines by the x, y offset from the zero point of the first carrier. 3
3
3
3
3
3
3
SIPLACE 3 Application program interface (API) description
Ausgabe 05/2007
41
3.1.3 Packaging unit definition

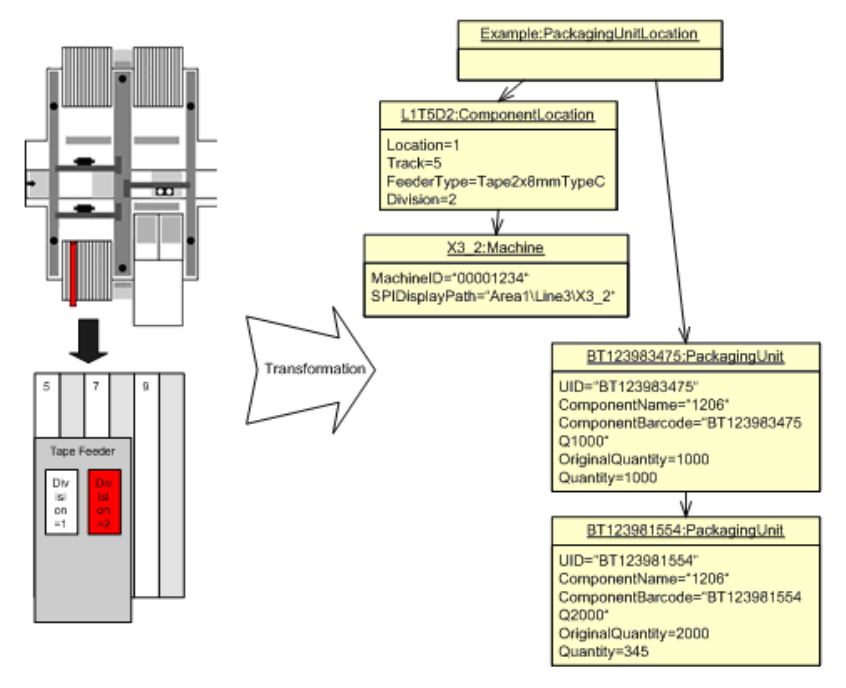

Figure 10 - packaging unit location is an example, which shows the determination of a packaging
unit location. 3
3
Fig. 3.13 - 6 Packaging unit location
