フィーダカート部 FEEDER CAR T SECTION Fig. EC-4 フレーム部 Frame Section G -S006-02 0909-002 6 301 302 312 351 313 352 309 310 31 1 303 304 308 361 . 371 376 . 364 . 372 377 . 363 . 372 377 . 365 . 372 377 . 367 . 372 377 . 363 . 372…
G -S006-02
0909-002
5
Connection with Bank Feeder Change Cart
Connection with Tape Feeder
G -S006-02 G -S006-02
テープフィーダ電源ユニット
TAPE FEEDER POWER UNIT
フィーダカート部
FEEDER CART SECTION

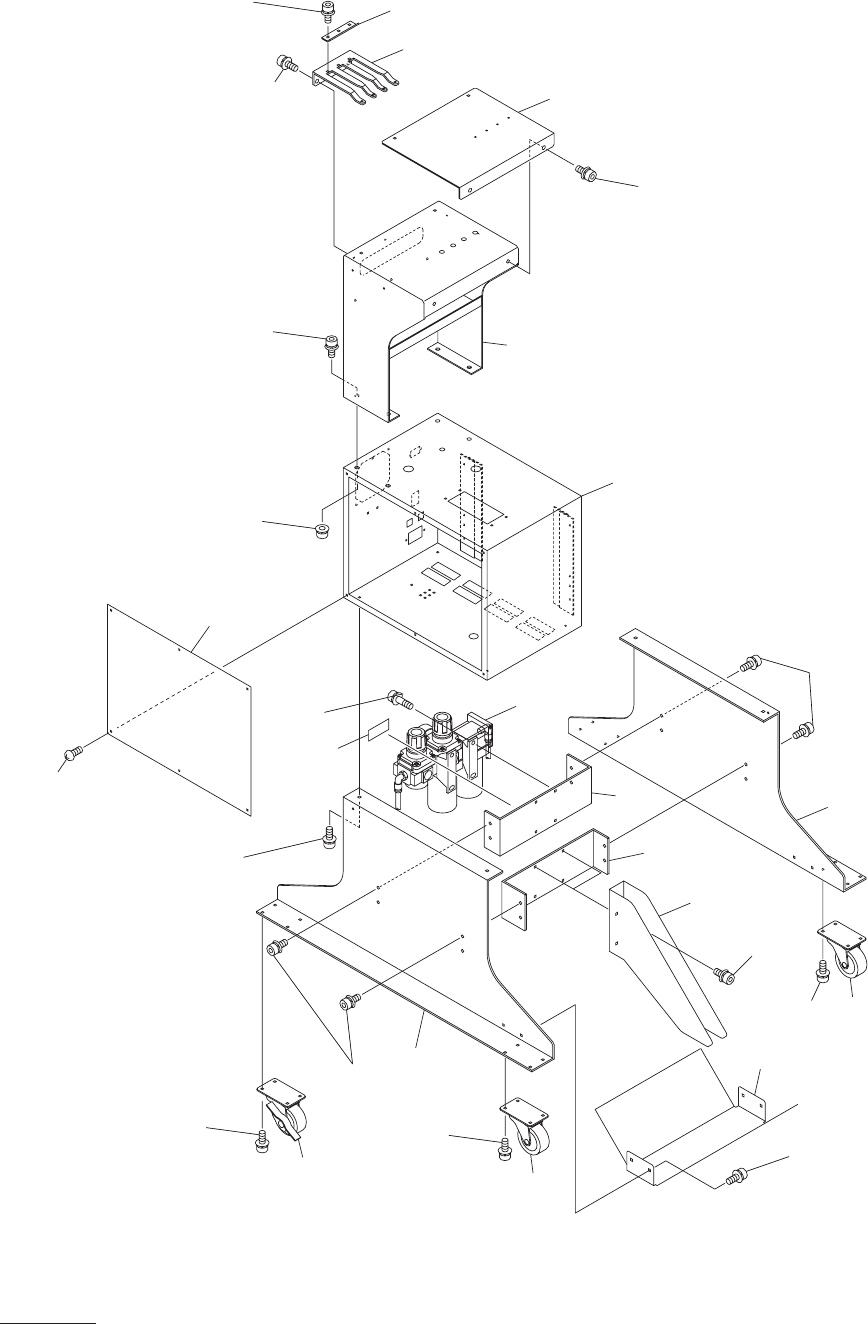

Fig. EC-4
フレーム部
Frame Section
G -S006-02
0909-002
6
301
302
312
351
313
352
309
310
311
303
304
308
361
.
371
376
.
364
.
372
377
.
363
.
372
377
.
365
.
372
377
.
367
.
372
377
.
363
.
372
377
.
363
.
372
377
.
363
.
372
377
.
363
.
372
377
.
366
362
.
372
377
.
362
.
372
377
.
362
.
372
377
.
363
.
372
377
.
362
.
372
377
.
305
315
307
306
306
EC-4
G -S006-02
1012-003
7
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
301 6301476902 BRACKET 1
803EBA210030-A001
211FB087
302 6301476919 BRACKET 1
803EBA210030-A002
211FB088
303 6301307763 BRACKET 1
803EBA210030-A003
211F8888
304 6301291123 BRACKET 1
803EBA210030-A004
211F8643
305 6301287645 AIR LINE EQPT 1
803EBA210030-A005
225B0515
306 6301303307 CASTER 2
803EBA210030-A006
226E0056
307 6301303314 CASTER 2
803EBA210030-A007
226E0057
308 6301307770 BRACKET 1
803EBA210030-A008
211F8889
309 6301308524 COVER 1
803EBA210030-A009
211A9113
310 6301476926 GUIDE 1
803EBA210030-A010
212A2372
311 6301302393 BRACKET 1
803EBA210030-A011
211F8824
312 6301304496 GUIDE 2
803EBA210030-A012
212A2110
313 6301307787 BRACKET 1
803EBA210030-A013
211F8890
315 6301311357 NAME PLATE,PARTS 1
803EBA210030-A175
6P441655
351 6301280592 BOX 1
803EBA210030-A051
211B0982
352 6301280608 COVER 1
803EBA210030-A052
211A8759
361 6300007626 BOLT,HEX-SCT 4 M4X10 221A0017
362
6300007732 BOLT,HEX-SCT 13 M5X8 221A0028
363
6300007749 BOLT,HEX-SCT 26 M5X10 221A0029
364
6300007756 BOLT,HEX-SCT 4 M5X12 221A0030
365
6300007763 BOLT,HEX-SCT 4 M5X16 221A0031
366
4110511708 SCR TRS 4X6 6 M4X6 TRS 221E0532
367
4111410505 NUT HEX 5 4 M5 221F0085
371
4111412905 WASHER SPR 4 4 SW4 221H0284
372
4111416705 WASHER SPR 5 51 SW5 221H0287
376
4111414008 WASHER V 4X9X0.8 4 FW4 221H0315
377
4111414107 WASHER V 5X10X1 51 FW5 221H0318
