YSB55w_KLG_MPL - 第40页

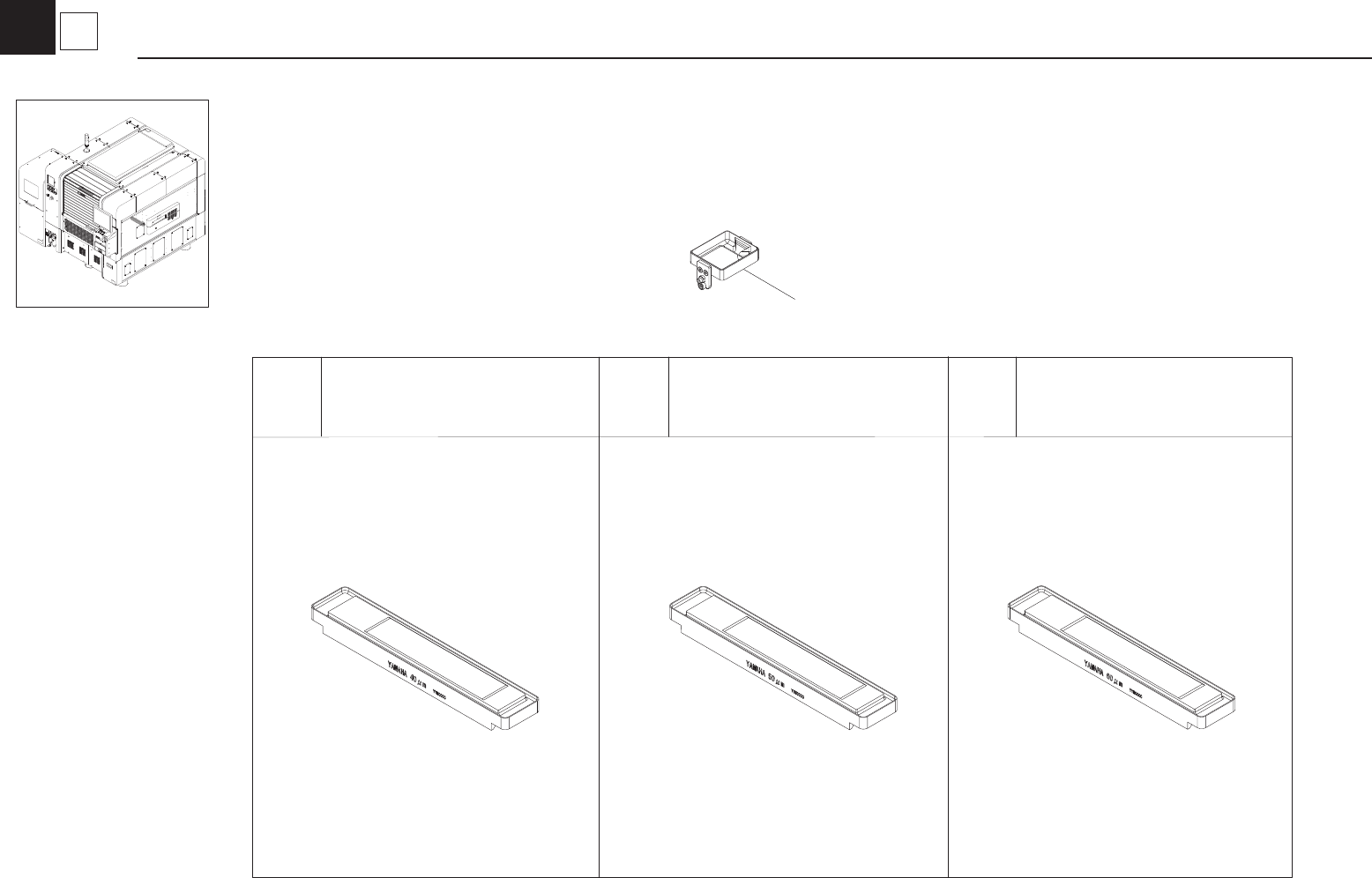

KLG-1608 2 3 1 4 2 3 1 4 FLUX PLA TE(40) FLUX PLA TE(50) FLUX PLA TE(60) 7 1 Flux Plate Fluxer
KLG-1608
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KH2-M9121-00 BEARING 6 /
Í
2 KLG-M91BA-00 TOP PLATE ASSY. 1 /
Í
3 KLG-M91C9-00 BRACKET 1 /
Í
4 KLG-M91CA-00 BRACKET 2 /
Í
5 KLG-M91EJ-00 PLATE,STAND 3 /
Í
6 KLG-M91EK-00 PLATE,MOTOR 3 /
Í
7 KLG-M91EL-00 PULLEY, MOTOR 3 /
Í
8 KLG-M91EM-00 PULLEY, P50-3GT 3 /
Í
9 KLG-M91EN-00 PULLEY, P25-3GT 3 /
Í
10 KLG-M91EP-00 BELT, 234-3GT-9 3 /
Í
11 KLG-M91K4-01 COLLAR, CONVEYOR 2 /
Í
12 KLG-M91K6-00 BRACKET 2 /
Í
13 KLG-M91KE-00 BELT, PULLEY 8 /
Í
14 KLG-M91KT-00 CROWN D PULLEY, F 1 /
15 KLG-M91KU-00 CROWN D PULLEY, R 1 /
Í
16 KLG-M91M7-00 SPLINE 3 /
Í
17 KLG-M91MH-00 BRACKET 1 /
Í
18 KLG-M91MU-00 PULLEY,MOTOR 2 /
19 KLG-M91MX-00 COUPLING 3 /
Í
20 90990-01J038 BOLT HEX,SOCKET HEAD 12 /
Í
21 90990-28J083 WASHER,PLAIN 3 /
Í
22 90990-41J006 COLLAR W 3 /
Í
23 90KC1-02Y603 AC SERVO MOTOR 1 CV2 B
Í
24 90KC1-02Y604 AC SERVO MOTOR 1 CV3 B
Í
25 90KC1-02Y605 AC SERVO MOTOR 1 CV4 B
Í
26 91312-04005 BOLT HEX,SOCKET HEAD 12
27 91312-04008 BOLT HEX,SOCKET HEAD 9
28 91312-04010 BOLT HEX,SOCKET HEAD 15
29 91312-05010 BOLT HEX,SOCKET HEAD 6
30 91312-06016 BOLT HEX,SOCKET HEAD 16
31 92902-04200 WASHER,PLAIN 6
32 99480-06012 PIN,PARALLEL 2
33
34
35
36
37
38
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
6
5
CV Motor Assy 2 / 3 / 4
Conveyor
KLG-1608
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLG-M3420-40 FLUX PLATE(40) 2 A
2 KLG-M3420-50 FLUX PLATE(50) 2 A
3 KLG-M3420-60 FLUX PLATE(60) 2 A
4 KLG-M34A4-00 TANK ASSY. 2 A
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
7
1
Flux Plate
Fluxer
