YSB55w_KLG_MPL - 第46页
KLG-1608 3 1 6 11 8 12 5 13 10 2 9 4 5 12 13 10 7 11 9 2 3 1 6 11 8 12 5 13 10 2 9 4 5 12 13 10 7 11 9 2 9 1 Dump Box Dump
KLG-1608
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLG-M8510-00 PLATE,BASE 1 /
Í
2 KLG-M8511-00 BRACKET 1 1 /
Í
3 KLG-M8513-01 PLATE,FRONT 1 /
Í
4 KLG-M8514-00 PLATE,REAR 1 /
Í
5 KLG-M8515-01 COVER,PUMP 1 /
Í
6 KLG-M8517-00 BOX,TERMINAL 1 /
Í
7 KLG-M8519-00 CASTER 40 4 A
8 KLG-M8524-00 FOOT,ADJUSTER 4 /
Í
9 KLG-M8525-00 PLATE,ADJUSTER 4 /
Í
10 KLG-M6423-00 TEMP. WARNING UNIT 1 /
Í
11 KHN-M643A-10 TERMINAL, POWER 5 /
Í
12 KHN-M643E-10 END PLATE 2 /
Í
13 K46-M641F-00 PARTS, 1-3 4 /
Í
14 KLH-M6175-00 FAN MOTOR 2 /
Í
15 KLW-M4187-00 GUIDE,FAN 2 /
Í
16 KLG-M654F-00 SENSOR,TEMPERATURE 1 /
Í
17 KLH-M8501-00 PUMP,VACUUM 1 /
Í
18 KLH-M8502-00 HEPA FILTER UNIT 2 /
Í
19 KLH-M8503-00 HOSE NIPPLE 2 /
Í
20 KLG-M8504-00 MANIFOLD 1 /
Í
21 KLG-M8522-00 COVER,JOINT 1 /
Í
22 KLH-M8505-00 JOINT,ELBOW 2 /
Í
23 KLH-M8506-00 HOSE 1 /
Í
24 KLH-M8507-00 BAND,HOSE 2 /
Í
25 KLH-M8511-00 ANTIVIBRATION RUBBER 4 /
Í
26 KLH-M8512-00 STAY 2 /
Í
27 KLH-M8516-00 COVER,TERMINAL 1 /
28 KLH-M8518-00 SPONGE 1 /
Í
29 KLH-M8523-00 COVER,FILTER 1 /
30 90K41-001270 LABEL,WARNING 1
31 90563-04J080 SPACER 2
32 90990-12J001 SCREW, BIN. HEAD W/W 16
33 91312-04008 BOLT HEX,SOCKET HEAD 24
34 91312-04060 BOLT HEX,SOCKET HEAD 4
35 91312-05012 BOLT HEX,SOCKET HEAD 8
36 91312-05050 BOLT HEX,SOCKET HEAD 4
37 91312-06012 BOLT HEX,SOCKET HEAD 8
38 91317-08010 BOLT HEX,SOCKET HEAD 4
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39 92902-08200 WASHER,PLAIN 4
40 98902-04008 SCREW BINDING HEAD 8
41 $BAA1000 DIN RAIL 1
42 $BAA1000 DIN RAIL 1
43 $TS12-04 JOINT 2
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
8
1
Vacuum Pump
Pump
KLG-1608
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLG-M36A0-00 DUMP BOX A 1 A Table /
Í
2 KLG-M36A1-00 DUMP BOX 2 /
3 KLG-M36B0-00 DUMP BOX B 1 B Table /
Í
4 KLG-M36B1-00 PLATE, DUSTBOX A 1 /
Í
5 KLG-M36B2-00 PLATE, SENSOR 2 /
Í
6 KLG-M36B3-00 PLATE, DUSTBOX B 1 /
Í
7 KLG-M653U-00 SENS,CVA DUST ASSY 1 B
Í
8 KLG-M653U-10 SENS,CVB DUST ASSY 1 B
Í
9 KLH-M36A2-00 POST 4 /
Í
10 91312-03005 BOLT HEX,SOCKET HEAD 4
11 91312-03006 BOLT HEX,SOCKET HEAD 4
12 91312-05008 BOLT HEX,SOCKET HEAD 4
13 92902-03200 WASHER,PLAIN 4
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
9
1

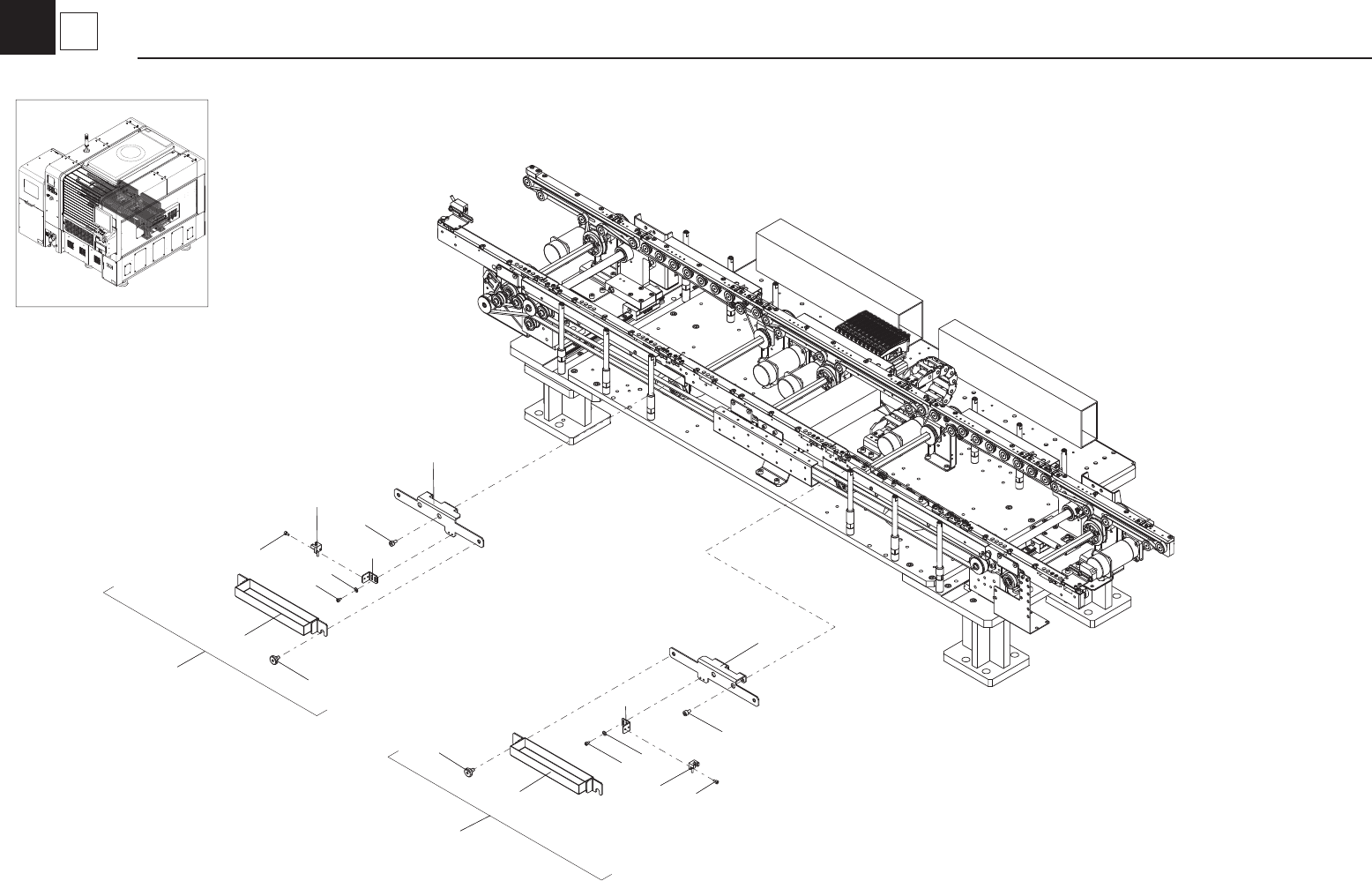

Dump Box
Dump
