KLG-1608 21 22 20 21 24 25 25 16 22 12 17 17 11 9 9 20 10 23 6 23 13 15 21 1 14 21 19 8 6 19 2 4 3 3 19 19 5 18 18 18 7 19 21 22 20 21 24 25 25 16 22 12 17 17 11 9 9 20 10 23 6 23 13 15 21 1 14 21 19 8 6 19 2 4 3 3 19 19…

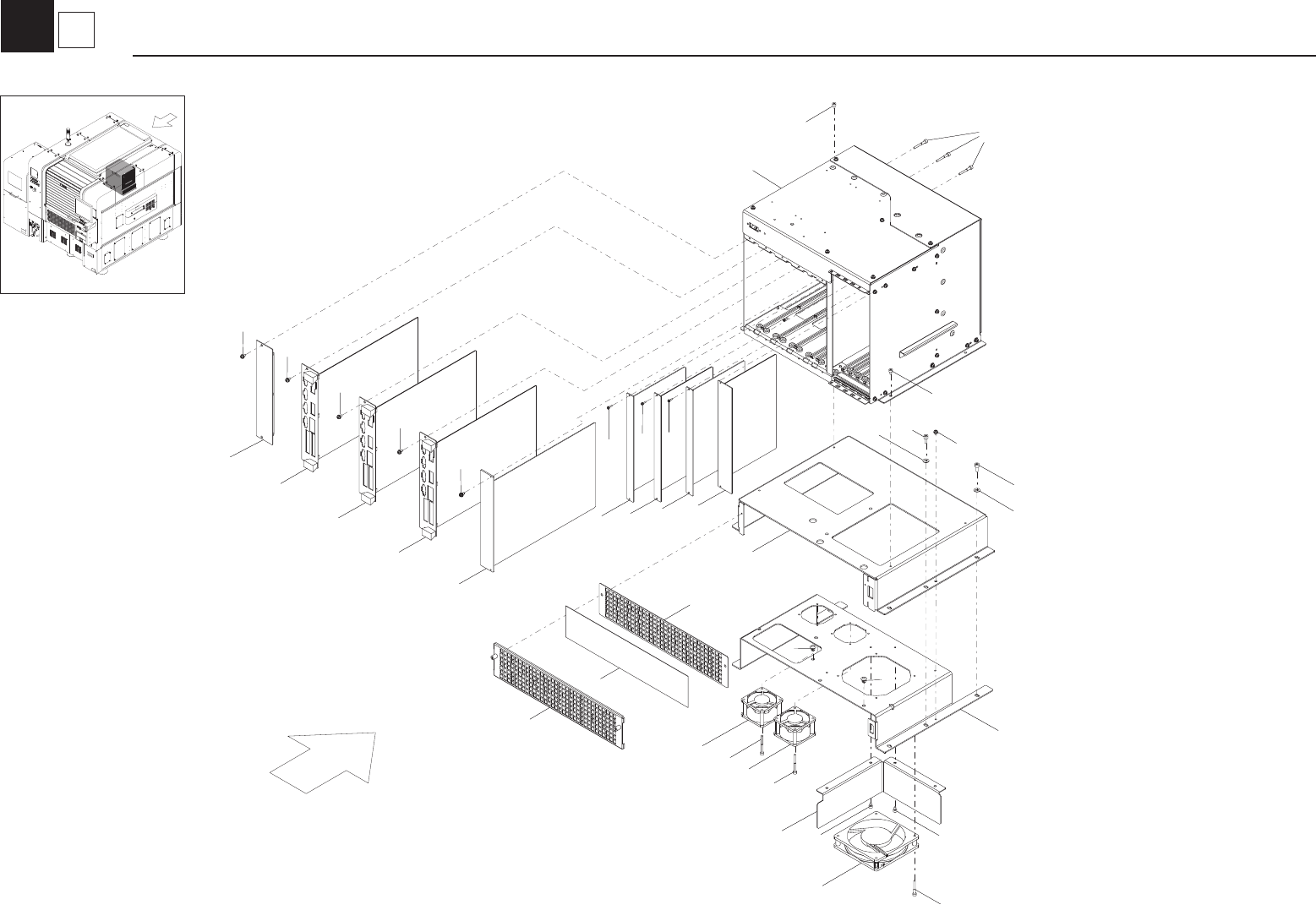

KLG-1608
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLG-M36A0-00 DUMP BOX A 1 A Table /
Í
2 KLG-M36A1-00 DUMP BOX 2 /
3 KLG-M36B0-00 DUMP BOX B 1 B Table /
Í
4 KLG-M36B1-00 PLATE, DUSTBOX A 1 /
Í
5 KLG-M36B2-00 PLATE, SENSOR 2 /
Í
6 KLG-M36B3-00 PLATE, DUSTBOX B 1 /
Í
7 KLG-M653U-00 SENS,CVA DUST ASSY 1 B
Í
8 KLG-M653U-10 SENS,CVB DUST ASSY 1 B
Í
9 KLH-M36A2-00 POST 4 /
Í
10 91312-03005 BOLT HEX,SOCKET HEAD 4
11 91312-03006 BOLT HEX,SOCKET HEAD 4
12 91312-05008 BOLT HEX,SOCKET HEAD 4
13 92902-03200 WASHER,PLAIN 4
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
9
1
Dump Box
Dump
KLG-1608
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KLW-M4110-00 BOX ASSY.C/R 1 /
Í
2 KLW-M4209-10 SYSTEM UNIT ASSY 1 B
3 KLA-M441H-20 VISION BOARD ASSY 2 B
4 KLA-M4530-00 REMOTE IF BOARD ASSY 1 B
5 KLA-M5840-04 SERVO BOARD ASSY 1 B
6 KLA-M5840-36 SERVO BOARD ASSY 2 B
7 KLW-M5880-00 CONVERTER BOARD ASSY 1 B
8 KLR-M4111-00 PANEL,DUMMY 1 /
9 KJJ-M412B-00 CLAMP 2 4 /
Í
10 KLV-M4131-00 BASE,C/R BOX 1 /
Í
11 KLV-M4132-00 BRKT.,FAN 1 /
Í
12 KLV-M4133-00 GUIDE,FLOW 2 1 /
Í
13 KLV-M4134-00 COVER,FILTER 1 1 /
14 KLV-M4135-00 COVER,FILTER 2 1 /
15 KLV-M4136-00 FILTER 1 E
16 KLW-M53L6-00 FAN MOTOR ASSY. 1 /
Í
17 KLW-M53M4-00 FAN MOTOR ASSY. 2 /
Í
18 90166-12JA10 SCREW, PAN HEAD 17
19 97602-04308 SCREW,PAN HEAD W/W 12
20 91312-04030 BOLT,HEX.SOCKET HEAD 16
21 91312-04006 BOLT,HEX.SOCKET HEAD 8
22 91312-04040 BOLT,HEX.SOCKET HEAD 8
23 91312-05012 BOLT,HEX.SOCKET HEAD 5
24 97602-04306 SCREW,PAN HEAD W/W 2
25 92902-05200 WASHER, PLAIN 5
26
27
28
29
30
31
32
33
34
35
36
37
38
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
10
1
Controller
Controller
