KLG-1608 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level 1 $BF4-M3 JOINT…
KLG-1608
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 $BF4-M3 JOINT 2
2 $TLR4-M5 JOINT 1
3 KDL-M152M-00 SPRING 1 /
Í
4 KHY-M711A-00 PIN,POST 2 /
Í
5 KLY-M7125-00 HEAD BASE 1 A /
Í
6 KLY-M7126-00 DOG LFA 1 A /
Í
7 KLY-M7127-00 GUIDE 1 /
Í
8 KLY-M7128-00 STOPPER LF 1 /
Í
9 KLY-M7129-00 STOPPER 1 1 /
Í
10 KLY-M7130-00 STOPPER 2 1 /
Í
11 KLY-M7132-00 CLAMP BASE 1 /
Í
12 KLY-M7134-00 BRACKET,STOPPER 1 /
Í
13 KLY-M7135-00 HEAD BASE 1 B /
Í
14 KLY-M7136-00 DOG LFB 1 B /
Í
15 KLY-M7141-00 ARM,HEAD A 1 A /
Í
16 KLY-M7142-00 DOG LPA 1 A /
Í
17 KLY-M7143-00 CAM FOLLOWER 1 /
Í
18 KLY-M7144-00 STOP PIN 1 /
Í
19 KLY-M7145-00 MANIFOLD 1 /
Í
20 KLY-M7146-00 SPACER 1 /
Í
21 KLY-M7147-00 BLOCK,HEAD 1 /
Í
22 KLY-M7148-00 ARM,HEAD B 1 B /
Í
23 KLY-M7149-00 COVER,TUBE 1 /
Í
24 KLY-M7152-00 DOG LPB 1 B /
Í
25 KLY-M7153-00 O-RING 1 A
26 KLY-M71C1-00 SHANK,12U ASSY F. 1 E
27 90112-2AJ005 BOLT, HEX.SOCKET HEAD 10
28 90990-19J016 NEEDLE PIN 1
29 90990-19J017 NEEDLE PIN 1
30 90990-41J128 SPACER 1
31 90990-41J174 COLLAR 2
32 91312-03006 BOLT HEX,SOCKET HEAD 2
33 91312-03008 BOLT HEX,SOCKET HEAD 11
34 91312-03010 BOLT HEX,SOCKET HEAD 4
35 91312-03016 BOLT HEX,SOCKET HEAD 1
36 91312-03020 BOLT HEX,SOCKET HEAD 2
37 92012-03008 BOLT BUTTON HEAD 2
38 92902-03600 WASHER,PLAIN 2
No. Part No. Part Name Q’ty Remarks Rev. Rank Level
39 92A08-02303 SCREW SET 1
40 95302-03600 NUT HEXAGON 1
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
15
1

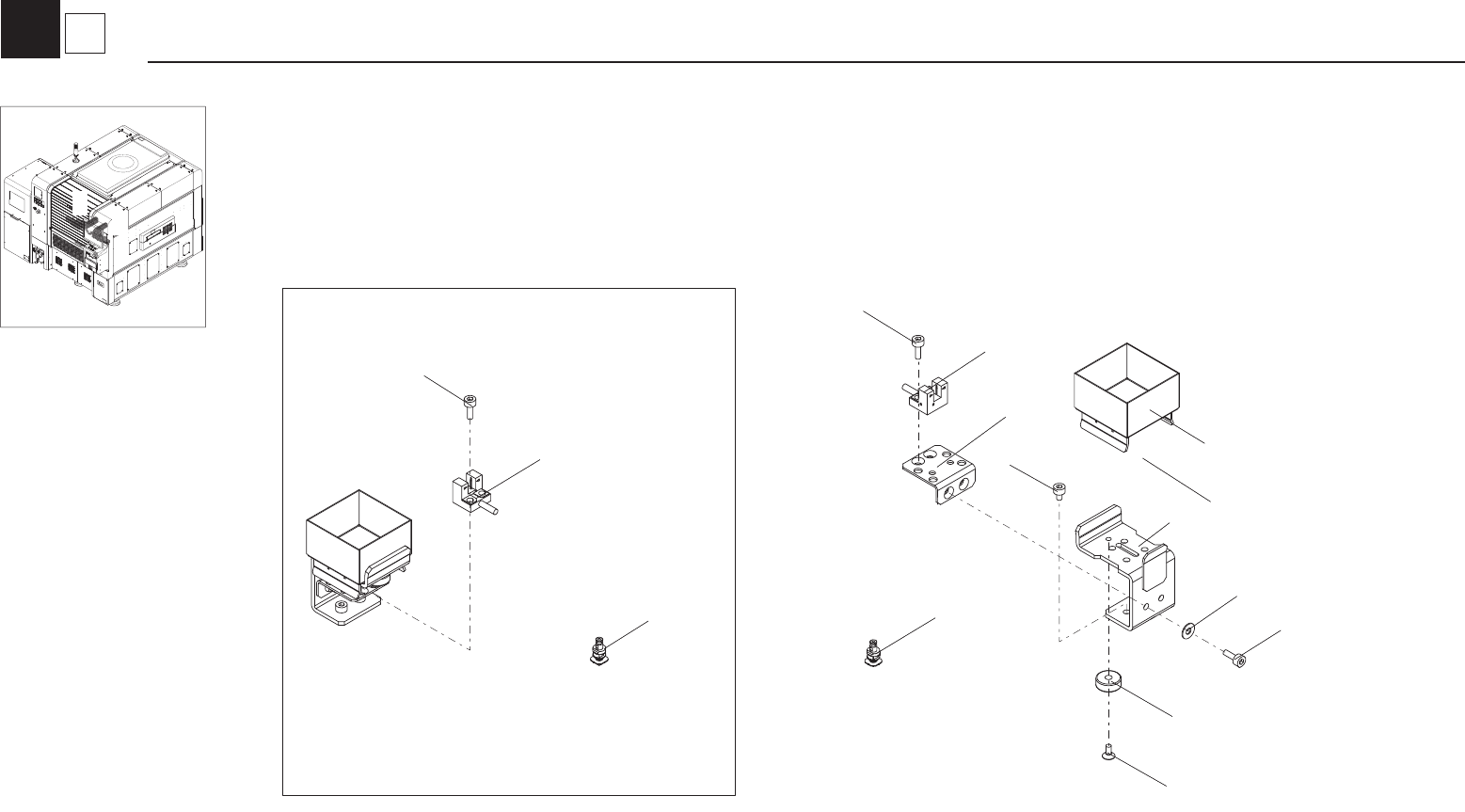

Head Assy
Flip Head
