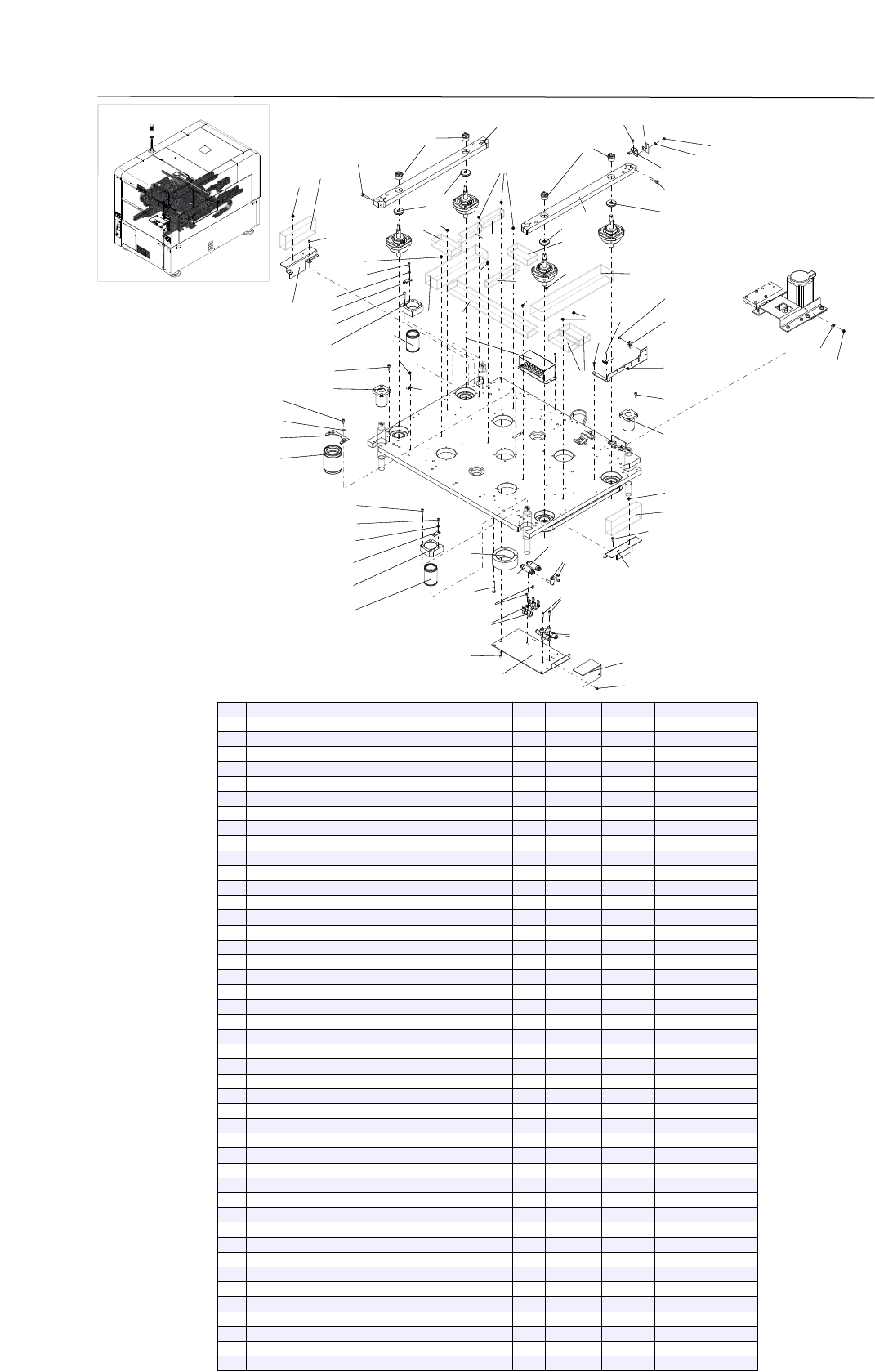

Z-Drive
Moving-axis Section
KLV-1502
3-11
NO
Parts_No.
Parts_Name
Q'ty
Remarks
Compati
Revision_No._date
1
90K81-000002
GREASE NIPPLE
4
2
90KA1-734309
AC SERVO MOTOR
1
3
KGJ-M3217-00
PULLEY 2
2
4
KGY-M3207-00
PULLEY 2,MOTOR Z
1
5
KHN-M9575-00
DAMPER W/UR 2
4
6
KHT-M3156-00
HOUSING,BRG.Z
4
7
KHT-M3157-00
PLATE,HOUSING
4
8
KHT-M3159-00
PLATE,NIPPLE
4
9
KHT-M3165-00
HEXAGON BOLT
3
10
KHT-M3176-00
PLATE,TENSIONER
1
11
KHT-M3179-00
SHAFT Z
2
12
KHT-M3181-00
NUT PLATE
1
13
KHT-M9B00-01
BALL SCREW,Z
4
14
KHU-M3203-00
PULLEY 1
4
15
KLV-M31F1-00
PLATE,Z
1
16
KLV-M31F2-00
SHAFT,Z PULLEY
1
17
KLV-M31F3-00
PLATE,PULLEY
1
18
KLV-M31F4-00
PULLEY 1,MOTOR Z
1
19
KLV-M31F5-00
BELT 1,MOTOR Z
1
20
KLV-M31F6-00
BELT 2,MOTOR Z
1
21
KLV-M31F9-00
BRKT. 1,MOTOR
1
22
KLV-M31FA-00
BRKT. 2,MOTOR
1
23
KLV-M31FE-00
PLATE,TENSIONER
1
24
KLV-M31H1-00
BRKT. 1,XYZR HOLD
1
temporary stopper under shipment
25
KLV-M31H2-00
BRKT. 2,XYZR HOLD
1
temporary stopper under shipment
26
90933-01J001
BEARING
7
27
90933-01J007
BEARING
8
28
90990-28J162
WASHER,PLAIN
1
29
91312-03006
BOLT HEX,SOCKET HEAD
8
30
91312-04012
BOLT HEX,SOCKET HEAD
16
31
91312-05010
BOLT HEX,SOCKET HEAD
4
32
91312-05012
BOLT HEX,SOCKET HEAD
4
33
91312-05030
BOLT HEX,SOCKET HEAD
2
34
91312-06014
BOLT HEX,SOCKET HEAD
4
35
91312-06016
BOLT HEX,SOCKET HEAD
8
36
91312-08035
BOLT HEX,SOCKET HEAD
1
37
91312-08050
BOLT HEX,SOCKET HEAD
1
38
91312-08065
BOLT HEX,SOCKET HEAD
1
39
92902-05200
WASHER,PLAIN
10
40
92902-06200
WASHER,PLAIN
4
41
92902-08200
WASHER,PLAIN
1
42
92902-08600
WASHER,PLAIN
2
43
92A08-04306
SCREW SET
1
44
95302-05600
NUT HEXAGON
3
45
99009-28500
CIRCLIP
3
46
91312-05014
BOLT HEX,SOCKET HEAD
5
47
91312-05025
BOLT HEX,SOCKET HEAD
20
25
25
26
23
15
29
27
38
17
14
34
2
19
2
36
33
22
24
16
35
31
4
21
31
5
39
9
42
25
35
41
7
1
13
11
38
21
31
11
31
31
38
6
44
32
20
31
12
31
28
1
35
21
30
40
31
16
24
35
31
31
4
31
3
5
33
8
9
42
42
32
35
39
18
43
37
10
40
34
6
32
25
25
26
23
15
29
27
38
17
14
34
2
19
2
36
33
22
24
16
35
31
4
21
31
5
39
9
42
25
35
41
7
1
13
11
38
21
31
11
31
31
38
6
44
32
20
31
12
31
28
1
35
21
30
40
31
16
24
35
31
31
4
31
3
5
33
8
9
42
42
32
35
39
18
43
37
10
40
34
6
32

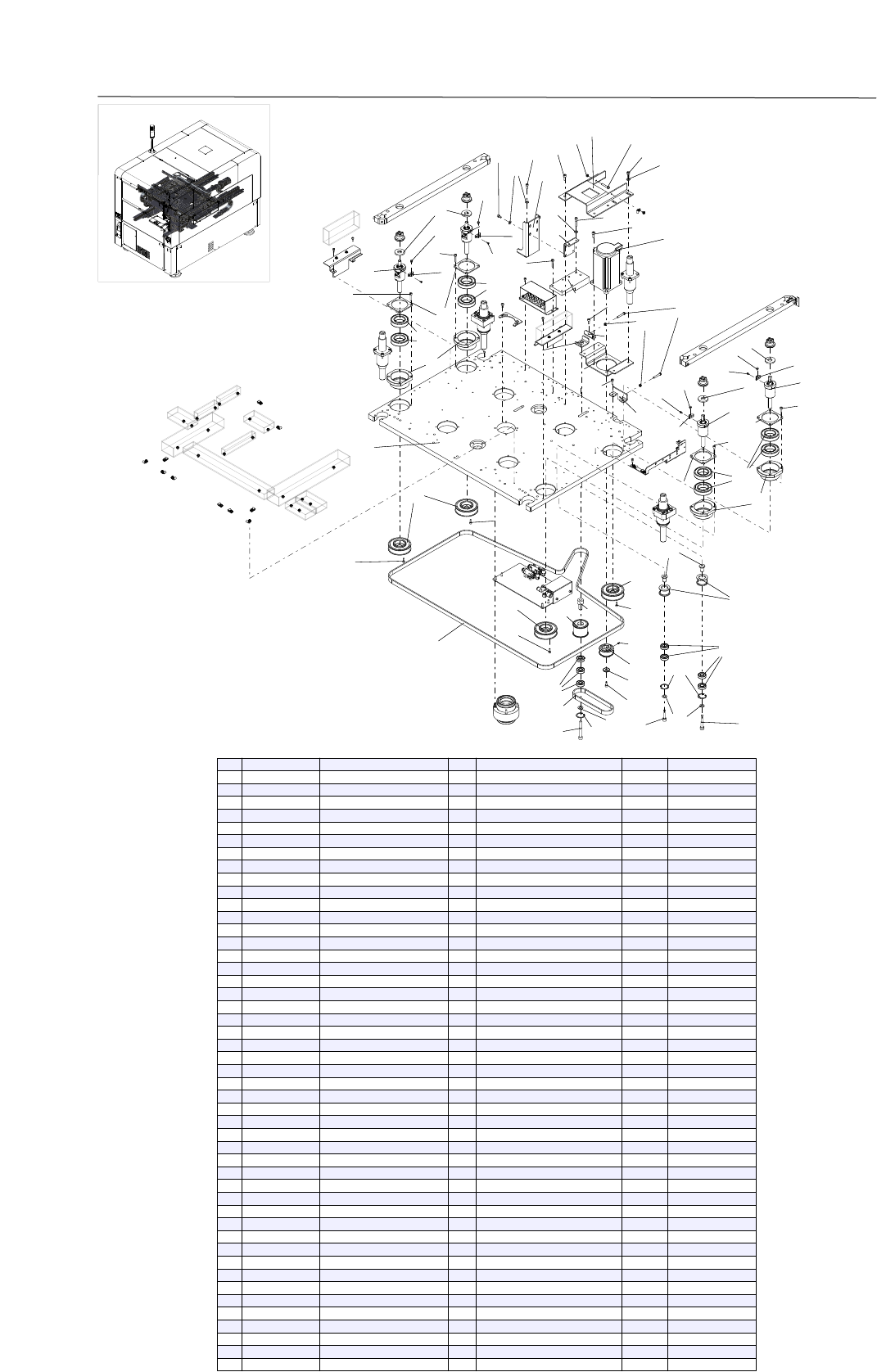

Z-Peripheral
Moving-axis Section
KLV-1502
3-12
NO
Parts_No.
Parts_Name
Q'ty
Remarks
Compati
Revision_No._date
1
KGJ-M3201-00
POWER LOCK
4
2
KGR-M9934-01
INLINE FILTER
2
3
KHT-M3152-00
LM ST
1
4
KHT-M3153-00
LM ST
2
5
KHT-M3154-00
HOLDER,1
2
6
KHT-M3155-02
PLATE,Z.
2
7
KHT-M3158-50
HOLDER 2
1
8
KHT-M3161-00
PLATE,KEY
1
9
KHT-M3163-00
PLATE,KEY 2
2
10
KHT-M3183-00
BRKT,DOG Z
1
11
KHT-M3184-00
SLIDE
2
12
KHT-M3185-00
BRKT.,Z SENSOR
1
13
KHY-M91E0-01
COVER,TERMINAL
1
14
KJY-M9794-00
HOLDER,INLINE FILTER
2
15
KLV-M31F7-00
COVER,EJECTOR
1
16
KLV-M31F8-00
BRKT.,DUCT
2
17
KLV-M31FB-01
BRKT.,EJECTOR
1
18
KLV-M31FC-00
DOG,Z ORG.
1
19
KLV-M31FD-00
EJECTOR
2
20
KLV-M653G-00
SENSOR Z ORG ASSY
1
Z ORG
21
$NK-3N
NYLON CLIP
14
22
$ULA6
JOINT
2
23
90K00-023010
DUCT
2
24
90K00-036015
DUCT
2
25
90K00-053010
DUCT
4
26
90K00-053040
DUCT
1
27
90K00-064025
DUCT
1
28
90K00-064035
DUCT
1
29
90K00-0AA015
DUCT
1
30
90990-11J001
SCREW, PAN HEAD W/W
2
31
90990-11J003
SCREW, PAN HEAD W/W
36
32
90990-28J164
WASHER,PLAIN
4
33
91312-04006
BOLT HEX,SOCKET HEAD
4
34
91312-04008
BOLT HEX,SOCKET HEAD
6
35
91312-04010
BOLT HEX,SOCKET HEAD
11
36
91312-04014
BOLT HEX,SOCKET HEAD
4
37
91312-05010
BOLT HEX,SOCKET HEAD
2
38
91312-05014
BOLT HEX,SOCKET HEAD
12
39
91312-05025
BOLT HEX,SOCKET HEAD
8
40
91312-06030
BOLT HEX,SOCKET HEAD
4
41
91312-06040
BOLT HEX,SOCKET HEAD
4
42
92902-04200
WASHER,PLAIN
6
43
92902-05200
WASHER,PLAIN
2
44
97602-03310
SCREW PAN HEAD W/WASHER
2
16
16
20
1
11
7
23
15
30
13
5
30
18
21
32
24
9
22
27
3
25
14
4
31
17
34
34
26
12
31
25
33
17
2
24
28
36
26
27
31
4
3
12
24
8
36
27
10
35
19
29
6
5
7
15
23
35
11
13
1
4
14
33
30
31
34
28
32
5
21
17
24
9
27
31
3
24
2
27
34
4
3
35
8
19
10
17
29
5
20
6
31
24
35
27
12
36
18
12
36
16
16
20
1
11
7
23
15
30
13
5
30
18
21
32
24
9
22
27
3
25
14
4
31
17
34
34
26
12
31
25
33
17
2
24
28
36
26
27
31
4
3
12
24
8
36
27
10
35
19
29
6
5
7
15
23
35
11
13
1
4
14
33
30
31
34
28
32
5
21
17
24
9
27
31
3
24
2
27
34
4
3
35
8
19
10
17
29
5
20
6
31
24
35
27
12
36
18
12
36

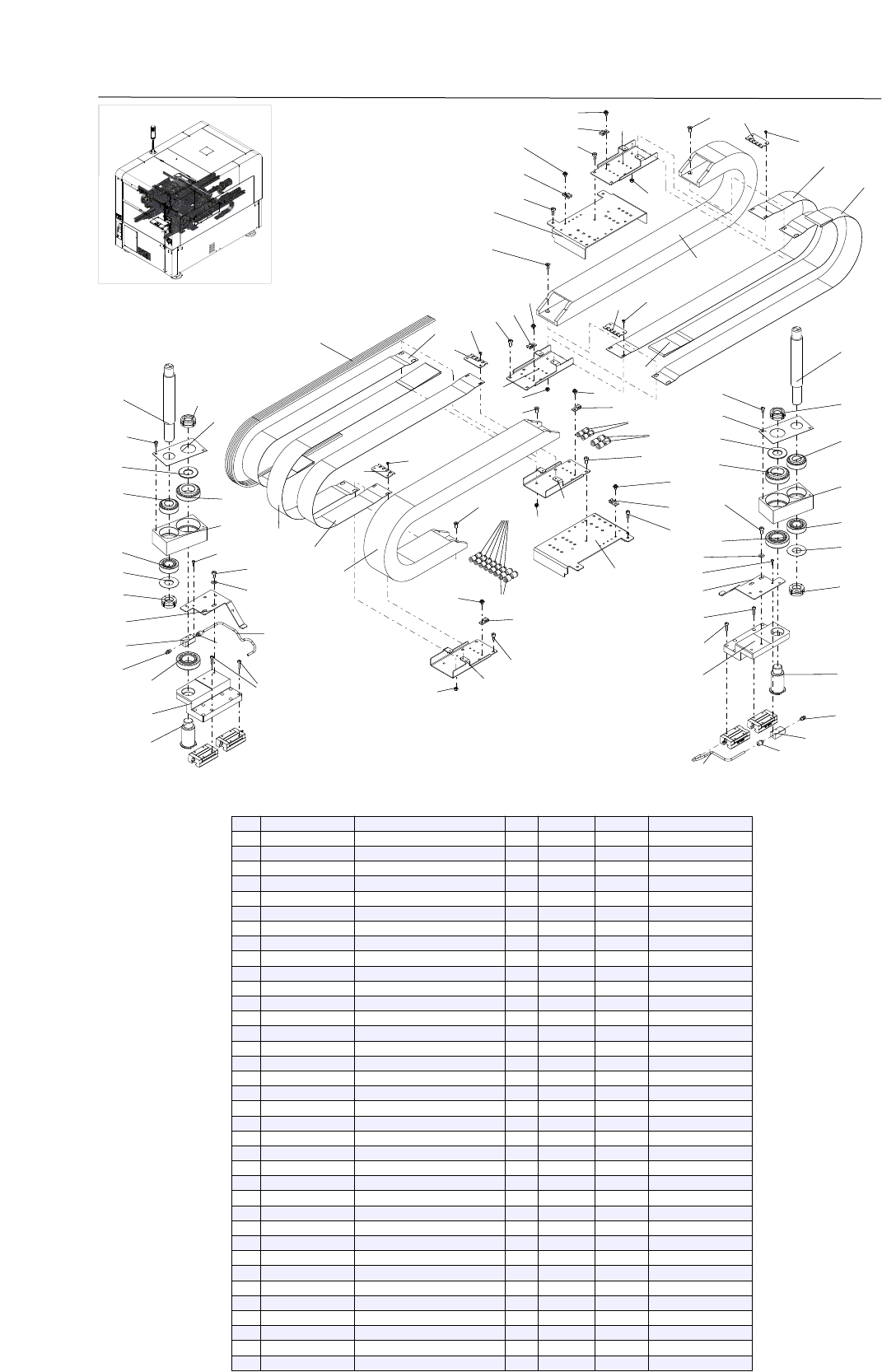

Y-Duct / R-Link
