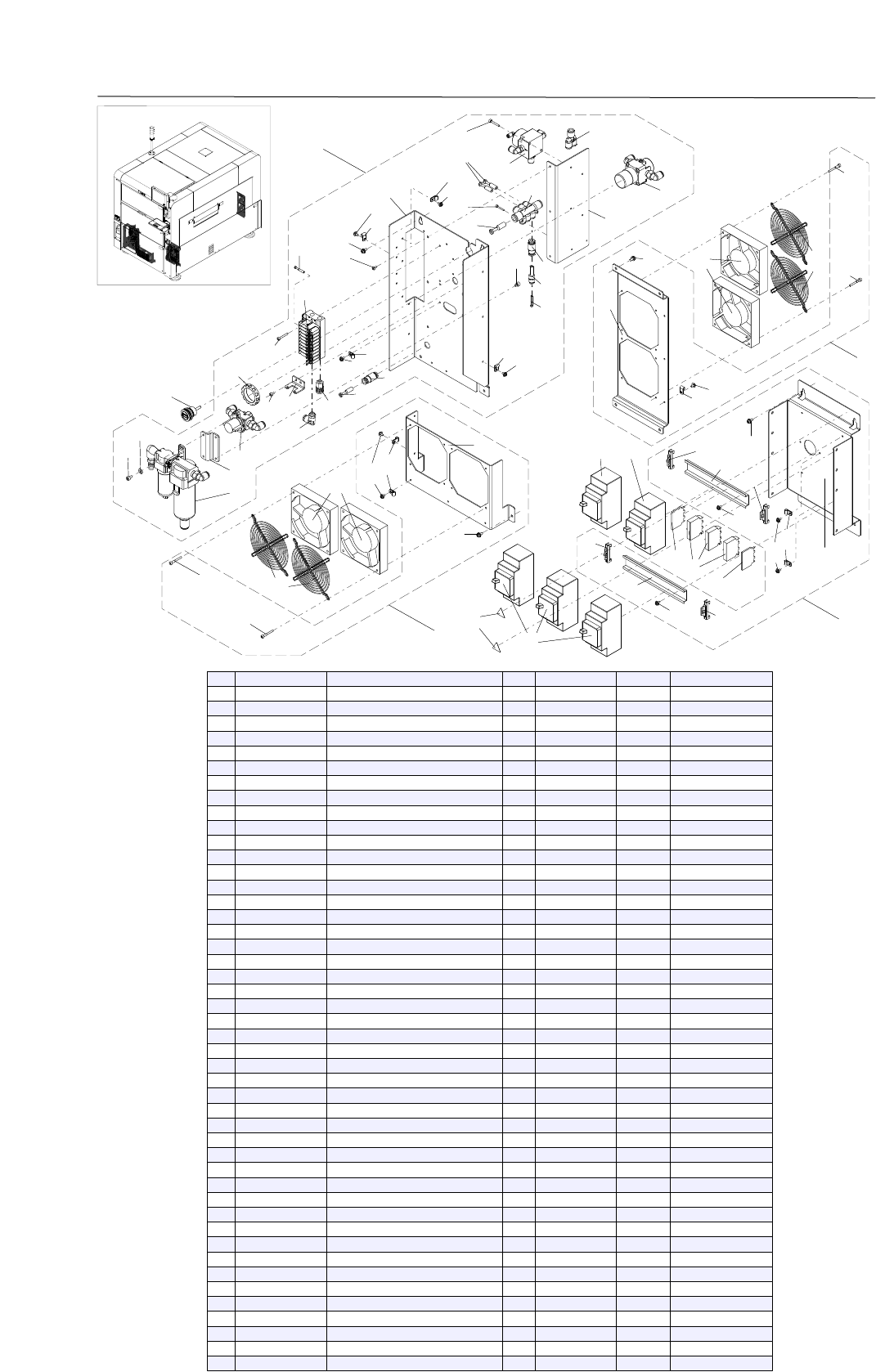

Overview
Base Section
KLV-1503
1-1
NO
Parts_No.
Parts_Name
Q'ty
Remarks
Compati
Revision_No._date
1
KGA-M1180-00
LEVELING BOLT ASSY.
4
2
KLV-M1116-00
BRKT.,Y CABLE DUCT
2
3
KLV-M1118-00
BRKT.,L DUCT
1
4
KLV-M1119-00
BRKT.,R DUCT
1
5
KLV-M111A-00
COVER,BASE TOP F
1
6
KLV-M111B-00
COVER,BASE TOP R
1
7
KLV-M111L-00
COVER,LEVELING BOLT
4
8
KLV-M111N-00
TAPE,Y-AXIS
4
9
KLV-M111P-00
TAPE,CLEANER DUCT
1
10
97602-05310
SCREW PAN HEAD W/WASHER
24
11
98702-04006
SCREW,FLAT HEAD
2
12
98902-04008
SCREW BINDING HEAD
9
13
98902-05010
SCREW BINDING HEAD
23
14
90990-11J003
SCREW, PAN HEAD W/W
22
15
$NK-3N
NYLON CLIP
14
16
$CTAM2
ANCHOR MOUNT
15
17
90K00-023020
DUCT
1
18
90K00-064015
DUCT
1
19
90K00-064020
DUCT
1
20
90K00-064025
DUCT
1
21
KLV-M0110-00
BREAKER SUB ASSY.
1
22
KLV-M0120-00
MAIN SW. SUB ASSY.
1
23
KLV-M0130-00
N.FILTER SUB ASSY.
1
24
KLV-M0140-00
CONV. I/O SUB ASSY.
1
25
KLV-M0150-00
P.SUPPLY SUB ASSY.
1
26
KLV-M0160-00
R.PANEL SUB ASSY.
1
27
KLV-M0170-00
SERVO UNIT ASSY.
1
28
KLV-M0180-00
CAM. SELECTOR ASSY.
1
29
KLV-M0190-00
NOISE FILTER ASSY.
1
30
KLV-M01A0-00
BASE FAN F ASSY.
1
31
KLV-M01B0-00
BASE FAN R ASSY.
1
32
KLV-M01C0-00
C/R BOX FAN ASSY.
1
33
KLV-M1120-00
AIR TML. SUB ASSY.
1
34
KLV-M1130-00
P. GAUGE SUB ASSY.
1
35
KLV-M1140-00
E. C. REG. SUB ASSY.
1
36
KLV-M111H-00
COVER,HNS.
1
37
KLV-M111J-00
COVER,HNS.
1
38
KLV-M111K-00
STAY,SMEMA CONNECTOR
1
39
KLV-M111M-00
BRKT.,HNS.
1
40
KV7-M1125-00
PLATE,CLAMP
3
41
KLV-M37A0-00
BLOWER ASSY.
1
42
KLV-M37B0-00
AIR FILTER BOX ASSY.
1
43
KLV-M37C0-00
INVERTER ASSY.
1
44
KLV-M37D0-00
CLEANER BASE ASSY.
1
45
KLV-M37E0-00
SOLVENT BOTTLE ASSY.
1
46
KHY-M11B0-00
AIR TAG
1
47
91312-05008
BOLT HEX,SOCKET HEAD
6
48
98902-04006
SCREW BINDING HEAD
4
36
37
38
35
41
29
33
40
3
39
43
26
18
31
10
28
21
2
44
18
19
4
11
35
38
1
23
19
18
18
19
34
22
19
42
18
17
19
19
32
18
17
36
30
21
43
20
25
17
42
18
24
14
19
27
(28)
11
46
17
45
13
16
16
21
15
15
21
18
7
9
18
16
6
16
8
5
6
12
10
36
37
38
35
41
29
33
40
3
39
43
26
18
31
10
28
21
2
44
18
19
4
11
35
38
1
23
19
18
18
19
34
22
19
42
18
17
19
19
32
18
17
36
30
21
43
20
25
17
42
18
24
14
19
27
(28)
11
46
17
45
13
16
16
21
15
15
21
18
7
9
18
16
6
16
8
5
6
12
10
Breaker / Fan / Terminal
Base Section
KLV-1503
1-2
NO
Parts_No.
Parts_Name
Q'ty
Remarks
Compati
Revision_No._date
1
KLV-M0110-00
BREAKER SUB ASSY.
1
see page "1-1".
2
KLV-M01A0-00
BASE FAN F ASSY.
1
see page "1-1".
3
KLV-M01B0-00
BASE FAN R ASSY.
1
see page "1-1".
4
KLV-M1120-00
AIR TML. SUB ASSY.
1
see page "1-1".
5
KHN-M643A-00
TERMINAL,POWER
3
6
KHN-M643E-00
END PLATE
2
7
KLV-M6511-00
MAIN BREAKER,1
1
QF11
8
KLV-M6511-10
MAIN BREAKER,1
1
QF31
9
KLV-M6511-20
MAIN BREAKER,1
3
QF32, 33, 34
10
KLF-M4187-20
FAN GUARD 120MM
4
11
KLV-M6185-00
FAN MOTOR ASSY
4
FAN
12
90K41-001450
LABEL,CAUTION
2
13
KLF-M6680-30
HNS,ADAPTER USB
1
14
KLV-M0111-00
BRKT.,BREAKER
1
15
$BAA1000
DIN RAIL
2
L=187.5mm
16
K46-M641F-00
PARTS, 1-3
4
17
97602-05310
SCREW PAN HEAD W/WASHER
14
18
90990-11J003
SCREW, PAN HEAD W/W
24
19
$NK-3N
NYLON CLIP
20
20
KLV-M01A1-00
BRKT.,BASE FAN F
1
21
91312-04030
BOLT HEX,SOCKET HEAD
16
22
KLV-M01B1-00
BRKT.,BASE FAN R
1
23
KLV-M1121-00
BRKT.,AIR TML.
1
24
KLV-M1122-00
BRKT.,FILTER
1
25
KLV-M1123-00
BRKT.,VALVE
1
26
KLV-M1124-00
BRKT.,VALVE
1
27
KLV-M8501-00
FILTER SET
1
28
KLV-M8502-00
REGULATOR
1
29
KLV-M8503-00
EXHAUST VALVE
1
30
KLV-M8504-A0
VALVE ASSY.
1
31
KLV-M8506-00
VALVE
1
32
$KM-11
MUFFLER
1
33
$UYD8-6
JOINT
1
34
$TL8-01
JOINT
1
35
$UK8
JOINT
2
36
$UP4
JOINT
2
37
$UR8-4
JOINT
1
38
$UP8
JOINT
3
39
$UP10
JOINT
1
40
$UEDW10-8
JOINT
1
41
91312-03020
BOLT HEX,SOCKET HEAD
2
42
91312-04006
BOLT HEX,SOCKET HEAD
5
43
91312-04025
BOLT HEX,SOCKET HEAD
4
44
91312-05006
BOLT HEX,SOCKET HEAD
2
45
91312-05008
BOLT HEX,SOCKET HEAD
2
46
92902-05200
WASHER,PLAIN
2
24
20
38
25
13
21
22
3
36
14
4
1
5
12
18
37
23
13
14
19
35
34
26
15
2
12
12
29
32
14
14
33
13
13
18
30
17
17
10
14
13
13
16
13
13
13
14
8
11
12
6
9
7
27
28
31
24
20
38
25
13
21
22
3
36
14
4
1
5
12
18
37
23
13
14
19
35
34
26
15
2
12
12
29
32
14
14
33
13
13
18
30
17
17
10
14
13
13
16
13
13
13
14
8
11
12
6
9
7
27
28
31
SW / Filter / Inverter / Bottle / Gauge
Base Section
KLV-1503
1-3
NO
Parts_No.
Parts_Name
Q'ty
Remarks
Compati
Revision_No._date
1
KLV-M0120-00
MAIN SW. SUB ASSY.
1
see page "1-1".
2
KLV-M0130-00
N.FILTER SUB ASSY.
1
see page "1-1".
3
KLV-M1130-00
P. GAUGE SUB ASSY.
1
see page "1-1".
4
KLV-M37C0-00
INVERTER ASSY.
1
see page "1-1".
5
KLV-M37E0-00
SOLVENT BOTTLE ASSY.
1
see page "1-1".
6
KKE-M6554-A0
MAIN SWITCH ASSY
1
QS11
7
KLV-M5386-A0
SURGE ABSORBER ASSY
1
S10
8
KLV-M537A-A0
NOISE FILTER ASSY
1
NF22
9
KLV-M537A-20
NOISE FILTER
1
NF11
10
KLV-M3730-00
INVERTER
1
A31
11
KLV-M0121-00
BRKT.,MAIN SW.
1
12
97602-05310
SCREW PAN HEAD W/WASHER
14
13
90990-11J003
SCREW, PAN HEAD W/W
22
14
$NK-3N
NYLON CLIP
11
15
KLV-M0131-00
BRKT.,NOISE FILTER
1
16
KLV-M1131-00
BRKT.,GAUGE
1
17
KKX-M8596-A0
PRESSURE GAUGE
1
18
KKX-M3762-A0
VACUUM GAUGE
1
19
KLV-M37C1-00
BRKT.,INVERTER
1
20
KLV-M37C2-00
BRKT.,HNS.
1
21
KLV-M37E1-00
BRKT.,BOTTLE 1
1
22
KLV-M37E2-00
BRKT.,BOTTLE 2
1
23
KLV-M37E3-00
BLOCK, MANIFOLD
1
24
KLV-M37E4-00
PLATE,NUT
1
25
KLV-M653W-00
SENS.BOTTLE EMP ASSY
1
SOL. EMPTY
26
KHT-M3682-00
SOCKET
1
27
KHU-M3765-A0
BOTTLE ASSY.
1
28
KHU-M3765-01
BOTTLE
1
29
KHT-M362E-20
FILTER,SOLVENT
1
30
90990-42J013
JOINT
1
31
90K41-001340
LABEL,WARNING
1
32
90K41-001350
LABEL,CAUTION
1
33
$SLC-0640-M5
JOINT
1
34
$BF6U
JOINT
1
35
91312-03018
BOLT HEX,SOCKET HEAD
2
36
91312-04005
BOLT HEX,SOCKET HEAD
2
37
91312-05010
BOLT HEX,SOCKET HEAD
4
38
97602-03310
SCREW PAN HEAD W/WASHER
2
