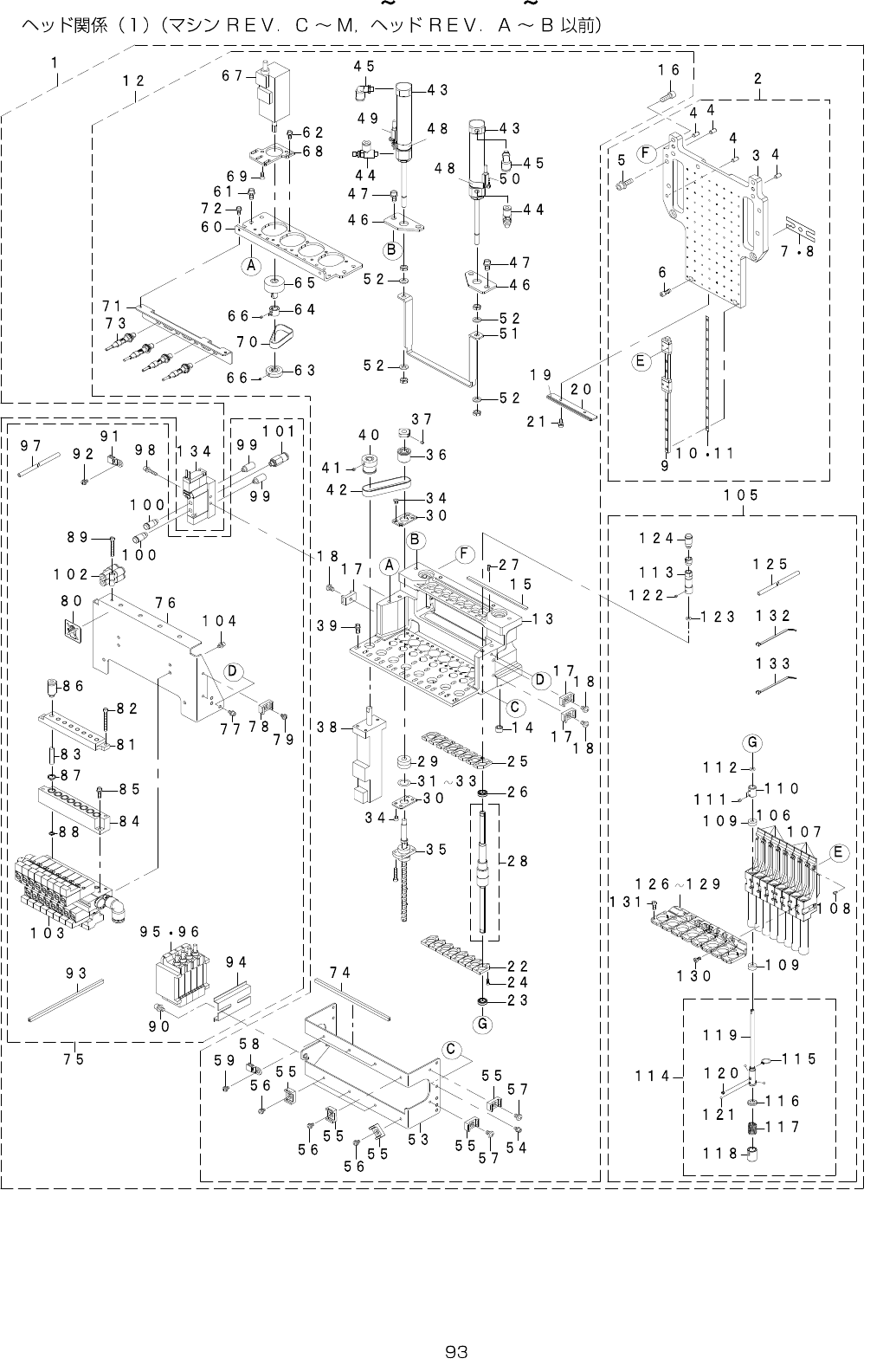

47.HEADCOMPONENTS(1)(UNTILM/CREV.C M,HEADREV.A B)
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-82888 LNC120_HEAD_ASSY 1
2 401-82889 HEAD_BRACKET_ASSY (1)
3 401-82825 HEAD_BRACKET (1)
4 PH-0400082-C0 PARALLELPINTYPEB4X8 (4)
5 SL-6051692-TN SCREWM5L=16 (4)
6 401-82913 SMALL_HEAD_SCREW_M4_L=10 (2)
7 E3021-721-000 HAEDCENTERSHIMC (3)
8 E3047-729-000 HEADCENTERSHIMD (3)
9 401-82828 Z_LINEAR_GUIDE (8)
10 401-82829 GUIDE_SHIM_D_15
(2)
11 401-82830 GUIDE_SHIM_E_15 (4)
12 401-82890 SPLINE_BRACKET_ASSY (1)
13 401-82831 SPLINE_BRACKET (1)
14 G9303-880-000 BUSHD=5 (2)
15 401-82833 LIMIT_DUMPER_Z (1)
16 SM-6051402-TN SCREWM5L=14 (6)
17 HX-0029400-00 FIXEDBASE (3)
18 SM-4040601-SC SCREWM4X0.7L=6 (3)
19 401-82834 LIMIT_DAMPER_ZD (1)
20 401-82835 LIMIT_STOPPER_ZD (1)
21 SL-6030892-TN SCREWM3L=8 (2)
22 401-82836 BEARING_BASE_L (8)
23 SB-1070007-00 BEARING (8)
24 SM-6020602-TN SCREWM2X6 (16)
25 401-82837 BEARING_BASE_U (8)
26 SB-1070007-00 BEARING (8)
27 SM-6020602-TN SCREWM2X6 (16)
28 401-82838 SPLINE_UNIT (8)
29 SB-1060018-00 BEARING (8)
30 400-46056 BEARINGPLATE (16)
31 E3072-729-000 BEARINGSHIMB (8)
32 E3073-729-000 BEARINGSHIMC (8)
33 E3074-729-000 BEARINGSHIMD (8)
34 SM-1030552-TN PLATESCREWM3L=5 (64)
35 401-61655 BALLSCREW0608 (8)
36 401-82842 Z_PULLEY (8)
37 SM-8030302-TP SCREWM3X3 (8)
38 401-36334 SERVOMOTOR30W (8)
39 SL-6031092-TN SCREWM3L=10 (3)
40 400-01124 ZMOTORPULLEY (8)
41 SM-8030312-TP SCREWM3L=3 (16)
42 401-34136 TIMING_BELT_Z(AFTER_AGING) (8)
43 PA-1606008-A0 AIRCYLINDER (2)
44 PC-0105080-00 SPEEDCONTROLLER (2)
45 PJ-3040405-04 UNION (2)
46 401-82849 CYLINDER_BRACKET (2)
47 SL-6041092-TN SCREWM4L=10 (4)
48 PX-9500110-00 SWITCHFITTINGBAND (2)
49 401-33002 NZLUPSENSOR6TLCABLEASM (1)
50 401-33003 NZLUPSENSOR6TRCABLEASM (1)
51 401-82876 RELEASE_BAR (1)
52 WP-0531001-SC WASHERM5 (4)
53 401-82855 Z_MOTOR_CABLE_STAY (1)
54 SL-6030692-TN SCREWM3L=6 (4)
55 HX-0029400-00 FIXEDBASE (8)
56 SL-4030691-SC SCREWM3L=6 (6)
57 SM-4040601-SC SCREWM4X0.7L=6 (2)
58 HX-0034400-00 FIXEDBASE (3)
59 SL-4030691-SC SCREWM3L=6 (3)
60 401-82843 T_MOTOR_BRACKET (1)
61 SL-6041092-TN SCREWM4L=10 (4)
62 SL-6030842-TN SCREWM3L=8 (16)
63 401-82844 T_MOTOR_MI_SUPPORT (4)
64 401-82845 T_PULLEY (4)
65 401-82846 T_PULLEY_FRANGE (4)
66 SM-8850312-TP SCREWM2.5L=2.5 (24)
67 401-36335 SERVOMOTOR30W (4)
68 401-82847 T_MOTOR_PLATE (4)
69 SM-1030801-SC SCREWM3L=8 (8)
70 401-82899 TIMING_BELT_T(AFTER_AGING) (4)
71 401-82850 T_SENSOR_BRACKET (1)
72 SL-6030892-TN SCREWM3L=8 (2)
73 401-83385 FIBERUNIT2M (4)
74 HX-0067100-00 GROMMET (0.12)
75 401-82891 HEAD_SV_BRACKET_ASSY (1)
76 401-82851 HEAD_SV_BRACKET (1)
77 SL-6030692-TN SCREWM3L=6 (4)
78 HX-0029400-00 FIXEDBASE (8)
79 SL-4030691-SC SCREWM3L=6 (7)
80 E3858-715-000 SEAL (1)
81
#01
401-82852 FILTER_BOX_U (1)
82
#01
SM-6033002-TN SCREWM3L=30 (2)
83
#01
400-46646 FILTER (8)
84
#01
401-82853 FILTER_BOX_L_8 (1)
85
#01
SL-6031242-TN SCREWM3L=12 (2)
86
#01
PJ-3010405-05 HALFUNION (8)
87
#01
400-46059 ORINGF2 (8)
88
#01
400-46058 ORINGF1 (8)
89 SM-6032502-TN SCREWM3L=25 (1)
90 SL-6040892-TN SCREWM4L=8 (2)
91 HX-0034400-00 FIXEDBASE (3)
92 SL-4030691-SC SCREWM3L=6 (5)
93 HX-0067100-00 GROMMET (0.12)
94 401-82856 DIN_RAIL (1)
95 401-82560 T1/T2/T3/T4ORIGINSENSORASM (4)
96 HK-0498900-0G BLOCKTERMINAL (2)
97 BT-0400251-EA URETHANETUBEBLUE4X2.5 (1.035)
98 SL-6031692-TN SCREWM3L=16 (2)
99 PX-0505010-00 SILENCER (2)
100 PJ-3010405-05 HALFUNION (2)
101 400-46535 CHECKVALVE (1)
102 PJ-3080400-06 UNIONY (2)
103 401-82489 VACUUM_UNIT (1)
104 SL-6030692-TN SCREWM3L=6 (4)
105 401-82892 Z_SLIDE_ASSY (1)
106 401-82885 Z_SLIDE_BRACKET_L (4)
107 401-82886 Z_SLIDE_BRACKET_R (4)
108 SM-6020302-UZ SCREWM2L=3 (32)
109 SB-1040013-00 BEARING (16)
110 401-82896 COUPTING_H (8)
111 SM-8030312-TP SCREWM3L=3 (32)
112 400-46060 ORINGH (8)
113 401-82491 ROTARY_JOINT (8)
114 402-12262 Z_SLIDE_SHAFT_ASM (1)
115 RC-0560517-KP C-RING6(8) (8)
116 401-82863 OUTER_SP_HOLDER (8)
117 401-82864 NOZZLE_OUTER_SP (8)
118 401-82862 NOZZLE_OUTER (8)
119 401-82860 Z_SLIDE_SHAFT (8)
120 400-01139 NOZZLEOUTERSCREW (8)
121 401-82861 STEEL_BALL (24)
122 SM-8850312-TP SCREWM2.5L=2.5 (16)
123 400-46060 ORINGH (8)
124 PJ-3010405-05 HALFUNION (8)
125 BT-0400251-EA URETHANETUBEBLUE4X2.5 (1.28)
126 401-82867 NUT_HOLDER_18 (2)
127 401-82869 NUT_HOLDER_27 (2)
128 401-82871 NUT_HOLDER_36 (2)
129 401-82873 NUT_HOLDER_45 (2)
130 401-82875 SCREW_M3_L=6 (16)
131 SM-6030802-TN SCREW (32)
132 HX-0023300-00 CABLEBAND (30)
133 HX-0023300-0E CABLEBAND (15)
134 401-83349 NZL-UPSVCABLEASM 1
- -
