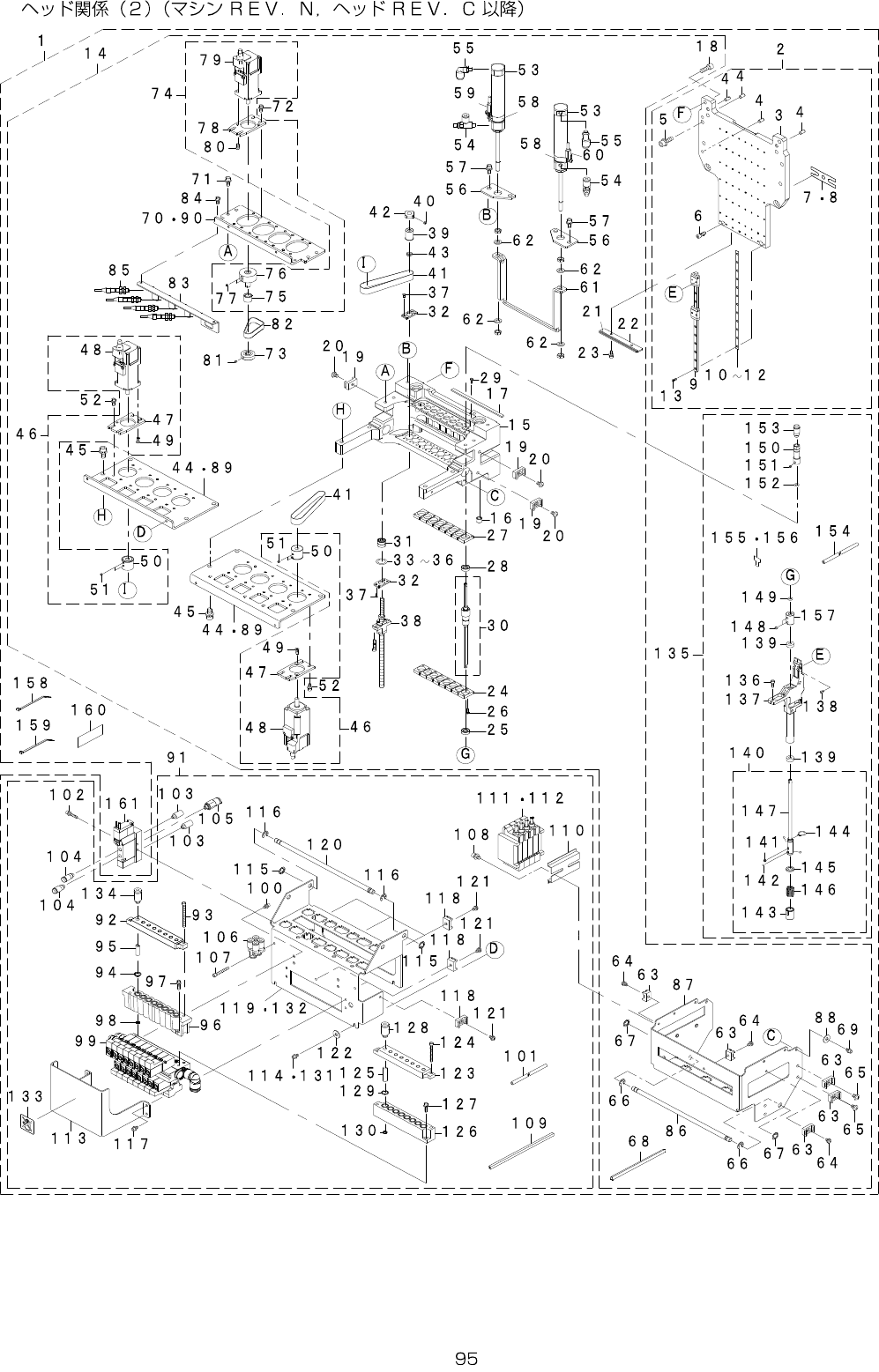

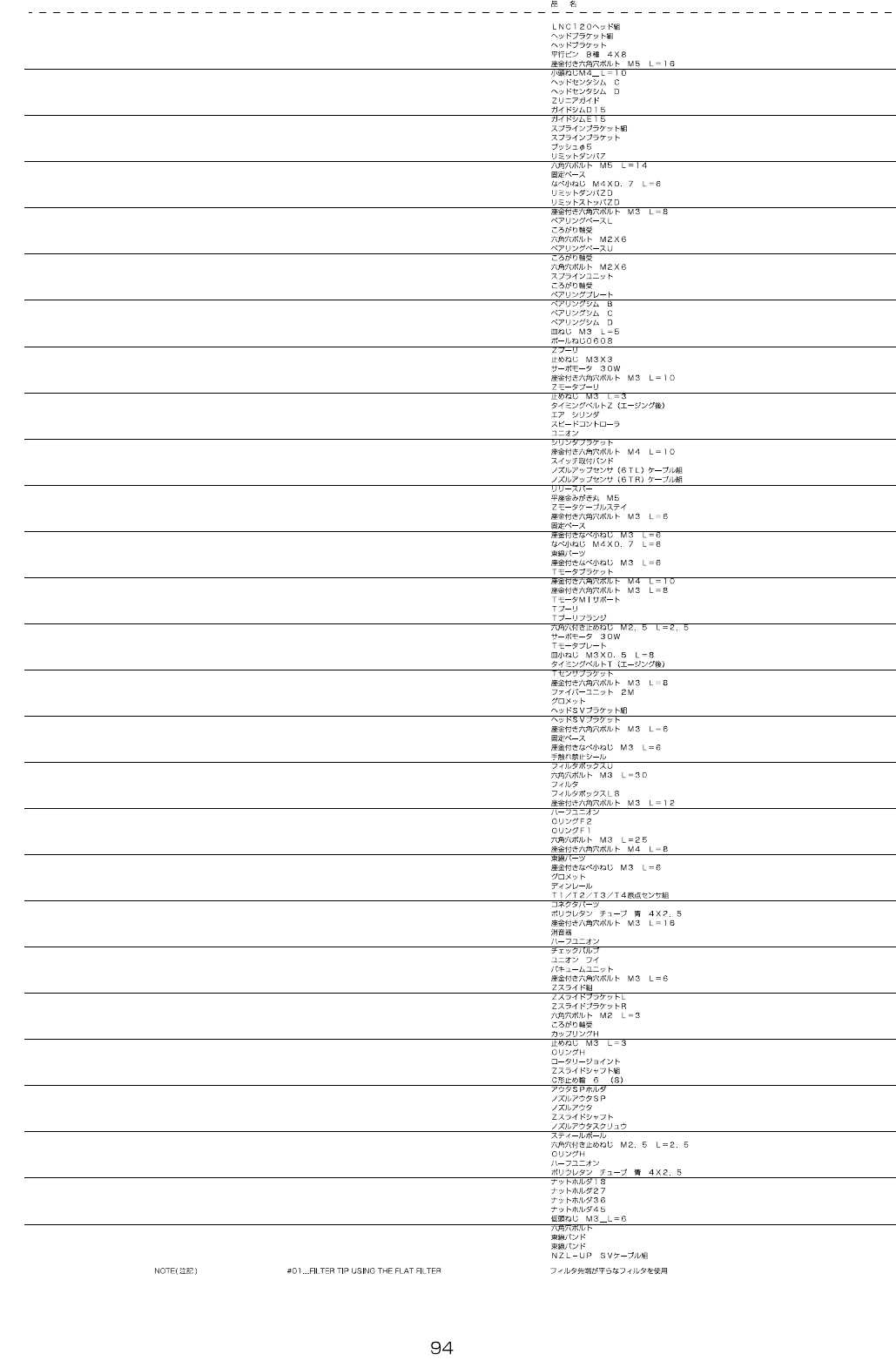

- - 48. HEADCOMPONENTS(2) (AFTERM/CREV .N,HEADREV. C)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-82888 LNC120_HEAD_ASSY 1

2 401-82889 HEAD_BRACKET_ASSY (1)

3 401-82825 HEAD_BRACKET (1)

4 PH-0400082-C0 PARALLELPINTYPEB4X8 (4)

5 SL-6051692-TN SCREWM5L=16 (4)

6 401-82913 SMALL_HEAD_SCREW_M4_L=10 (2)

7 E3021-721-000 HAEDCENTERSHIMC (3)

8 E3047-729-000 HEADCENTERSHIMD (3)

9 401-82828 Z_LINEAR_GUIDE (8)

10 401-82829 GUIDE_SHIM_D_15

(2)

11 401-82830 GUIDE_SHIM_E_15 (4)

12 401-82890 SPLINE_BRACKET_ASSY (1)

13 401-82831 SPLINE_BRACKET (1)

14 G9303-880-000 BUSHD=5 (2)

15 401-82833 LIMIT_DUMPER_Z (1)

16 SM-6051402-TN SCREWM5L=14 (6)

17 HX-0029400-00 FIXEDBASE (3)

18 SM-4040601-SC SCREWM4X0.7L=6 (3)

19 401-82834 LIMIT_DAMPER_ZD (1)

20 401-82835 LIMIT_STOPPER_ZD (1)

21 SL-6030892-TN SCREWM3L=8 (2)

22 401-82836 BEARING_BASE_L (8)

23 SB-1070007-00 BEARING (8)

24 SM-6020602-TN SCREWM2X6 (16)

25 401-82837 BEARING_BASE_U (8)

26 SB-1070007-00 BEARING (8)

27 SM-6020602-TN SCREWM2X6 (16)

28 401-82838 SPLINE_UNIT (8)

29 SB-1060018-00 BEARING (8)

30 400-46056 BEARINGPLATE (16)

31 E3072-729-000 BEARINGSHIMB (8)

32 E3073-729-000 BEARINGSHIMC (8)

33 E3074-729-000 BEARINGSHIMD (8)

34 SM-1030552-TN PLATESCREWM3L=5 (64)

35 401-61655 BALLSCREW0608 (8)

36 401-82842 Z_PULLEY (8)

37 SM-8030302-TP SCREWM3X3 (8)

38 401-36334 SERVOMOTOR30W (8)

39 SL-6031092-TN SCREWM3L=10 (3)

40 400-01124 ZMOTORPULLEY (8)

41 SM-8030312-TP SCREWM3L=3 (16)

42 401-34136 TIMING_BELT_Z(AFTER_AGING) (8)

43 PA-1606008-A0 AIRCYLINDER (2)

44 PC-0105080-00 SPEEDCONTROLLER (2)

45 PJ-3040405-04 UNION (2)

46 401-82849 CYLINDER_BRACKET (2)

47 SL-6041092-TN SCREWM4L=10 (4)

48 PX-9500110-00 SWITCHFITTINGBAND (2)

49 401-33002 NZLUPSENSOR6TLCABLEASM (1)

50 401-33003 NZLUPSENSOR6TRCABLEASM (1)

51 401-82876 RELEASE_BAR (1)

52 WP-0531001-SC WASHERM5 (4)

53 401-82855 Z_MOTOR_CABLE_STAY (1)

54 SL-6030692-TN SCREWM3L=6 (4)

55 HX-0029400-00 FIXEDBASE (8)

56 SL-4030691-SC SCREWM3L=6 (6)

57 SM-4040601-SC SCREWM4X0.7L=6 (2)

58 HX-0034400-00 FIXEDBASE (3)

59 SL-4030691-SC SCREWM3L=6 (3)

60 401-82843 T_MOTOR_BRACKET (1)

61 SL-6041092-TN SCREWM4L=10 (4)

62 SL-6030842-TN SCREWM3L=8 (16)

63 401-82844 T_MOTOR_MI_SUPPORT (4)

64 401-82845 T_PULLEY (4)

65 401-82846 T_PULLEY_FRANGE (4)

66 SM-8850312-TP SCREWM2.5L=2.5 (24)

67 401-36335 SERVOMOTOR30W (4)

68 401-82847 T_MOTOR_PLATE (4)

69 SM-1030801-SC SCREWM3L=8 (8)

70 401-82899 TIMING_BELT_T(AFTER_AGING) (4)

71 401-82850 T_SENSOR_BRACKET (1)

72 SL-6030892-TN SCREWM3L=8 (2)

73 401-83385 FIBERUNIT2M (4)

74 HX-0067100-00 GROMMET (0.12)

75 401-82891 HEAD_SV_BRACKET_ASSY (1)

76 401-82851 HEAD_SV_BRACKET (1)

77 SL-6030692-TN SCREWM3L=6 (4)

78 HX-0029400-00 FIXEDBASE (8)

79 SL-4030691-SC SCREWM3L=6 (7)

80 E3858-715-000 SEAL (1)

#01

401-82852 FILTER_BOX_U (1)

#01

SM-6033002-TN SCREWM3L=30 (2)

#01

400-46646 FILTER (8)

#01

401-82853 FILTER_BOX_L_8 (1)

#01

SL-6031242-TN SCREWM3L=12 (2)

#01

PJ-3010405-05 HALFUNION (8)

#01

400-46059 ORINGF2 (8)

#01

400-46058 ORINGF1 (8)

89 SM-6032502-TN SCREWM3L=25 (1)

90 SL-6040892-TN SCREWM4L=8 (2)

91 HX-0034400-00 FIXEDBASE (3)

92 SL-4030691-SC SCREWM3L=6 (5)

93 HX-0067100-00 GROMMET (0.12)

94 401-82856 DIN_RAIL (1)

95 401-82560 T1/T2/T3/T4ORIGINSENSORASM (4)

96 HK-0498900-0G BLOCKTERMINAL (2)

97 BT-0400251-EA URETHANETUBEBLUE4X2.5 (1.035)

98 SL-6031692-TN SCREWM3L=16 (2)

99 PX-0505010-00 SILENCER (2)

100 PJ-3010405-05 HALFUNION (2)

101 400-46535 CHECKVALVE (1)

102 PJ-3080400-06 UNIONY (2)

103 401-82489 VACUUM_UNIT (1)

104 SL-6030692-TN SCREWM3L=6 (4)

105 401-82892 Z_SLIDE_ASSY (1)

106 401-82885 Z_SLIDE_BRACKET_L (4)

107 401-82886 Z_SLIDE_BRACKET_R (4)

108 SM-6020302-UZ SCREWM2L=3 (32)

109 SB-1040013-00 BEARING (16)

110 401-82896 COUPTING_H (8)

111 SM-8030312-TP SCREWM3L=3 (32)

112 400-46060 ORINGH (8)

113 401-82491 ROTARY_JOINT (8)

114 402-12262 Z_SLIDE_SHAFT_ASM (1)

115 RC-0560517-KP C-RING6(8) (8)

116 401-82863 OUTER_SP_HOLDER (8)

117 401-82864 NOZZLE_OUTER_SP (8)

118 401-82862 NOZZLE_OUTER (8)

119 401-82860 Z_SLIDE_SHAFT (8)

120 400-01139 NOZZLEOUTERSCREW (8)

121 401-82861 STEEL_BALL (24)

122 SM-8850312-TP SCREWM2.5L=2.5 (16)

123 400-46060 ORINGH (8)

124 PJ-3010405-05 HALFUNION (8)

125 BT-0400251-EA URETHANETUBEBLUE4X2.5 (1.28)

126 401-82867 NUT_HOLDER_18 (2)

127 401-82869 NUT_HOLDER_27 (2)

128 401-82871 NUT_HOLDER_36 (2)

129 401-82873 NUT_HOLDER_45 (2)

130 401-82875 SCREW_M3_L=6 (16)

131 SM-6030802-TN SCREW (32)

132 HX-0023300-00 CABLEBAND (30)

133 HX-0023300-0E CABLEBAND (15)

134 401-83349 NZL-UPSVCABLEASM 1

- -

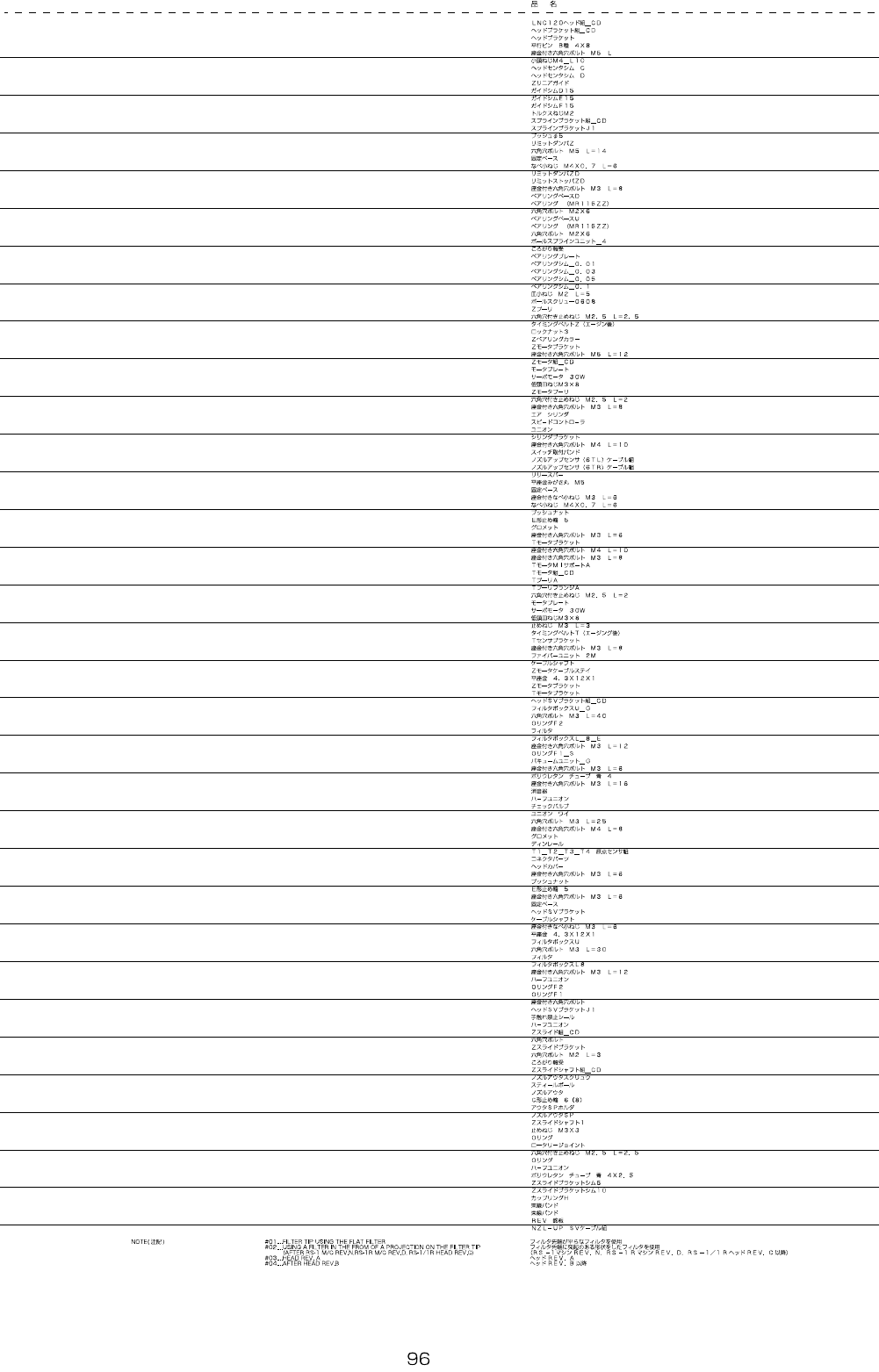

48.HEADCOMPONENTS(2)(AFTERM/CREV.N,HEADREV.C)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-94747 LNC120_HEAD_ASSY_CD 1

2 401-94748 HEAD_BRACKET_ASSY_CD (1)

3 401-94690 HEAD_BRACKET (1)

4 PH-0400082-C0 PARALLELPINTYPEB4X8 (4)

5 SL-6051692-TN SCREWM5L=16 (4)

6 401-82913 SMALL_HEAD_SCREW_M4_L10 (2)

7 E3021-721-000 HAEDCENTERSHIMC (1)

8 E3047-729-000 HAEDCENTERSHIMD (1)

9 401-82828 Z_LINEAR_GUIDE (8)

10 401-82829 GUIDE_SHIM_D_15 (2)

11 401-82830 GUIDE_SHIM_E_15 (2)

12 401-94733 GUIDE_SHIM_F_15 (2)

13 401-82894 TORX_SCREW_M2 (96)
