RS-1_RS-1-XL_RS-1R-Rev20 - 第104页

- - 49. HEADCOMPONEN TS(3)

100%1 / 246
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-94747 LNC120_HEAD_ASSY_CD 1
2 401-94748 HEAD_BRACKET_ASSY_CD (1)
3 401-94690 HEAD_BRACKET (1)
4 PH-0400082-C0 PARALLELPINTYPEB4X8 (4)
5 SL-6051692-TN SCREWM5L=16 (4)
6 401-82913 SMALL_HEAD_SCREW_M4_L10 (2)
7 E3021-721-000 HAEDCENTERSHIMC (1)
8 E3047-729-000 HAEDCENTERSHIMD (1)
9 401-82828 Z_LINEAR_GUIDE (8)
10 401-82829 GUIDE_SHIM_D_15 (2)
11 401-82830 GUIDE_SHIM_E_15 (2)
12 401-94733 GUIDE_SHIM_F_15 (2)
13 401-82894 TORX_SCREW_M2 (96)
14 401-94749 SPLINE_BRACKET_ASSY_CD (1)
15 402-06439 SPLINE_BRACKET_J1 (1)
16 G9303-880-000 BUSHD=5 (2)
17 401-82833 LIMIT_DUMPER_Z (1)
18 SM-6051402-TN SCREWM5L=14 (6)
19 HX-0029400-00 FIXEDBASE (3)
20 SM-4040601-SC SCREWM4X0.7L=6 (3)
21 401-82834 LIMIT_DAMPER_ZD (1)
22 401-82835 LIMIT_STOPPER_ZD (1)
23 SL-6030892-TN SCREWM3L=8 (2)
24 401-94694 BEARING_BASE_D (8)
25 EZ-4454066-01 BEARING(MR115ZZ) (8)
26 SM-6020602-TN SCREWM2X6 (16)
27 401-94695 BEARING_BASE_U (8)
28 EZ-4454066-01 BEARING(MR115ZZ) (8)
29 SM-6020602-TN SCREWM2X6 (16)
30 401-94697 BALL_SPLINE_UNIT_4 (8)
31 SB-1040019-00 BEARING (8)
32 401-94703 BEARING_PLATE (16)
33 401-94704 BEARING_SHIM_10 (2)
34 401-94705 BEARING_SHIM_30 (2)
35 401-94706 BEARING_SHIM_50 (2)
36 401-94707 BEARING_SHIM_100 (2)
37 SM-1020501-SN SCREWM2L=5 (64)
38 401-94735 BALL_SCREW_0608 (8)
39 401-94737 Z_PULLEY (8)
40 SM-8850312-TP SCREWM2.5L=2.5 (8)
41 401-94711 TIMING_BELT_Z(AFTER_AGING) (8)
42 401-94740 LOCK_NUT_3 (8)
43 401-94739 Z_BEARING_COLLAR (8)
44
#03
401-94708 Z_MOTOR_BRACKET (2)
45 SL-6051292-TN SCREWM5L=12 (4)
46 401-94709 Z_MOTOR_ASSY (8)
47 401-94718 MOTOR_PLATE (1)
48 401-87431 SERVOMOTOR30W (1)
49 401-94738 SCREW (2)
50 401-94710 Z_MOTOR_PULLEY (1)
51 SM-8850202-TP SCREWM2.5L=2 (2)
52 SL-6030892-TN SCREWM3L=8 (32)
53 PA-1606008-A0 AIRCYLINDER (2)
54 PC-0105080-00 SPEEDCONTROLLER (2)
55 PJ-3040405-04 UNION (2)
56 401-82849 CYLINDER_BRACKET (2)
57 SL-6041092-TN SCREWM4L=10 (4)
58 PX-9500110-00 SWITCHFITTINGBA ND (2)
59 401-33002 NZLUPSENSOR6TLCABLEASM (1)
60 401-33003 NZLUPSENSOR6TRCABLEASM (1)
61 401-94727 RELEASE_BAR (1)
62 WP-0531001-SC WASHERM5 (4)
63 HX-0029400-00 FIXEDBASE (5)
64 SL-4030691-SC SCREWM3L=6 (3)
65 SM-4040601-SC SCREWM4X0.7L=6 (2)
66 NP-2105800-00 PUSHNUT (2)
67 RE-0500000-K0 E-RING (2)
68 HX-0066900-00 GROMMET (0.06)
69 SL-6030692-TN SCREWM3L=6 (4)
70
#03
401-94713 T_MOTOR_BRACKET (1)
71 SL-6041092-TN SCREWM4L=10 (4)
72 SL-6030892-TN SCREWM3L=8 (16)
73 401-94715 T_MOTOR_MI_SUPPORT_A (4)
74 401-94714 T_MOTOR_ASSY (4)
75 401-94716 T_PULLEY_A (1)
76 401-94717 T_PULLEY_FLANGE_A (1)
77 SM-8850202-TP SCREWM2.5L=2 (2)
78 401-94718 MOTOR_PLATE (1)
79 401-87431 SERVOMOTOR30W (1)
80 401-94738 SCREW (2)
81 SM-8030312-TP SCREWM3L=3 (8)
82 401-82899 TIMING_BELT_T(AFTER_AGING) (4)
83 401-94719 T_SENSOR_BRACKET (1)
84 SL-6030892-TN SCREWM3L=8 (2)
85 401-83385 FIBERUNIT2M (4)
86 401-94723 CABLE_SHAFT (1)
87 402-12897 Z_MOTOR_CALBE_STAY (1)
88
#03
WP-0431005-SP PLAINWASHER4.3X12X1 (4)
89
#04
402-12895 Z_MOTOR_BRACKET (2)
90
#04
402-12896 T_MOTOR_BRACKET (1)
91 401-94750 HEAD_SV_BRACKET_ASSY_CD (1)
92
#02
402-23085 FILTER_BOX_U_G (1)
93
#02
SM-6034002-TN SCREWM3L=40 (2)
94
#02
400-46059 ORINGF2 (8)
95
#02
E3052-729-000 FILTER (8)
96
#02
402-22776 FILTER_BOX_L_8_E (1)
97
#02
SL-6031242-TN SCREWM3L=12 (2)
98
#02
402-21143 O_RING_F1_S (8)
99 402-23084 VACUUM_UNIT_G (1)
100 SL-6030692-TN SCREWM3L=6 (4)
101 BT-0400251-EA URETHANETUBEBLUE4X2.5 (1.92)
102 SL-6031692-TN SCREWM3L=16 (2)
103 PX-0505010-00 SILENCER (2)
104 PJ-3010405-05 HALFUNION (2)
105 400-46535 CHECKVALVE (1)
106 PJ-3080400-06 UNIONY (2)
107 SM-6032502-TN SCREWM3L=25 (1)
108 SL-6040892-TN SCREWM4L=8 (2)
109 HX-0067100-00 GROMMET (0.15)
110 401-82856 DIN_RAIL (1)
111 401-94684 T1_T2_T3_T4ORIGINSENSORASM (4)
112 HK-0498900-0G BLOCKTERMINAL (2)
113 401-94724 HEAD_CAVER (1)
114
#03
SL-6030692-TN SCREWM3L=6 (4)
115 NP-2105800-00 PUSHNUT (4)
116 RE-0500000-K0 E-RING (4)
117 SL-6030692-TN SCREWM3L=6 (4)
118 HX-0029400-00 FIXEDBASE (6)
119
#03
401-94720 HEAD_SV_BRACKET (1)
120 401-94723 CABLE_SHAFT (2)
121 SL-4030691-SC SCREWM3L=6 (6)
122
#03
WP-0431005-SP PLAINWASHER4.3X12X1 (4)
123
#01
401-82852 FILTER_BOX_U (1)
124
#01
SM-6033002-TN SCREWM3L=30 (2)
125
#01
400-46646 FILTER (8)
126
#01
401-82853 FILTER_BOX_L_8 (1)
127
#01
SL-6031242-TN SCREWM3L=12 (2)
128
#01
PJ-3010405-05 HALFUNION (8)
129
#01
400-46059 ORINGF2 (8)
130
#01
400-46058 ORINGF1 (8)
131
#04
SL-6040892-TN BOLT (4)
132
#04
402-12900 HEAD_SV_BRACKET_J1 (1)
133 E3858-715-000 SEAL (1)
134
#02
PJ-3010405-05 HALFUNION (8)
135 401-94751 Z_SLIDE_ASSY_CD (8)
136 SM-6030802-TN SCREW (2)
137 401-94728 Z_SLIDE_BRACKET (1)
138 SM-6020302-TR SCREWM2L=3 (4)
139 SB-1040013-00 BEARING (2)
140 402-12261 Z_SLIDE_SHAFT_ASM_CD (1)
141 400-01139 NOZZLEOUTERSCREW (1)
142 401-82861 STEEL_BALL (3)
143 401-82862 NOZZLE_OUTER (1)
144 RC-0560517-KP C-RING6(8) (1)
145 401-82863 OUTER_SP_HOLDER (1)
146 401-82864 NOZZLE_OUTER_SP (1)
147 401-94736 Z_SLIDE_SHAFT_1 (1)
148 SM-8030302-TP SCREWM3X3 (4)
149 RO-0201002-00 O-RING (1)
150 401-94696 ROTARY_JOINT (1)
151 SM-8850312-TP SCREWM2.5L=2.5 (2)
152 RO-0201002-00 O-RING (1)
153 PJ-3010405-05 HALFUNION (1)
154 BT-0400251-EA URETHANETUBEBLUE4X2.5 (0.24)
155 401-90386 Z_SLIDE_BRACKET_SHIM_5 (1)
156 401-90387 Z_SLIDE_BRACKET_SHIM_10 (1)
157 401-94726 COUPLING_H (1)
158 HX-0023300-0E CABLEBAND (15)
159 HX-0023300-00 CABLEBA ND (30)
160 E9635-455-000 REVISIONSEAL (1)
161 401-83349 NZL-UPSVCABLEASM 1
- -

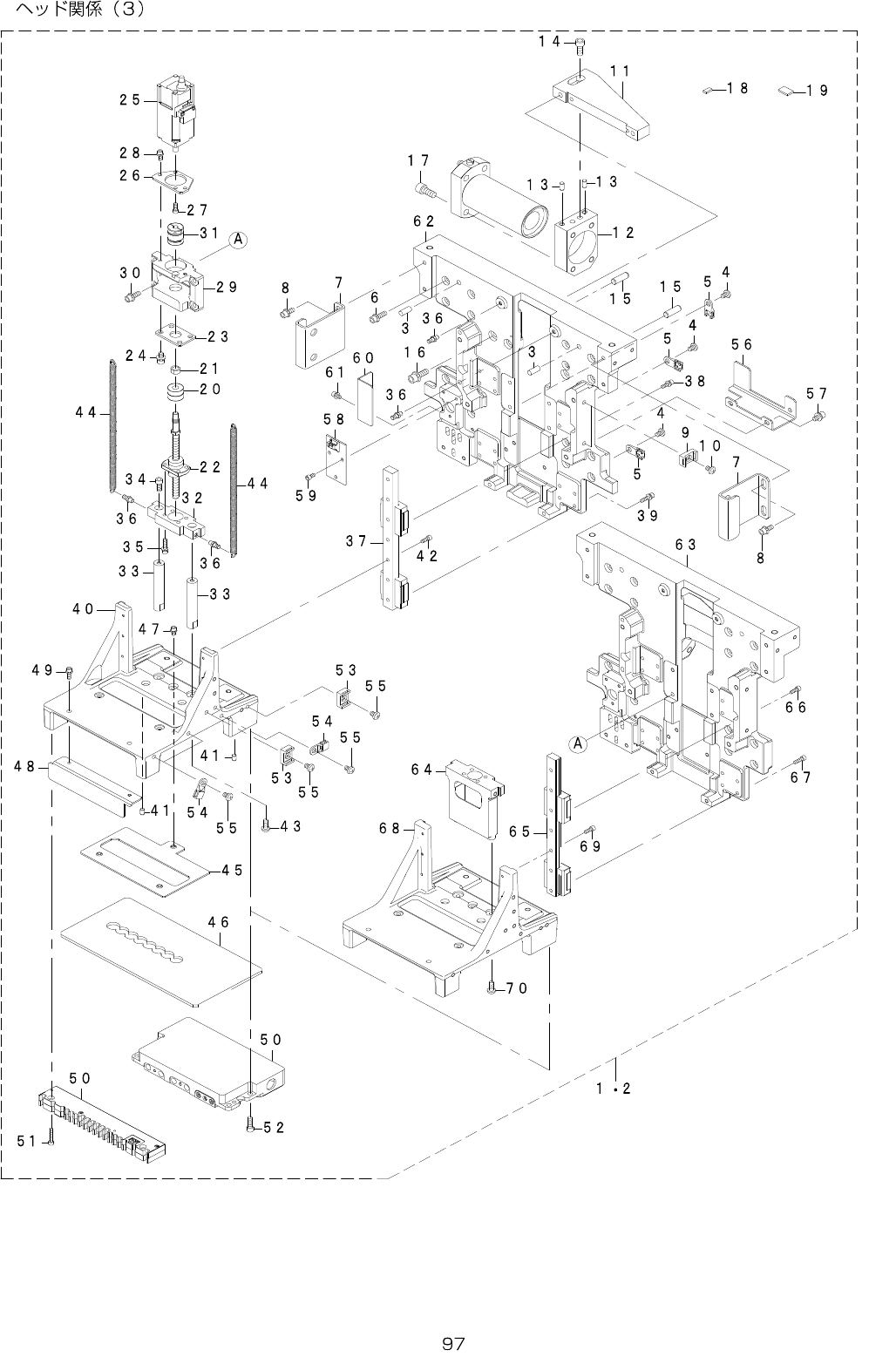

49.HEADCOMPONENTS(3)
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1
#01
401-82931 HEAD_PLATE_ASSY 1
2
#02
401-94752 HEAD_PLATE_ASSY_CD 1
3 PH-0500122-C0 PARALLELPINTYPEB5X12 (2)
4 SM-4040601-SC SCREWM4X0.7L=6 (3)
5 HX-0034400-00 FIXEDBASE (3)
6 SL-6041492-TN SCREWM4L=14 (16)
7 400-47317 HEAD_HANDLE (2)
8 SL-6041092-TN SCREWM4L=10 (4)
9 HX-0029400-00 FIXEDBASE (2)
10 SM-4040601-SC SCREWM4X0.7L=6 (2)
11
#01
401-86173 X_NUT_HOLDER_B (1)
12
#01
401-86172 X_NUT_HOLDER_A (1)
13
#01
PH-0400082-C0 PARALLELPINTYPEB4X8 (2)
14
#01
SM-6051202-TN SCREWM5X0.8L=12 (2)
15
#01
PH-0400122-C0 PARALLELPINTYPEB4X12 (2)
16
#01
SL-6051692-TN SCREWM5L=16 (2)
17 SM-6061402-TN SCREW (4)
18 401-82882 LIMIT_DUMPER_ZA (2)
19 401-82884 LIMIT_DAMPER_ZA_U (2)
20 EZ-4454738-01 BEARING(MTA06-15)ANGULAR (1)
21 EZ-4463629-01 NUT(Z)BEARING (1)
22 EZ-4454740-01 SCREW(BLK0606S-3G1)BALL (1)
23 401-82918 ANGULAR_PLATE_D6 (1)
24 SL-6040892-TN SCREWM4L=8 (4)
25 401-87431 SERVOMOTOR30W (1)
26 401-82919 ZA_MOTOR_FRANGE (1)
27 SM-6030802-TN SCREW (2)
28 SL-6030892-TN SCREWM3L=8 (2)
29 401-82914 ZA_MOTOR_BRACKET (1)
30 SL-6041292-TN SCREWM4L=12 (4)
31 EZ-4454741-01 COUPLING(SFC-010SA2-5B-5B) (1)
32
#01
401-82921 LNC_LINK_D6 (1)
33
#01
401-82920 LNC_SHAFT (2)
34
#01
SM-6041002-TN SCREW (2)
35 SL-6031492-TN SCREWM3L=14 (4)
36 401-82922 SPRING_STUD (4)
37
#01
401-82923 LM_GUIDE(ML12) (2)
38
#01
SL-6031092-TN SCREWM3L=10 (8)
39
#01
SL-6031292-TN SCREWM3L=12 (8)
40
#01
401-82924 LNC_SLIDE_BRACKET (1)
41 PH-0400062-C0 PARALLELPINTYPEB4X6 (2)
42 SM-6030802-TN SCREW (6)
43 SM-3041052-TN SCREWM4L=10 (2)
44 401-82925 LNC_UP_SPRING1 (2)
45 401-82926 DIFFUSER_BR (1)
46 401-82927 LNC120_DIFFUSER (1)
47 SL-6030692-TN SCREWM3L=6 (3)
48 401-82928 DISTURBANCE_COVER (1)
49 SL-6031092-TN SCREWM3L=10 (2)
50 401-82791 LNC120-8 (1)
51 SM-6031602-TN SCREWM3L=16 (2)
52 SM-6041202-TN SCREWM4X0.7L=12 (4)
53 HX-0029400-00 FIXEDBASE (3)
54 HX-0034400-00 FIXEDBASE (3)
55 SM-4040601-SC SCREWM4X0.7L=6 (6)
56 401-82883 X_LIMIT_SENSOR_DOG (1)
57 SL-6040892-TN SCREWM4L=8 (2)
58 401-28883 THERMALSENSORPCBASM (1)
59 SM-6030602-TN SCREWM3X6 (3)
60 401-82930 THERMAL_SENSOR_COVER (1)
61 SL-6030692-TN SCREWM3L=6 (2)
62
#01
401-82878 HEAD_PLATE (1)
63
#02
401-94741 HEAD_PLATE (1)
64
#02
401-94743 LNC_LINK (1)
65
#02
401-94753 ZA_LINEAR_GUIDE (2)
66
#02
SM-6030802-TN SCREW (8)
67
#02
SM-6031002-TN SCREWM3L=10 (8)
68
#02
401-94745 LNC_SLIDE_BRACKET (1)
69
#02
SM-6030802-TN SCREW (6)
70
#02
SM-3041052-TN SCREWM4L=10 (2)
